JL Audio

JL Audio 13.5-inch (345 mm) Subwoofer Driver, Dual 1.5 Ω

JL Audio 13.5-inch (345 mm) Subwoofer Driver, Dual 1.5 Ω

$2,699.00 AUD
$2,699.00 AUD
Sale Sold Out

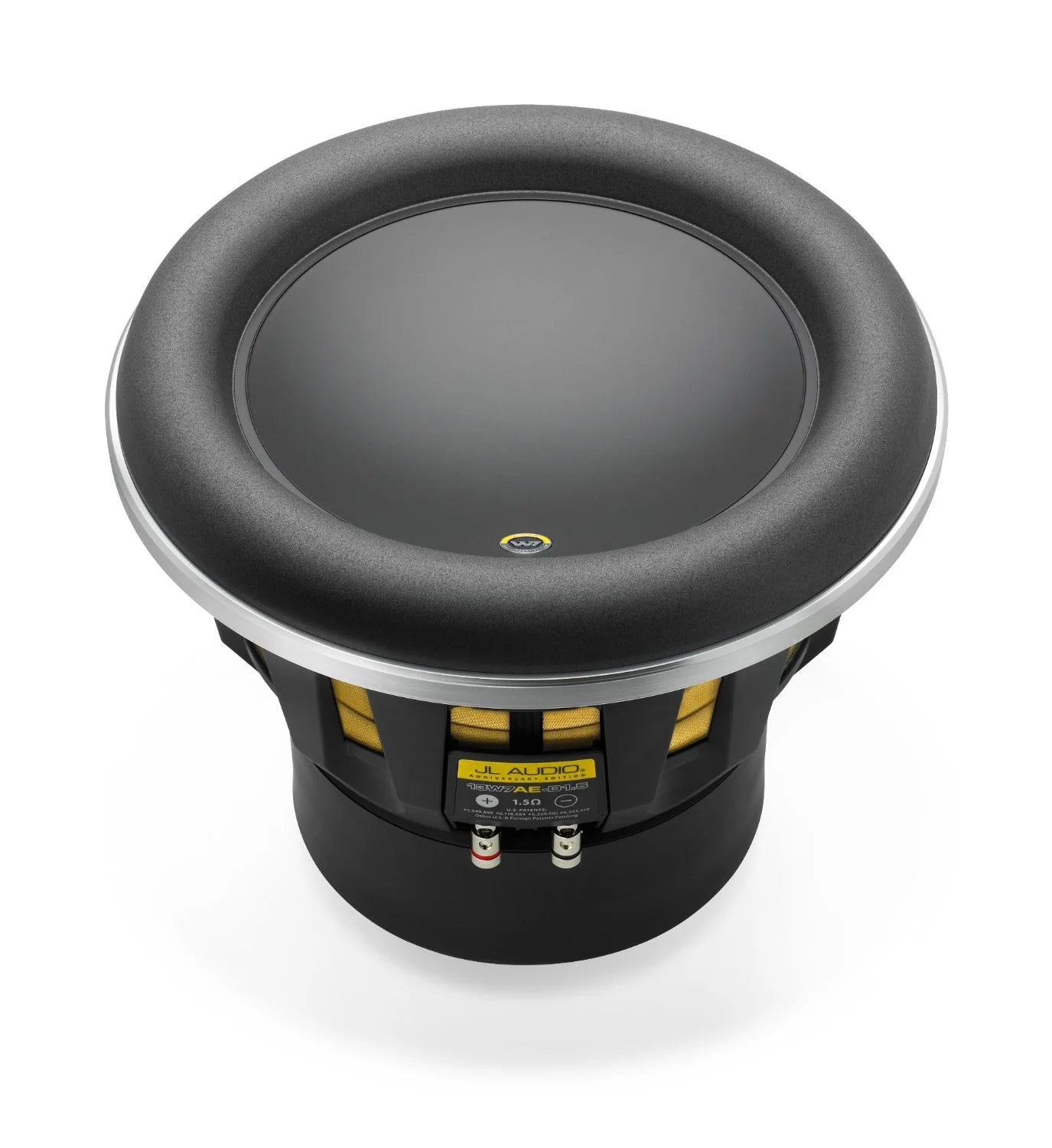

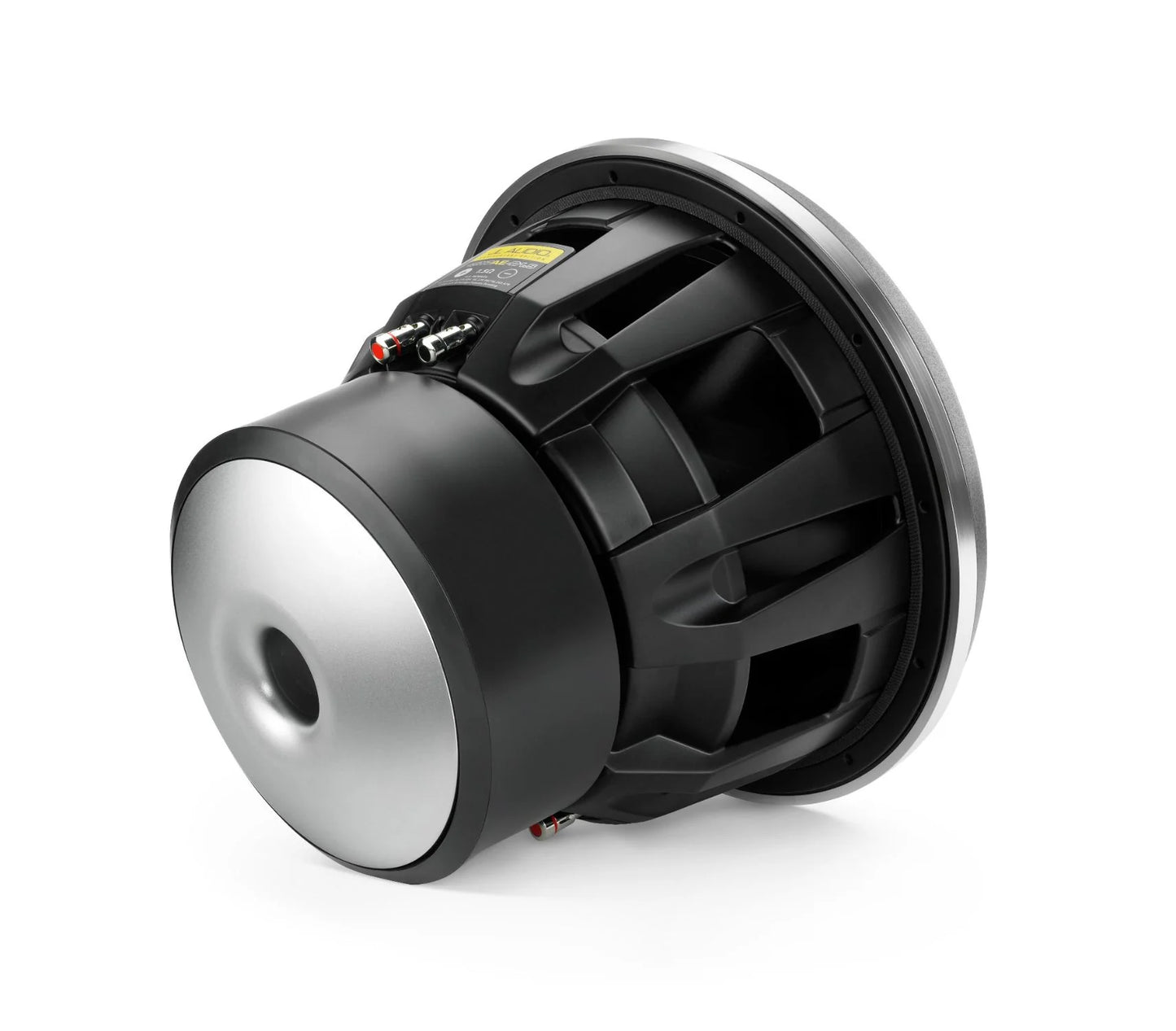

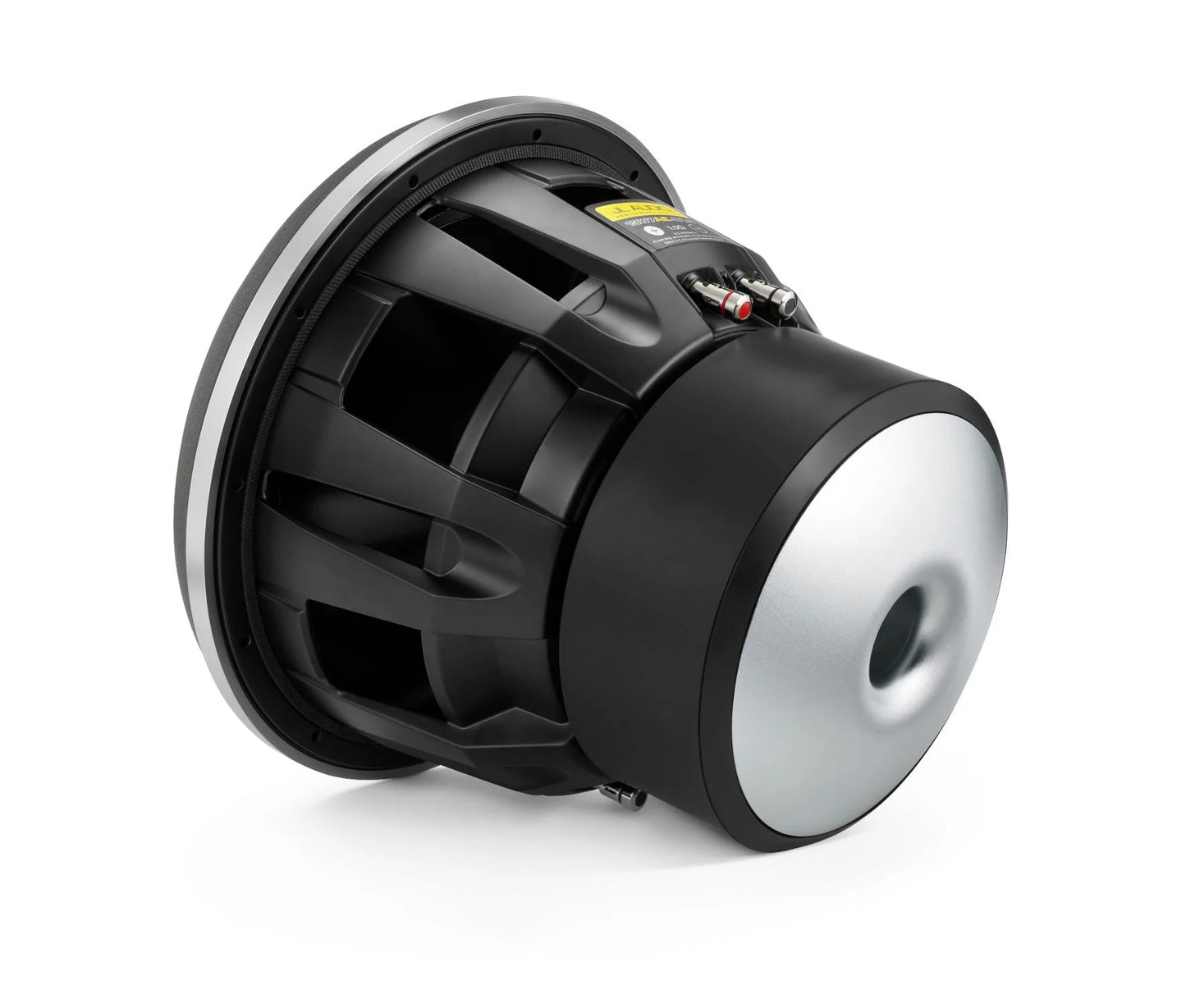

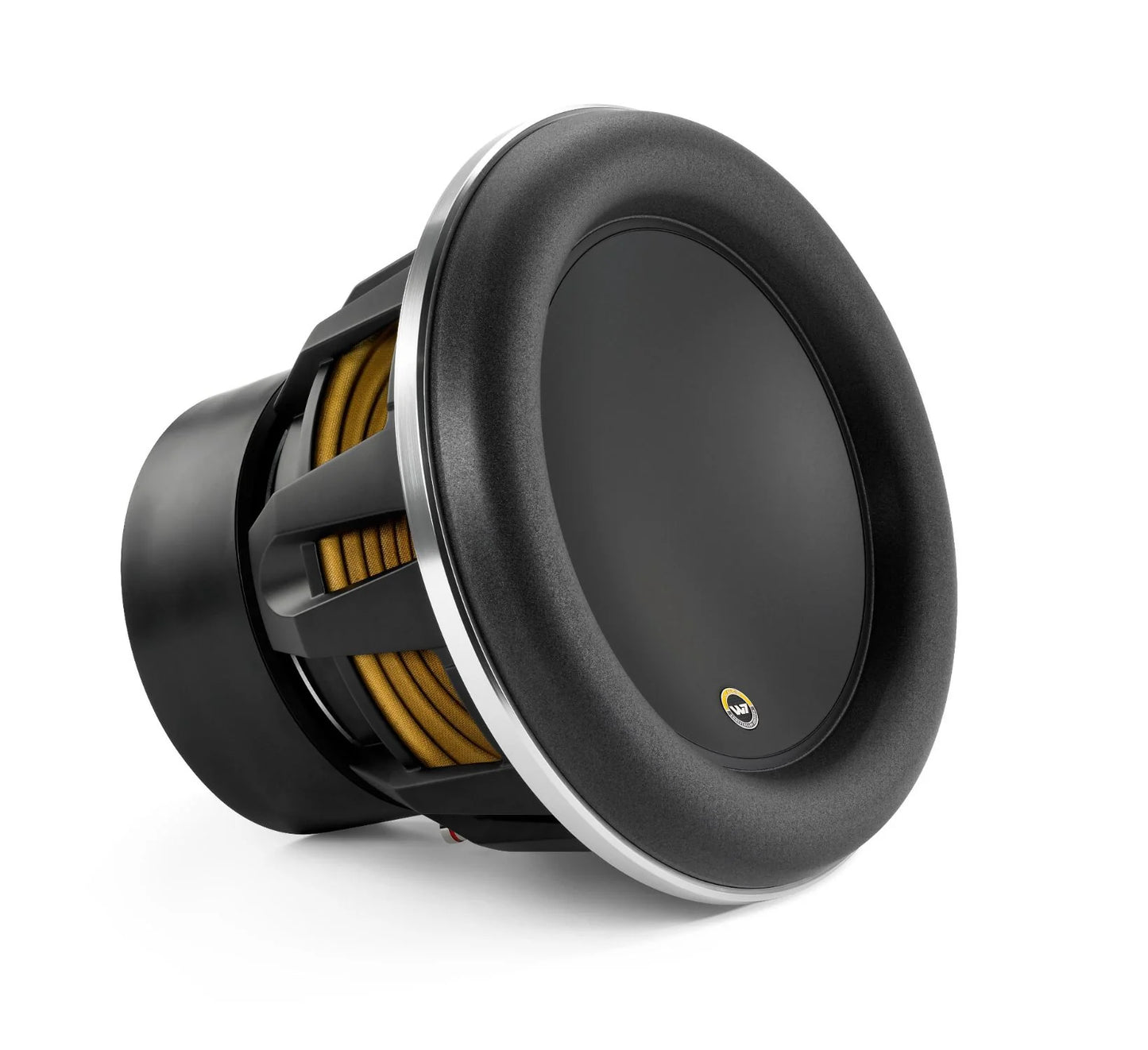

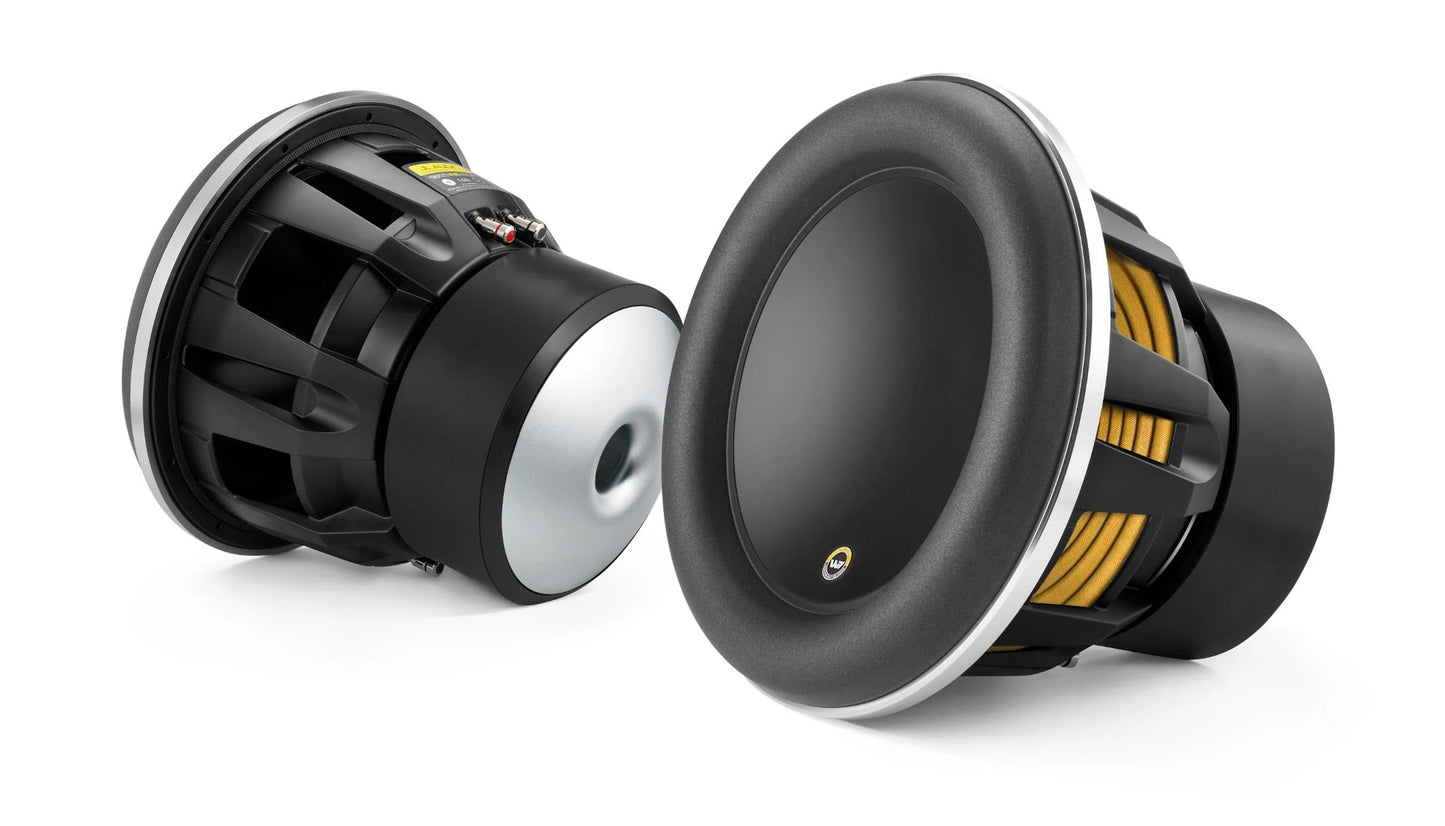

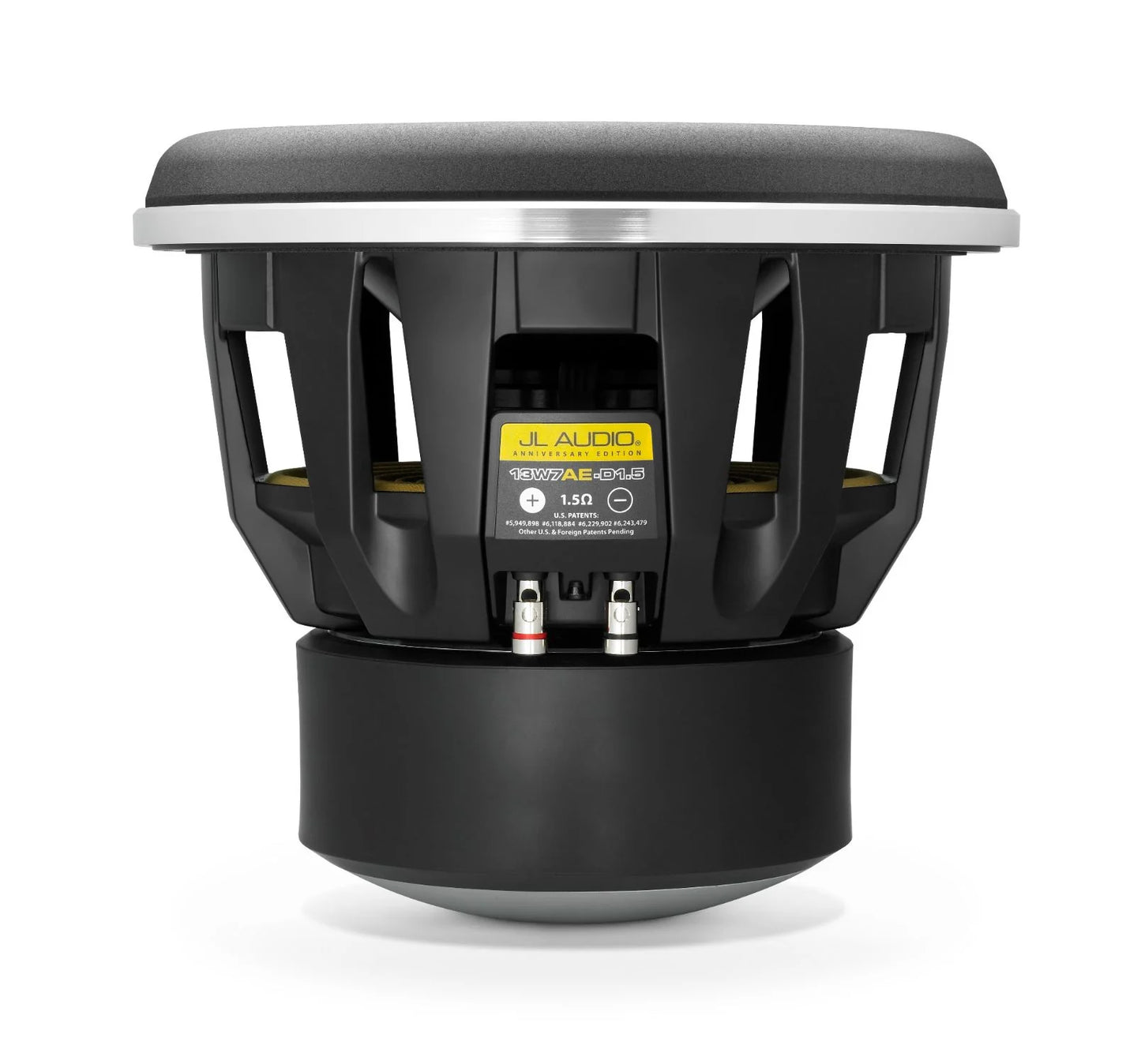

10th Anniversary Edition - W7 13.5-inch Subwoofer (1500 W, Dual 1.5 Ω voice coils)

Words like "extreme," "reference" and "ultimate" get thrown around quite a bit in the Subwoofer world, but rare is the product that can honestly lay claim to them. The 13W7AE does.

Taking the W7 design formula to its highest level, the 13W7AE offers a staggering linear excursion envelope that exceeds 1.25 inches (32 mm) one-way, along with a suspension capable of over 4-inches of peak-to-peak excursion. Combine that with a piston diameter that is 28% larger than the 12W7AE's, and you have a serious high-performance driver for the most demanding applications. With a 13W7AE, limits simply vanish and amazing sub-bass happens... on all fronts, at any level.

Our most potent Subwoofer is best used with amplifier power in the 500W - 1500W range and is optimized to operate in a 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.375 cu. ft. (67.3 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

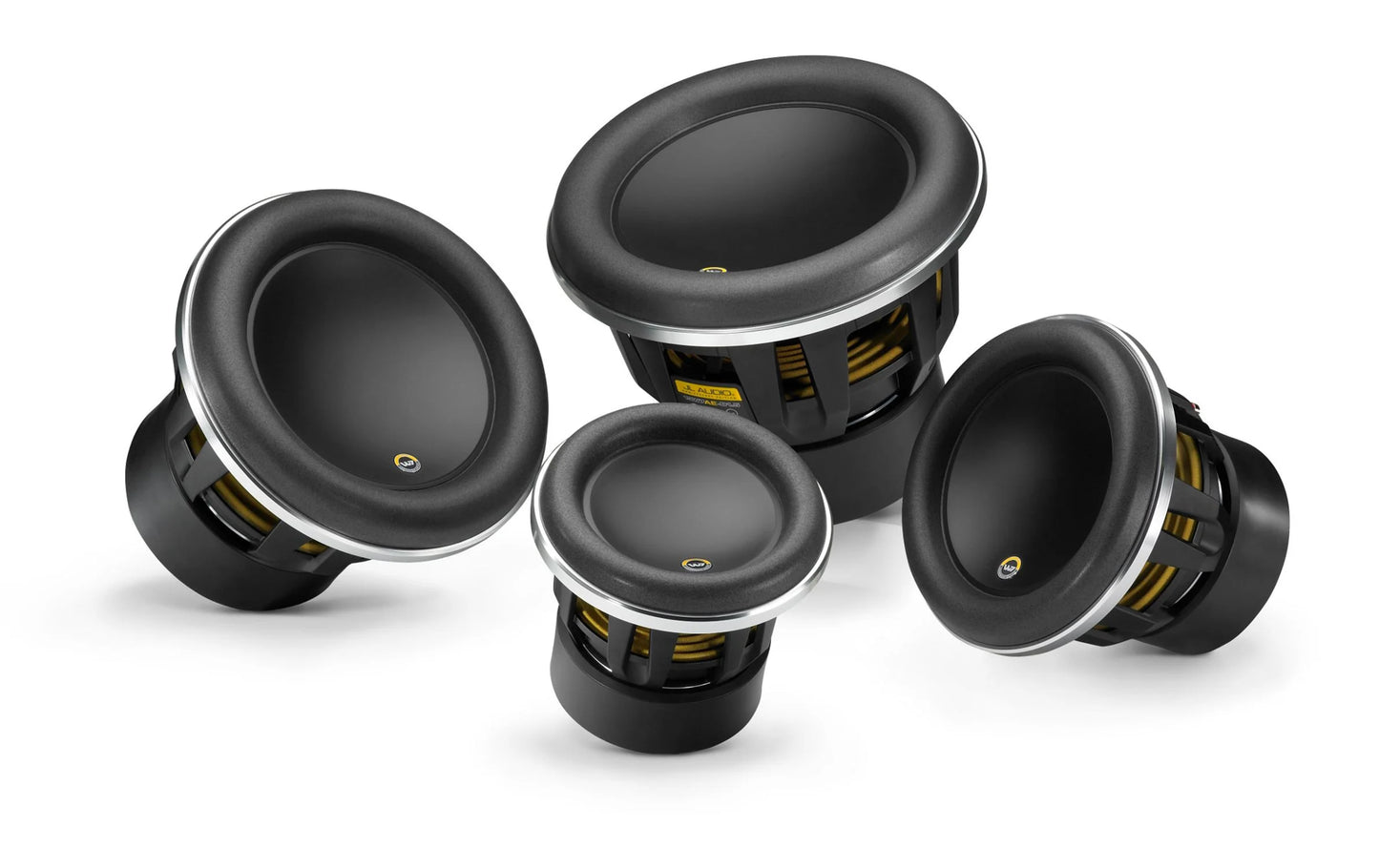

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but they are distinguished by the following cosmetic differences:

  • Satin-Black Powdercoated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label

General Specifications

Power Chart for 13W7AE Subwoofer with ideal Power Range of 500 - 1500 W

Continuous Power Handling (RMS) 1500 W
Recommended Amplifier Power (RMS) 500 - 1500 W
Nominal Impedance (Znom) Dual 1.5 Ω



Physical Specifications

Lineart Bottom-View and Side-View of 13W7AE Subwoofer with dimension labels A-E

Nominal Diameter 13.5 in / 345 mm
Overall Diameter (A) 14 in / 356 mm
Mounting Hole Diameter (B) 11.9 in / 302 mm
Bolt Hole Circle Diameter (C) 12.7 in / 323 mm
Motor Outer Diameter (D) 8.38 in / 213 mm
Mounting Depth (E) 10.5 in / 267 mm
Driver Displacement 0.21 cu ft / 5.9 L
Net Weight 52 lb / 23.6 kg



Parameters

Free Air Resonance (Fs) 23.5 Hz
Electrical “Q” (Qes) 0.476
Mechanical “Q” (Qms) 7.517
Total Speaker “Q” (Qts) 0.448
Equivalent Compliance (Vas) 3.68 cu ft / 104.3 L
One-Way Linear Excursion (Xmax)* 1.25 in / 32 mm
Reference Efficiency (no) 0.27%
Efficiency (1 W / 1 m)** 86.3 dB SPL
Effective Piston Area (Sd) 107.35 sq in / 0.0693 sq m
DC Resistance (Re)*** 2.41 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.


More Specifications

Download  13W7AE-D1.5 Product Manual
