JL Audio 15W0v3-4 15-inch (380 mm) Subwoofer Driver, 4 Ω

JL Audio 15W0v3-4 15-inch (380 mm) Subwoofer Driver, 4 Ω

$299.00 AUD
$299.00 AUD
Sale Sold Out

W0v3 15-inch Subwoofer (500 W, 4 Ω)

Sometimes, bigger is better... For these situations, the 15W0v3 offers excellent excursion capability, linearity and an overall performance envelope that puts it right at the top of its price class. It features a very beefy 2.5 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.

The 15W0v3 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a moderately sized 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.75 cu. ft. (77.88 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Specifications
Power Chart for 15W0v3 Subwoofer with ideal Power Range of 150 - 500 W
Continuous Power Handling (RMS) 500 W
Recommended Amplifier Power (RMS) 150 - 500 W
Nominal Impedance (Znom) 4 Ω



Physical Specifications
Lineart Bottom-View and Side-View of 15W0v3 Subwoofer with dimension labels A-E
Nominal Diameter 15.0 in / 380 mm
Overall Diameter (A) 15.5 in / 394 mm
Mounting Hole Diameter (B) 13.75 in / 349 mm
Bolt Hole Circle Diameter (C) 14.56 in / 370 mm
Motor Outer Diameter (D) 6.3 in / 160 mm
Mounting Depth (E) 7.15 in / 182 mm
Driver Displacement 0.109 cu ft / 3.09 L
Net Weight 15.8 lb / 7.2 kg



Parameters
Free Air Resonance (Fs) 24.43 Hz
Electrical “Q” (Qes) 0.508
Mechanical “Q” (Qms) 9.474
Total Speaker “Q” (Qts) 0.482
Equivalent Compliance (Vas) 5.106 cu ft / 144.60 L
One-Way Linear Excursion (Xmax)* 0.50 in / 12.7 mm
Reference Efficiency (no) 0.18%
Efficiency (1 W / 1 m)** 88.20 dB SPL
Effective Piston Area (Sd) 122.317 sq in / 0.0789 sq m
DC Resistance (Re) 3.555 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.



Sealed Enclosure Specifications
Lineart diagram of empty sealed enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.875 cu ft / 53.10 L
External Width (W) 16 in / 406 mm
External Height (H) 15.75 in / 400 mm
External Depth (D) 18 in / 457 mm
F3 38 Hz
Fc 47.14 Hz
Qtc 0.9301

Enclosure Notes

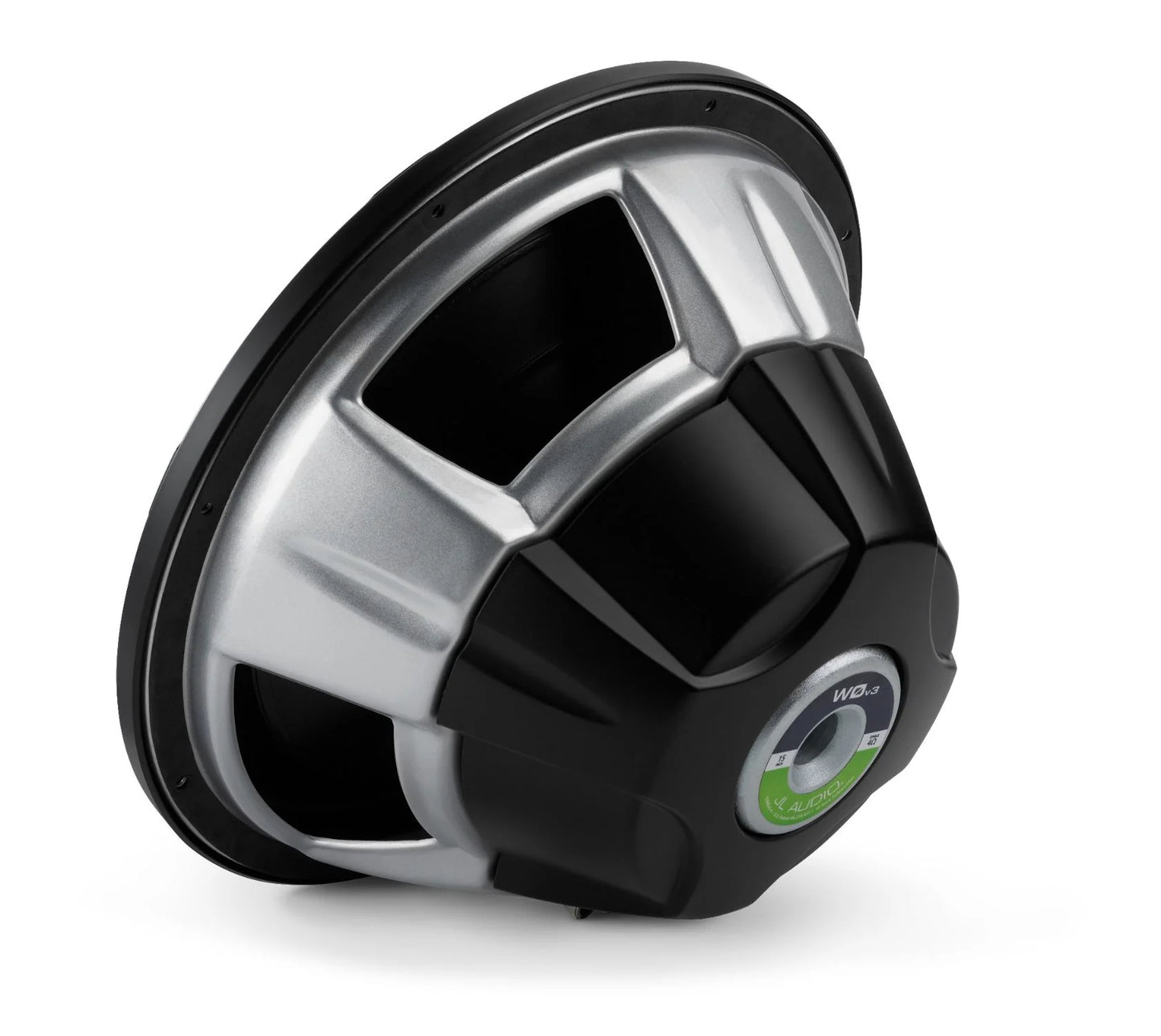

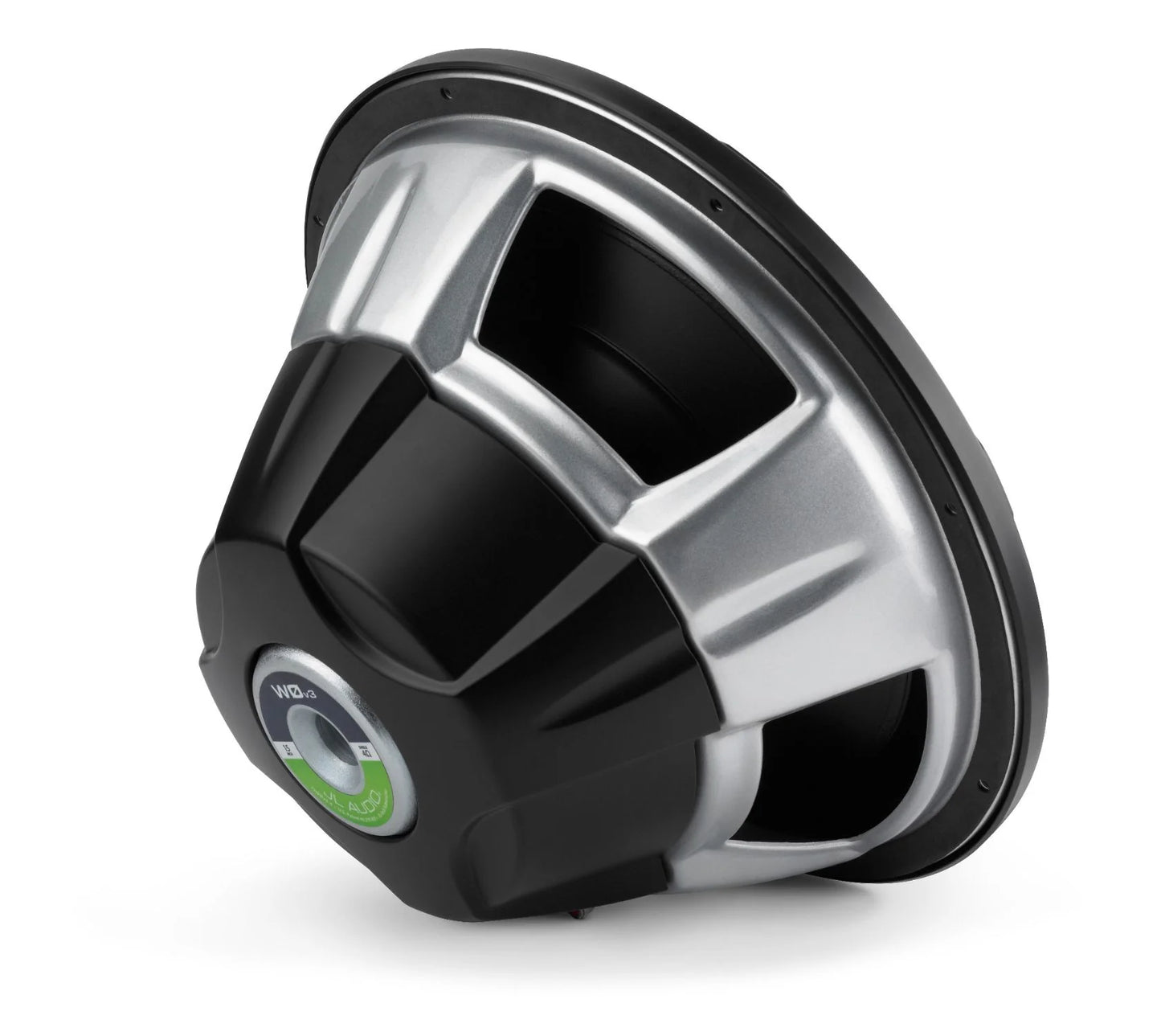

* The W0v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located within the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.



Ported Enclosure Specifications
Lineart diagram of empty round ported enclosure with Height (H), Width (W) and Depth (D) and port length (L) and port inner-diameter (ID) dimension labels
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 2.75 cu ft / 77.88 L
External Width (W) 20 in / 508 mm
External Height (H) 18 in / 457 mm
External Depth (D) 18.5 in / 470 mm
Internal Port Diameter (ID) 4 in / 102 mm
Port Length (L) 16.85 in / 428 mm
Tuning Frequency (Fb) 25 Hz
F3 30 Hz

Enclosure Notes
* The W0v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located within the JL Audio badge at the rear of the speaker. A minimum distance of 0.5 in (13 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.



15W0v3-4 Product Manual
