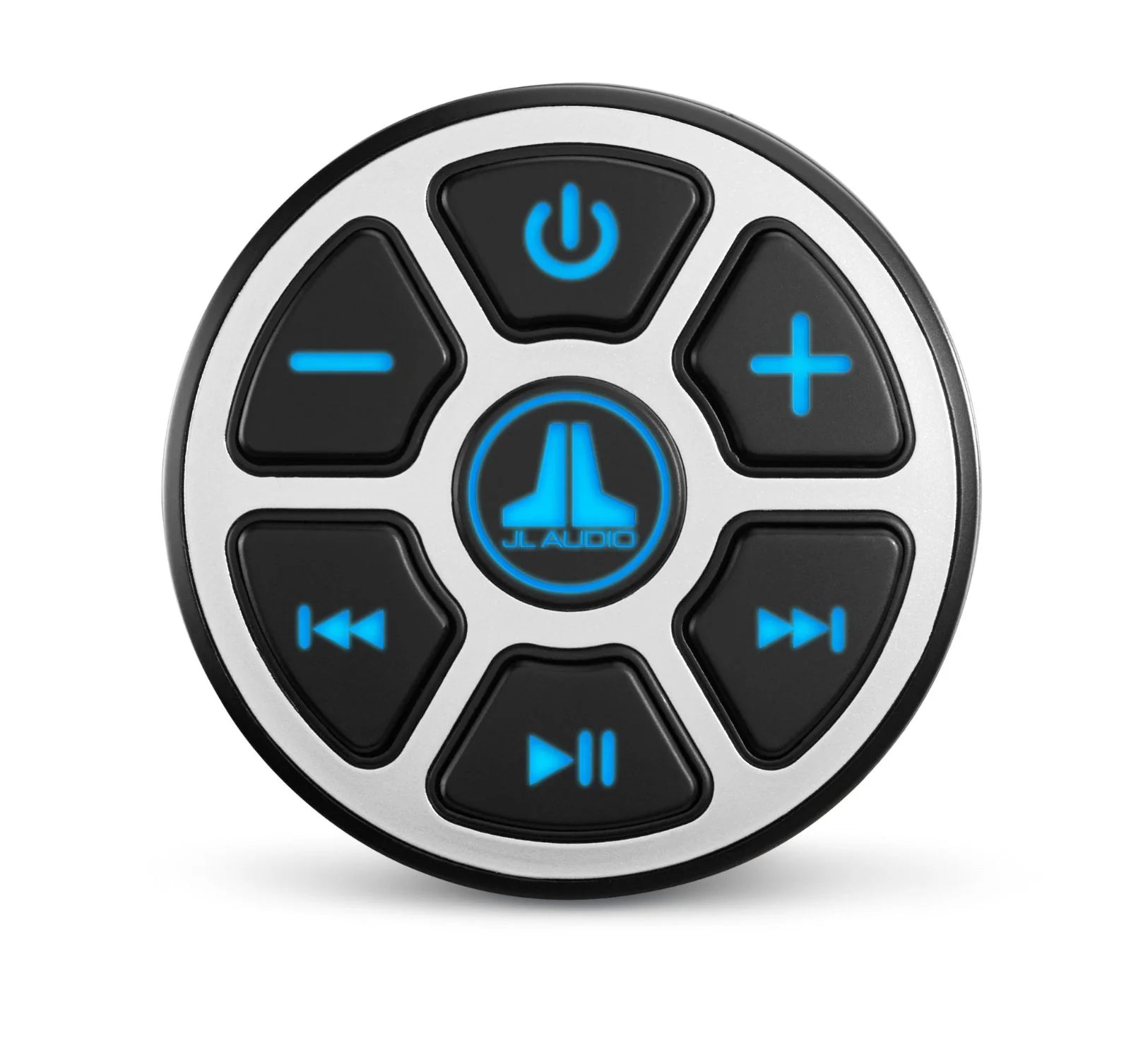

JL Audio MBT-CRXv2 Weatherproof Bluetooth® Controller / Receiver

Bluetooth® Audio Controller / Receiver

Designed for marine and powersports applications, the MBT-CRXv2 Bluetooth® Controller/Receiver delivers your favorite music from a Bluetooth® equipped device directly to your audio system.

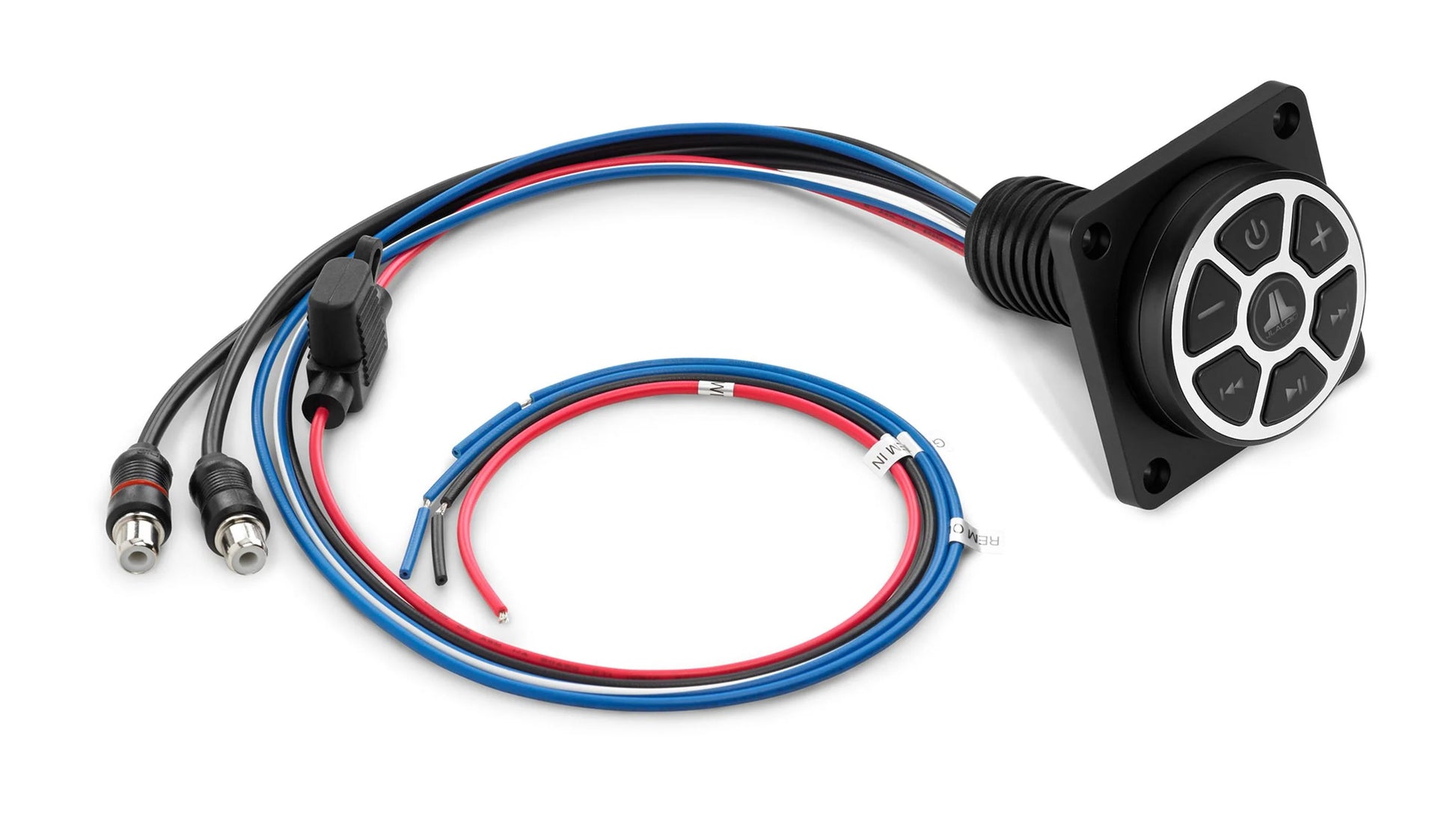

With an IP67 water resistance rating, the MBT-CRXv2 is ideal for small watercraft, motorcycles, ATV’s or other utility vehicles. Add Bluetooth® connectivity to any source unit with line-level/auxiliary inputs or connect directly to an amplifier and use it as a stand-alone source unit/receiver. Large LED backlit push-button controls are easy-to-see and easy-to-use, day or night. A small footprint and clever, one-hole design makes installation a breeze. An adaptor plate is also included for easy front mounting or where rear access is limited or not possible.

Equipped with Bluetooth® v4.0 and the Qualcomm® aptX™ audio codec, the MBT-CRXv2 sends top-quality audio and performance from compatible devices to deliver dynamic, CD-like sound without any cables. With a wireless connection range of up to 35 ft., you can conveniently control the connected audio without returning to your Bluetooth® device. This means your device can stay safely tucked-away from the elements.

When you’re ready to set sail or tackle your next adventure, great sound is waiting for you with the MBT-CRXv2 Bluetooth® Audio Controller/Receiver.

Bluetooth® Core Specification	Version 4.0 with Qualcomm® aptX™ audio
Current Draw	48 mA (at idle) / 64 mA (at full output)
Input Operating Voltage	8 - 28 VDC
Fuse Rating	2A Mini ATC
Output Voltage	2V RMS
Frequency Response	20 Hz - 18 kHz (±1dB)
Connection Range*	Up to 35 ft / 11 m
S/N Ratio	93 dB (20 Hz - 20 kHz)
Remote Turn-on Output Capacity	350 mA (max)
Bluetooth® Profile	A2DP (High-Quality, Stereo Audio)
Outputs	One Stereo Pair, Low-Level RCA Plugs
*Maximum range is achieved in line-of-sight installations. Actual range will vary based on installation specifics.



Physical Specifications

Width (W)	2.15 in / 55 mm
Height (H)	2.15 in / 55 mm
Depth (D)	0.74 in / 19 mm
Mounting Depth (A)	2.36 in / 60 mm
Mounting Hole Diameter	1.125 in / 29 mm (minimum diameter for mounting with rear of panel access) 1.875 in / 48 mm (maximum for front mounting with plate)



MBT-CRXv2 Product Manual
