ESB Audio

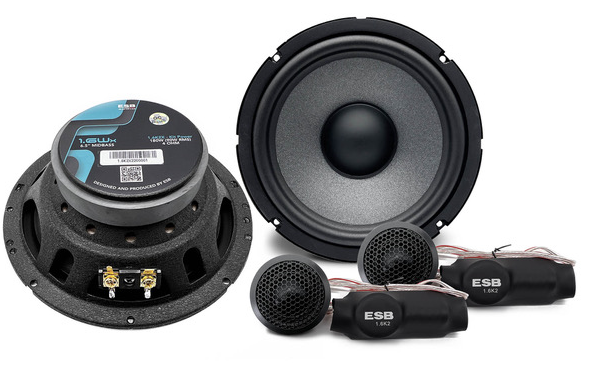

ESB Audio 1000 Series 6.5" 2-Way Speakers

ESB Audio 1000 Series 6.5" 2-Way Speakers

Regular price $299.00 AUD
Regular price Sale price $299.00 AUD
Sale Sold Out

The 1000 Series was conceived and designed to offer ESB sound in low-cost speakers, without sacrificing quality. The woofer’s pressed paper cone, the large voice coils for handling high power, and the silk dome tweeters with neodymium magnets, are just some of the features that make these speakers uncompromising.

Main Features

The 1000 Series was conceived and designed to offer the ESB sound in affordable speakers, without sacrificing quality. The pressed paper cones for the woofers, the large voice coils able to handle high power and the tweeters with a silk dome and neodymium magnet, are just some of the features that make these speakers uncompromising.
The 1000 Series tweeters use a silk dome for a smooth and natural sound. The dome is of extremely low mass and is much less susceptible to mechanical deformation. It provides a smooth, linear and very extended response. The high-grade neodymium magnet is optimized to get better efficiency and improve linearity, to ensure greater and better power management, and an increase in bandwidth and efficiency.
The woofer cones, made of paper, are the ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration. The rubber surround ensures high damping and transversal stability, eliminating movements that could cause contact with the 25 mm voice coil and the magnet. The high grade 10 Oz ferrite magnet has higher performance and ensures great power management and higher efficiency.

Technical Specifications

- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 90 Watt
- Transient Power: 180 Watt
- Frequency Response: 50 Hz ~ 21 KHz
- Sensitivity: 92 dB 2.83v/1m

Data Sheet

Installation Sheet
