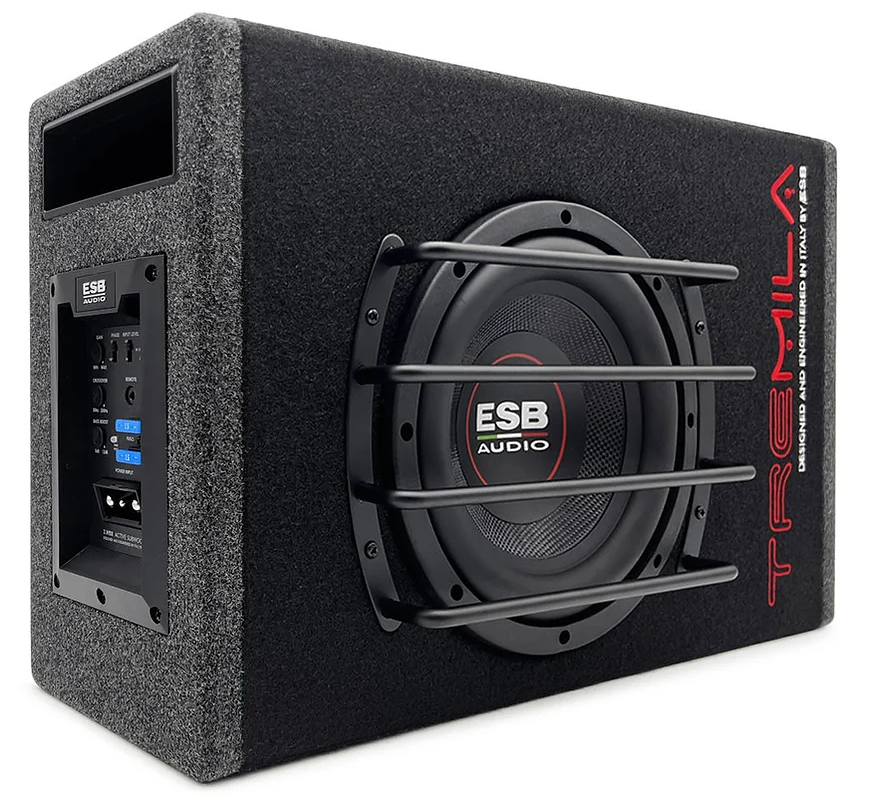

ESB Audio 3000 Series 8'' Active Loaded Sub

ESB Audio 3000 Series 8'' Active Loaded Sub

Regular price $699.00 AUD
Regular price Sale price $699.00 AUD
Sale Sold out

SKU:ESB3.WB8

The ESB 3000 speaker system was developed and assembled with a great commitment to the research of materials and engineering solutions of the highest level.
The baskets have been engineered to obtain maximum torsional rigidity (resistance to bending). The speaker cones use pressed paper with a waterproof treatment which represents an ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration. All the woofers are equipped with a Y-35 grade ferrite magnet motor, having significantly higher performance than classic "standard" magnets.
The tweeters use a silk-impregnated, thin fabric dome diaphragm for a smooth sound, with oversized voice coils ventilated and damped with iron-fluid oil.
They are supplied with accessories for flexible installation.

Main Features

ESB presents a new, active, ported subwoofer with extremely compact dimensions without sacrificing the power required by this speaker. The 3.WB8 uses a new construction technology, where is possible to use a very low impedance and high efficiency speaker (ideal for electric machines), an amplifier without the switching power supply stage (therefore less noise) and a higher power in a small space.
- Easy Installation, Ultra-Compact size (only 15 cm dept).
- High-Current Class D digital amplifier
- Power: 600 W (Max), 300 W (RMS)
- Speaker Impedance: 0.25 Ohm
- Speaker Type: Fiberglass/paper cone, ferrite magnet
- Variable Gain Control, Low Pass Filter (50 Hz ~ 200 Hz), Variable Bass Boost (0 ~ 12dB), Phase Control (0° ~ 180°)
- Auto Power-ON (Rem, DC Offset, Auto)
- Wireless remote control included
- Enclosure Housing Material: MDF

Technical Specifications

- Speaker Impedance: 0.25 Ohm
- Nominal Power Handling: 300 W
- Peak Power (Max): 600 W
- Sensitivity: 88 dB
