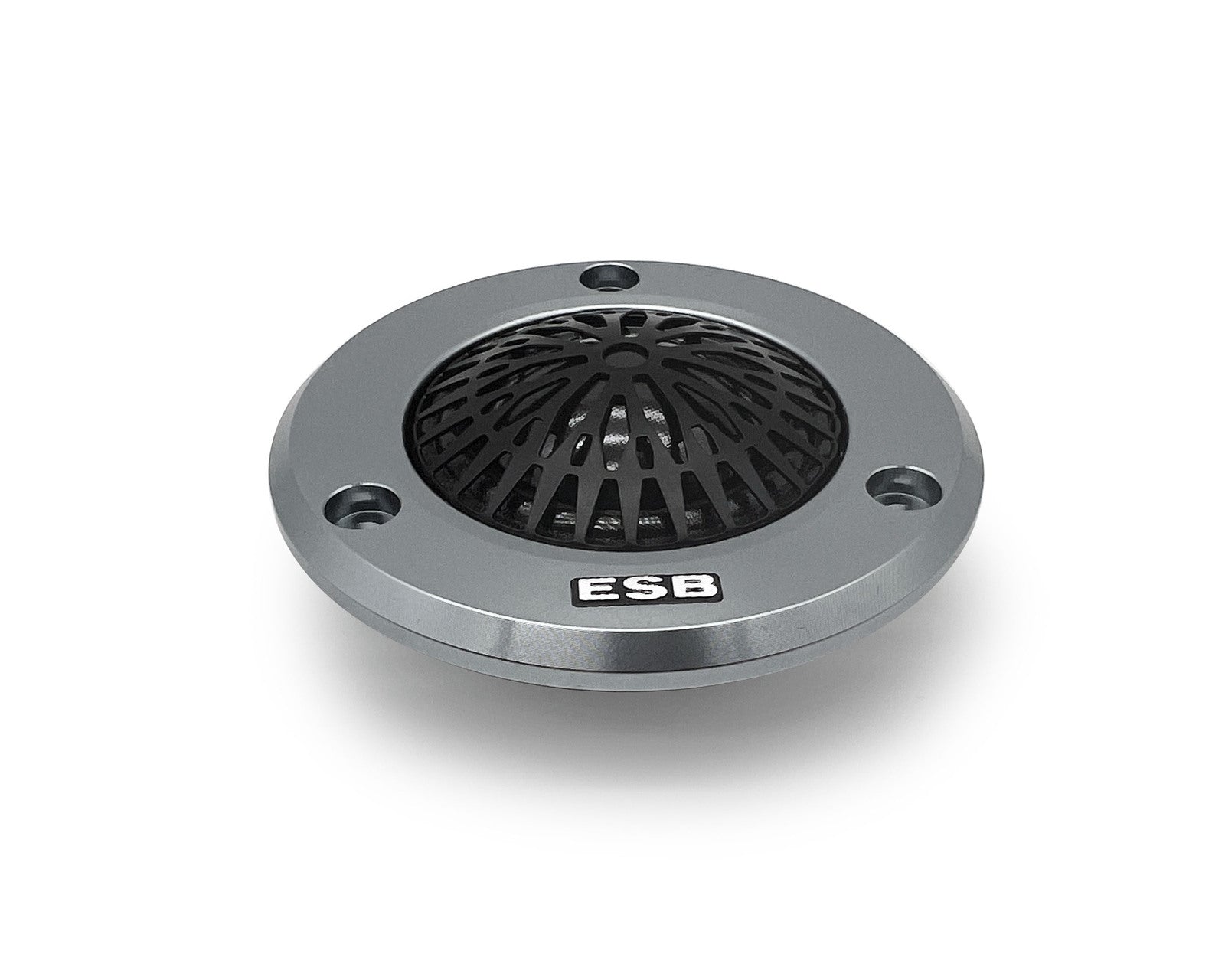

ESB Audio 4000 Series 1.1"/28 mm Dome Tweeter
ESB Audio 4000 Series 1.1"/28 mm Dome Tweeter
ESB’s goal for its new 4000 Series was to push the limits of cost vs. performance. We know of no other car speakers currently on the market at these price points that make use of the same advanced materials or surpasses their remarkable performance. The particularly expensive design of the 3”/75 mm midrange driver and its high-grade, high-energy neodymium magnet guarantees a level of efficiency that supports high sound pressure levels even when paired with low-power factory amplifiers. Even the 4000 Series’ premium matt black steel grilles lend them a more refined aesthetic on par with more expensive speaker systems. They make a bold statement, yet blend harmoniously with just about any car interior. With ESB’s new 4000 Series, never has such quality, clarity, and accuracy been more affordable.
Main Features
- Silk dome with polymer laminated (Sonatex™) creates a perfect balance between weight, rigidity, and self-damping. The catenary curvature ensures wide dispersion of the tweeter.
- Under dome felt damper improves acoustic phase by absorbing reflections from the magnetic structure that bounce through the dome.
- High-grade neodymium magnet. Not all magnets of equal size are equal in strength. This high grade (N-52), high-energy magnet provides a high resistance to demagnetization and is over 25% stronger for the same mass than more common lower grade magnets. By utilizing a high-grade magnet, efficiency rises to extraordinary levels resulting in high output but controlled speaker.
- Main body in fiberglass-filled ABS for superior strength.

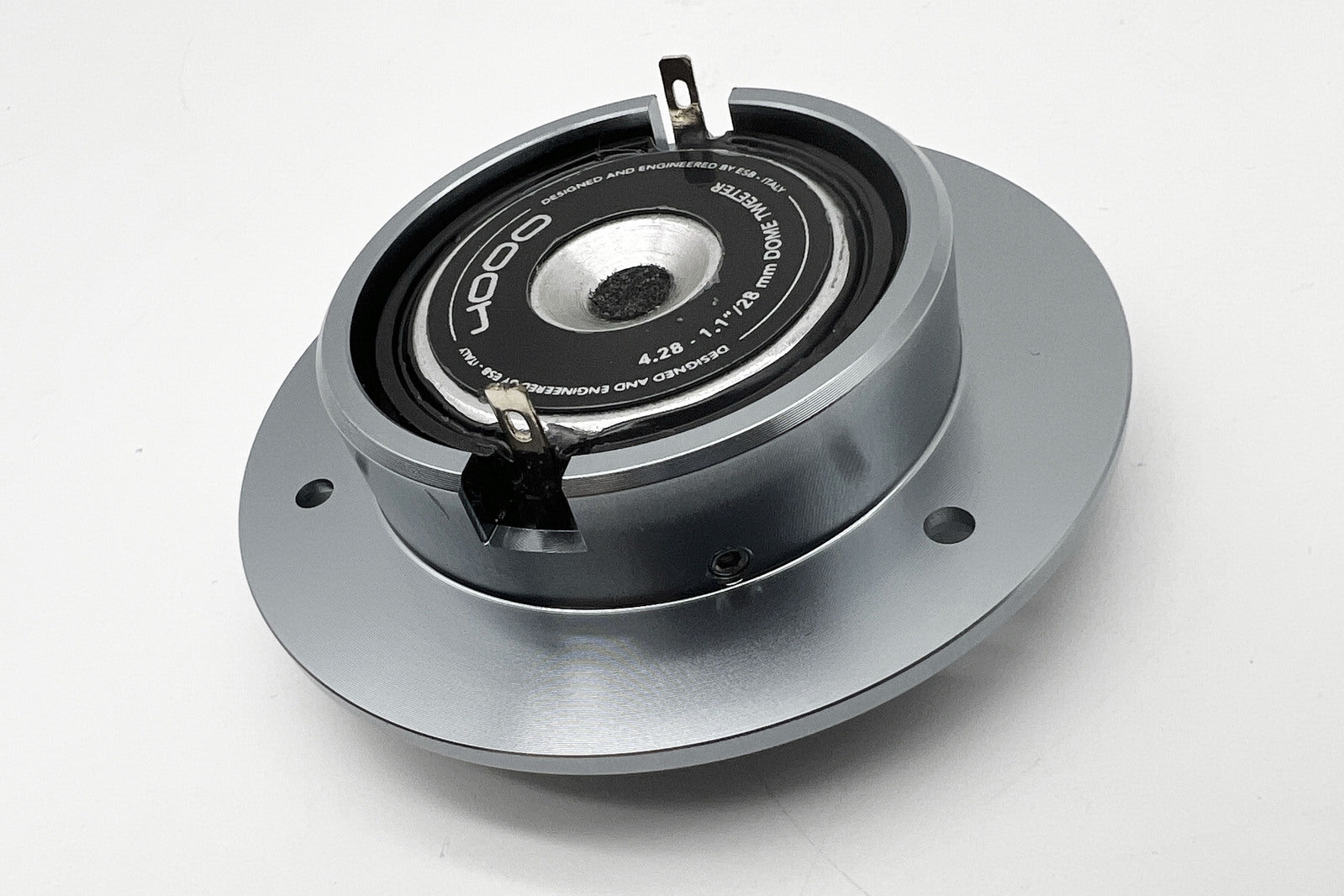

- Acoustic resistance component inside of the ventilation hole helps to control and dampen dome movement resulting in reduced distortion and a linear impedance curve for improved speaker/amplifier coupling.
- CNC-machined ultra-low carbon alloy steel pole plate. This type of
manufacturing process ensures perfect flatness so it sits perfectly flush over the magnet without reducing any crucial magnetic flux.
- The large aluminum copper-clad vented voice coil can handle very high power while reproducing music with extreme realism and high dynamics. The copper clad aluminum wire voice coil is very lightweight and with excellent heat dissipation/capacity.

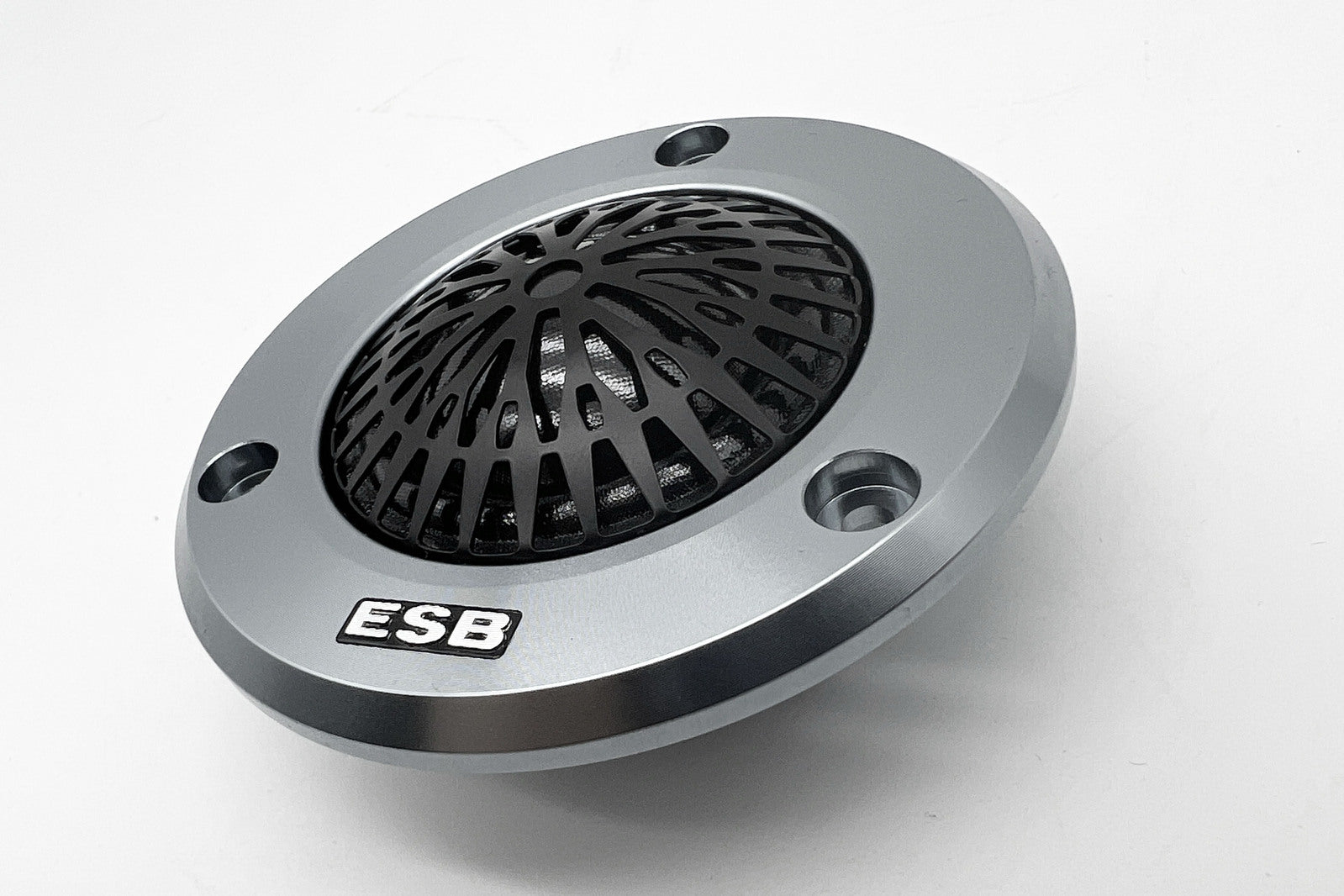

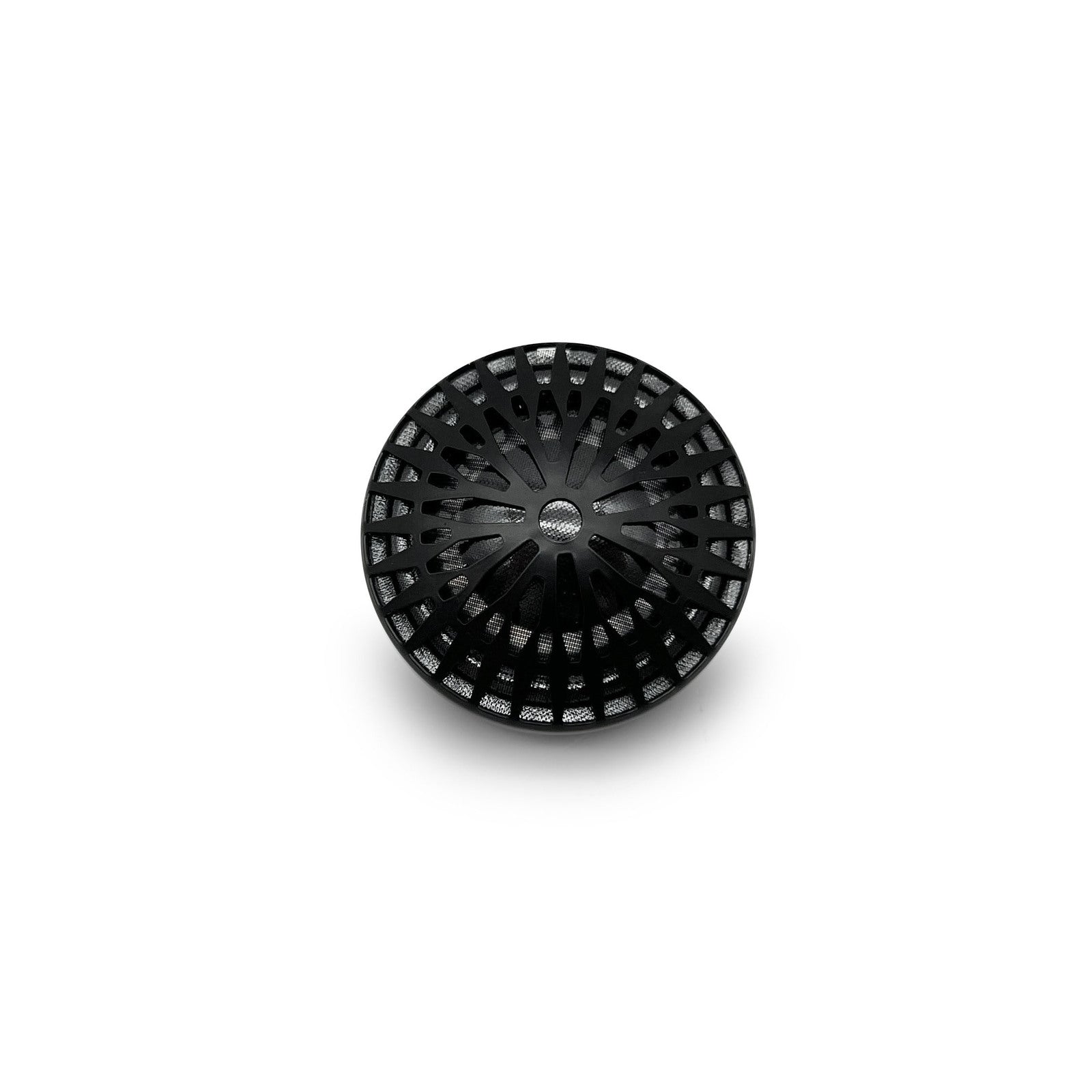

- Deluxe protective stainless-steel grille with perforations calibrated to function as an acoustic lens, guaranteeing the sound emission will be in the on-axis part of the speaker, and also curved to the sides, which is very useful in car installations where speaker placement often results in off-axis listening.

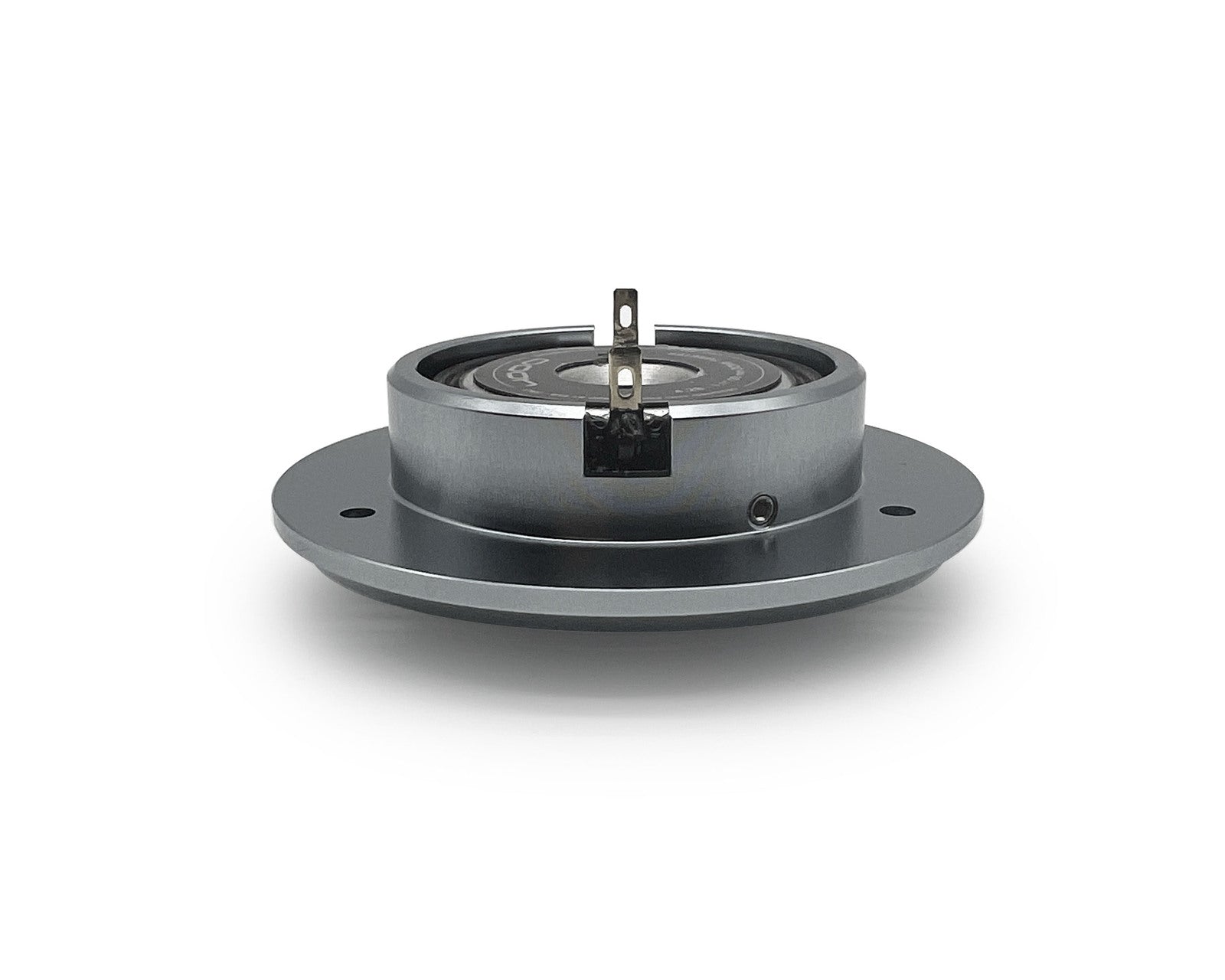

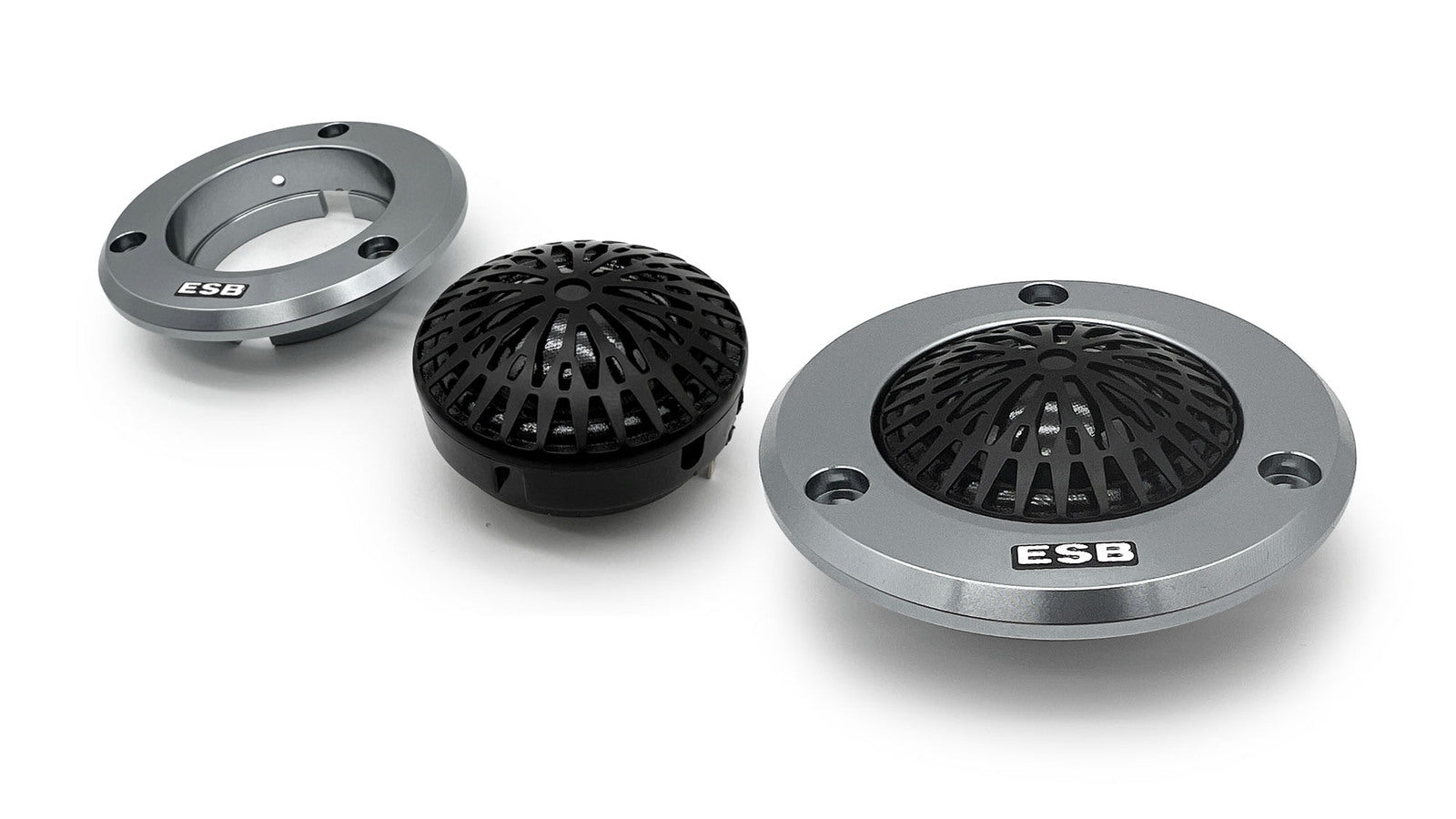

- CNC-machined aluminum alloy, flush mounted flange.
Technical Specifications
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 100 Watt
- Transient Power: 200 Watt
- Frequency Response: 1.5 KHz ~ 22 KHz
- Sensitivity: 93.5 dB 2.83v/1m
