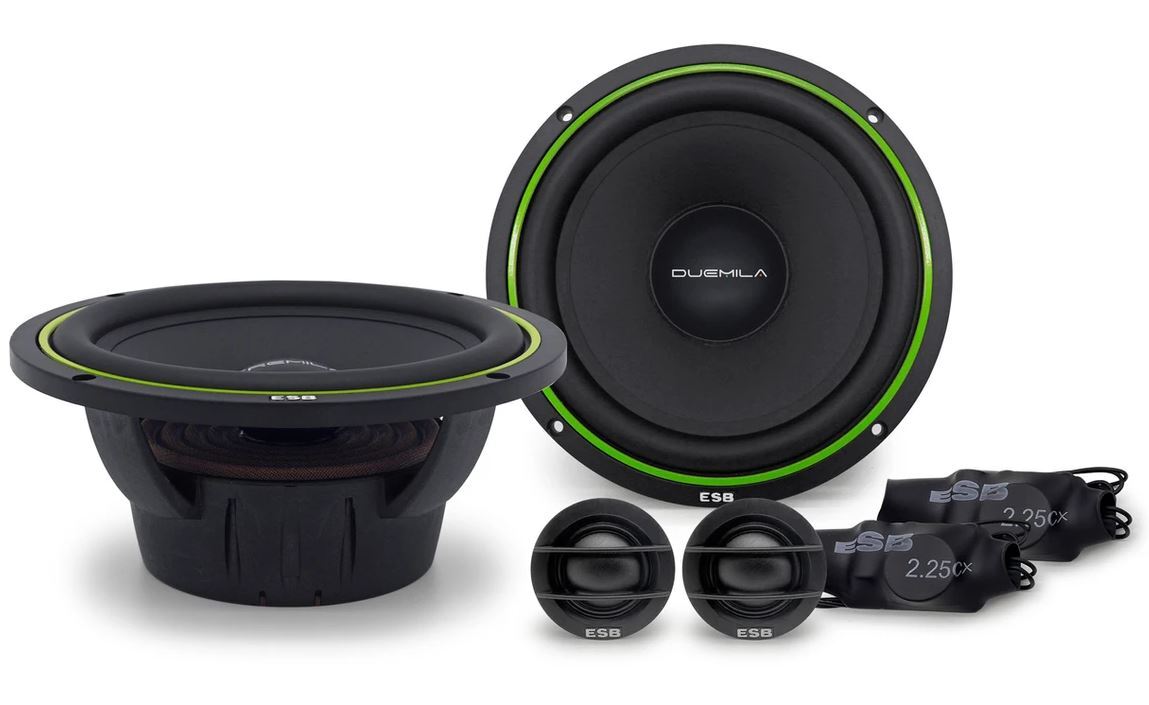

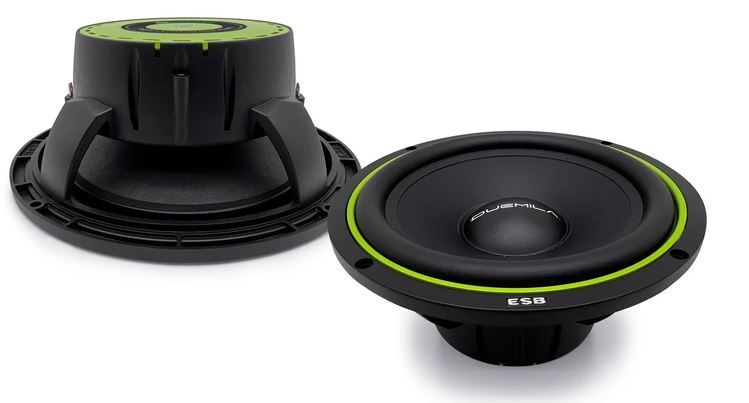

ESB Audio 2000 Series 6.5" 2-Way Speakers / 1" Tweeters

The 2000 Series include advanced technologies for car speaker to accurately reproduce music in the car. All the knowledge and experience of ESB’s R&D has been transferred to these special components to obtain maximum audio performance as it relates to bandwidth, dynamics in music response, higher fidelity, and more detailed sound. A reference product for your car audio category.

Main Features

- ABS basket reinforced with fiberglass. The basket has been engineered in order to obtain the maximum torsional rigidity (resistance to bending), but at the same time, offer the minimum resistance to the passage of air.
- Pressed paper cone with waterproof treatment. It is widely recognized that cones made of paper offer the ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration (read: distortion).
- High damping, single wave rubber surround. The Perbunan® rubber edge is much more with temperature changes than standard rubber.
- The 25 mm voice coil uses an aluminum support and a double layer winding technology of copper wire with an aluminum core.
- High grade ferrite magnet with significantly higher performance than "standard" magnets.

Technical Specifications

- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 120 Watt
- Transient Power: 240 Watt
- Frequency Response: 65 Hz ~ 25 KHz
- Sensitivity: 91.5 dB 2.83v/1m

Data Sheet (Tweeter)

Data Sheet (Mid-Woofer)

Installation Manual
