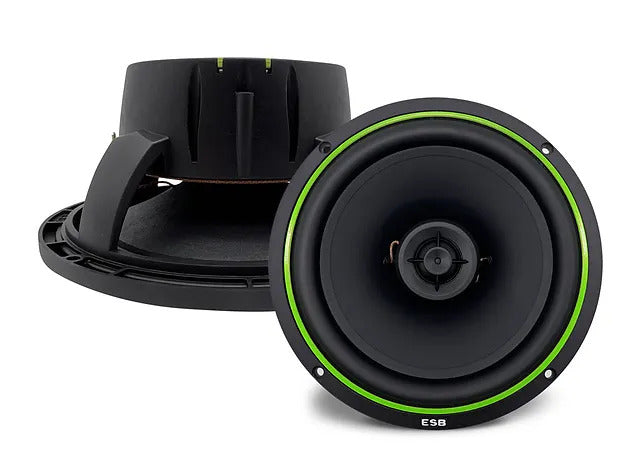

ESB Audio 2000 Series 6.5" Coaxial Speakers

ESB Audio 2000 Series 6.5" Coaxial Speakers

Regular price $249.00 AUD
Regular price Sale price $249.00 AUD
Sale Sold out

SKU:ESB2.6C

The 2000 Series include advanced technologies for car speaker to accurately reproduce music in the car. All the knowledge and experience of ESB’s R&D has been transferred to these special components to obtain maximum audio performance as it relates to bandwidth, dynamics in music response, higher fidelity, and more detailed sound. A reference product for your car audio category.



Main Features

- ABS basket reinforced with fiberglass. The basket has been engineered to obtain the maximum torsional rigidity (resistance to bending), but at the same time, offer the minimum resistance to the passage of air.
- Pressed paper cone (woofer) with waterproof treatment. It is widely recognized that cones made of paper offer the ideal marriage between of lightness, stiffness and the ability of the cone to dampen any unwanted vibration (read: distortion).
- High damping single wave rubber surround. The edge is much more stable during temperature changes than standard rubber.
- The 25 mm voice coil uses an aluminum support and a double layer winding technology of copper wire with an aluminum core.
- High grade ferrite magnet (woofer) and N35 neodymium magnet (tweeter) with significantly higher performance than "standard" magnets.

Technical Specifications

- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 80 Watt
- Transient Power: 160 Watt
- Frequency Response: 65 Hz ~ 25 KHz
- Sensitivity: 91.5 dB 2.83v/1m

Data Sheet

Installation Manual



View full details
