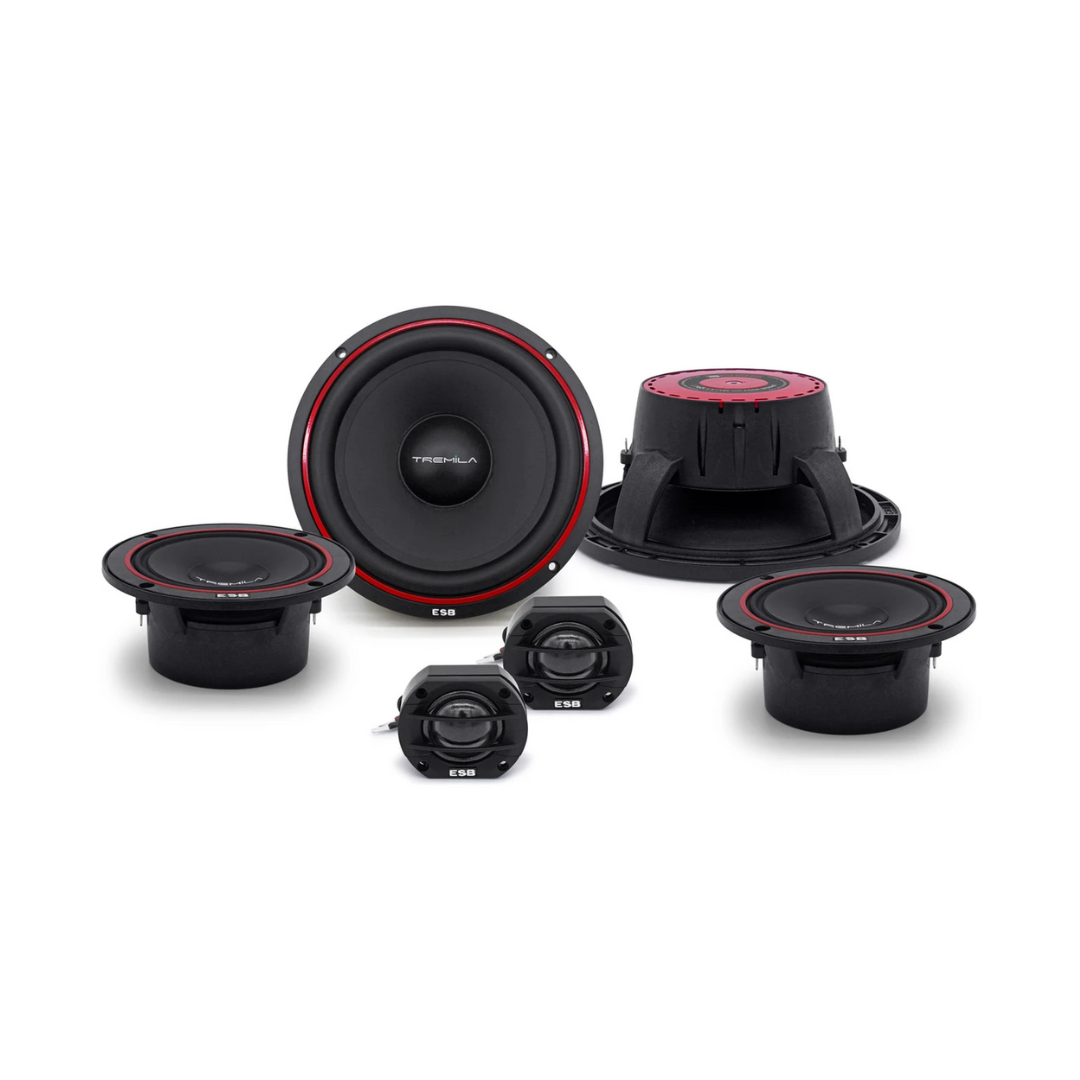

ESB Audio 3000 Series 6.5"/3.5"/1.1" 3-Way Speaker System
ESB Audio 3000 Series 6.5"/3.5"/1.1" 3-Way Speaker System
Couldn't load pickup availability
SKU:ESB3.6K3
The ESB 3000 speaker system was developed and assembled with a great commitment to the research of materials and engineering solutions of the highest level.
The baskets have been engineered to obtain maximum torsional rigidity (resistance to bending). The speaker cones use pressed paper with a waterproof treatment which represents an ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration. All the woofers are equipped with a Y-35 grade ferrite magnet motor, having significantly higher performance than classic "standard" magnets.
The tweeters use a silk-impregnated, thin fabric dome diaphragm for a smooth sound, with oversized voice coils ventilated and damped with iron-fluid oil.
They are supplied with accessories for flexible installation.
3.28
1.1"/28 mm Dome Tweeter
Main Features
- The tweeter uses a Torcon® diaphragm for a smooth sound, with an outer suspension covered with a high-loss damping material to eliminate edge vibration and resonance. The dome is of extremely low mass and is much less susceptible to mechanical deformation than other tweeters, yet it provides a smooth, linear and very extended response.
- The 28 mm voice coil has an aluminum support and very light copper-coated aluminum wire. The coil is ventilated and damped with iron-fluid oil.
- The special SVS ventilation design provides two benefits: optimal cooling of the voice coil and avoiding compressing the air at the back of the dome.
- The neodymium N42 magnet, a type of magnet with significantly higher performance than "standard" magnets, is optimized with computer simulations to get better efficiency and improve linearity.
Technical Specifications
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 90 Watt
- Transient Power: 180 Watt
- Frequency Response: 900 Hz ~ 25 KHz
- Sensitivity: 94 dB 2.83v/1m
3.90
3.5"/90 mm Cone Midrange
Main Features
- ABS basket reinforced with fiberglass. The basket has been engineered to obtain the maximum in terms of torsional rigidity (resistance to bending), but at the same time, offers the minimum resistance to air passage.
- Pressed paper cone with waterproof treatment. It is widely recognized that cones made of paper are the ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration (read: distortion).
- Twin symmetrical wave rubber surround. The Perbunan® rubber edge is much more stable with temperature changes than standard rubber.
- The 20 mm voice coil uses an aluminum support with a double layer winding technology of copper wire with an aluminum core.
- High grade ferrite magnet, a type of magnet with significantly higher performance than "standard" magnets.
Technical Specifications
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 60 Watt
- Transient Power: 120 Watt
- Frequency Response: 150 Hz ~ 7 KHz
- Sensitivity: 91.5 dB 2.83v/1m
3.165
6.5"/165 mm Mid-Woofer
Main Features
- ABS basket reinforced with fiberglass. The basket has been engineered to obtain the maximum in terms of torsional rigidity (resistance to bending), but at the same time, offers the minimum resistance to air passage.
- Pressed paper cone with waterproof treatment. It is widely recognized that cones made of paper are the ideal marriage between lightness, stiffness and the ability of the cone to dampen any unwanted vibration (read: distortion).
- High damping, single wave rubber surround. The Perbunan® rubber edge is much more stable with temperature changes than standard rubber.
- The 25 mm voice coil uses an aluminum support with a double layer winding technology of copper wire with an aluminum core.
- High grade ferrite magnet, a type of magnet with significantly higher performance than "standard" magnets.
Technical Specifications
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 120 Watt
- Transient Power: 240 Watt
- Frequency Response: 65 Hz ~ 9 KHz
- Sensitivity: 91.5 dB 2.83v/1m
