JL Audio C3-650 6.5-inch (165 mm) Convertible Component/Coaxial Speaker System
JL Audio C3-650 6.5-inch (165 mm) Convertible Component/Coaxial Speaker System

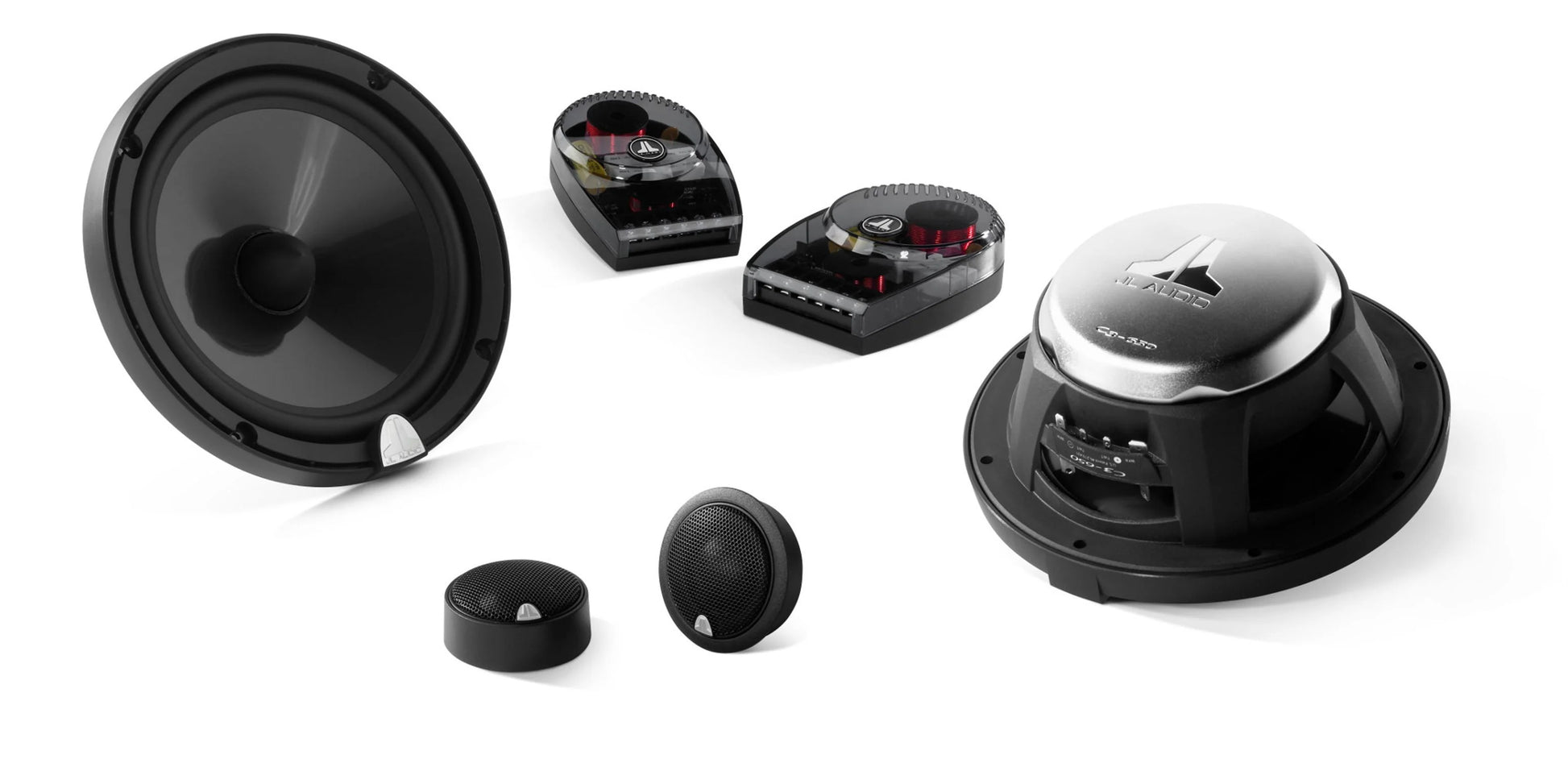

2-Way Convertible Component / Coaxial System: 6.5-inch (165 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

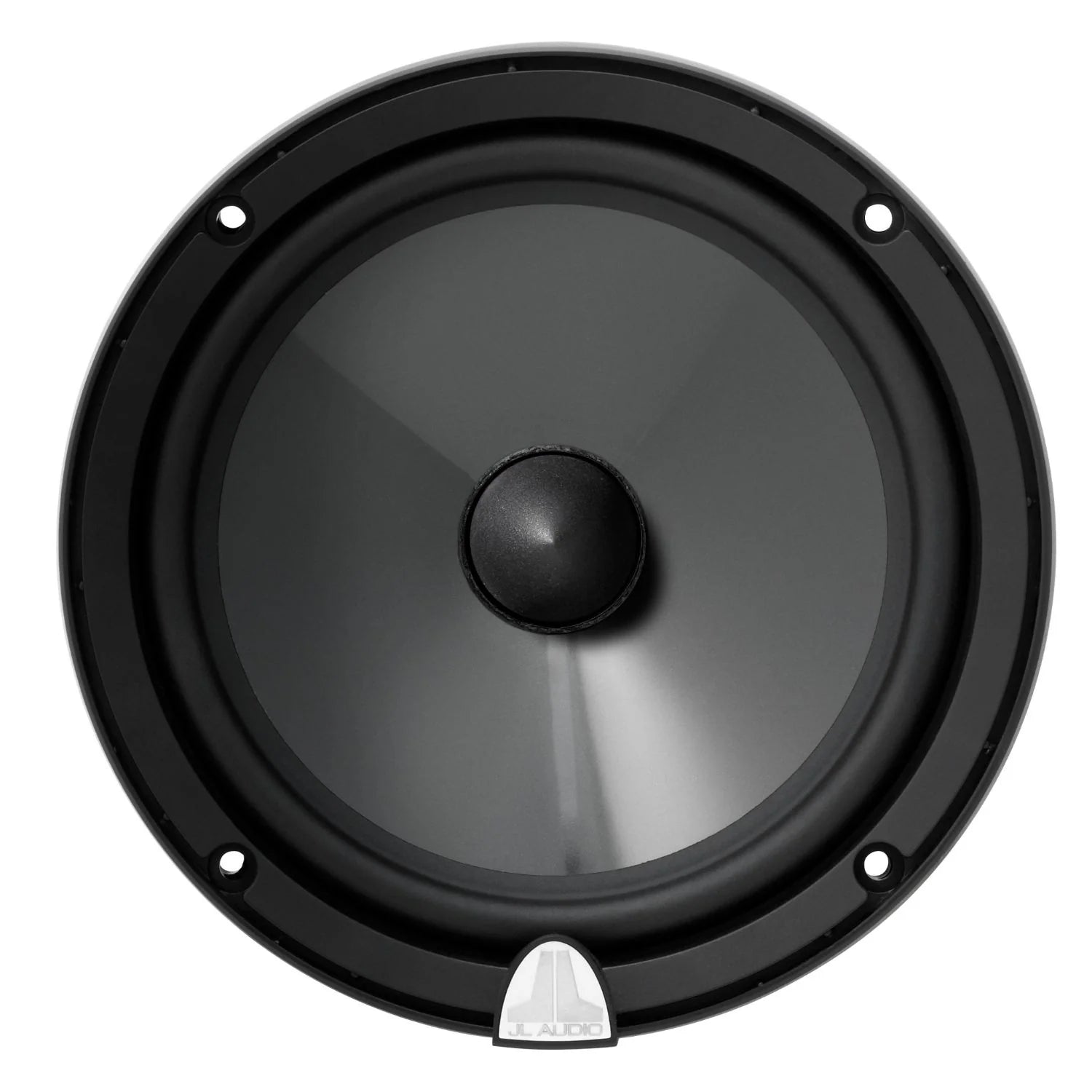

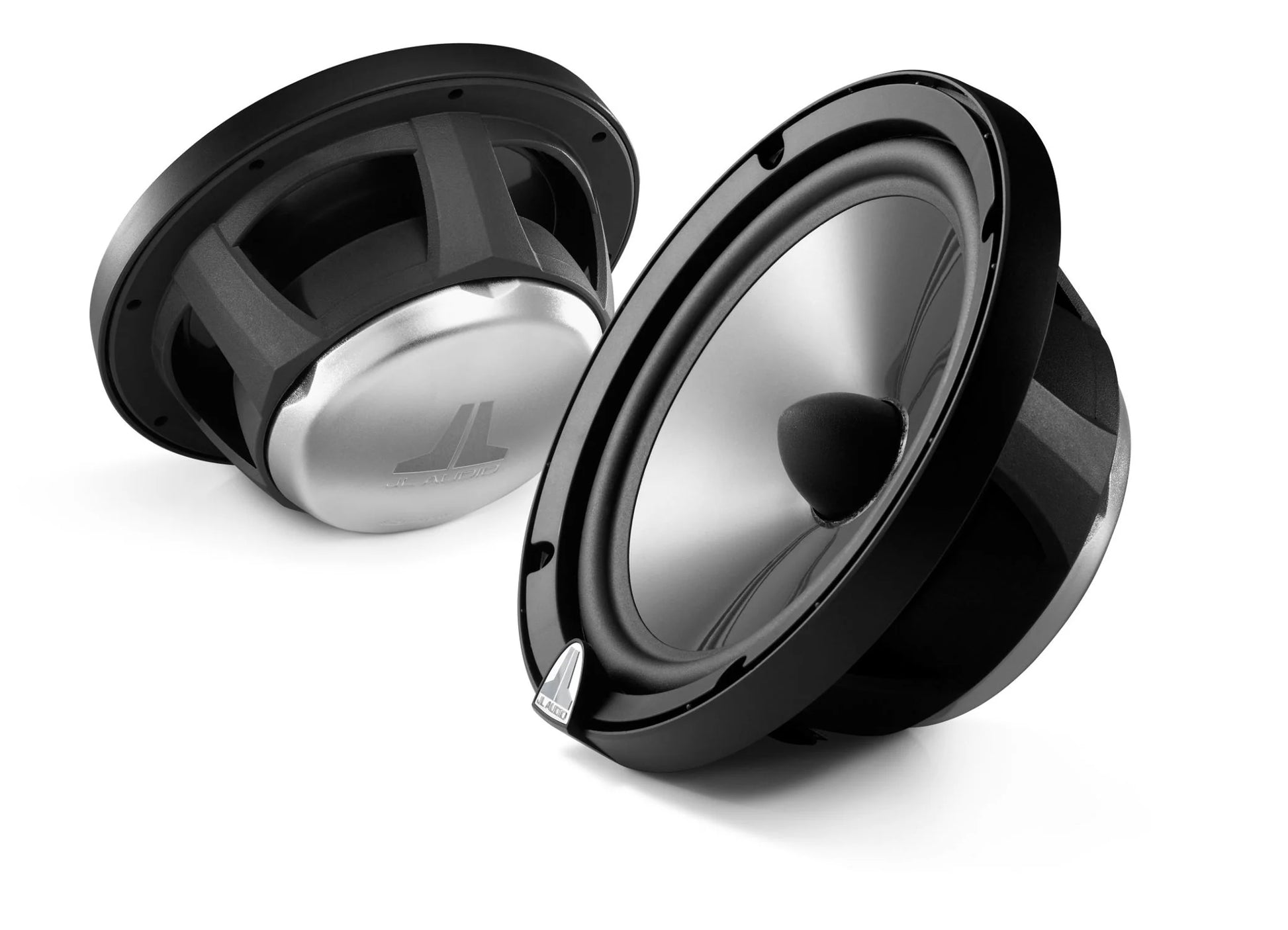

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

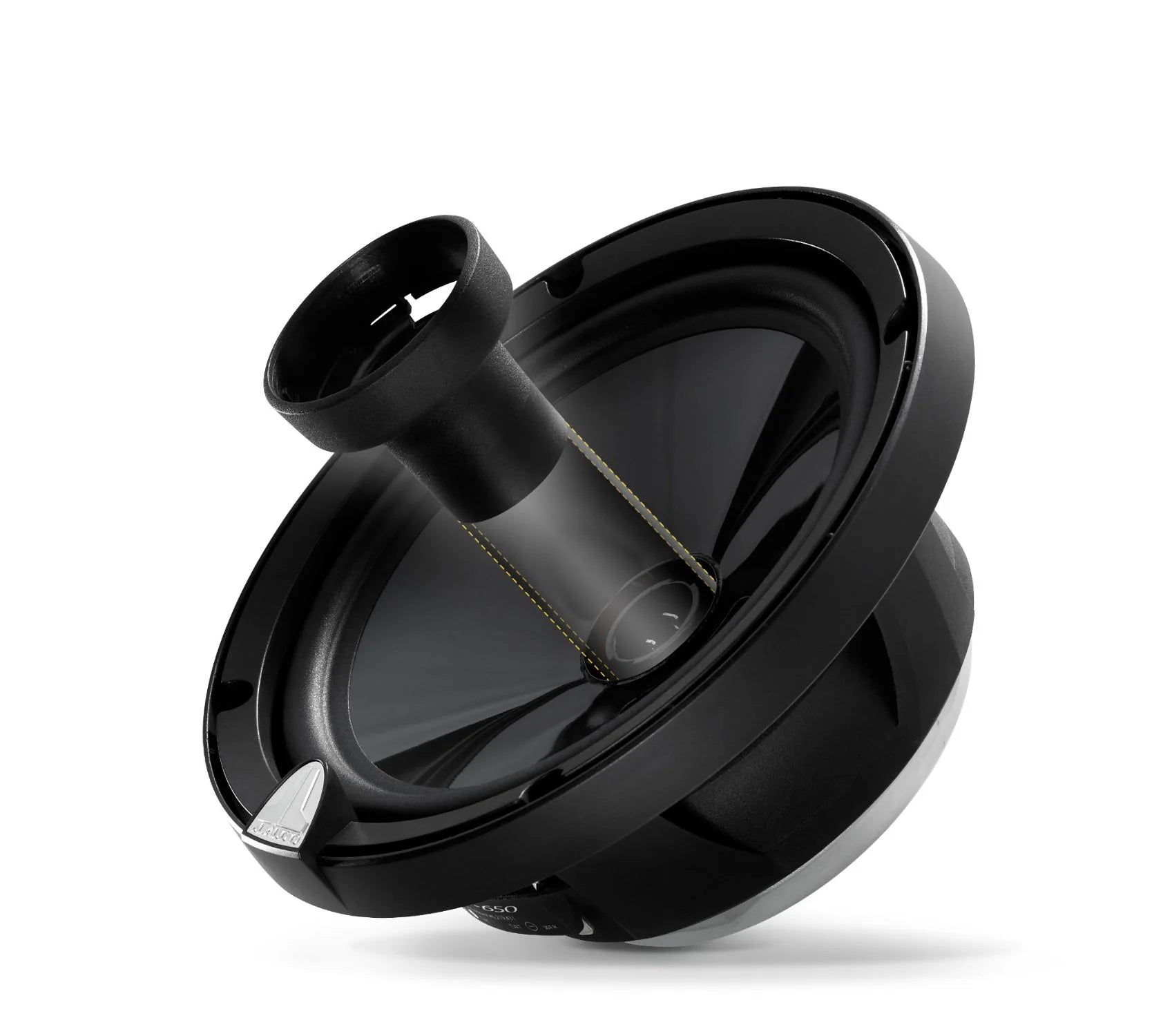

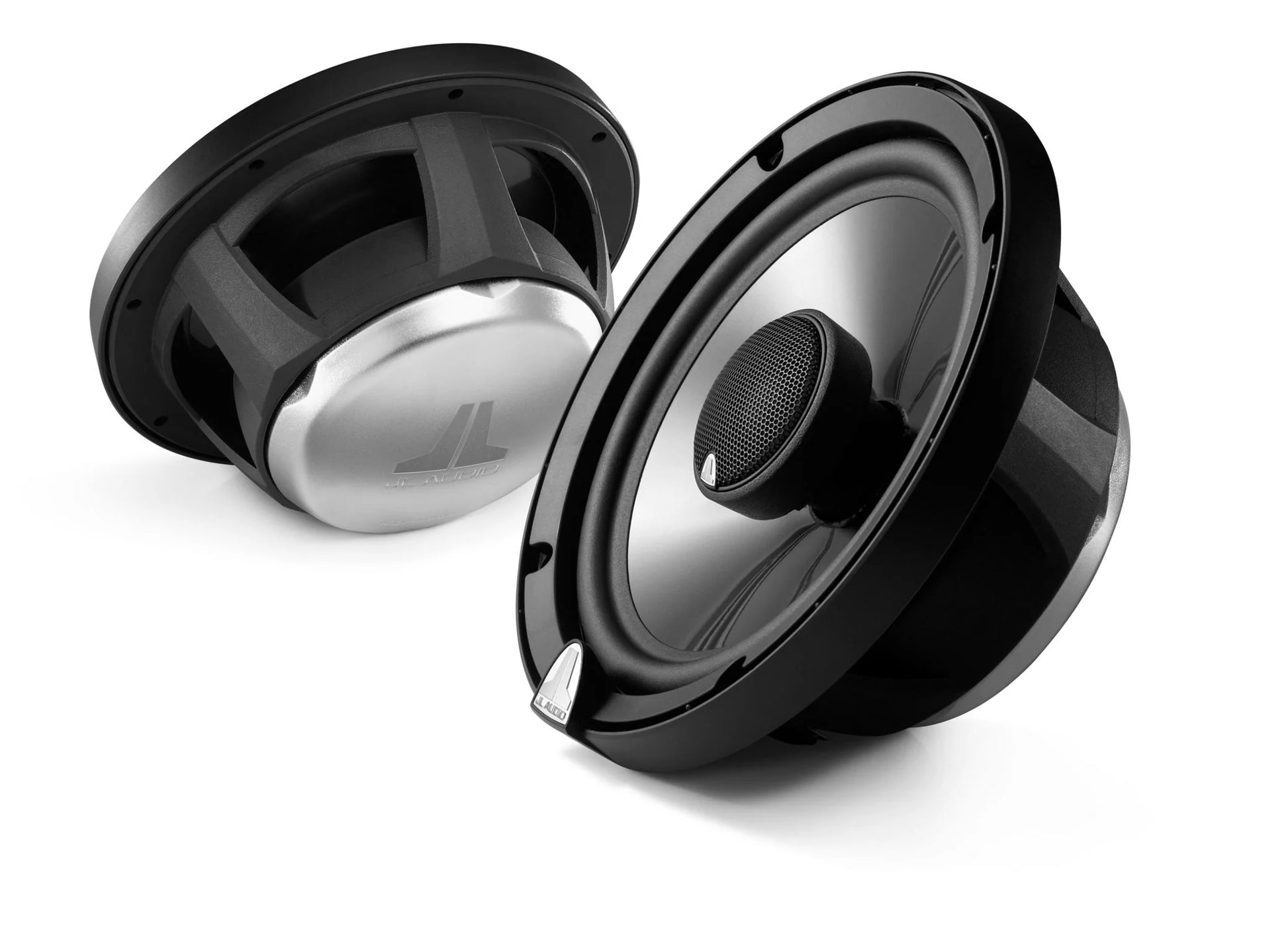

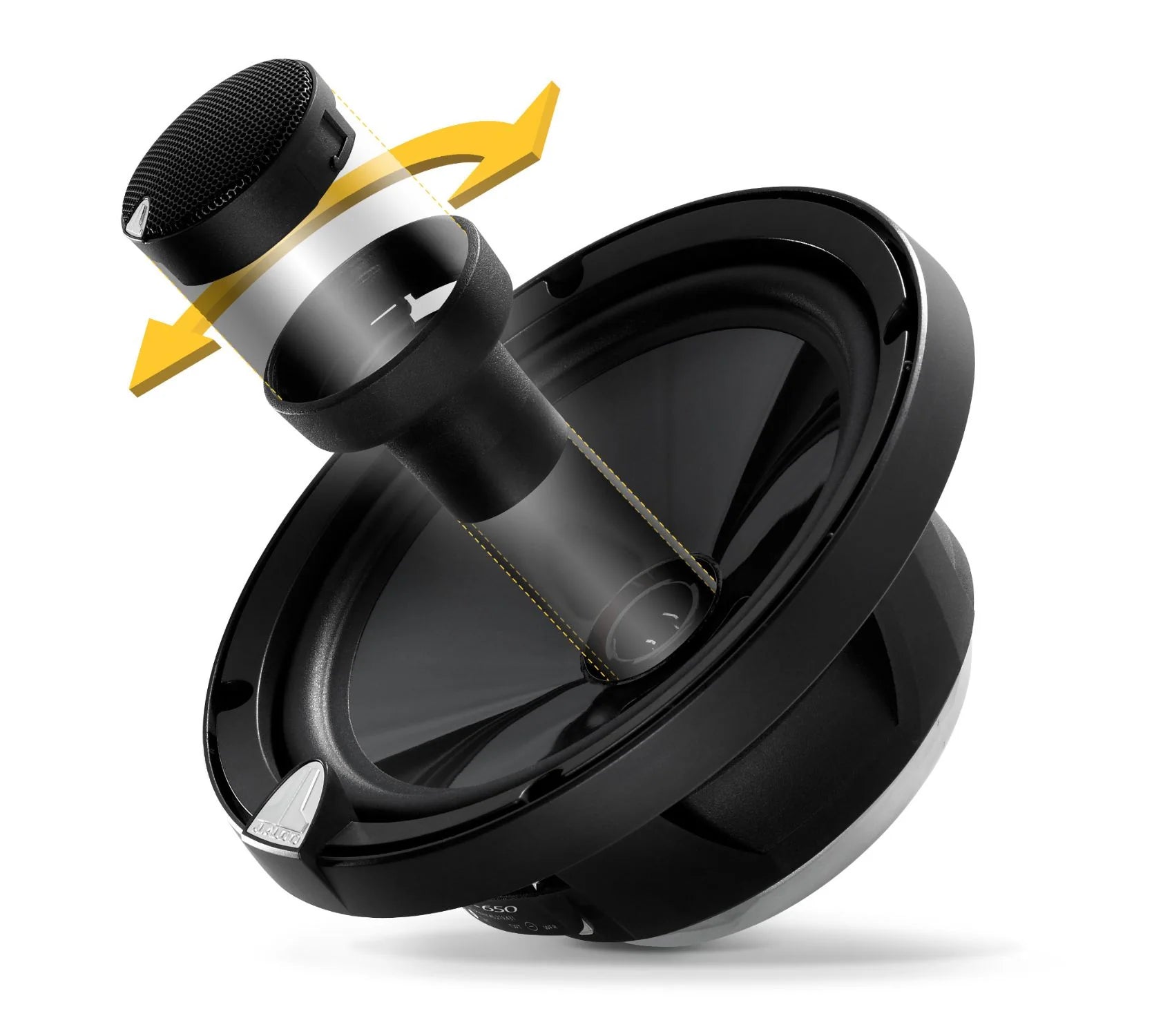

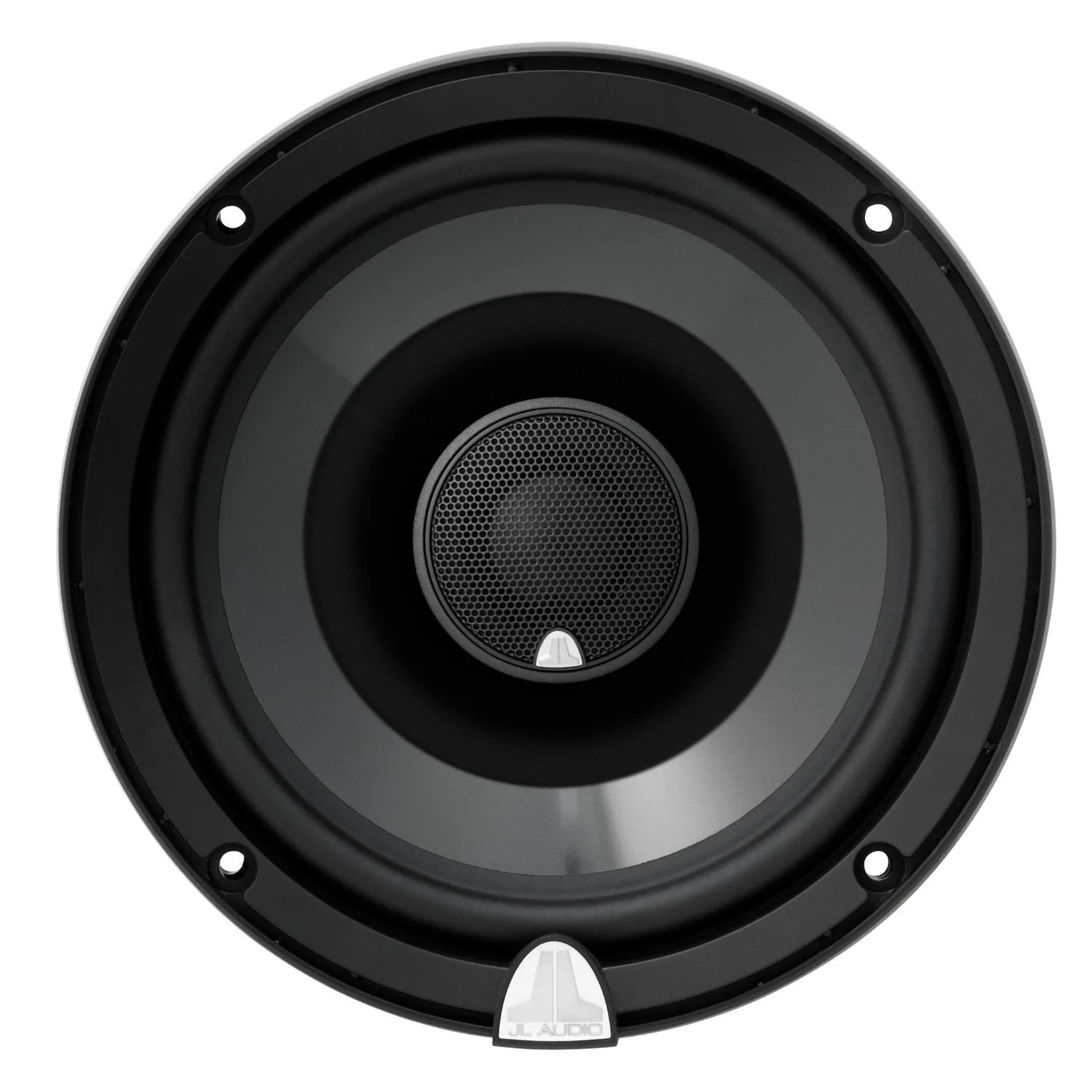

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

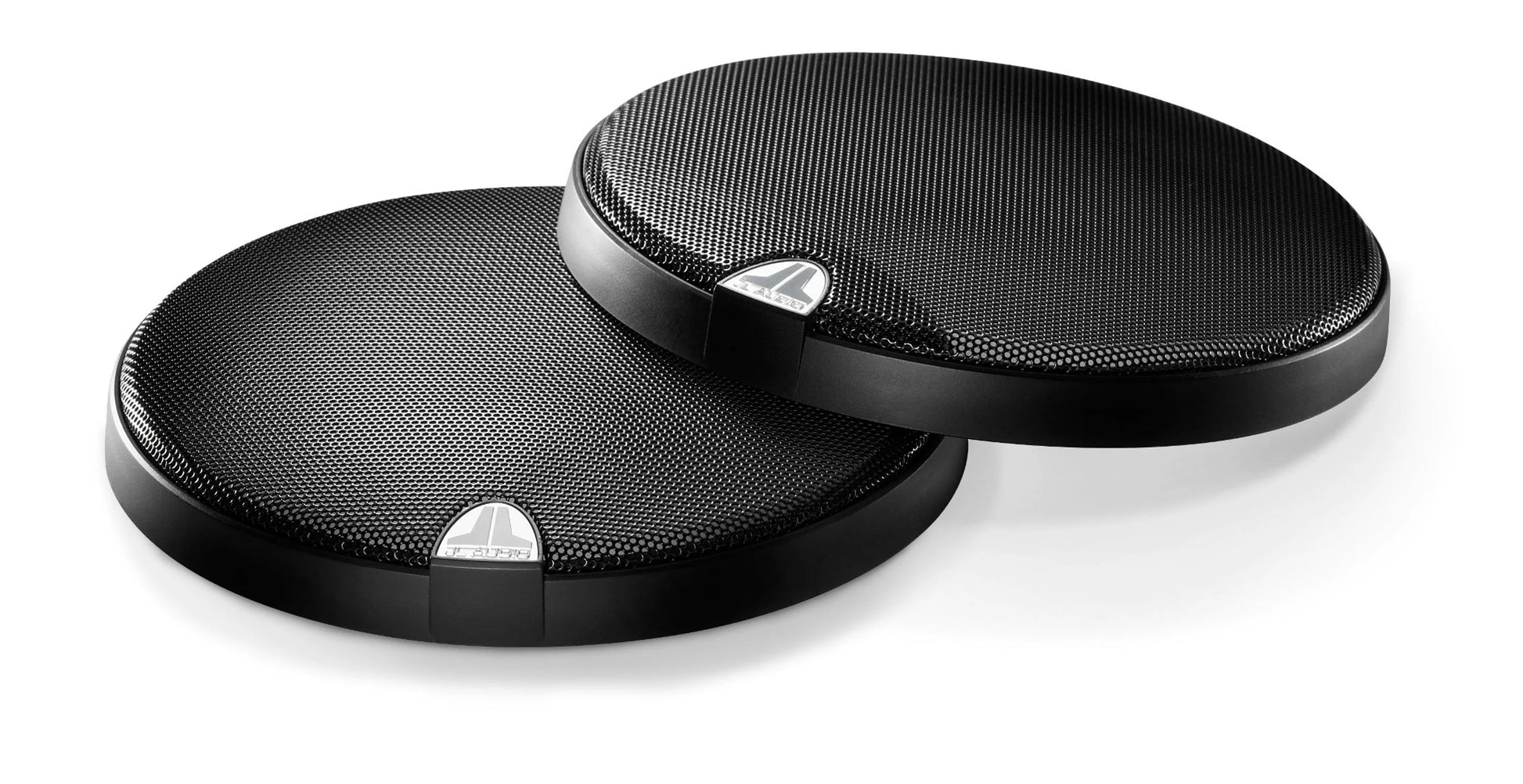

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 25 - 150 W / Ch. |
| System Efficiency | 90.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 48 Hz - 25 KHz ± 3 dB |
| Frame Outer Diameter (A) | 6.50 in / 165 mm |
| Grille Tray Outer Diameter (B) | 6.74 in / 171 mm |
| Motor Outer Diameter (C) | 4.08 in / 104 mm |
| Frontal Coaxial Tweeter Protrusion* (D) | 0.75 in / 19 mm |
| Frontal Grille Protrusion** (E) | 1.03 in / 26 mm |
| Mounting Hole Diameter (F) | 5.56 in / 141 mm |
| Mounting Depth (G) | 2.55 in / 65 mm |
|
*Frontal coaxial tweeter protrusion measured from mounting surface |
|
| Flush Mount Fixture Diameter (A1) | 2.12 in / 54 mm |
| Surface Mount Fixture Diameter (A2) | 1.93 in / 49 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.875 in / 48 mm |
| Flush Mount Fixture Mounting Depth (C) | 0.71 in / 18 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.32 in / 8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.95 in / 24 mm |
| Width (W) | 3.36 in / 85 mm |
| Height (H) | 1.44 in / 37 mm |
| Depth (D) | 4.72 in / 120 mm |
