JL Audio TwK-88 System Tuning DSP controlled by TüN software, 8-ch. Analog & Digital Inputs / 8-ch. Analog Outputs

System Tuning DSP with 8-ch. Stereo RCA Inputs / 2 Digital (Optical and Coaxial) Inputs / 8-ch. Stereo RCA Outputs / 1 Digital Optical Output

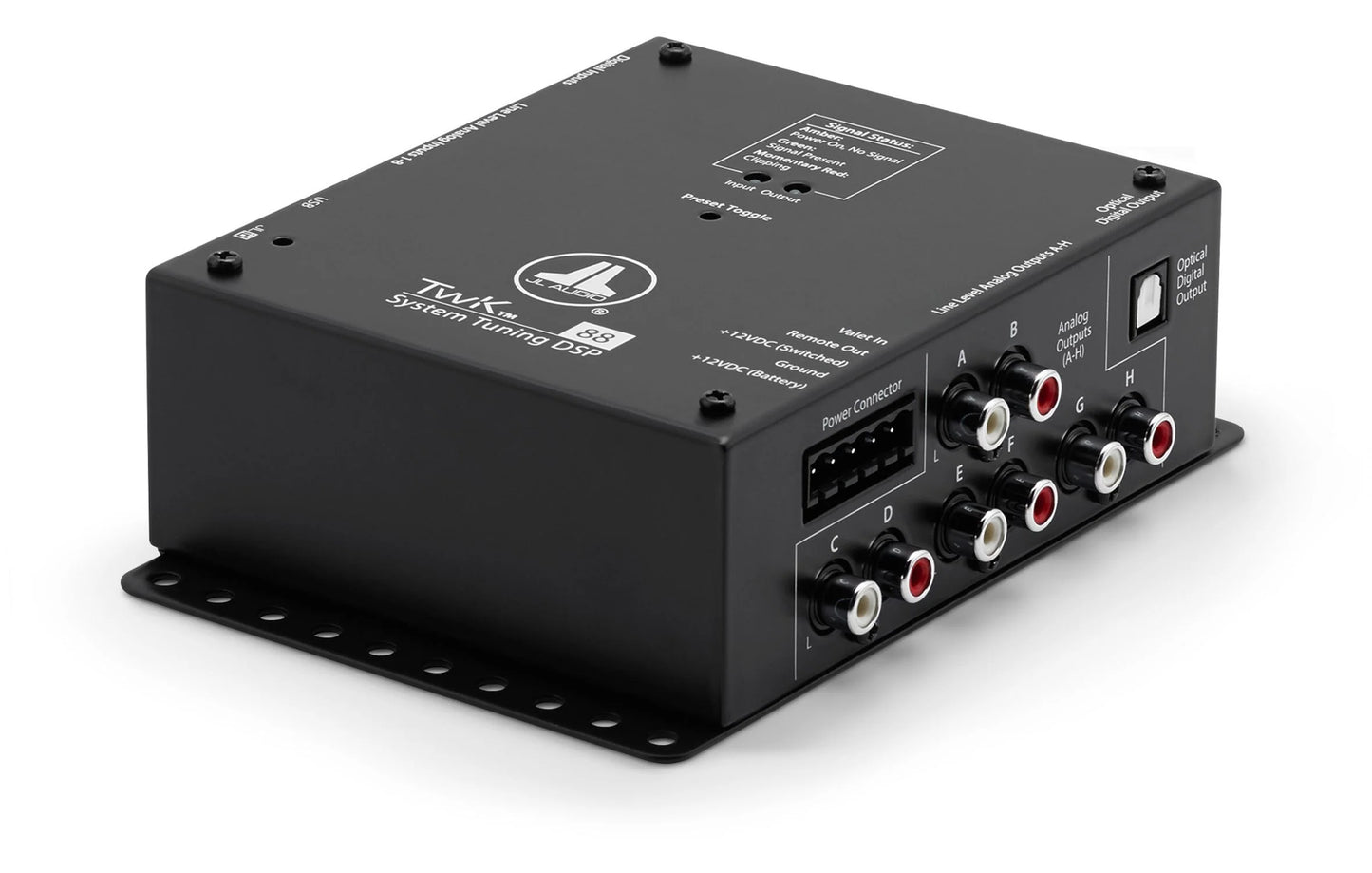

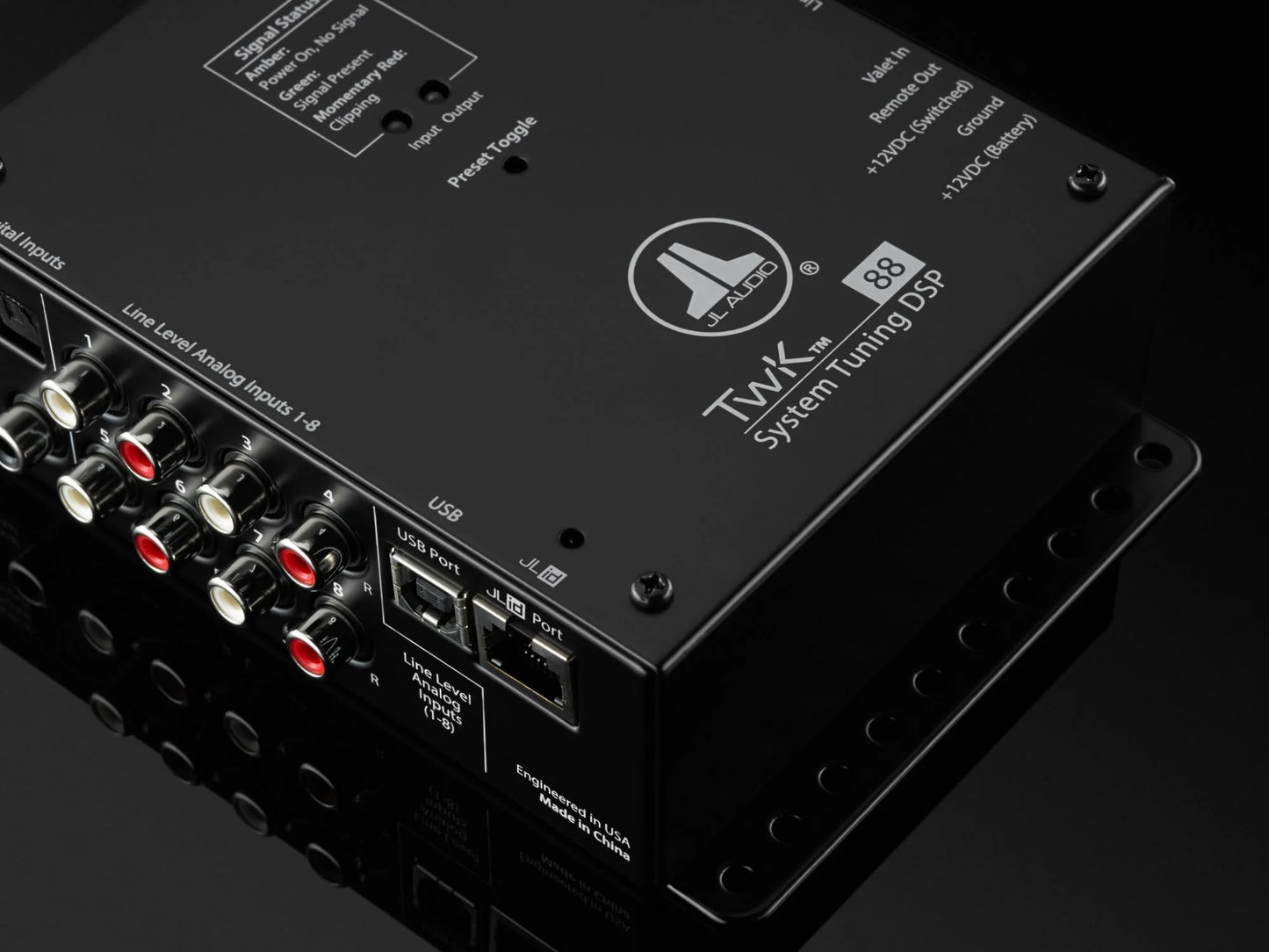

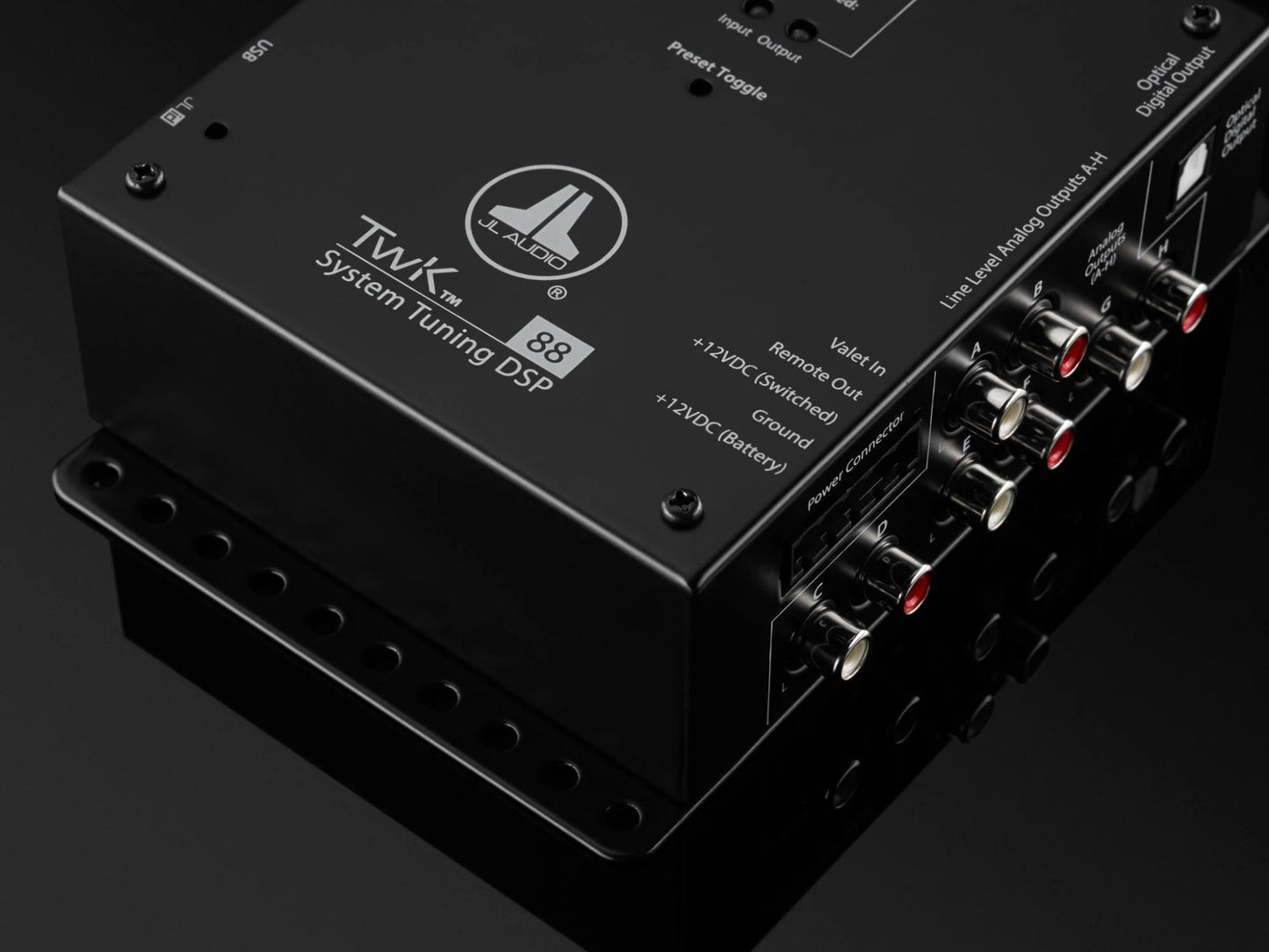

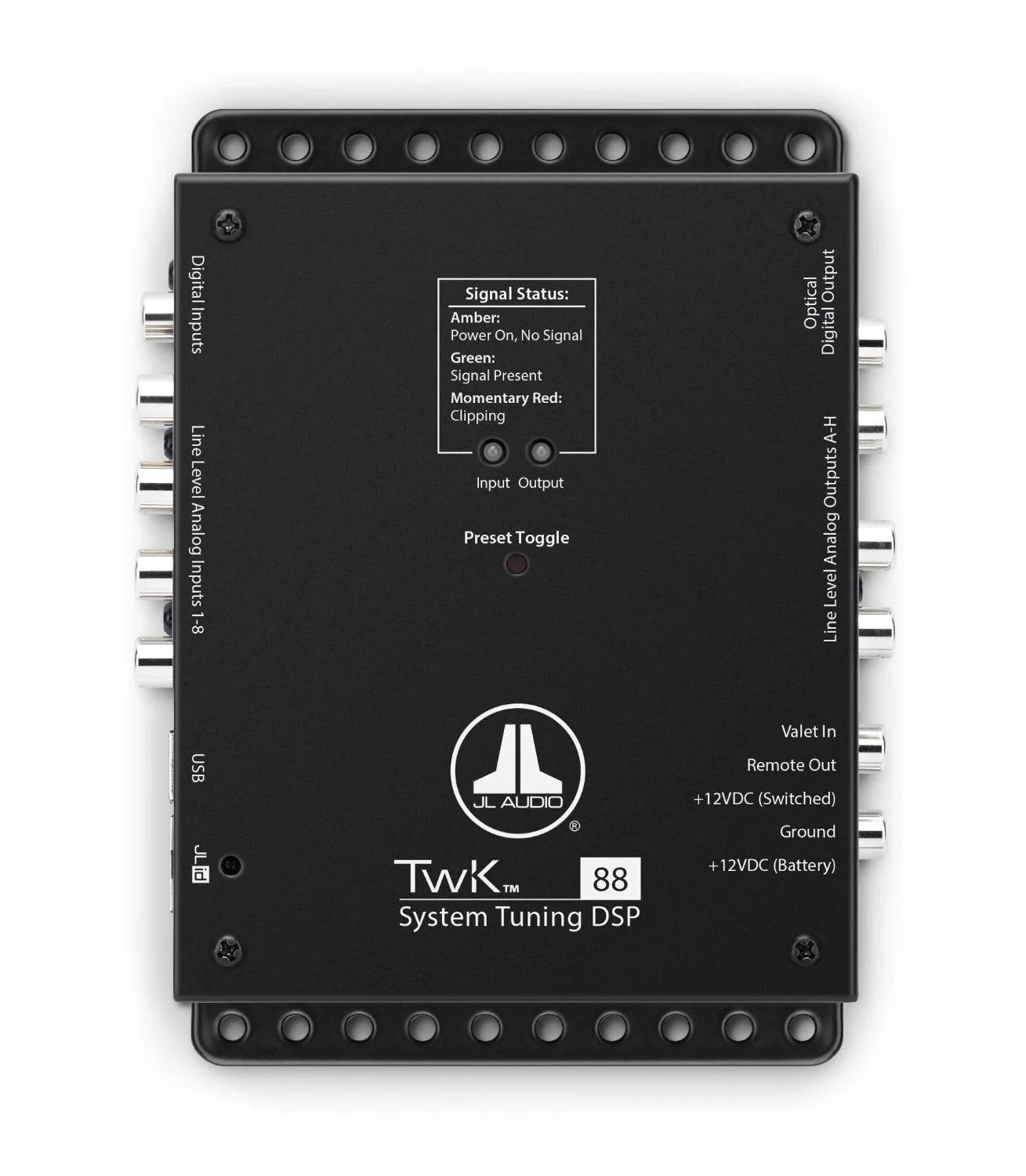

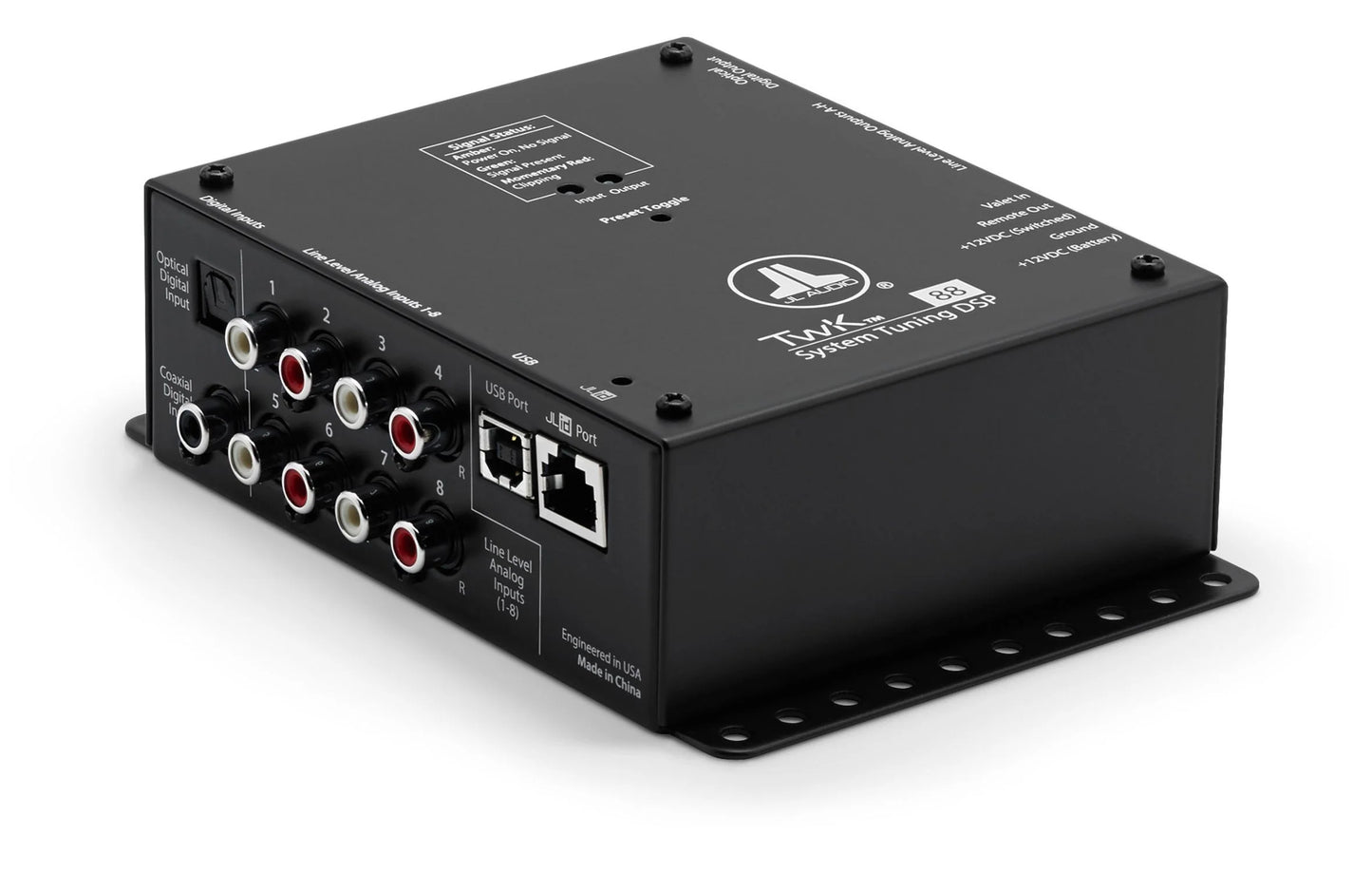

The TwK® 88 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK® 88 includes flexible input/output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.

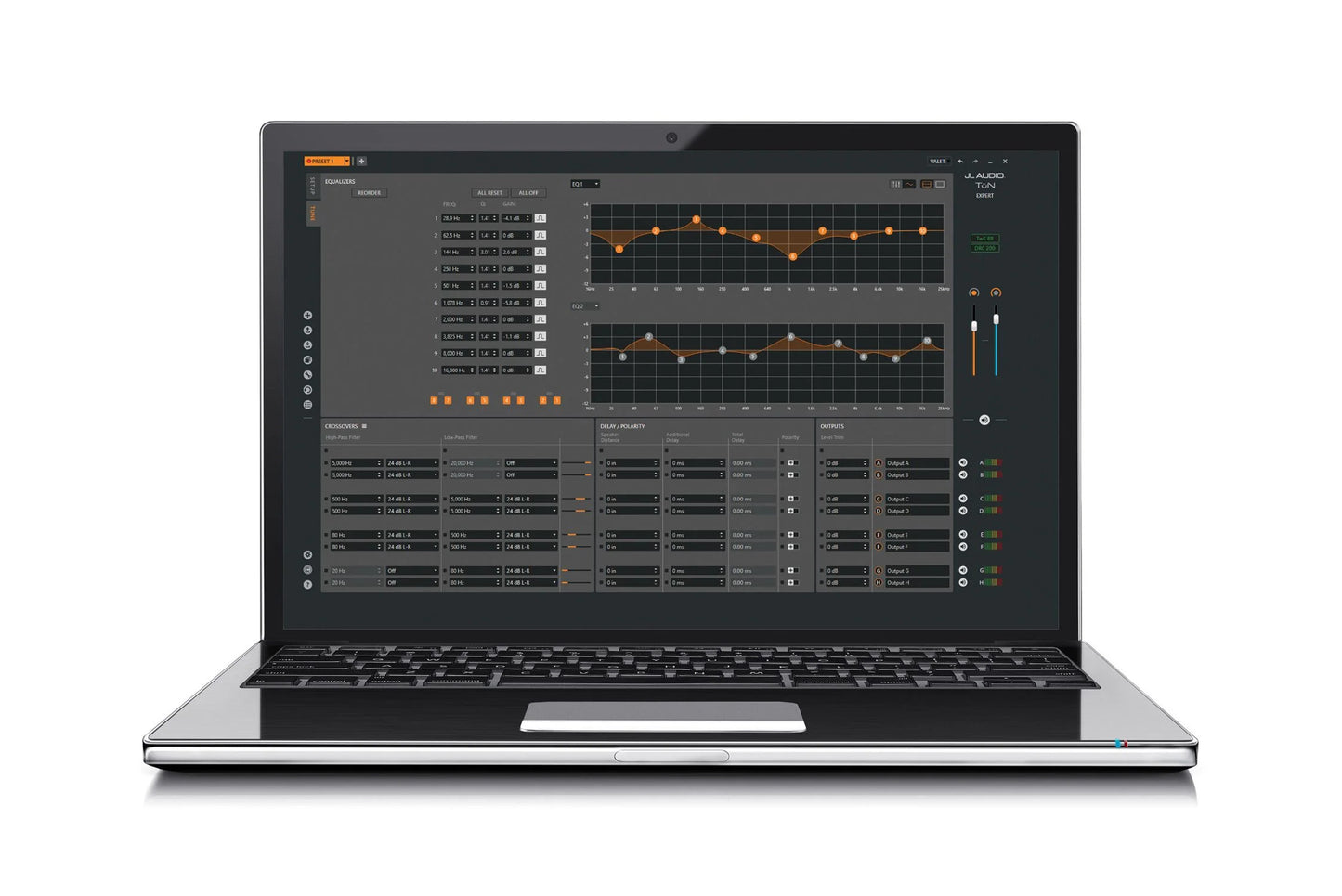

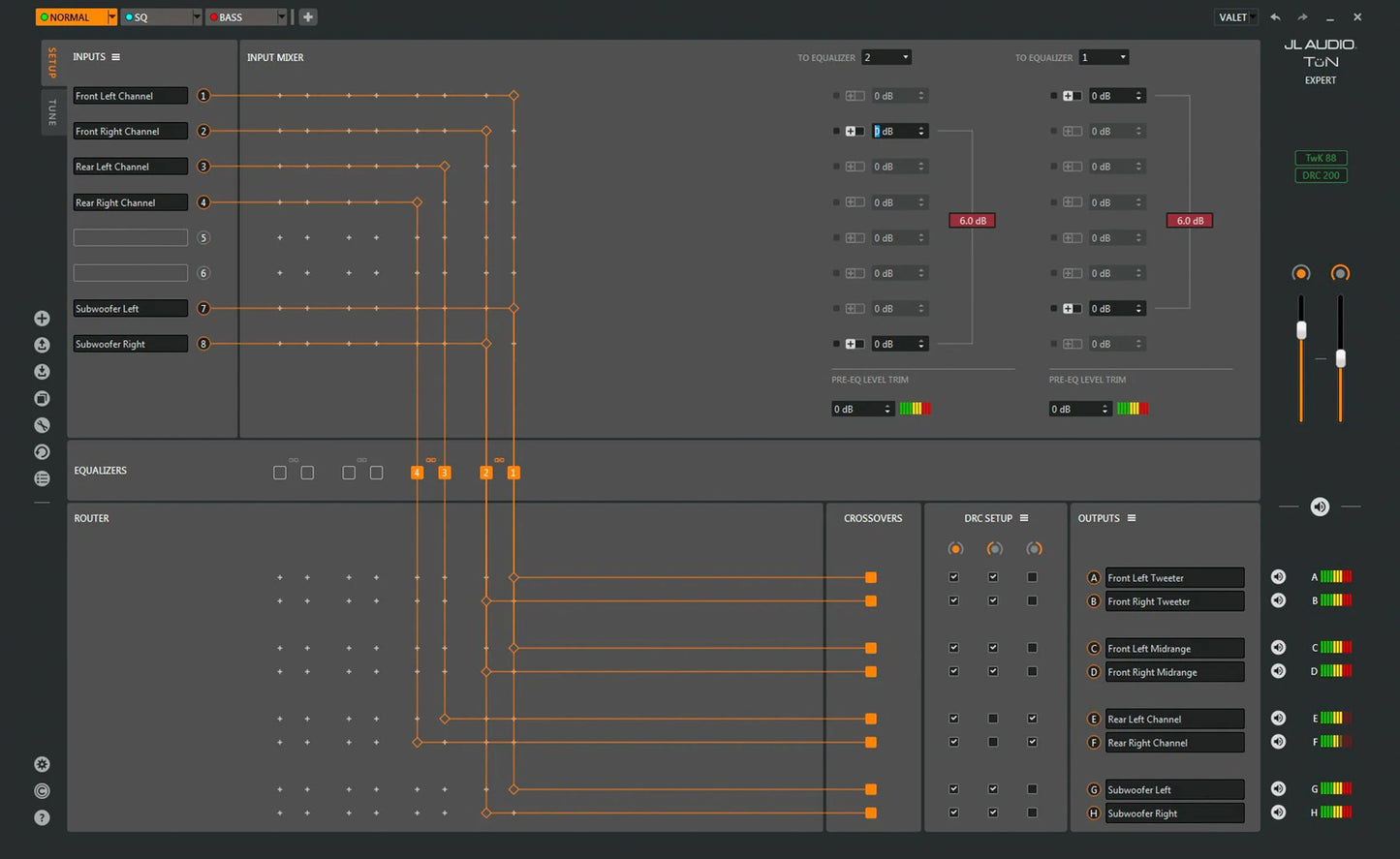

Control the TwK® 88’s entire feature set by connecting it to your PC via USB, using the companion TüN® Software interface.

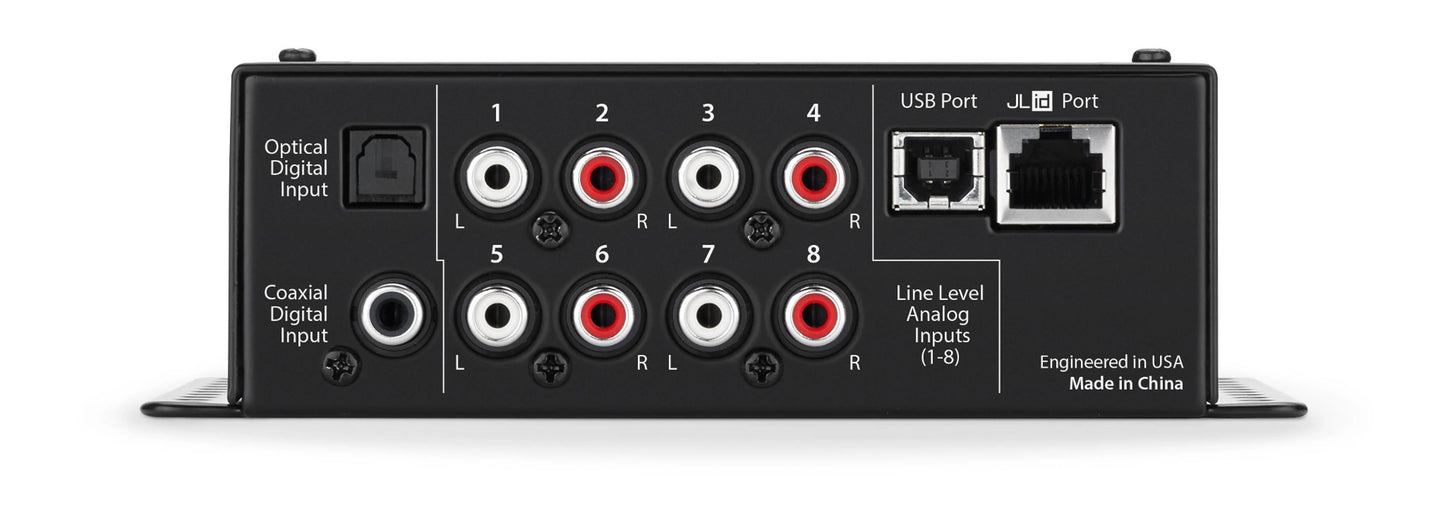

• Flexible input design with 8 differential-balanced, line-level analog inputs (RCA), accepting line-level signals up to 7.1V (RMS)
• Separate optical (Toslink) and coaxial digital inputs for connection to digital S/PDIF sources.

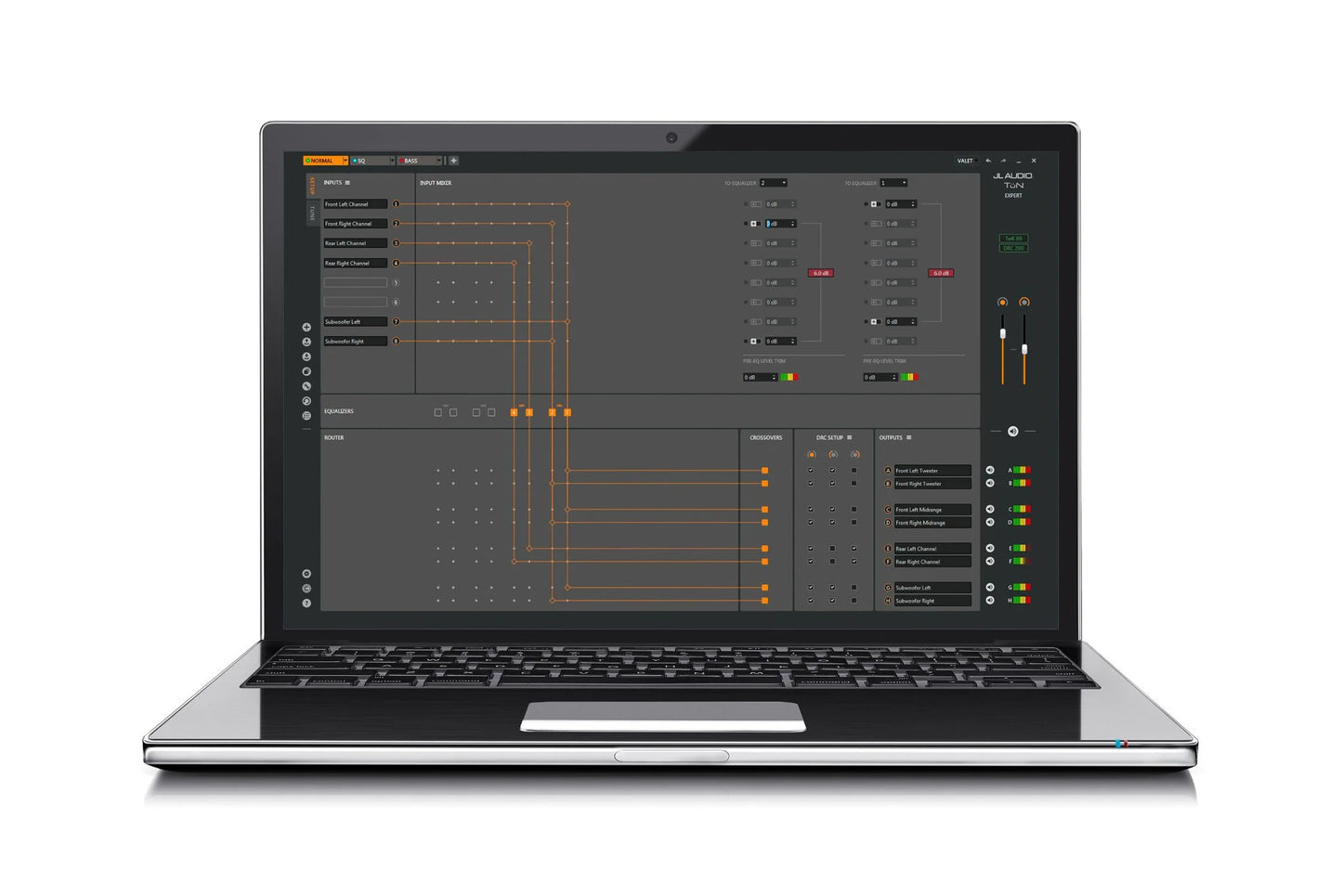

• Flexible input mixer allows input channels to be combined with full control over each input’s level and polarity.
• 8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment

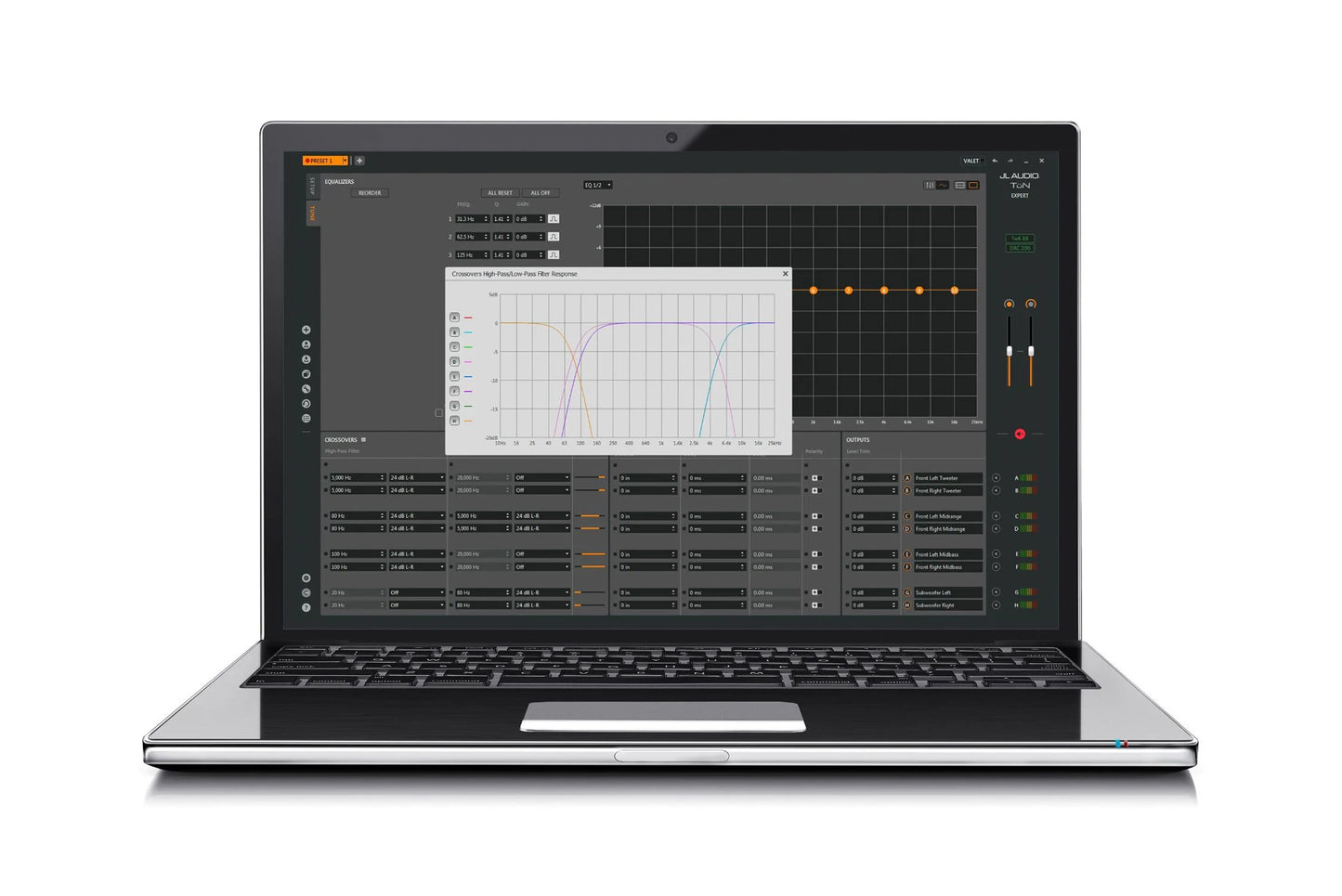

• Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
• Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
• Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination

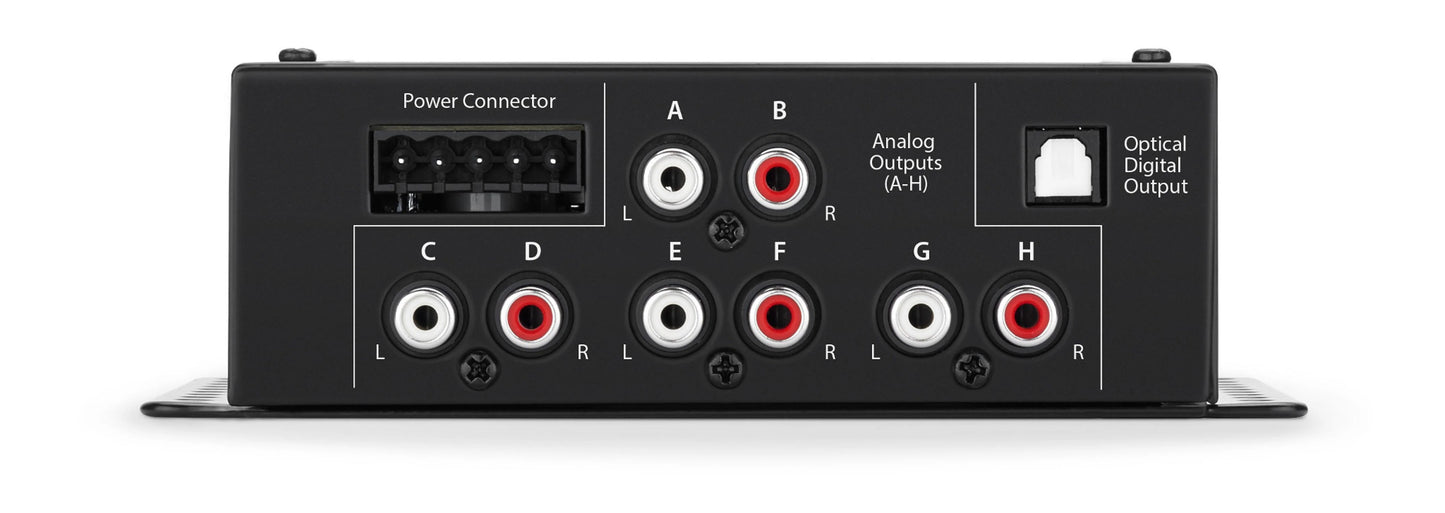

• 8 analog, line-level RCA output jacks (4V RMS)
• Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.
• Remote turn-on output (+12VDC) for activating aftermarket audio equipment.
• JLid™ Port allows connection of the included DRC-200 Digital Remote Controller to add dual configurable level controls, preset selection and LED status reporting from the driver's seat.

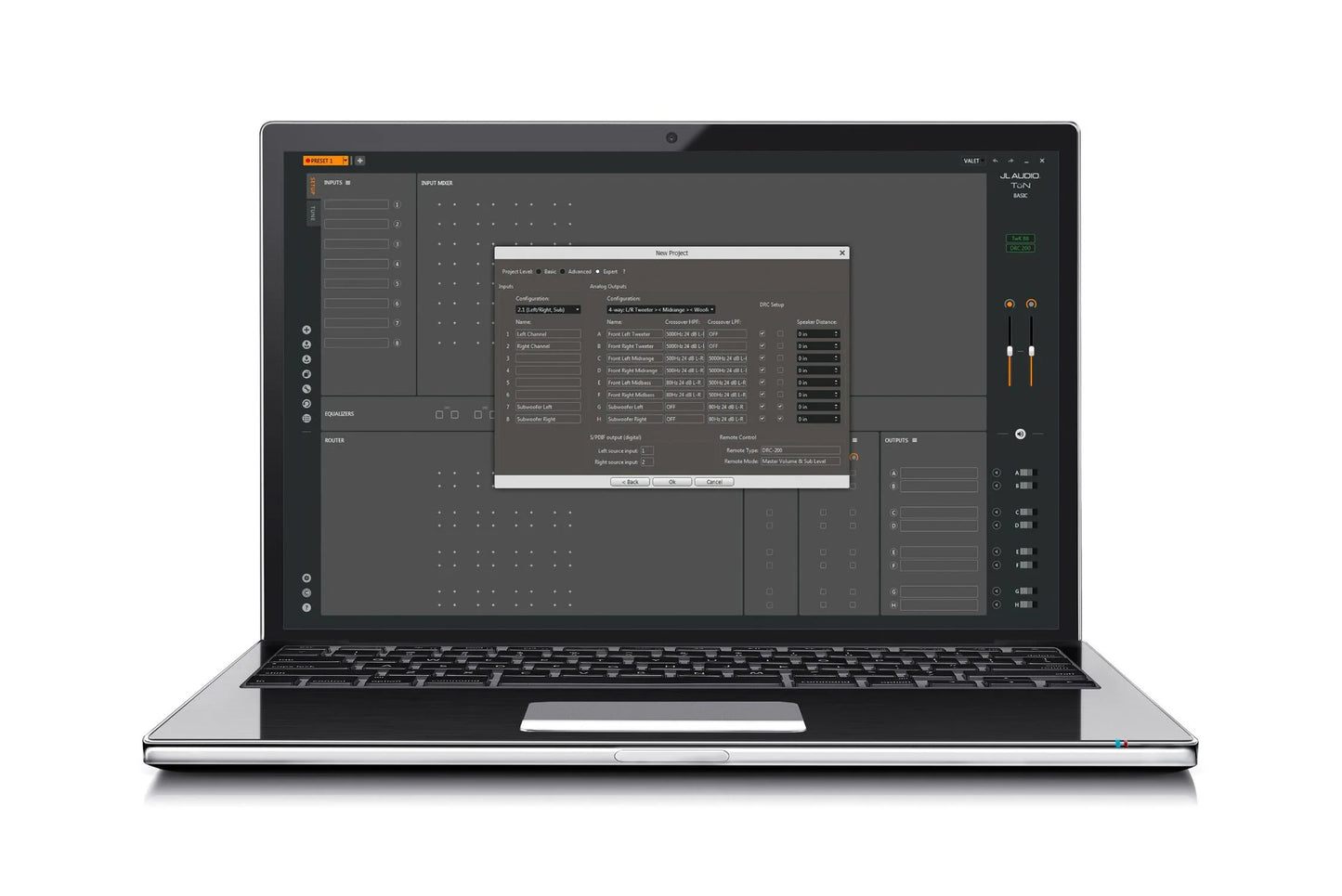

Download and test-drive all TüN® software versions in simulation mode for free (no TwK hardware needed).

General Specifications

Power Supply Type	Regulated DC-DC SMPS
Input Operating Voltage	10 - 16 VDC
Standby Current Draw	<1.5 mA
Operating Current Draw	0.7 A
Recommended Fuse Value	1 A
Input Channels	Eight
Input Type	Line-level, Differential-Balanced
Input Voltage Range	250 mV - 7.1 V RMS
Minimum Input Voltage	10 mV RMS
Input Level Setting	Eleven discrete selections from 250 mV - 7.1V RMS
Output Channels	Eight
Analog Output	Unbalanced, stereo RCA jacks
Digital Output	Optical (Toslink) output (S/PDIF)
Output Impedance	450 Ω
Latency	Analog - Analog: 5.425 mS Analog - Optical: 5.470 mS Optical - Optical: 4.860 mS Optical - Analog: 4.805 mS
S/N Ratio	98 dB (A-Weighted, referred to 4V RMS Output)
THD+N @ Rated Output	0.02% (20 Hz - 20 kHz)



Signal Processing

Audio Resolution	24 bit / 48 kHz
Number of EQ Bands	10 x 8 Channels
Remote Level Control	Included (DRC-200)
Remote Level Functions	Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting



Physical Specifications

Height (H)	1.85 in / 47 mm
Width (W)	4.29 in / 109 mm
Depth (D)	6.14 in / 156 mm
Net Weight	2.58 lb / 1.17 kg
