Steg - Handcrafted To Perfection In Italy Since 1983
Music is a powerful form of emotional expression, conveyed through sound waves. It has a unique ability to deeply affect individuals, more so that any other form of media. Steg is an Italian electronics manufacturer that has dedicated itself to creating these audio experiences, experiences that are authentic and faithful to the original source; conveyed with the intention of capturing the true essence of music. Steg strives to ensure that nothing hinders the pure enjoyment of music, not even the less-than-ideal acoustic conditions of a car interior. Since its conception in Italy in 1983 Steg has been designing and manufacturing high quality audio components specifically for automotive applications, with the sole aim of delivering unparalleled sound quality. With an unwavering commitment to breaking the limit of what's possible, Steg is the definitive solution when it comes to achieving world-class audio reproduction in vehicles.
Master Stroke Series - Audio Engineering Magnificenza
The Stge Master Stroke competition collection features the pinnacle of sound quality oriented loudspeakers, meticulously crafted to deliver extraordinary performance. Exclusively comprised of active driver sets, the Master Stroke drivers benefit from expert tuning to realise their absolute maximum potential. Every detail has been refined to achieve unrivaled audio excellence, thus ensuring an immersive and captivating experience for discerning audio enthusiasts.
Design Ideologies
Steg’s incredible Master Stroke MSS series draw upon nearly half a century masterful Italian design philosophies, technical acumen and advanced materials. The ensuing result is simply phenomenal, easily able to outperform speakers thrice the price.

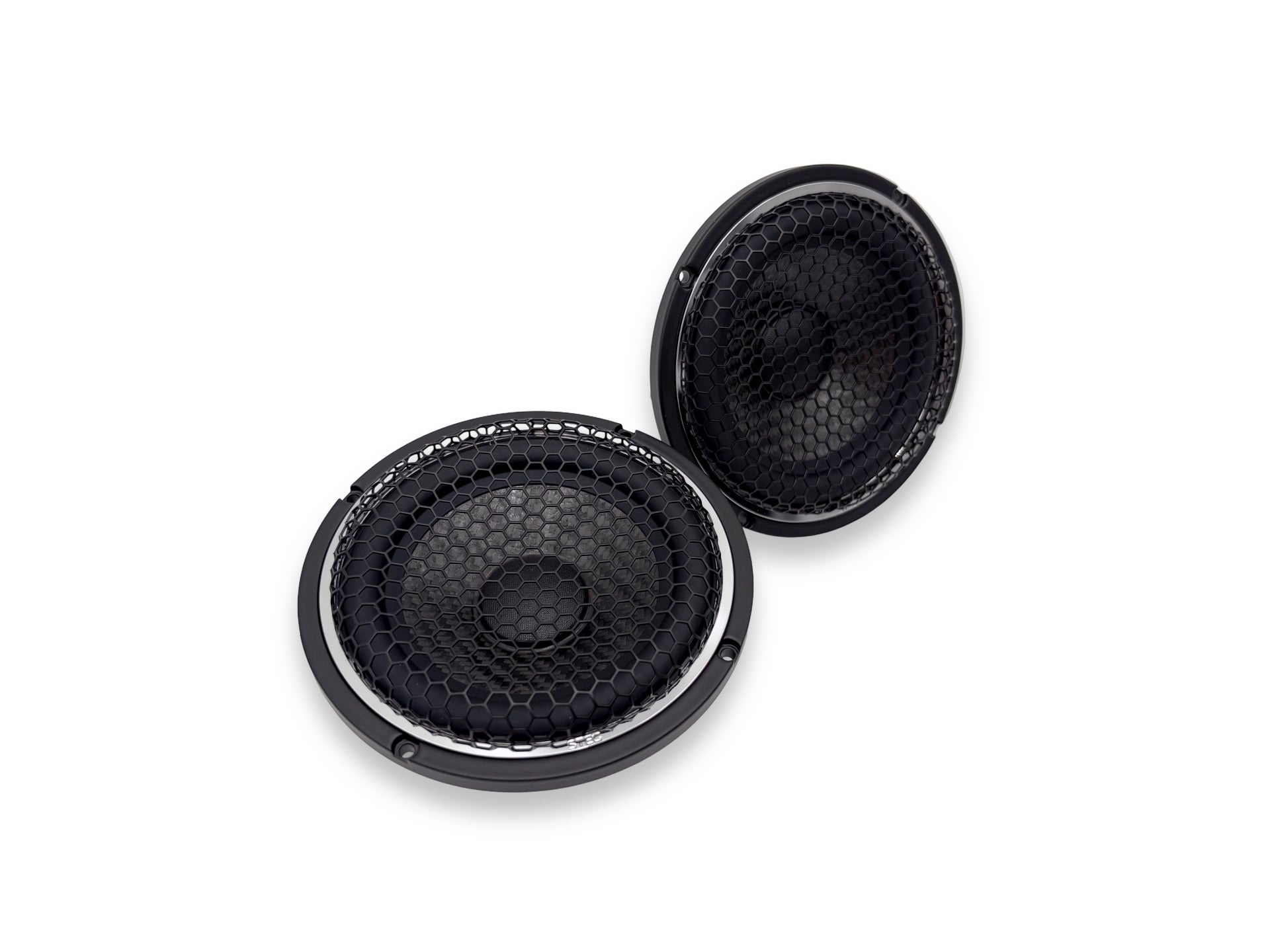

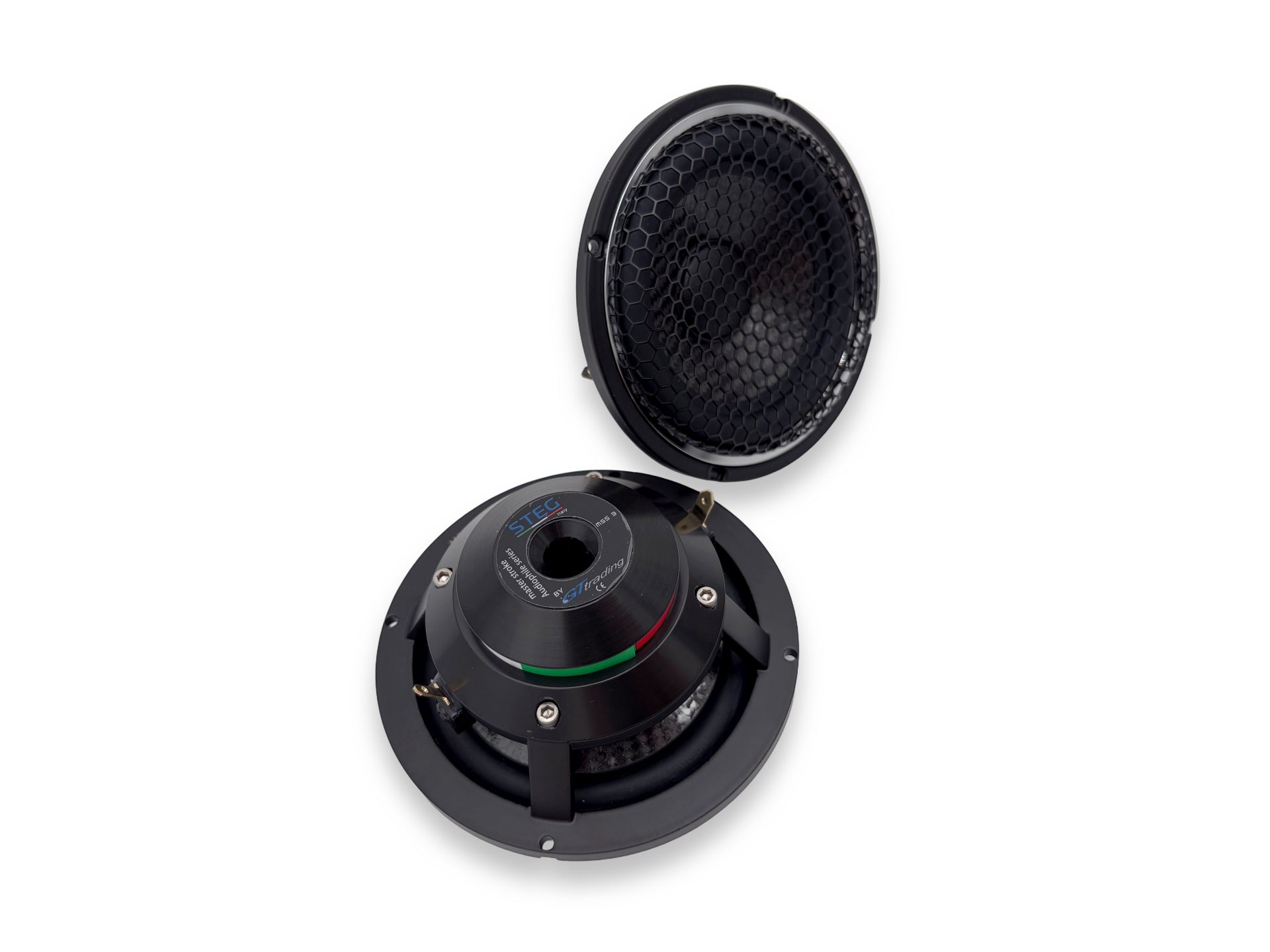

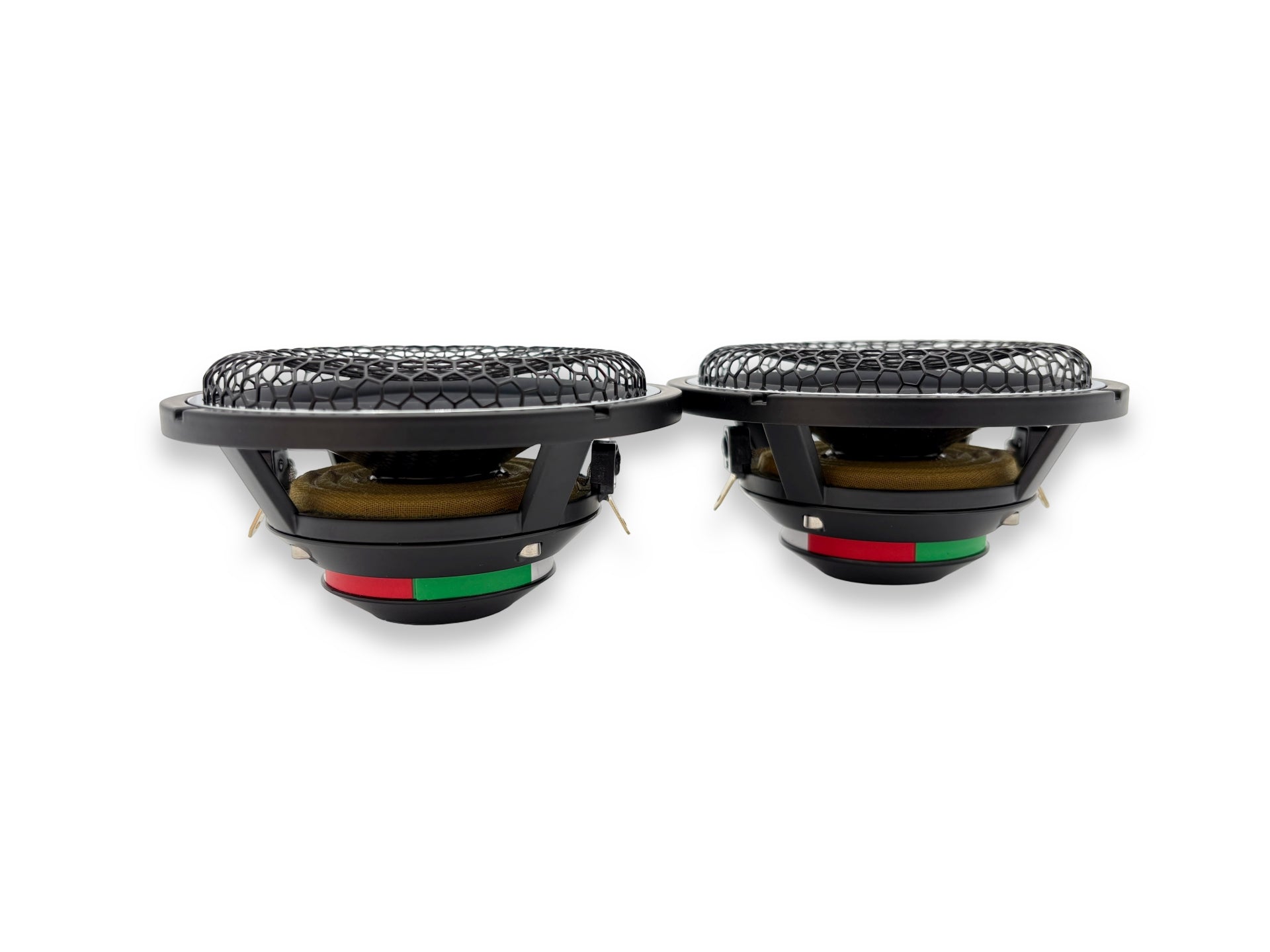

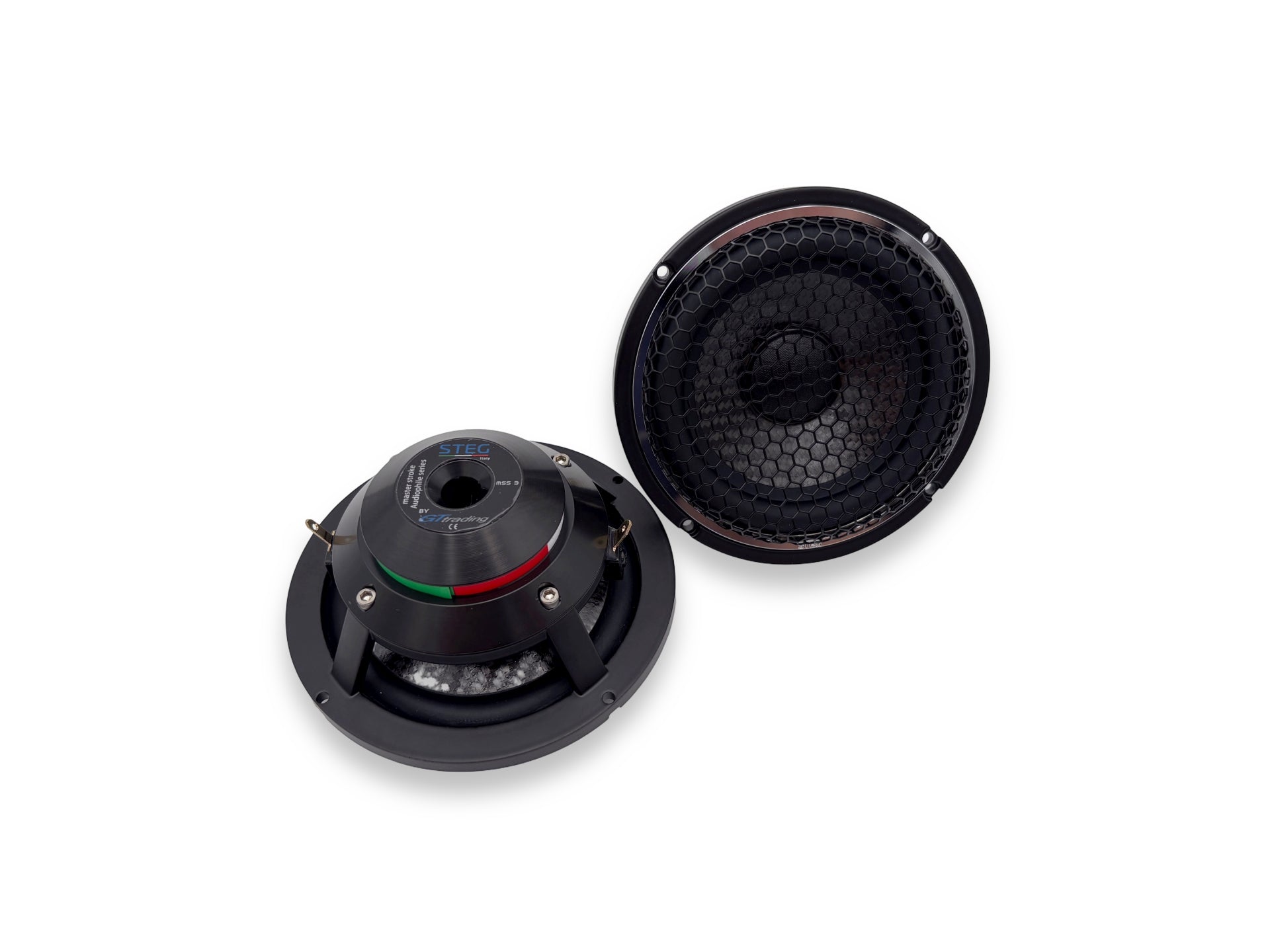

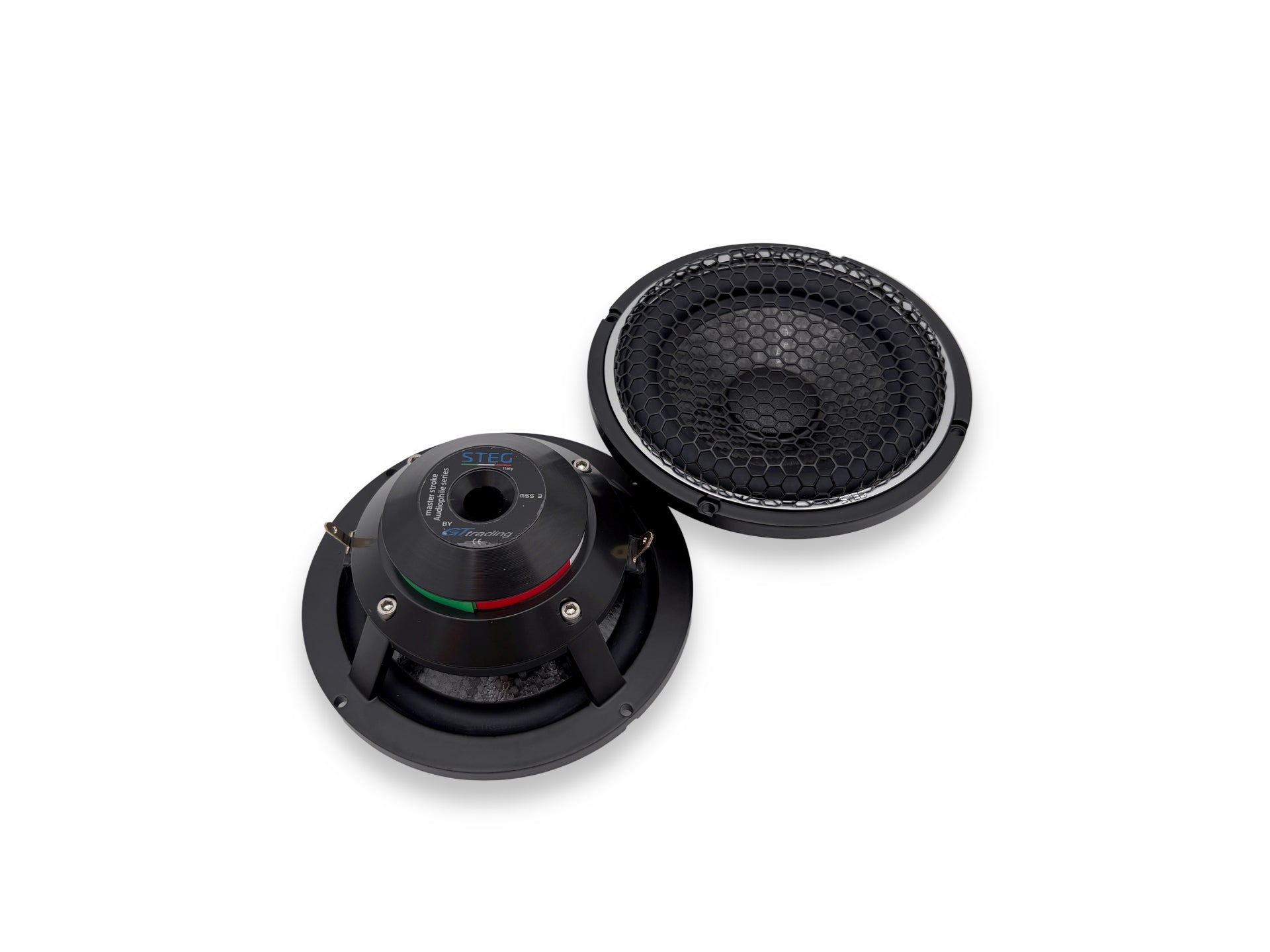

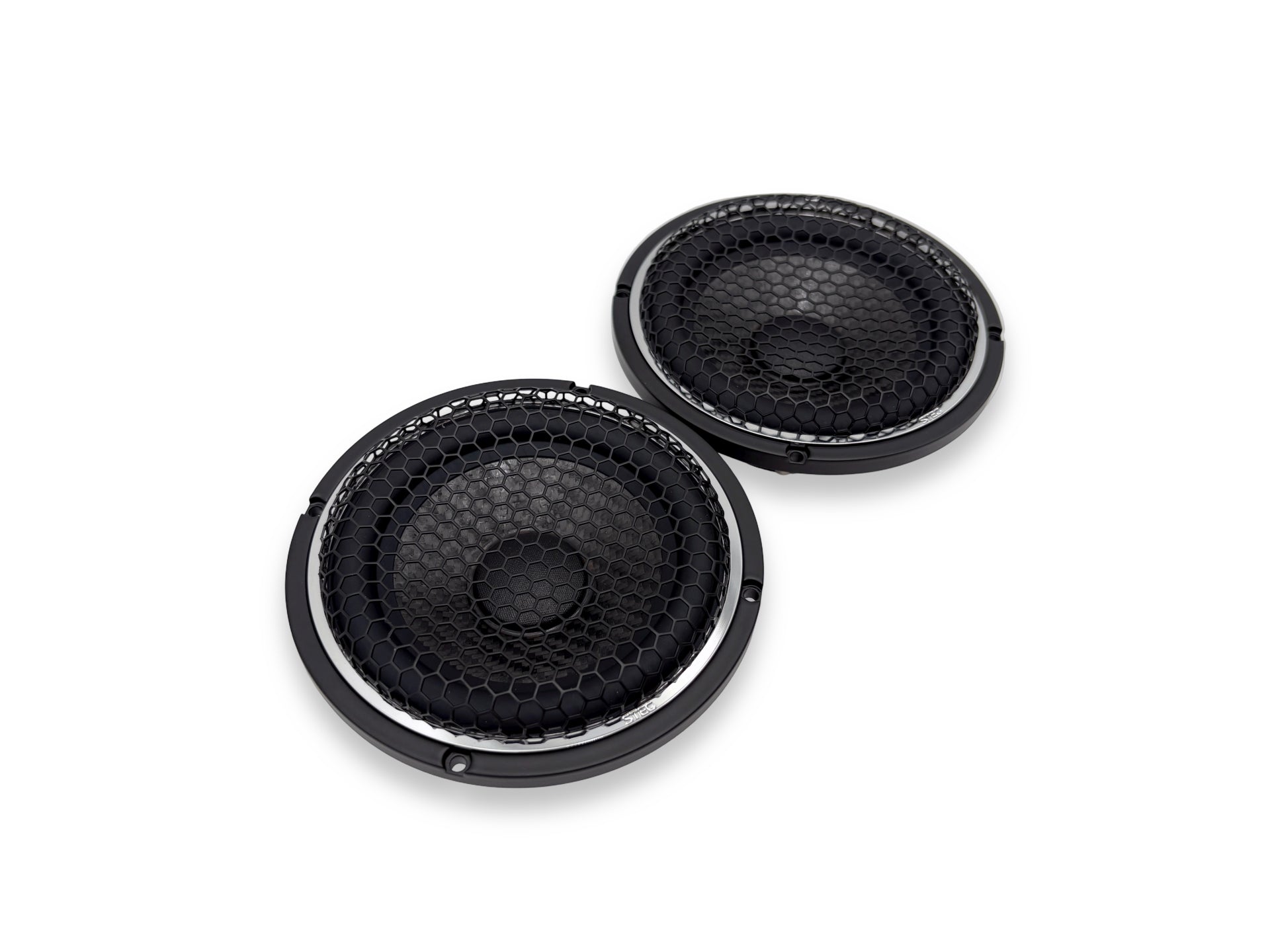

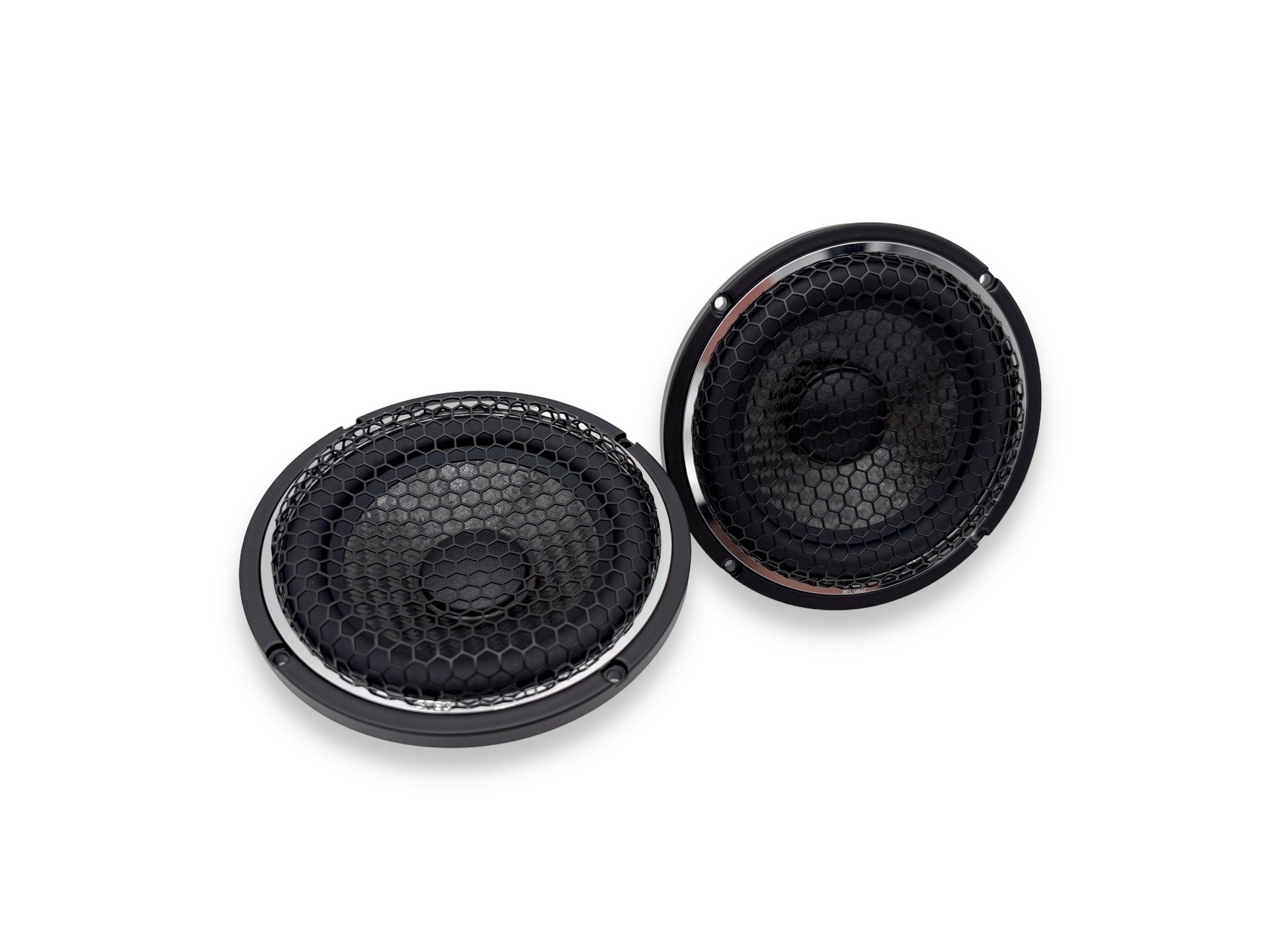

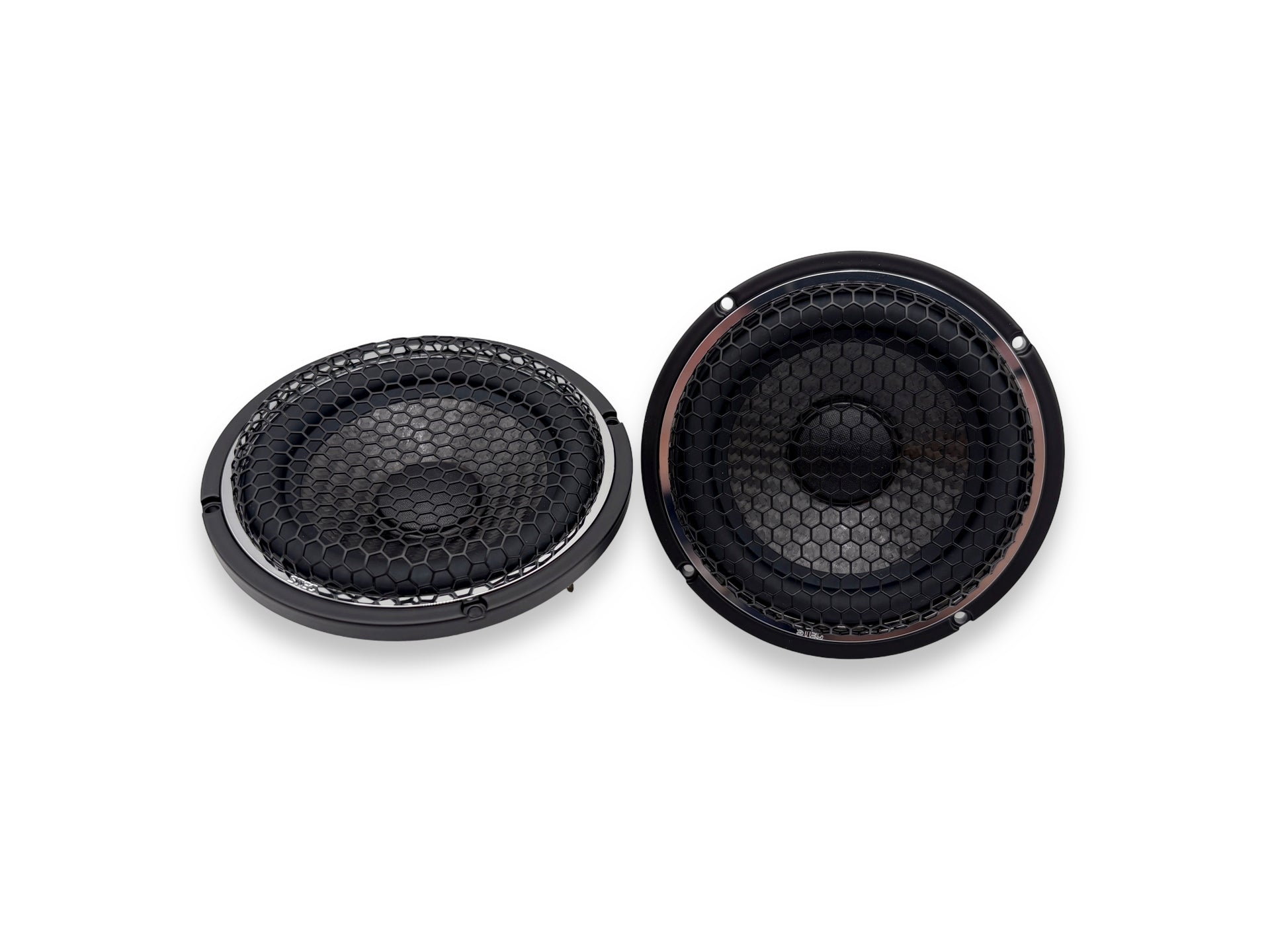

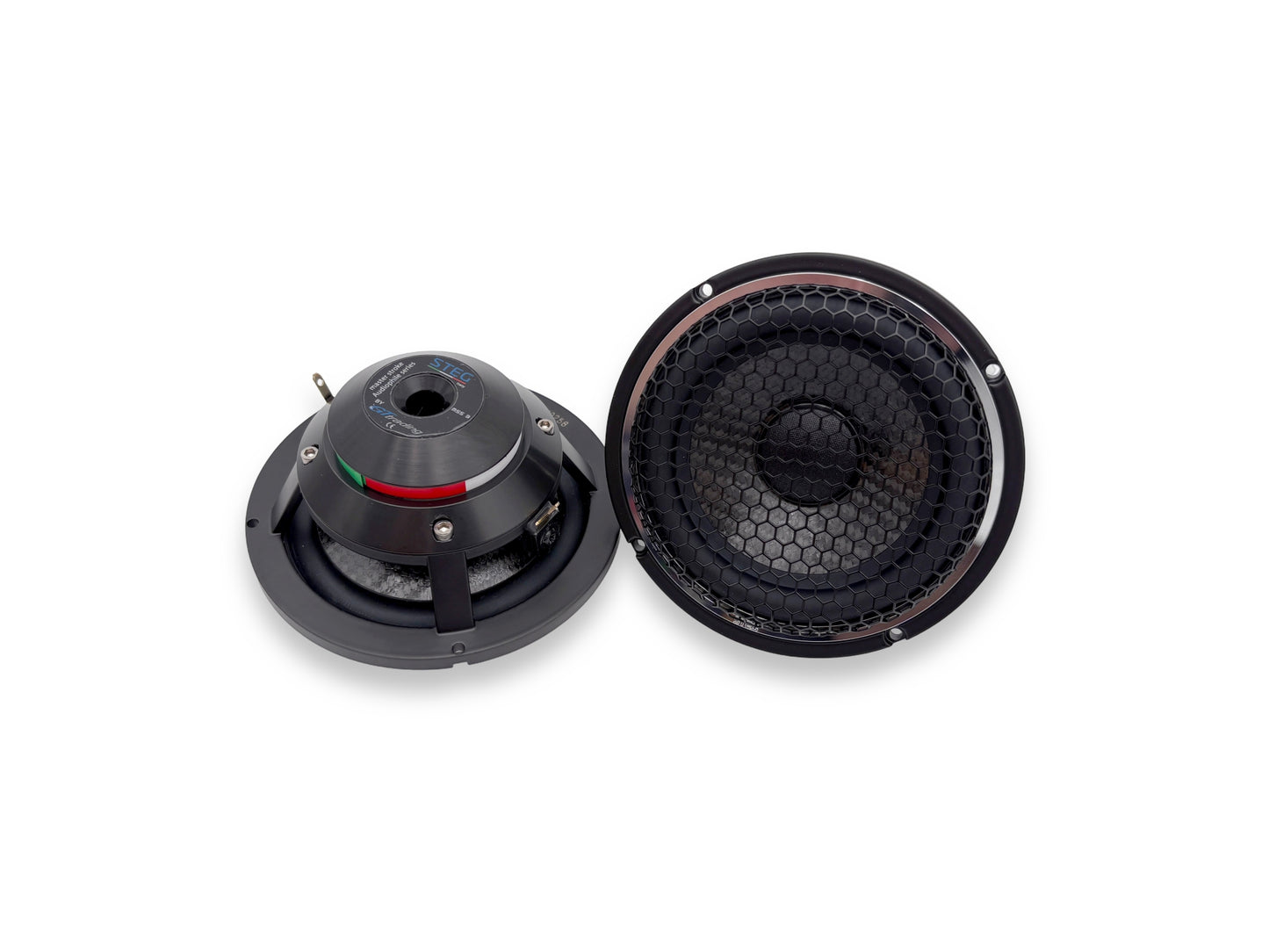

The Vocal Element – The 4″ Midranges

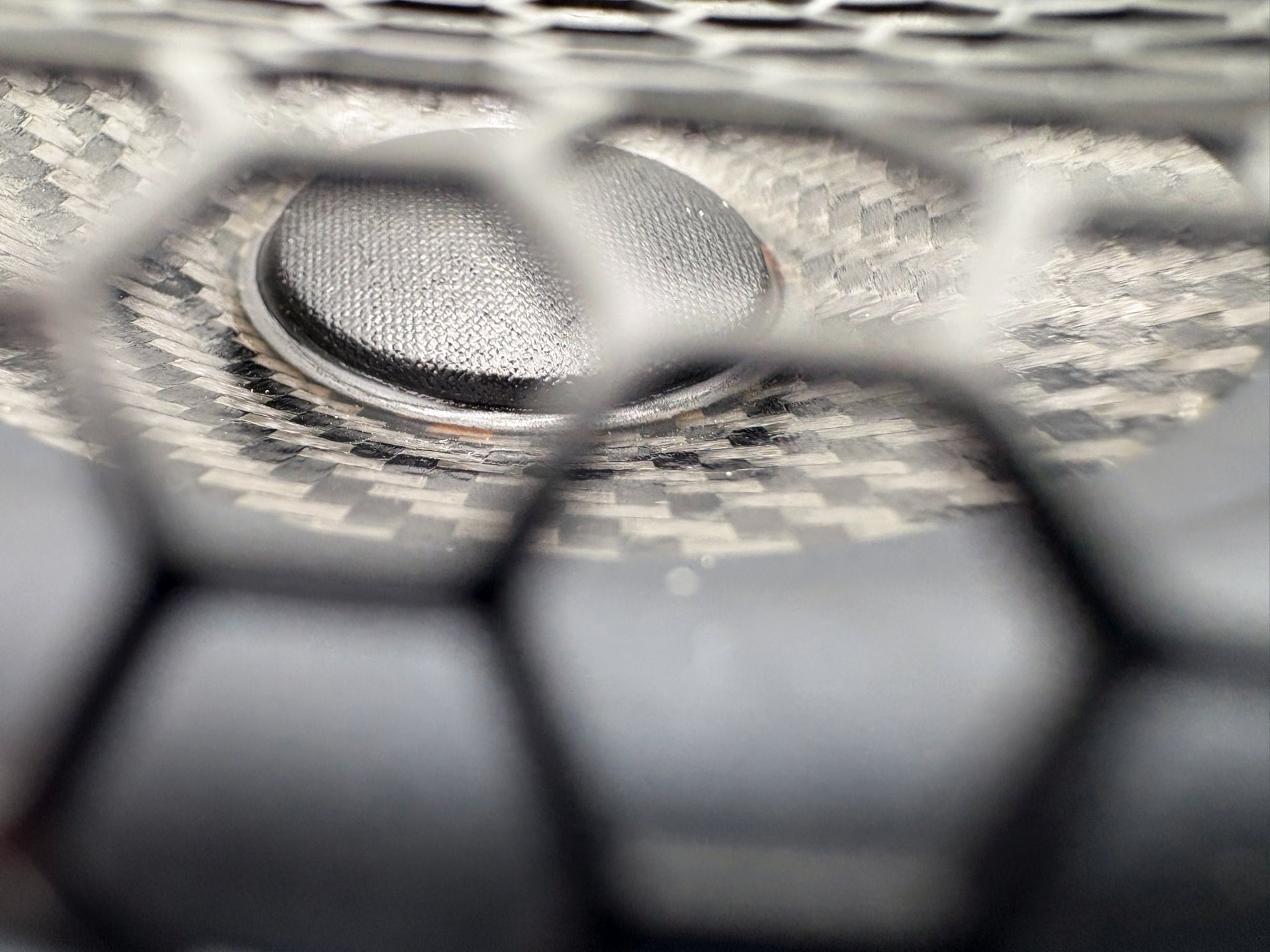

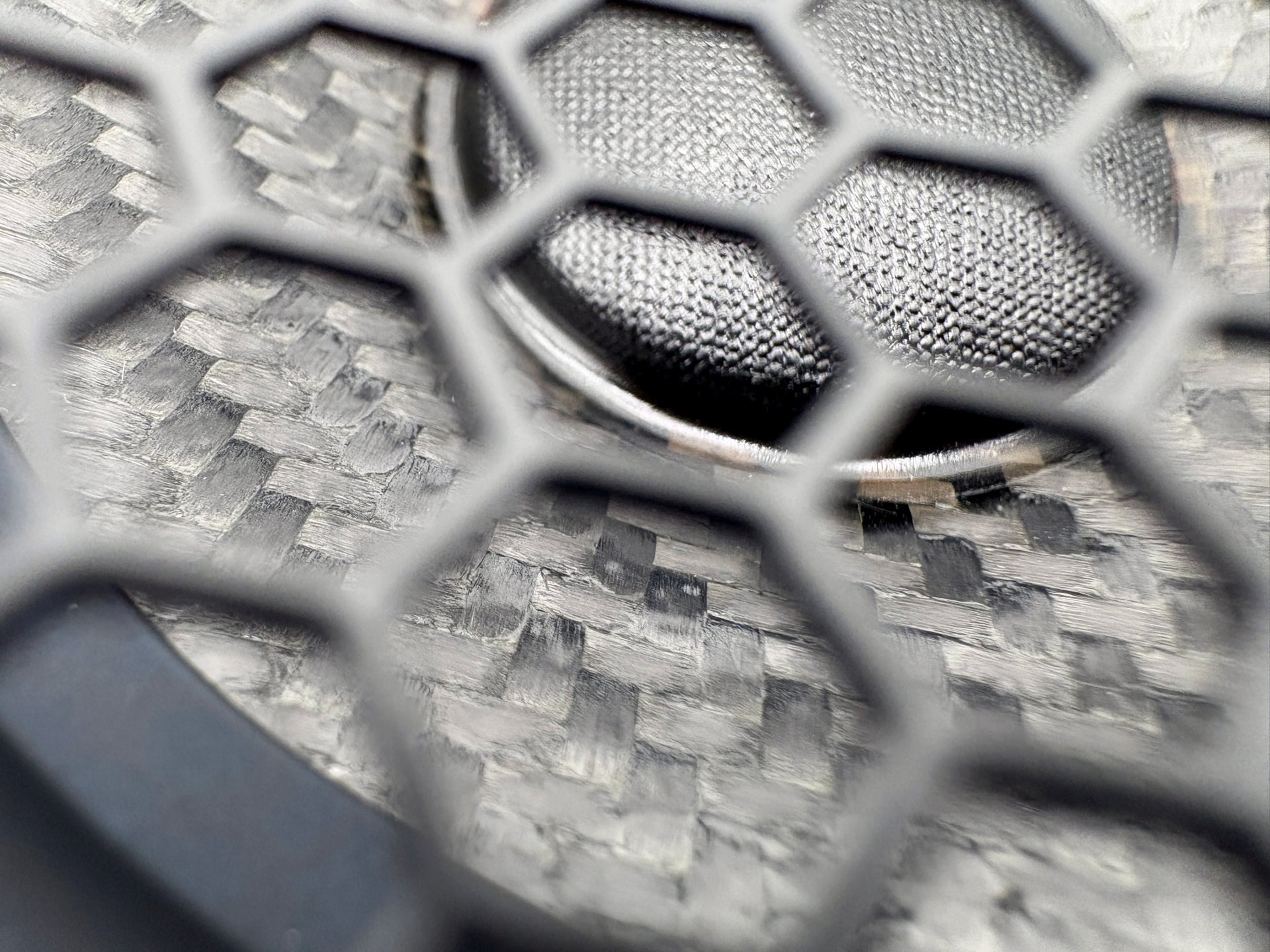

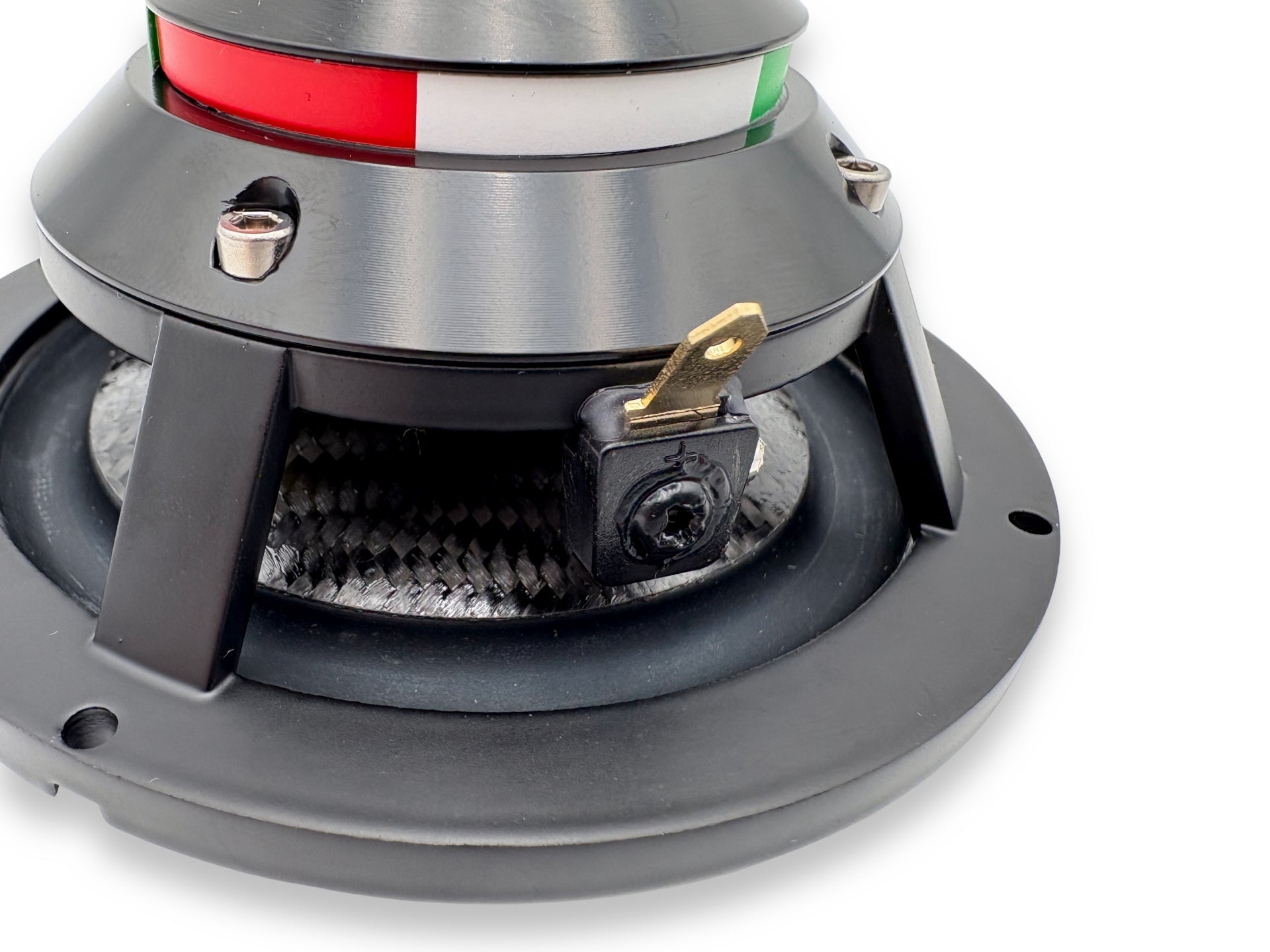

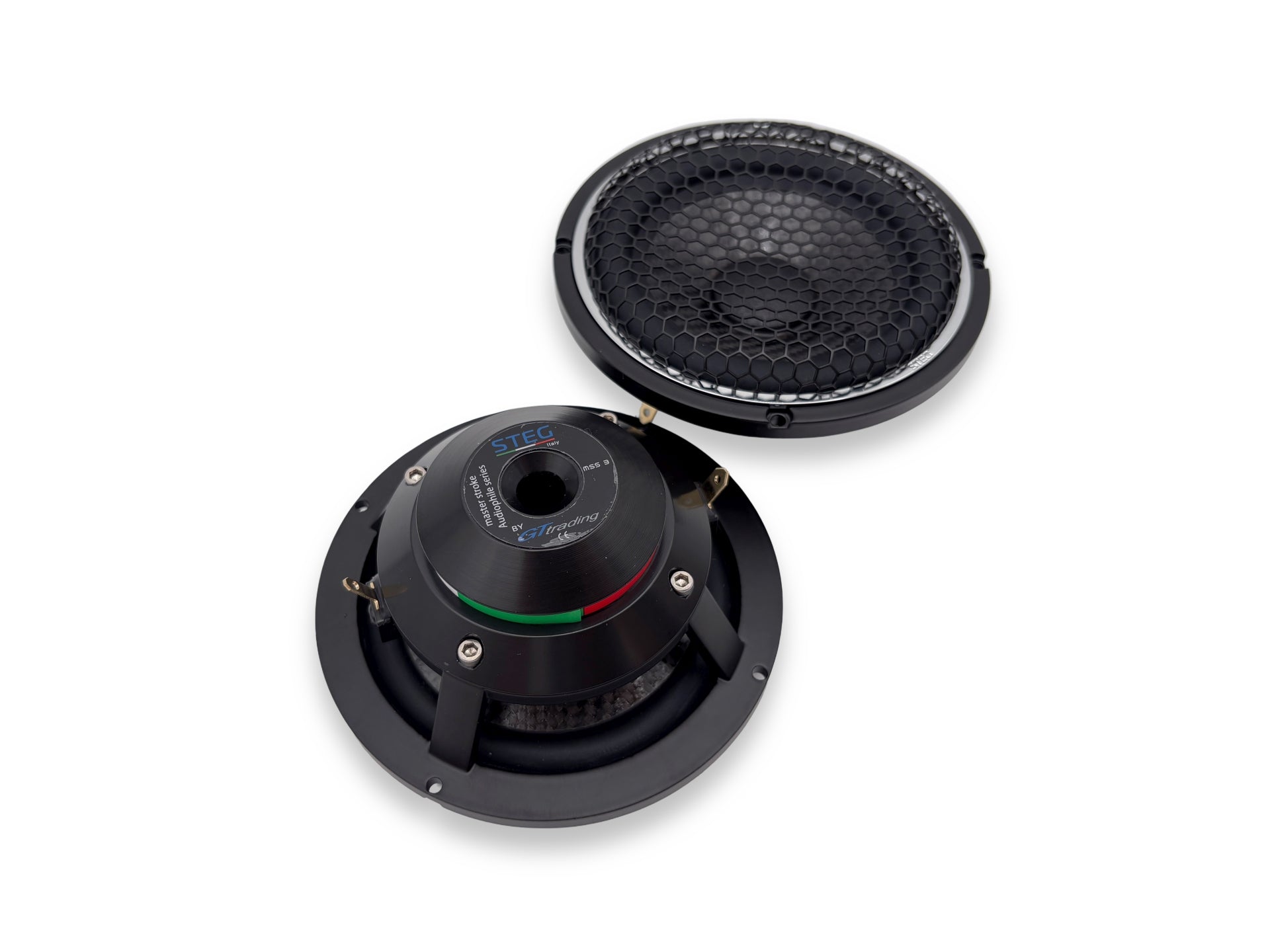

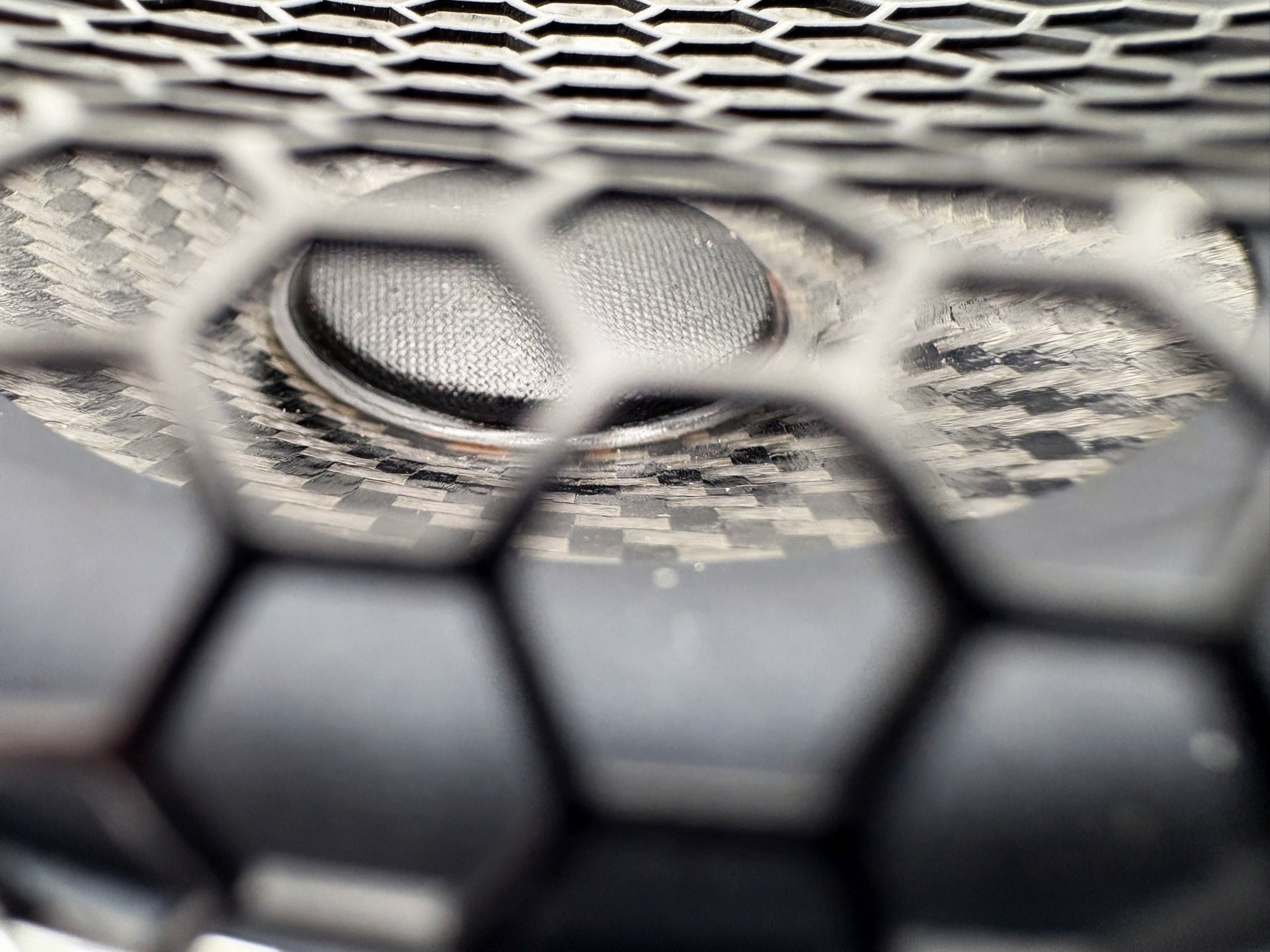

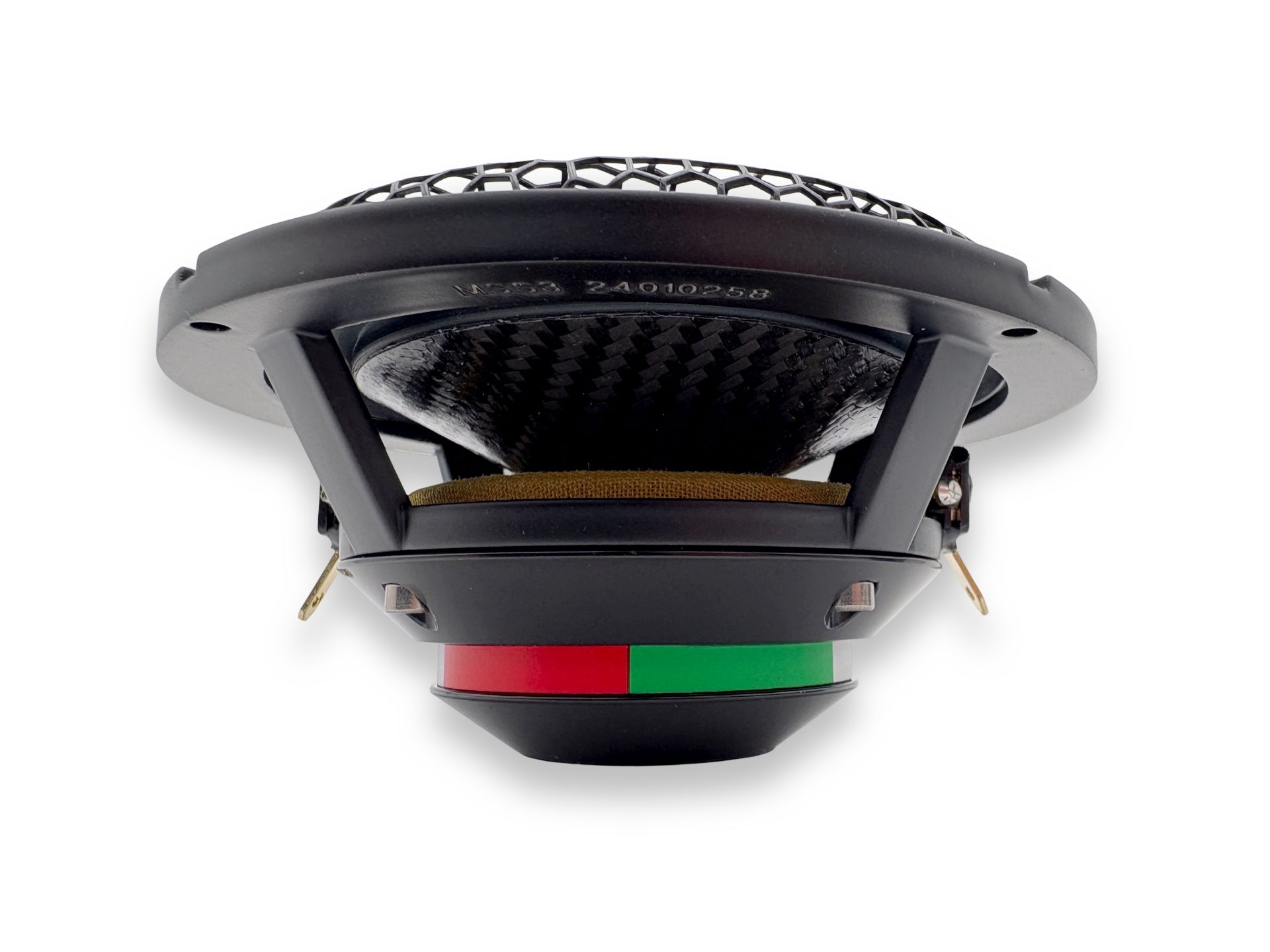

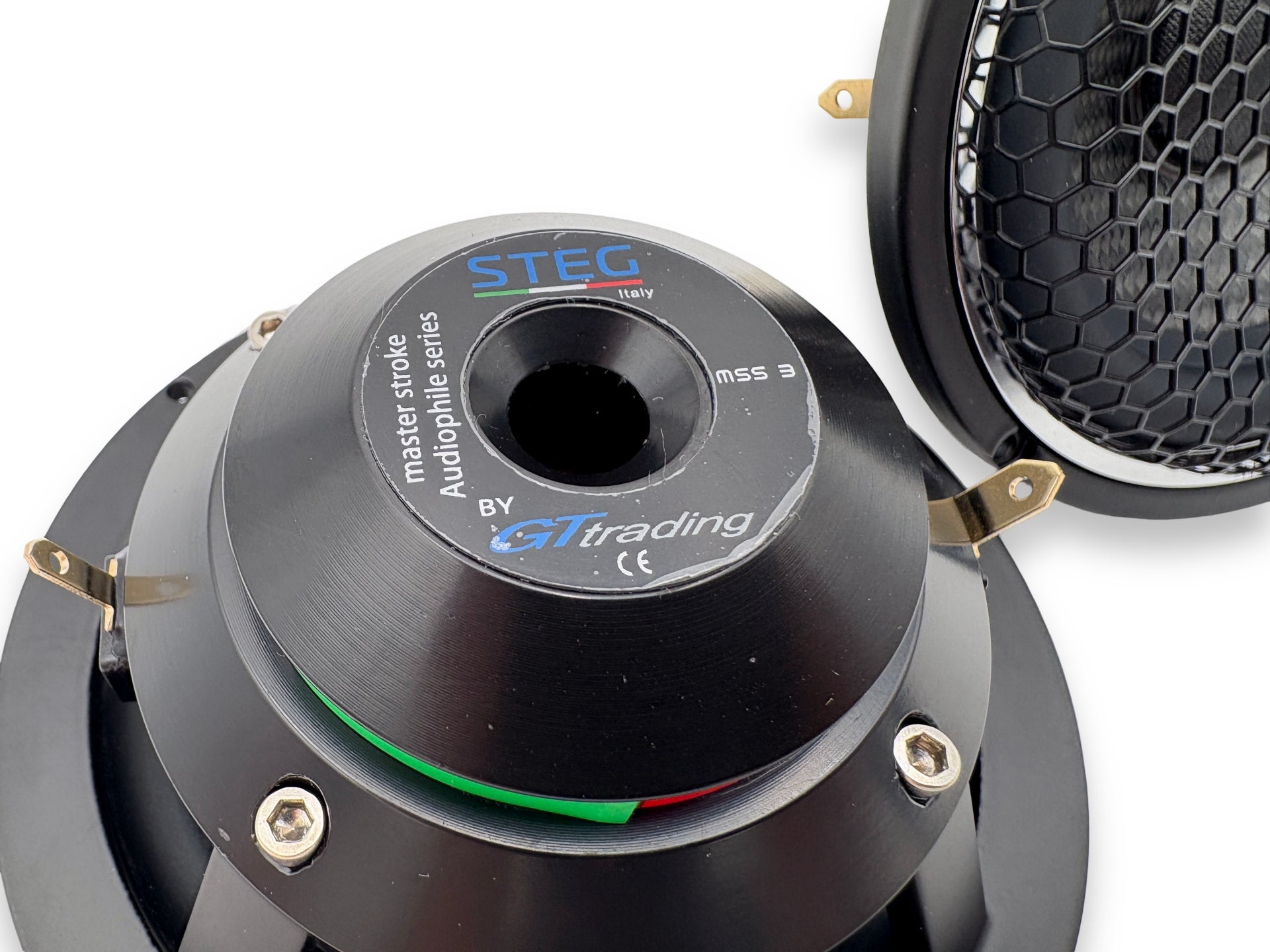

A state-of-the-art midrange drivers are effectively wide-band drivers, able to play cleanly past the 16500 Hz region whilst at the same time packing a punch down past 150 Hz, although they ought to be crossed a little higher. Arguably the most important driver of the range as it emits all vocal and middle range tones; the MSS3 is a phenomenal midrange. Akin to the larger driver it also features a magnetically inert high-grade cast aluminum basket. To protect the fibercarbon composite cone they feature integrated hex-mesh grilles which are acoustically transparent. Controlling the show are neodymium magnets, with a very large open venting system for superior cooling.
Design Features
– High-grade cast aluminium basket.
– Basket is aerodynamically transparent and magnetically inert.

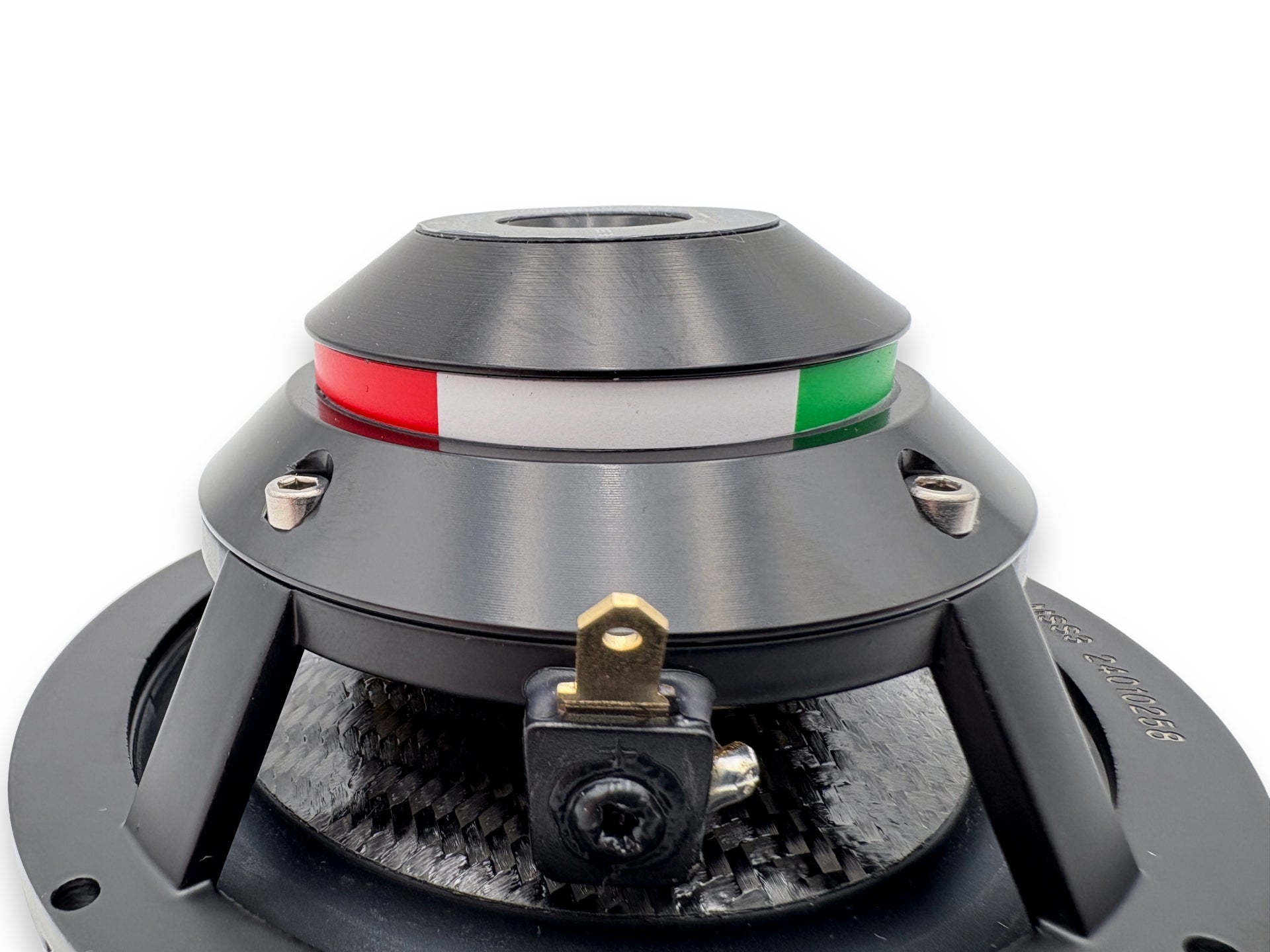

– Chrome plated bumped back plate prevents accidental bottoming out.
– Fibrecarbon composite cone.
– Plated terminals.
– Meticulously crafted.

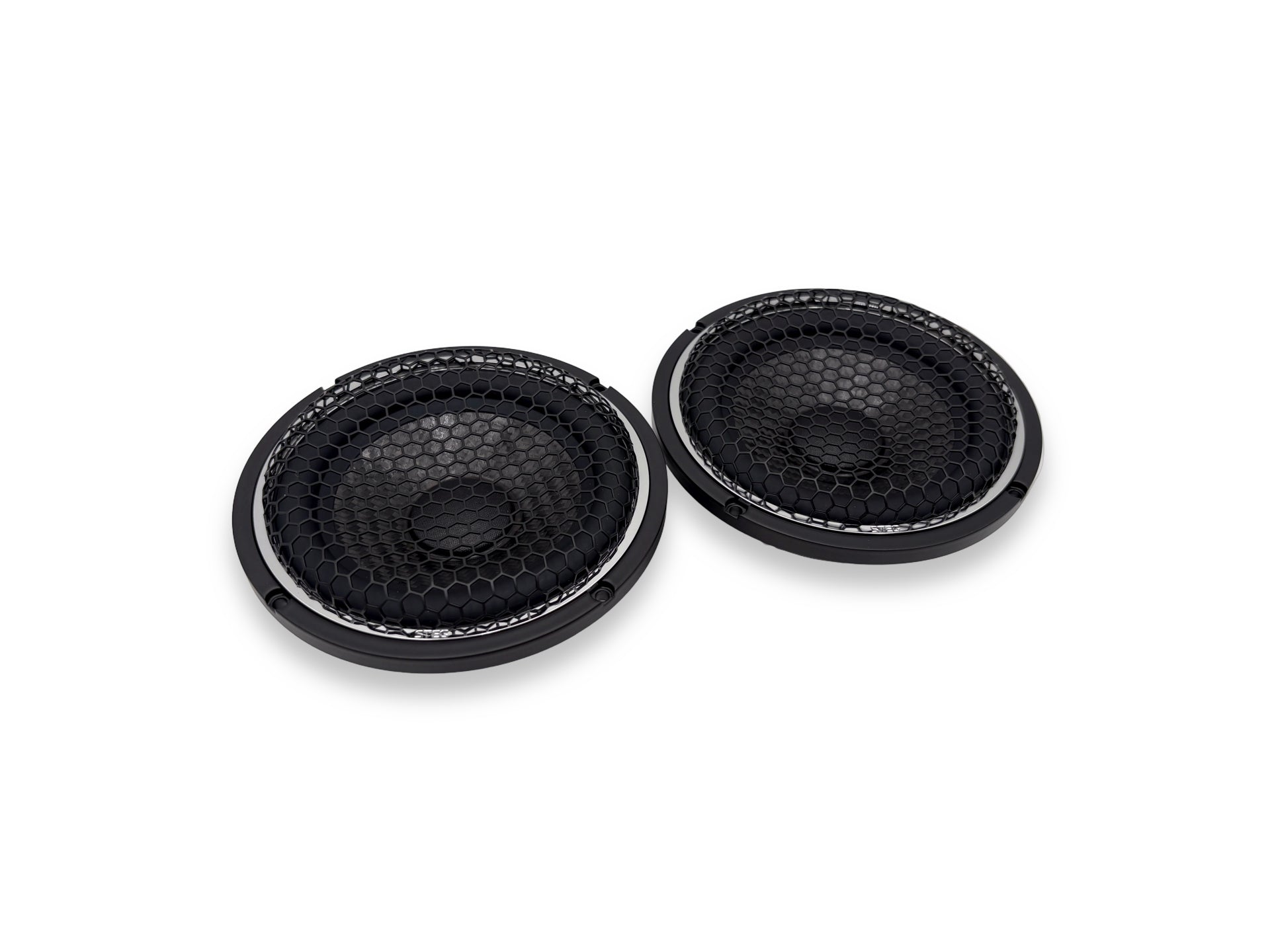

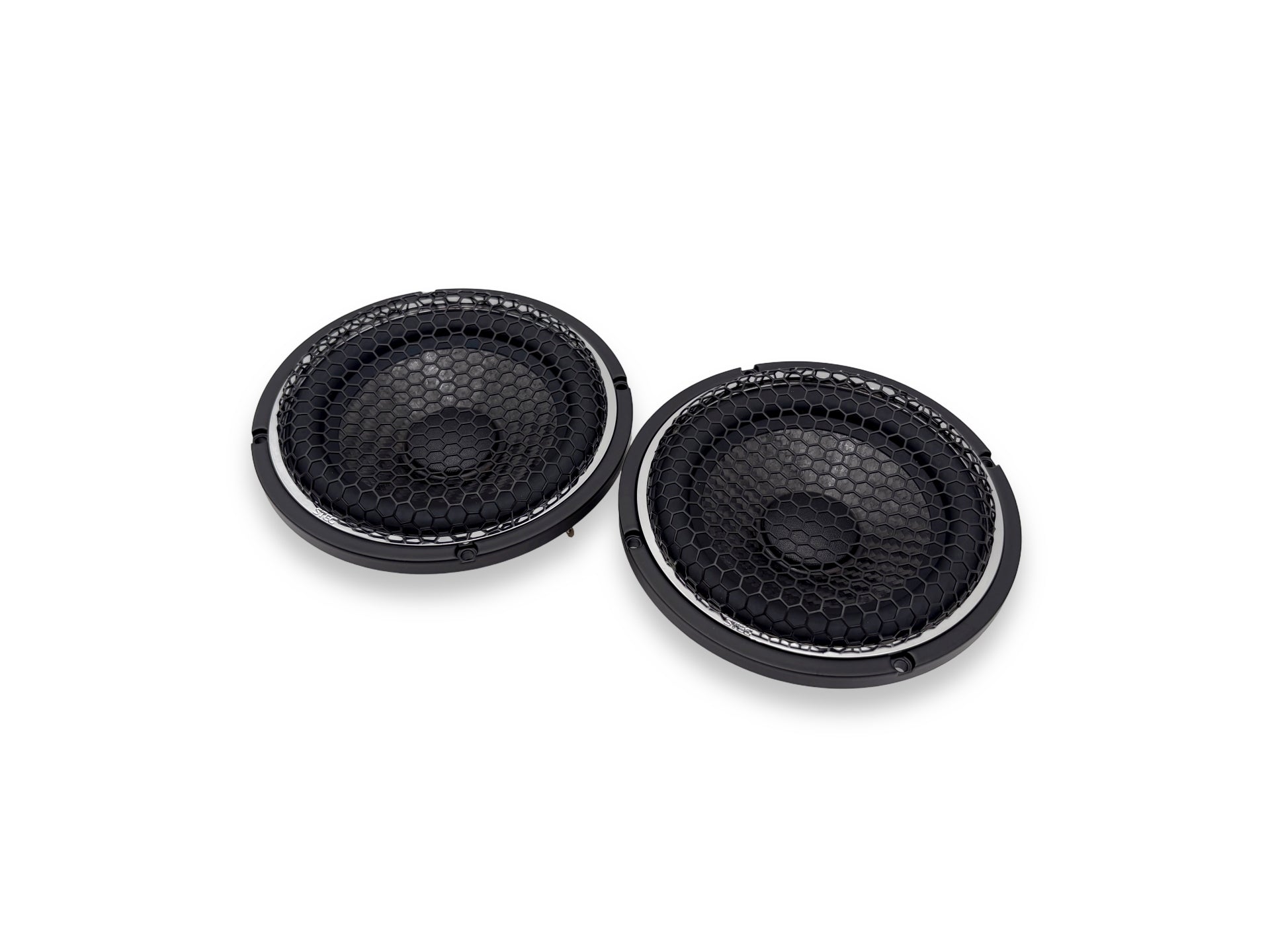

– Protective grilles and refraction ring.

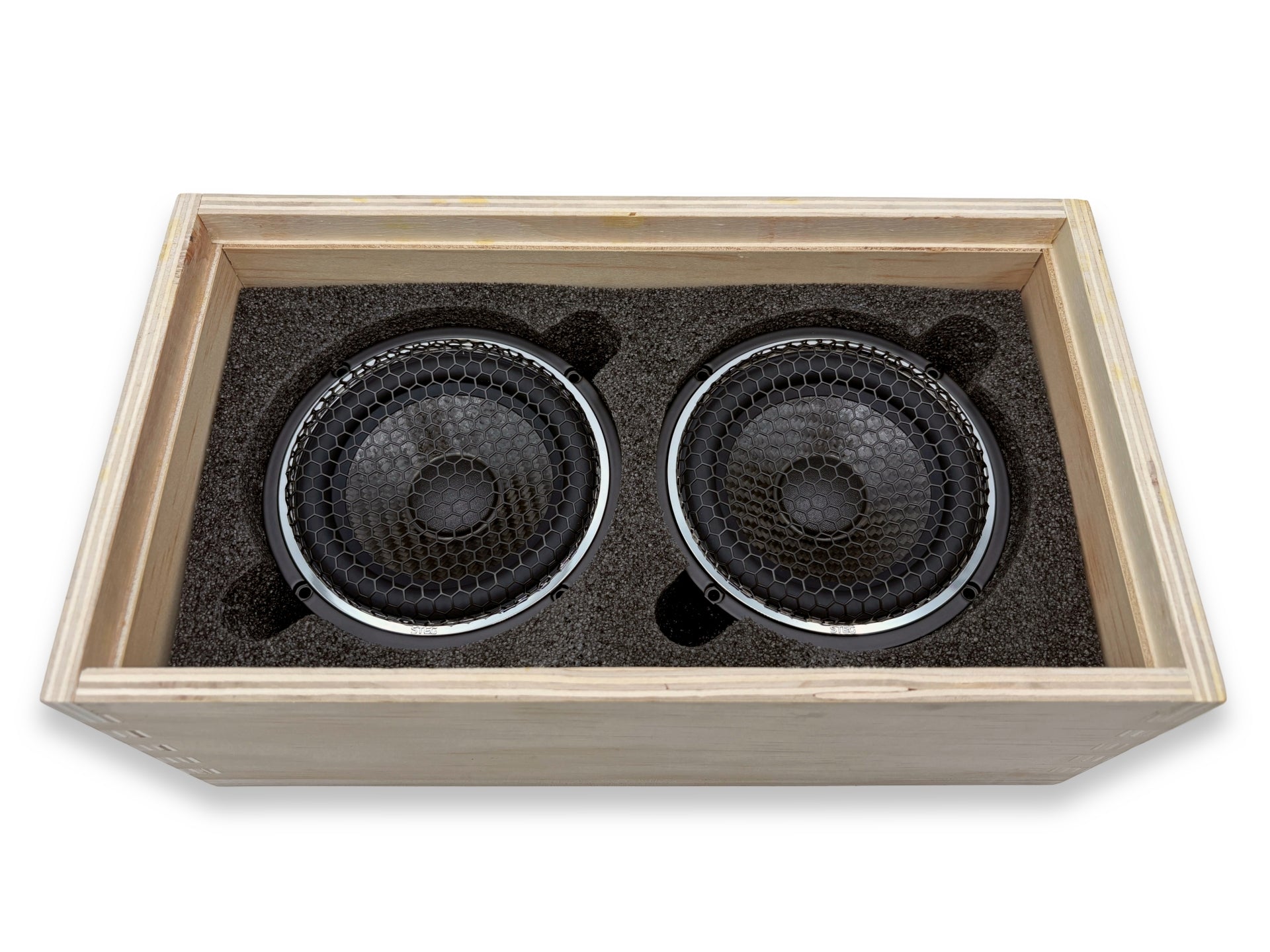

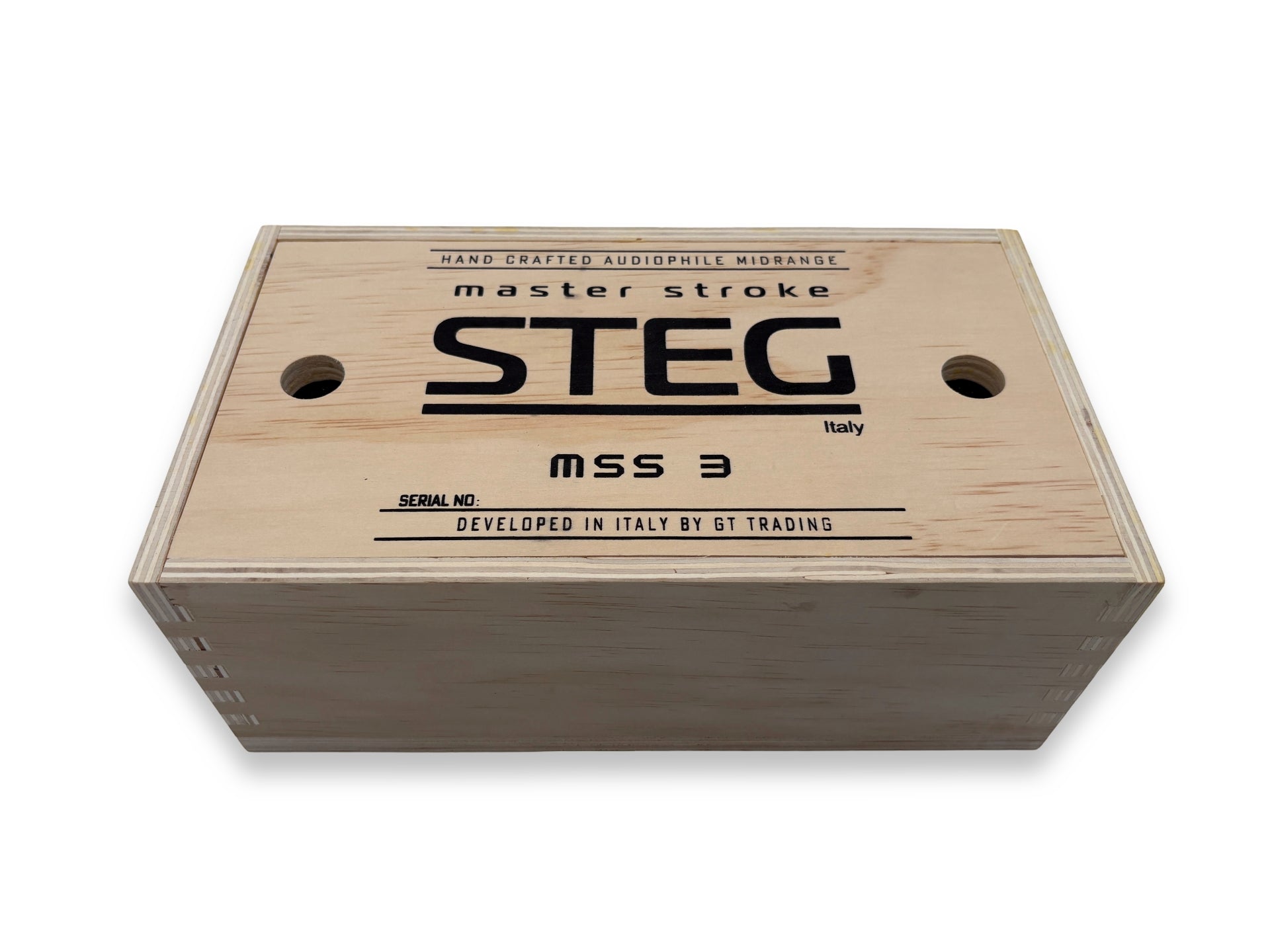

– Shipped in neat timber cases.

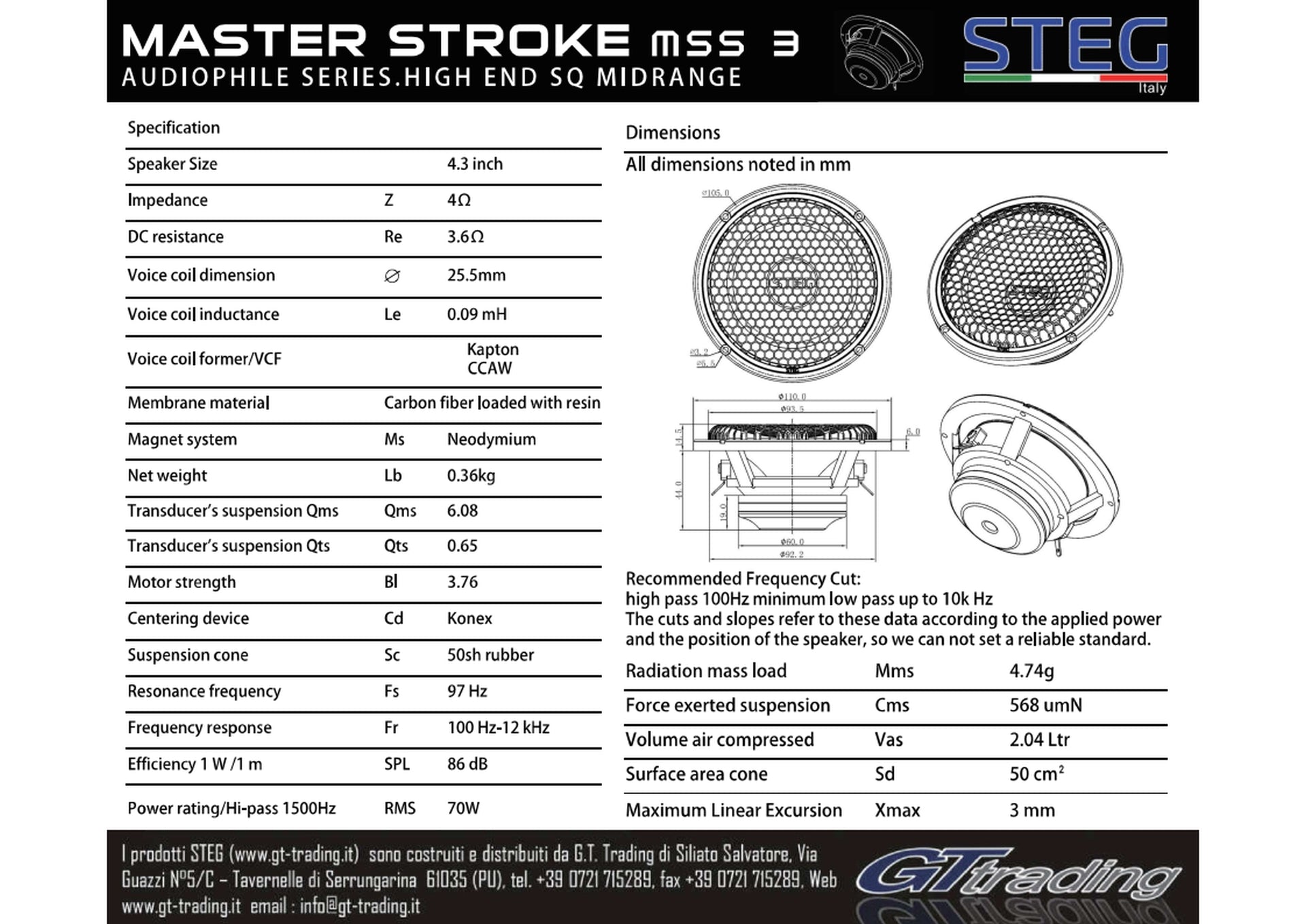

Electrical Specifications
– Nominal configuration: one-way 4″ midrange set
– Continuous power handling: 70 Watts
– Maximum power handling: 1400 Watts
– Voice coil diameter: 25.5 mm
– Frequency response: 100 Hz – 12000 Hz
– Sensitivity: 86 dB
– DC resistance (Re): 3.6 Ohms
– Resonant frequency (Fs): 97 Hz
– Xmax: +/- 3 mm
– Compliance (Vas): 2.04 l
– Total Q (Qts): 0.65
– Mechanical Q (Qms): 6.08
– Electrical Q (Qes): 0.58
Physical Specifications
– Mounting diameter: 92.2 mm
– Mounting depth: 44 mm
– Weight: 0.8 kg
Documentation
– User manual
