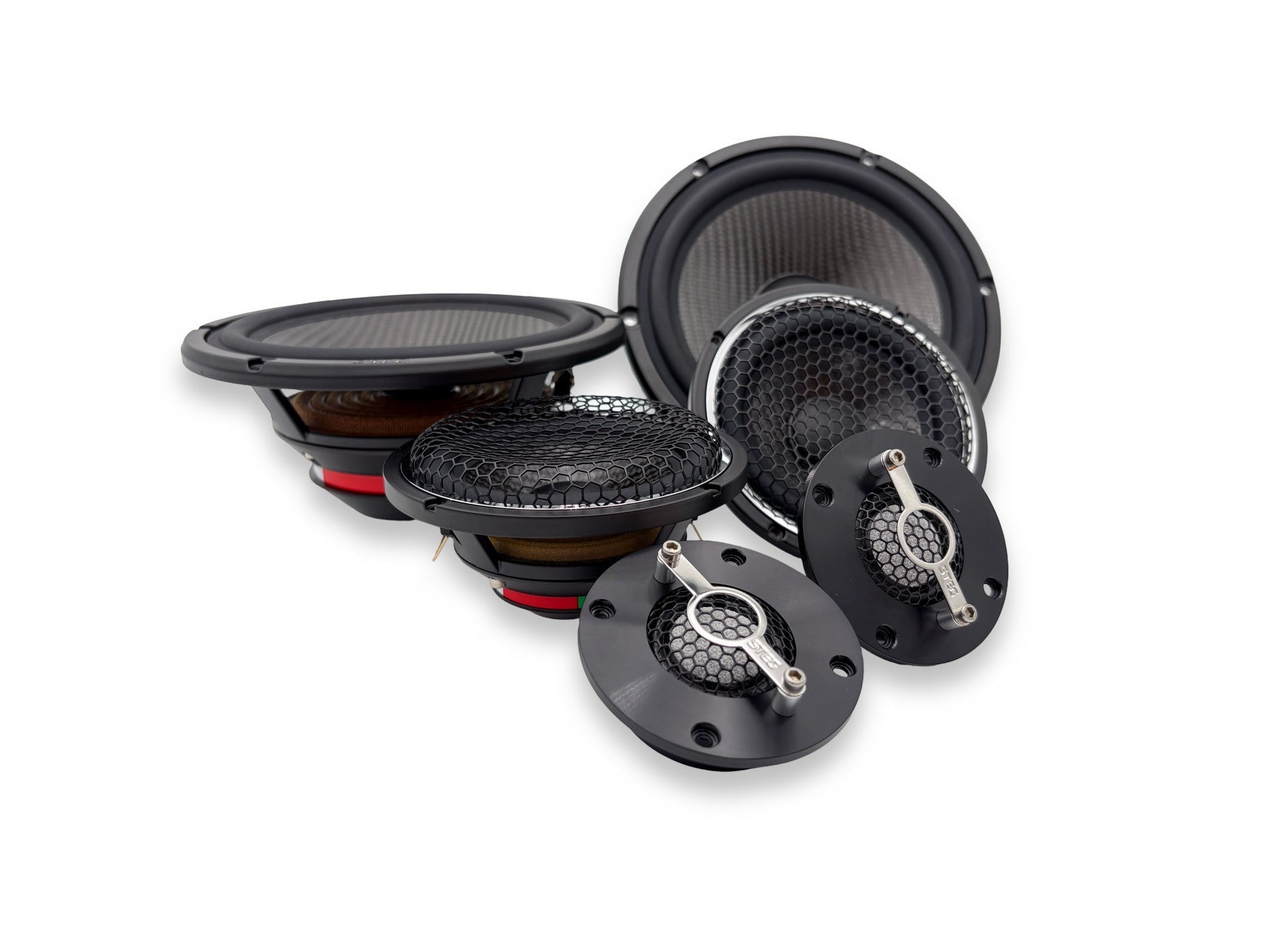

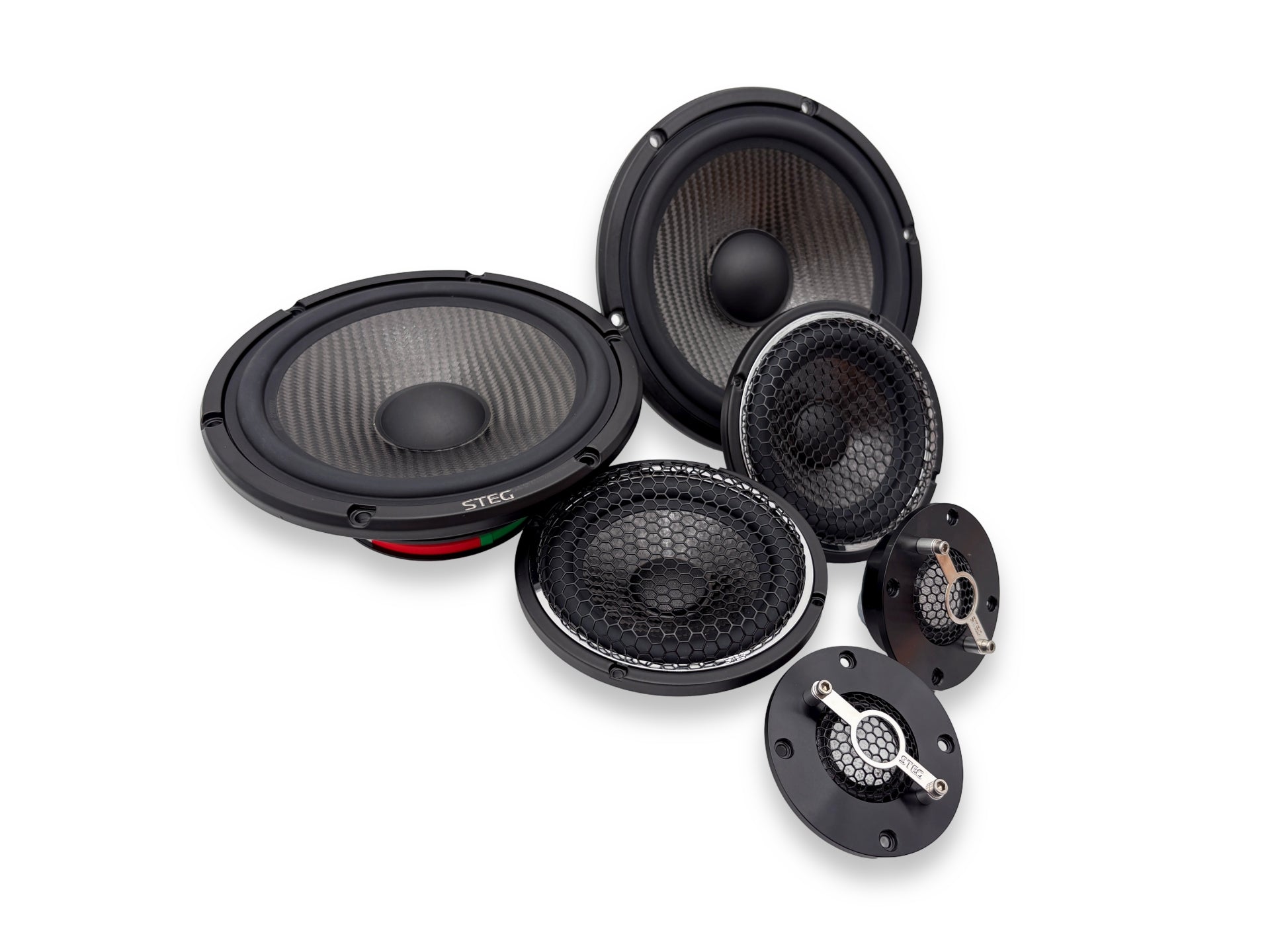

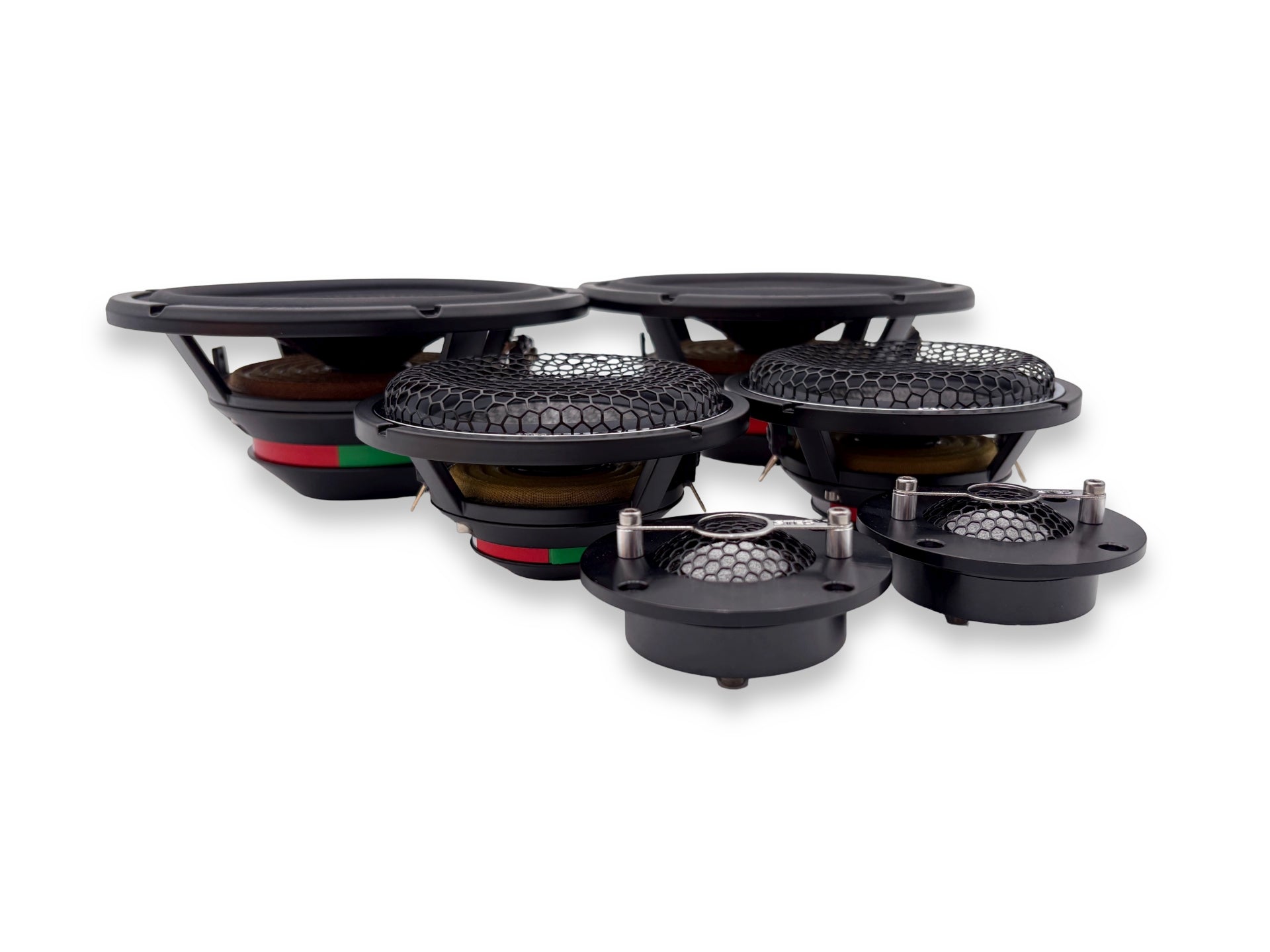

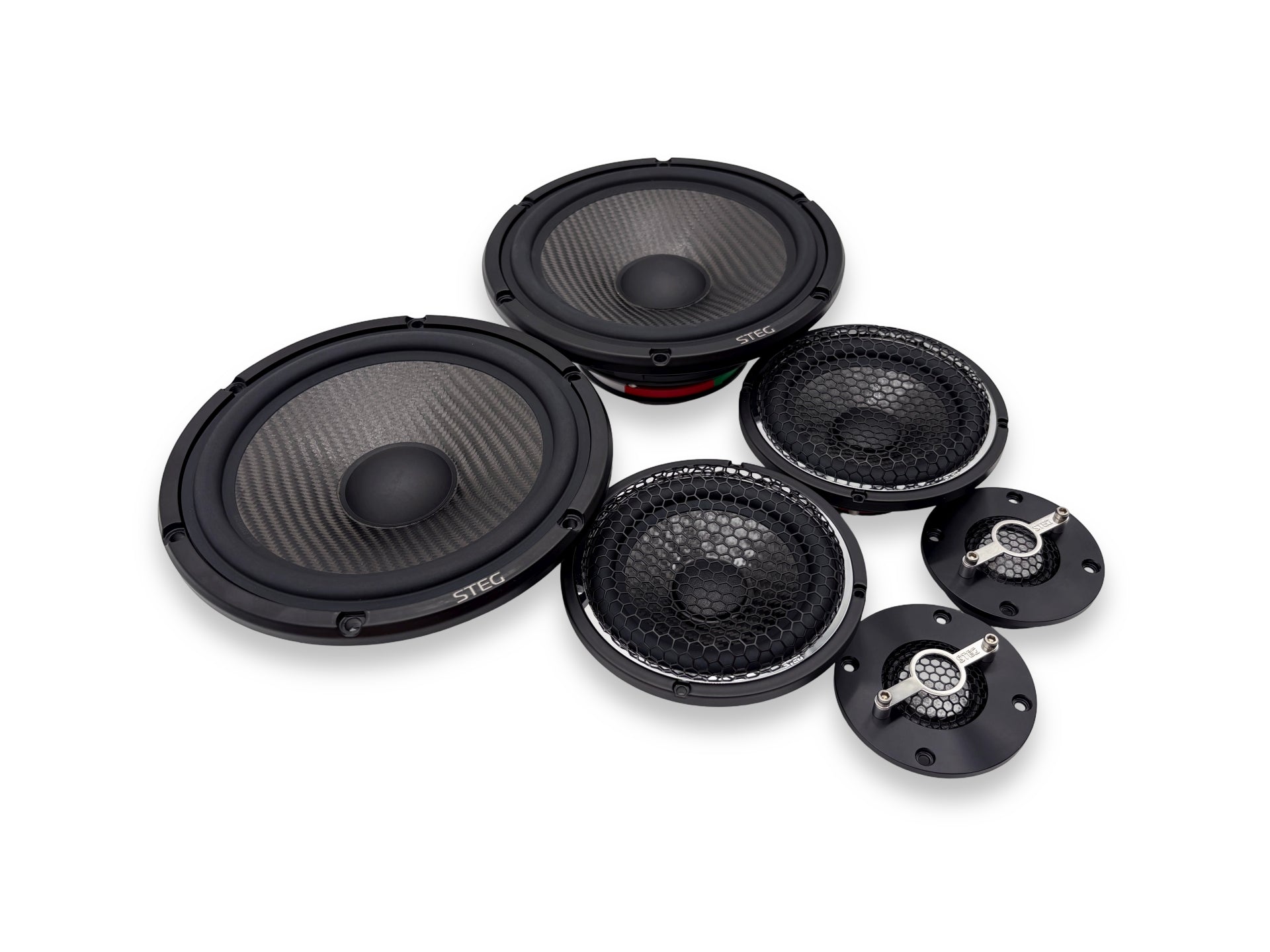

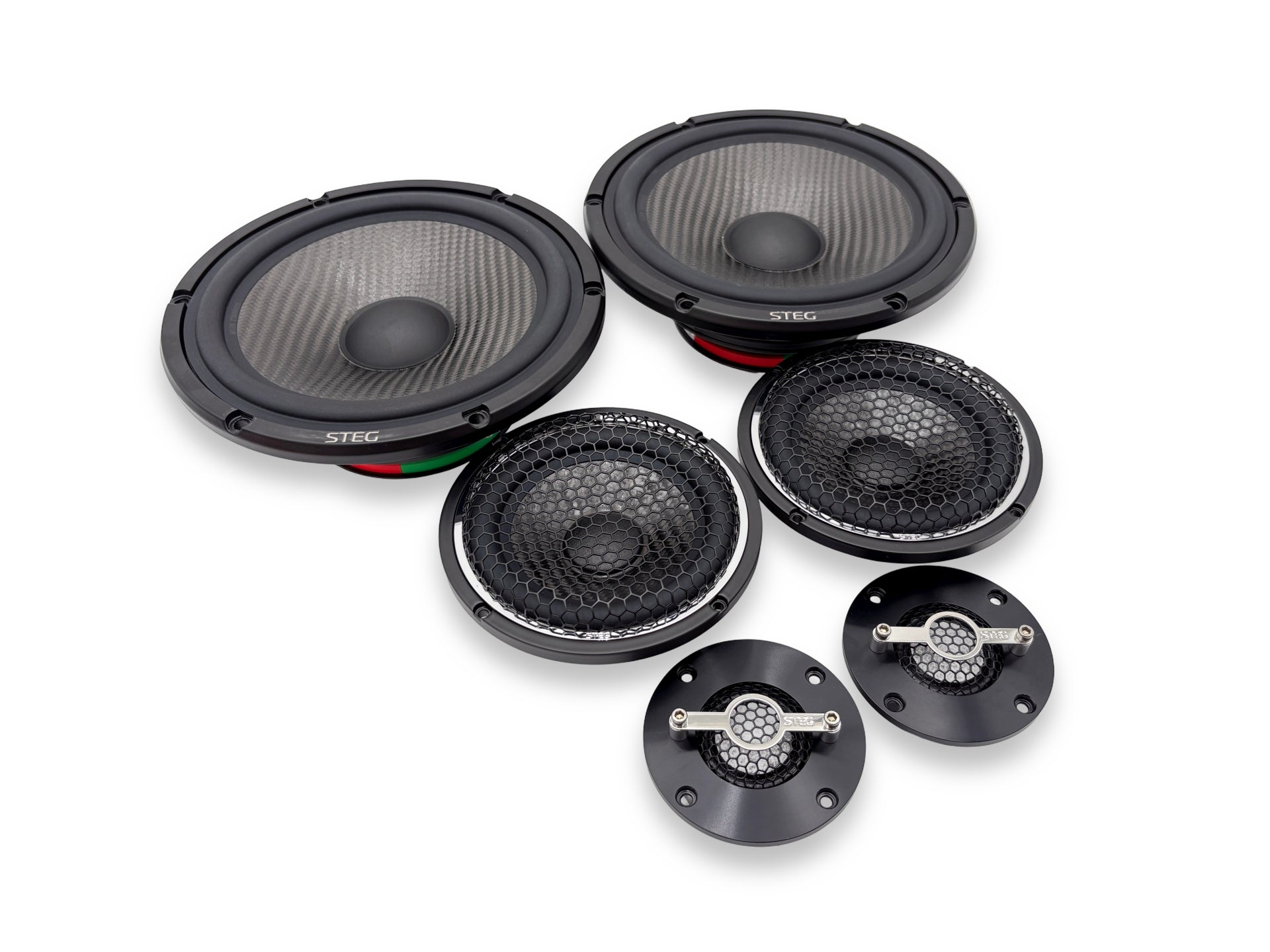

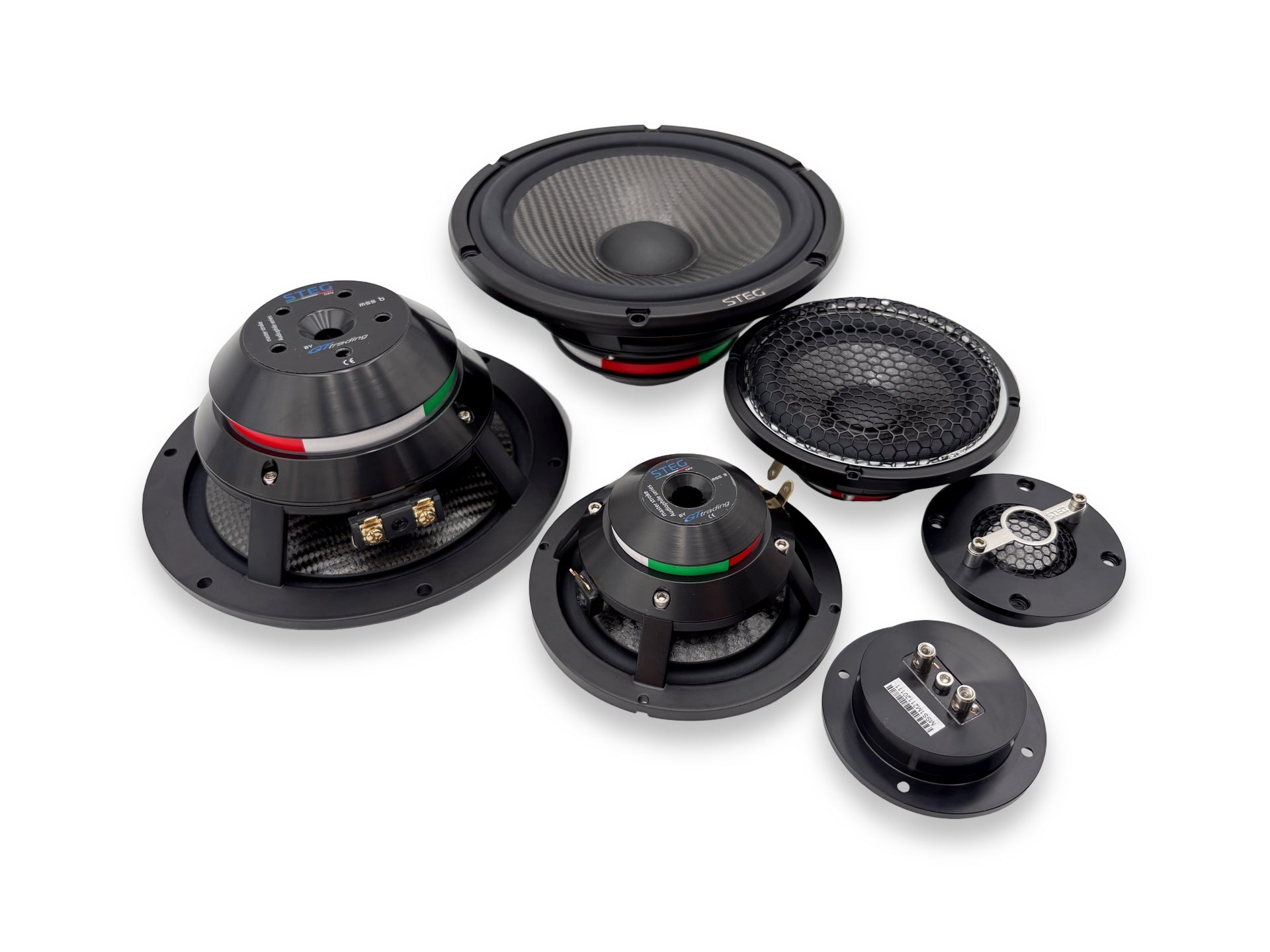

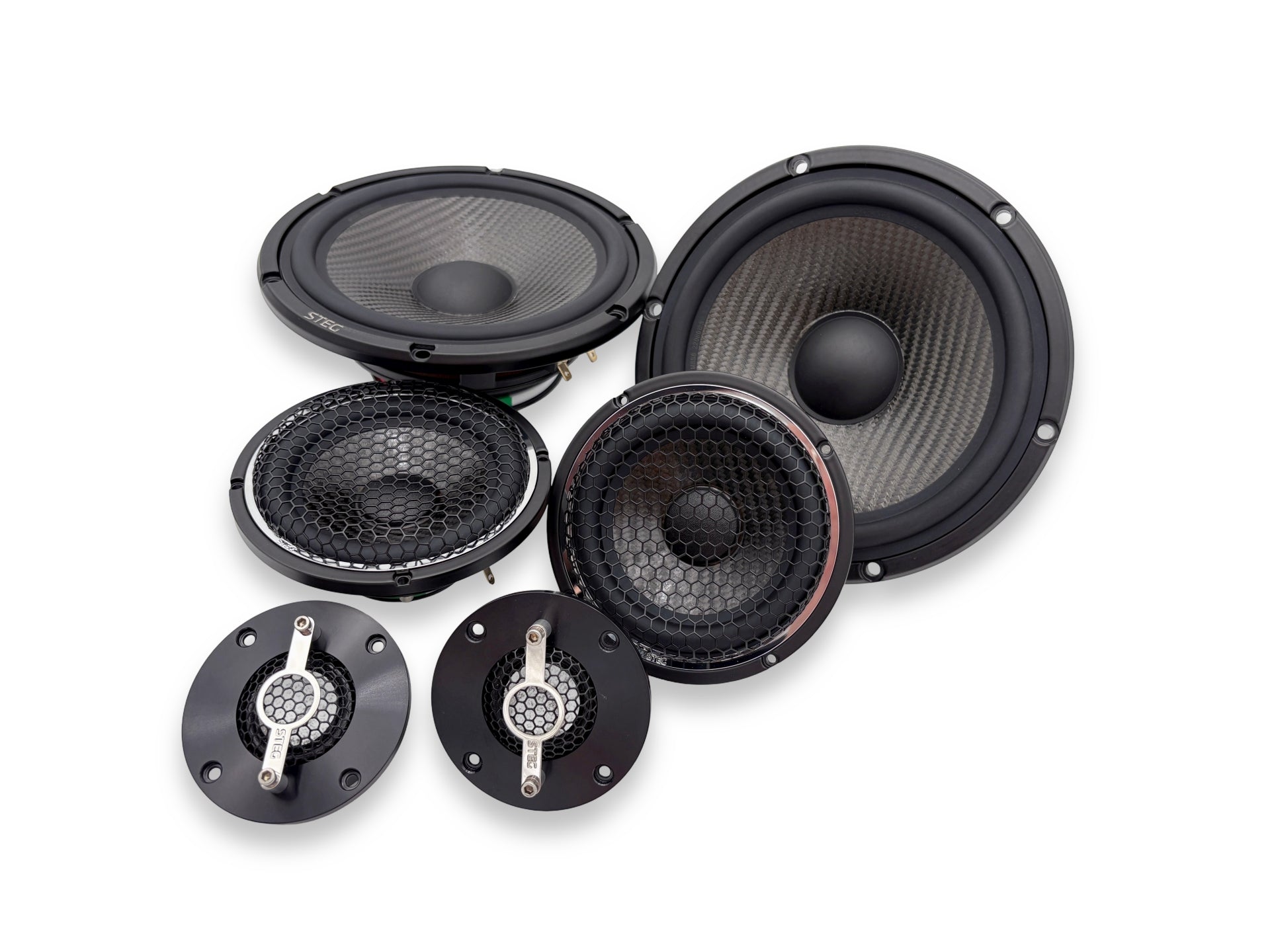

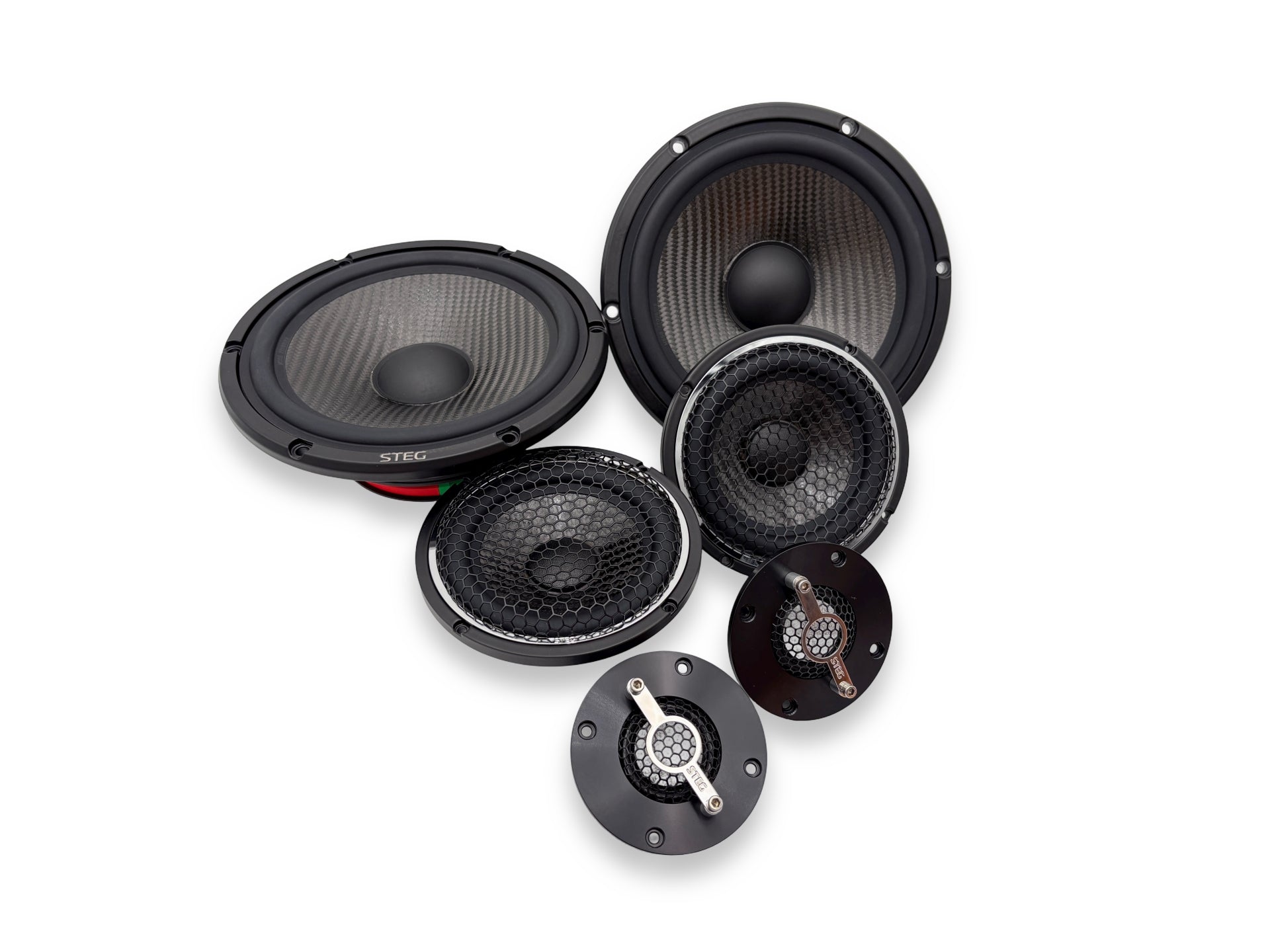

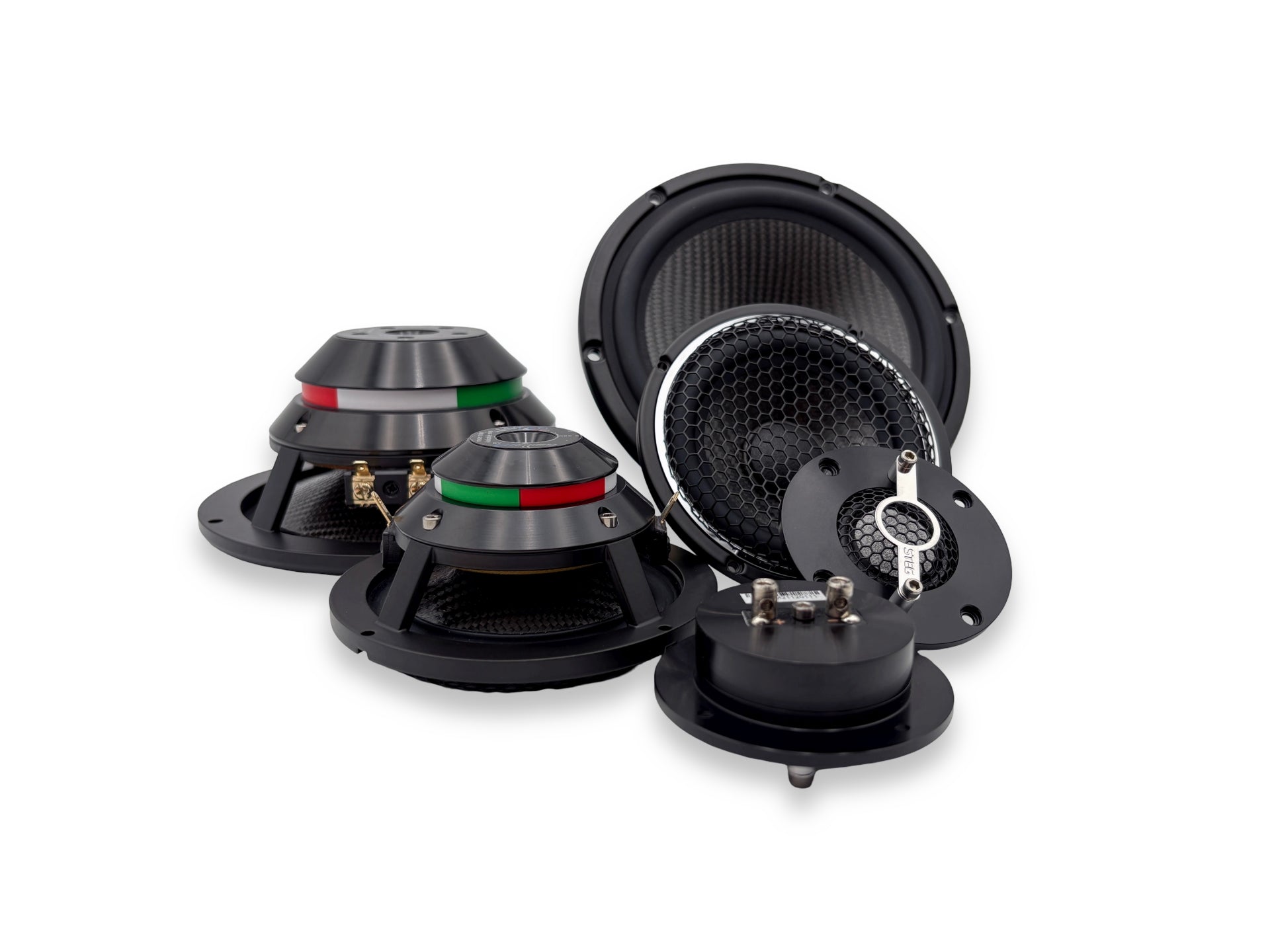

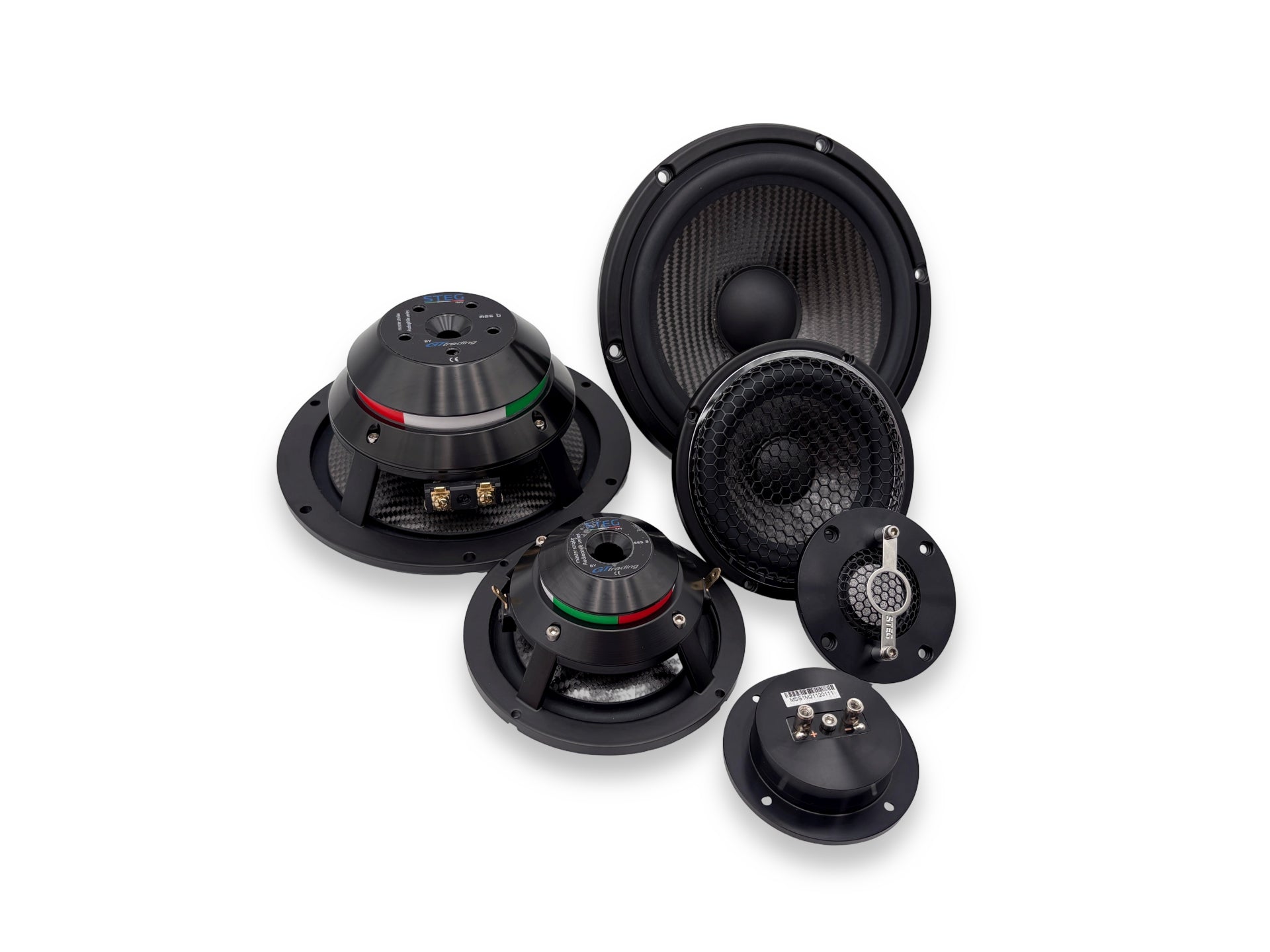

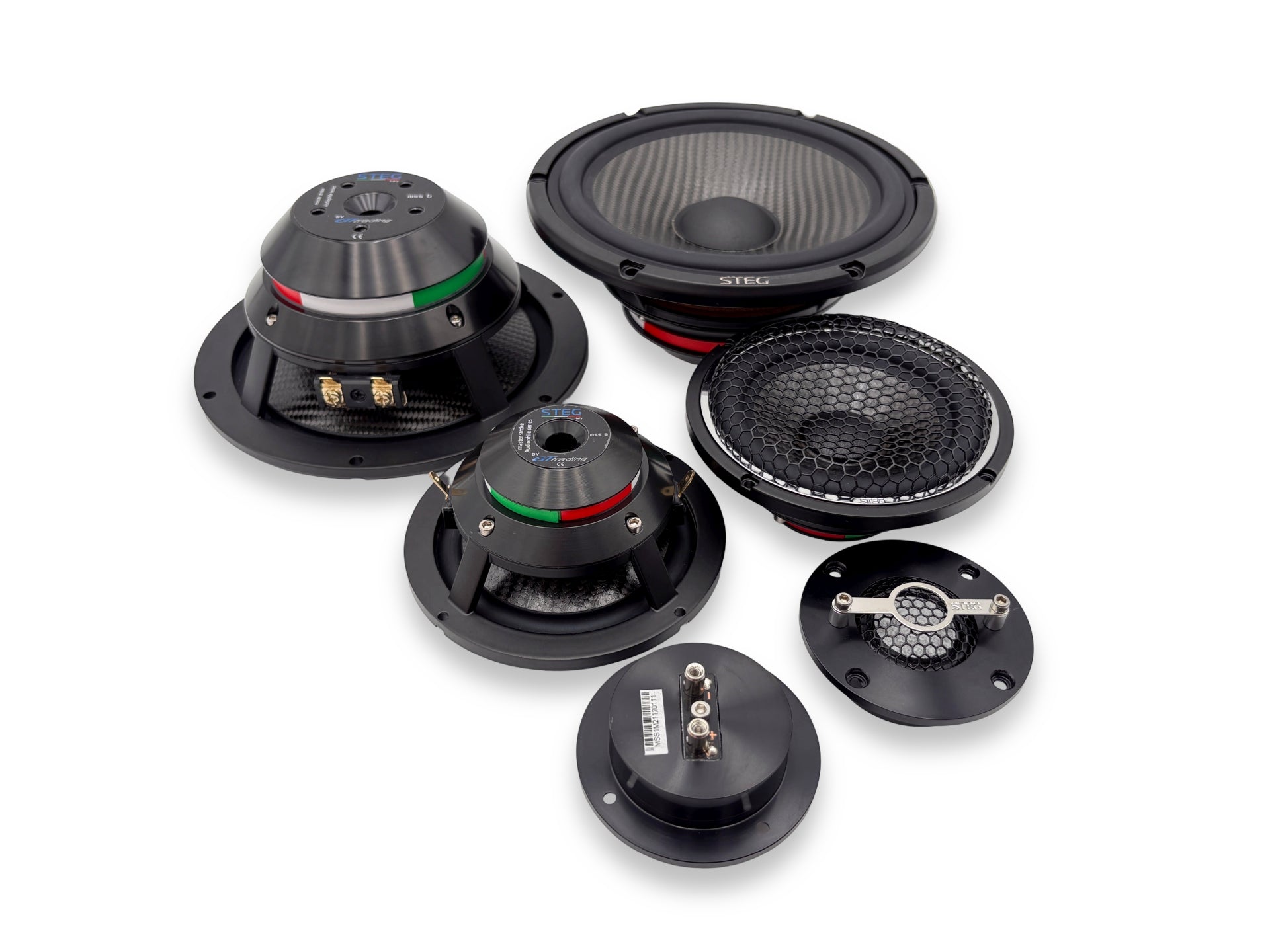

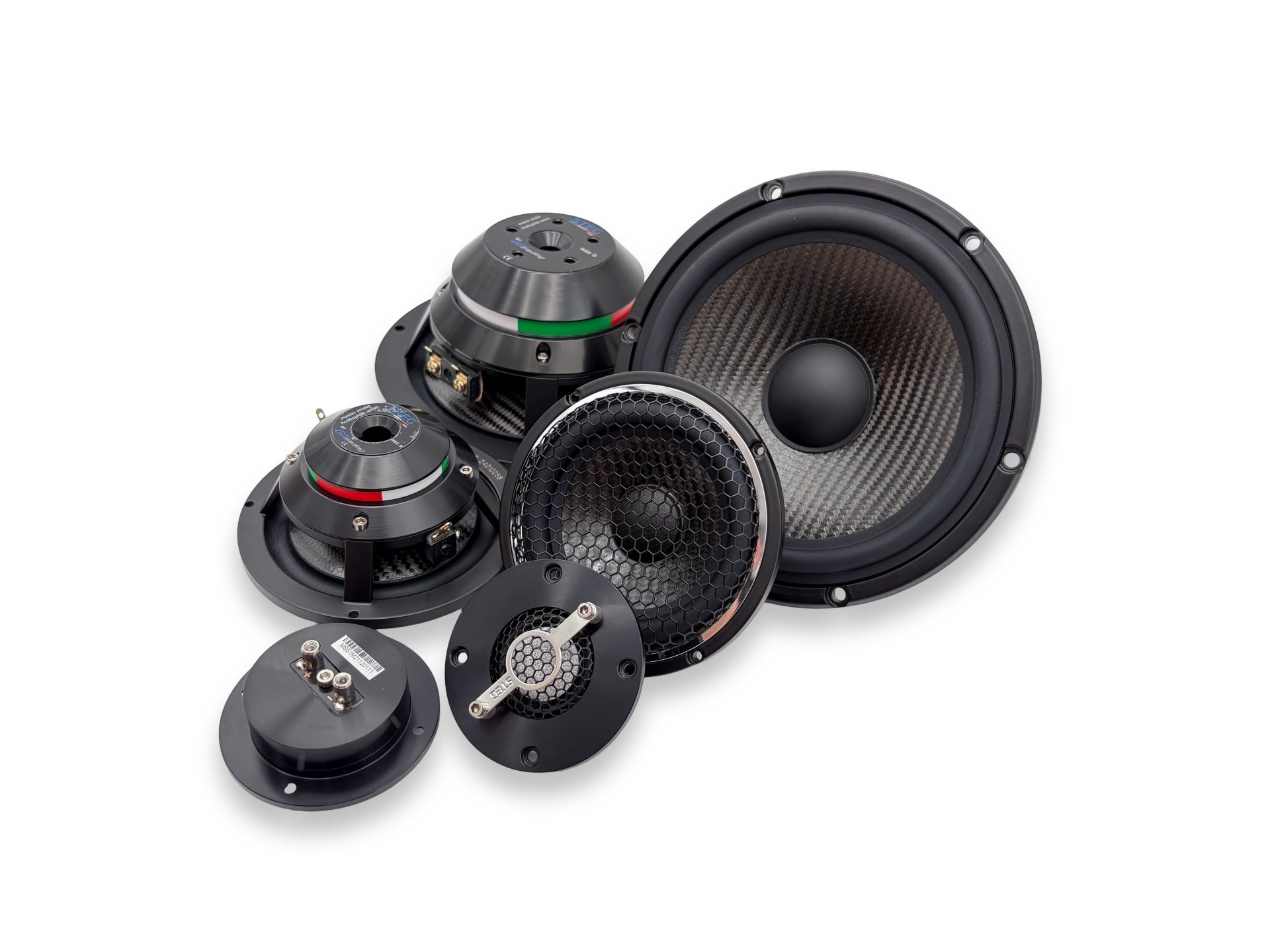

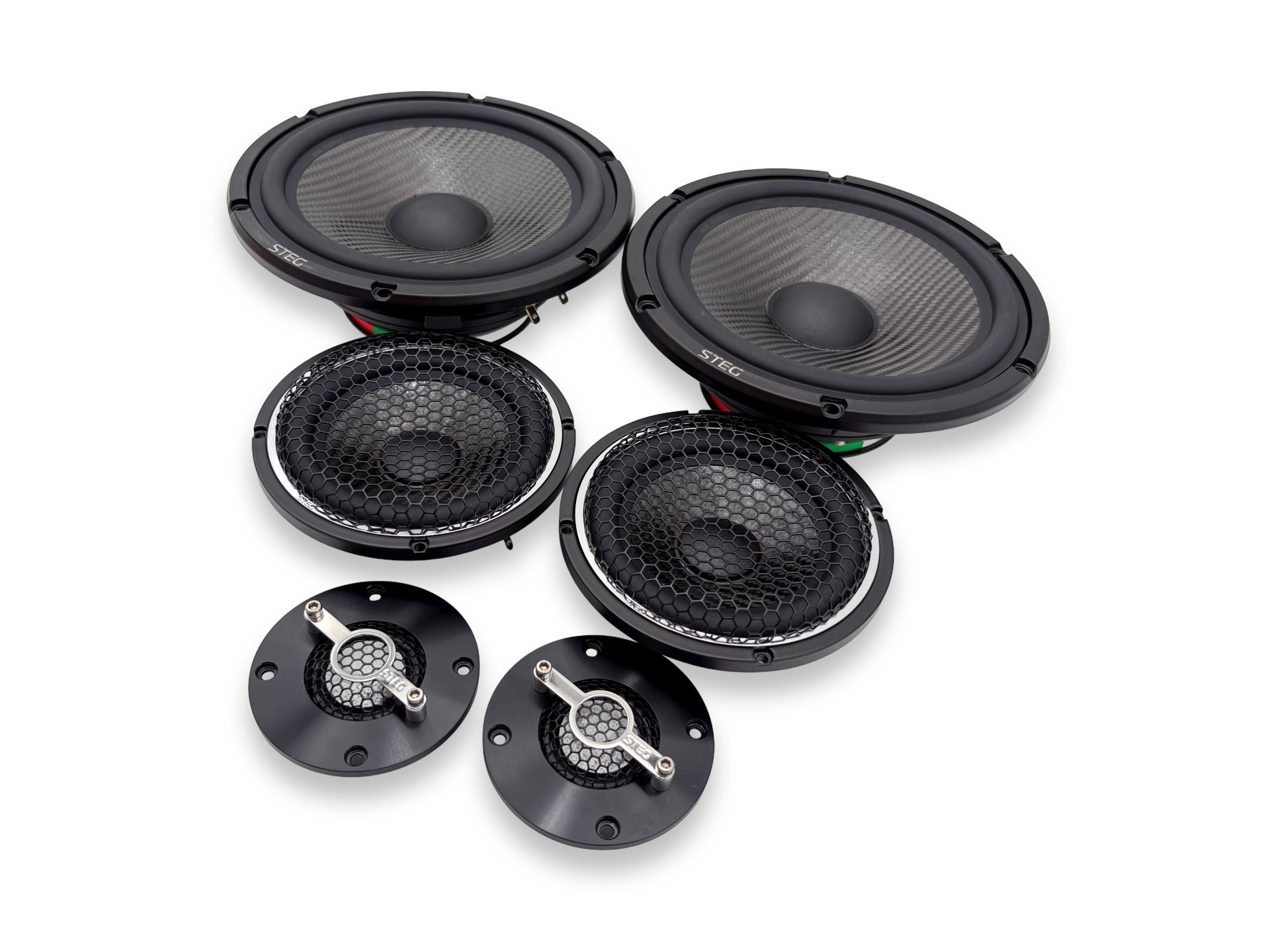

Steg Master Stroke | MSS6 / MSS3 / MSS1 - Three-way 6.5" Car Audio Component Speaker Set

Steg - Handcrafted To Perfection In Italy Since 1983
Music is a powerful form of emotional expression, conveyed through sound waves. It has a unique ability to deeply affect individuals, more so that any other form of media. Steg is an Italian electronics manufacturer that has dedicated itself to creating these audio experiences, experiences that are authentic and faithful to the original source; conveyed with the intention of capturing the true essence of music. Steg strives to ensure that nothing hinders the pure enjoyment of music, not even the less-than-ideal acoustic conditions of a car interior. Since its conception in Italy in 1983 Steg has been designing and manufacturing high quality audio components specifically for automotive applications, with the sole aim of delivering unparalleled sound quality. With an unwavering commitment to breaking the limit of what's possible, Steg is the definitive solution when it comes to achieving world-class audio reproduction in vehicles.

Master Stroke Series - Audio Engineering Magnificenza
The Stge Master Stroke competition collection features the pinnacle of sound quality oriented loudspeakers, meticulously crafted to deliver extraordinary performance. Exclusively comprised of active driver sets, the Master Stroke drivers benefit from expert tuning to realise their absolute maximum potential. Every detail has been refined to achieve unrivaled audio excellence, thus ensuring an immersive and captivating experience for discerning audio enthusiasts.

Design Features
– High-grade cast aluminium basket.
– Basket is aerodynamically transparent and magnetically inert.
– Chrome plated bumped back plate prevents accidental bottoming out.
– Fibrecarbon composite cone.
– Plated terminals.
– Grahpene coated magnesium tweeter dome.
– Silk suspension.
– CNC machined aluminium labyrinth chamber.
– Meticulously crafted.
– Protective grilles and refraction ring.

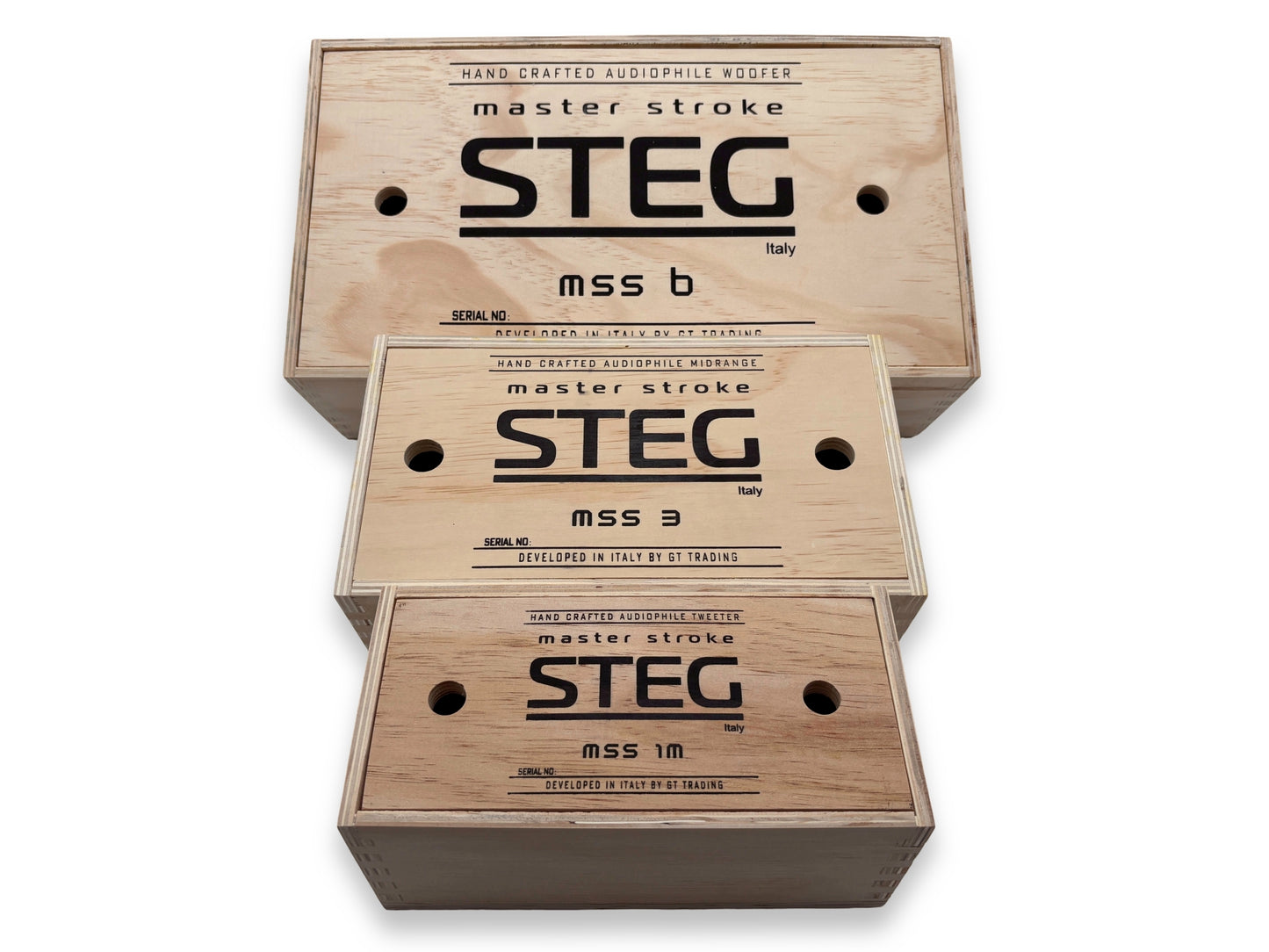

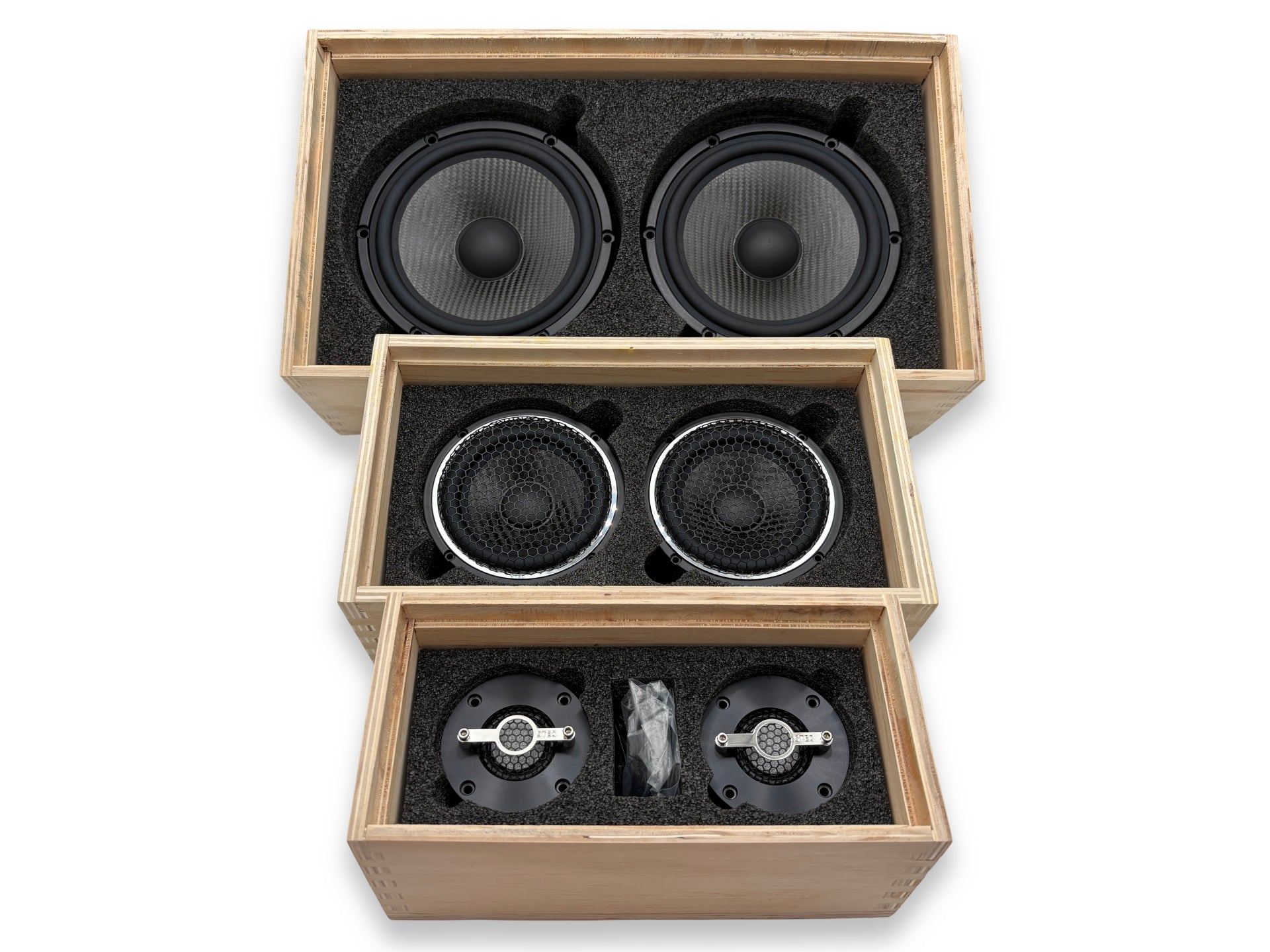

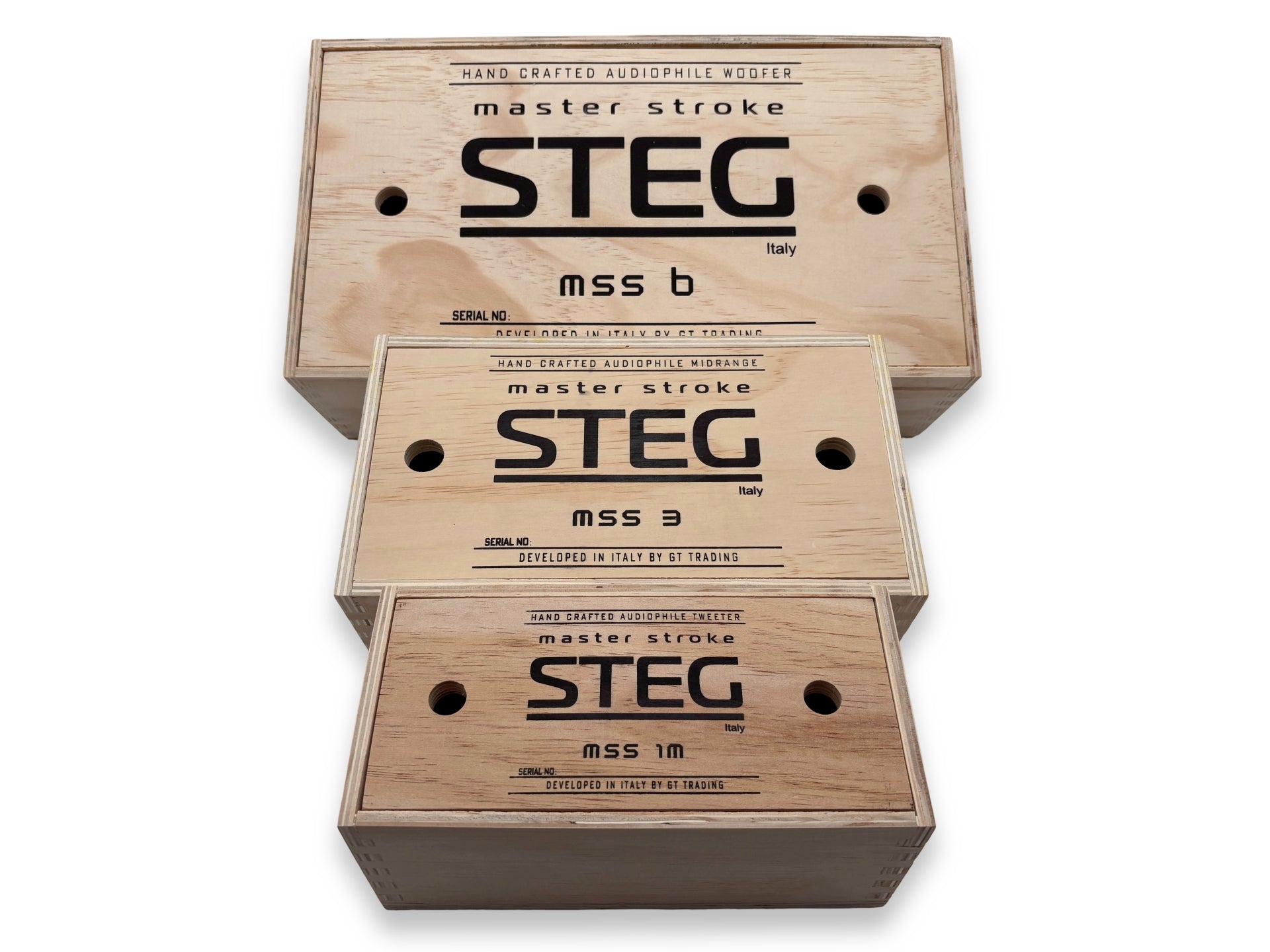

– Shipped in neat timber cases.

Electrical Specifications
– Nominal configuration: three-way 6.5″ & 4″ & 1″ active component set
– Continuous power handling: 100 Watts
– Maximum power handling: 200 Watts
– Voice coil diameter: 25.5 mm
– Frequency response: 60 Hz – 22000 Hz
– Sensitivity: 87 dB
– DC resistance (Re): 3.6 Ohms
– Resonant frequency (Fs): 68 Hz
– Xmax: +/- 6.2 mm
– Compliance (Vas): 14.5 l
– Total Q (Qts): 0.81
– Mechanical Q (Qms): 6.64
– Electrical Q (Qes): 0.58

Physical Specifications
– Mounting diameter: 141 mm
– Mounting depth: 64.8 mm
– Weight: 4.1 kg

Documentation
– User manual
