Steg - Handcrafted To Perfection In Italy Since 1983
Music is a powerful form of emotional expression, conveyed through sound waves. It has a unique ability to deeply affect individuals, more so that any other form of media. Steg is an Italian electronics manufacturer that has dedicated itself to creating these audio experiences, experiences that are authentic and faithful to the original source; conveyed with the intention of capturing the true essence of music. Steg strives to ensure that nothing hinders the pure enjoyment of music, not even the less-than-ideal acoustic conditions of a car interior. Since its conception in Italy in 1983 Steg has been designing and manufacturing high quality audio components specifically for automotive applications, with the sole aim of delivering unparalleled sound quality. With an unwavering commitment to breaking the limit of what's possible, Steg is the definitive solution when it comes to achieving world-class audio reproduction in vehicles.
Master Stroke Series - Audio Engineering Magnificenza
The Stge Master Stroke competition collection features the pinnacle of sound quality oriented loudspeakers, meticulously crafted to deliver extraordinary performance. Exclusively comprised of active driver sets, the Master Stroke drivers benefit from expert tuning to realise their absolute maximum potential. Every detail has been refined to achieve unrivaled audio excellence, thus ensuring an immersive and captivating experience for discerning audio enthusiasts.
Design Ideologies
If ever there was a case of plain looks being deceiving this is it! Steg’s incredible Master Stroke series subwoofers draw upon nearly half a century masterful Italian design philosophies, technical acumen and advanced materials. The ensuing result is simply phenomenal, easily able to outperform subwoofer thrice the price.
The Kinetic Connection – Motor Structures And Membranes

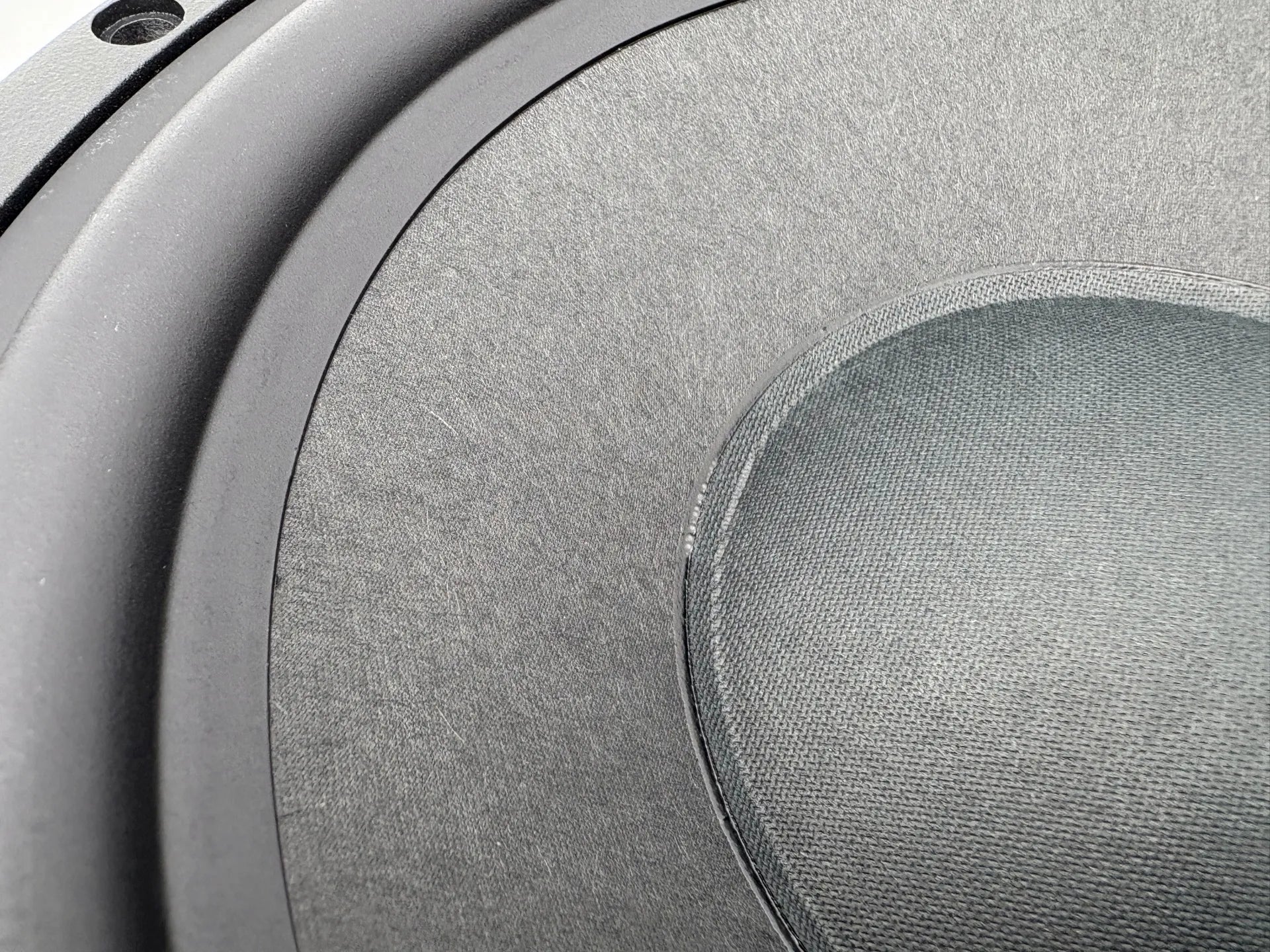

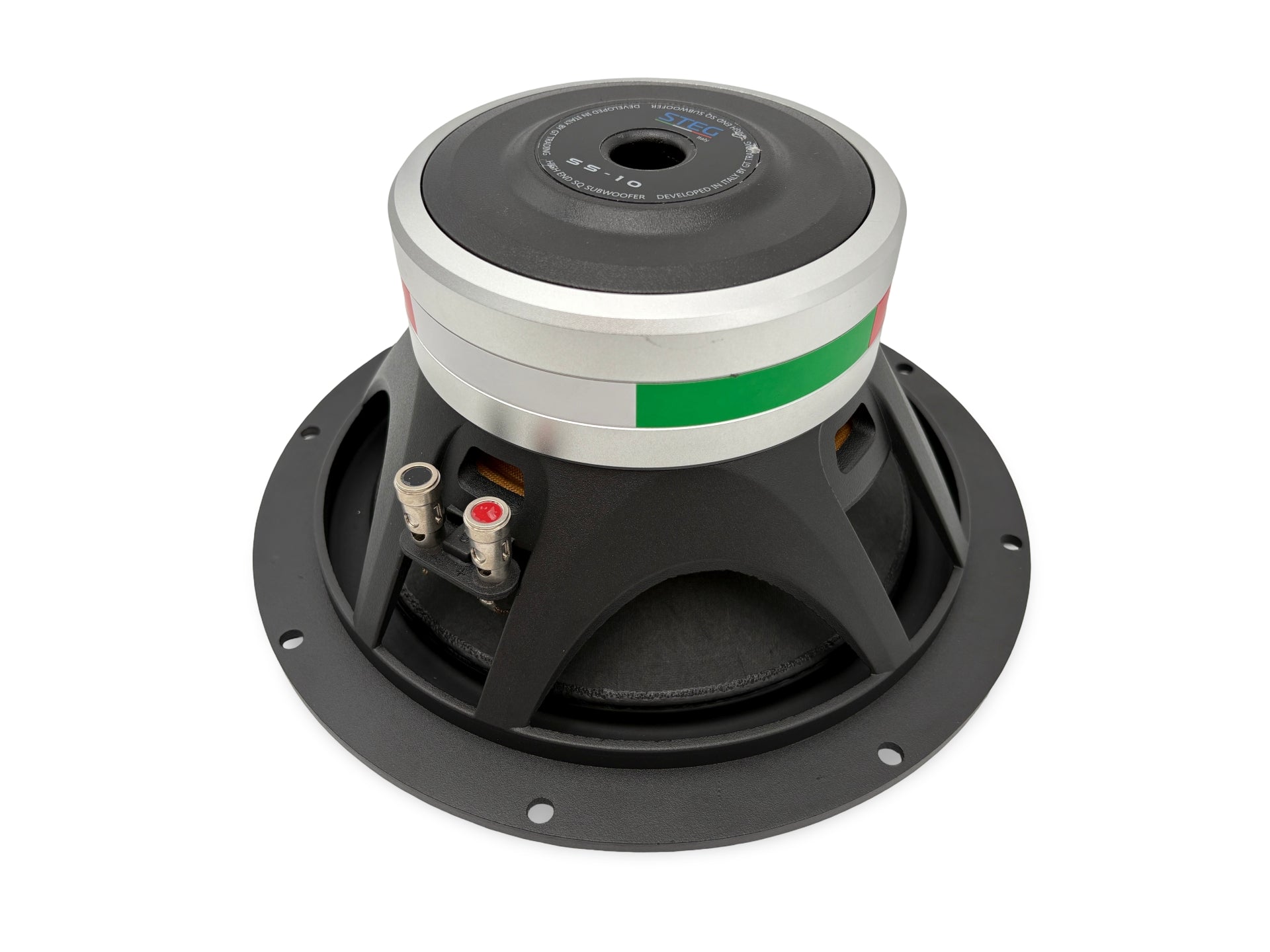

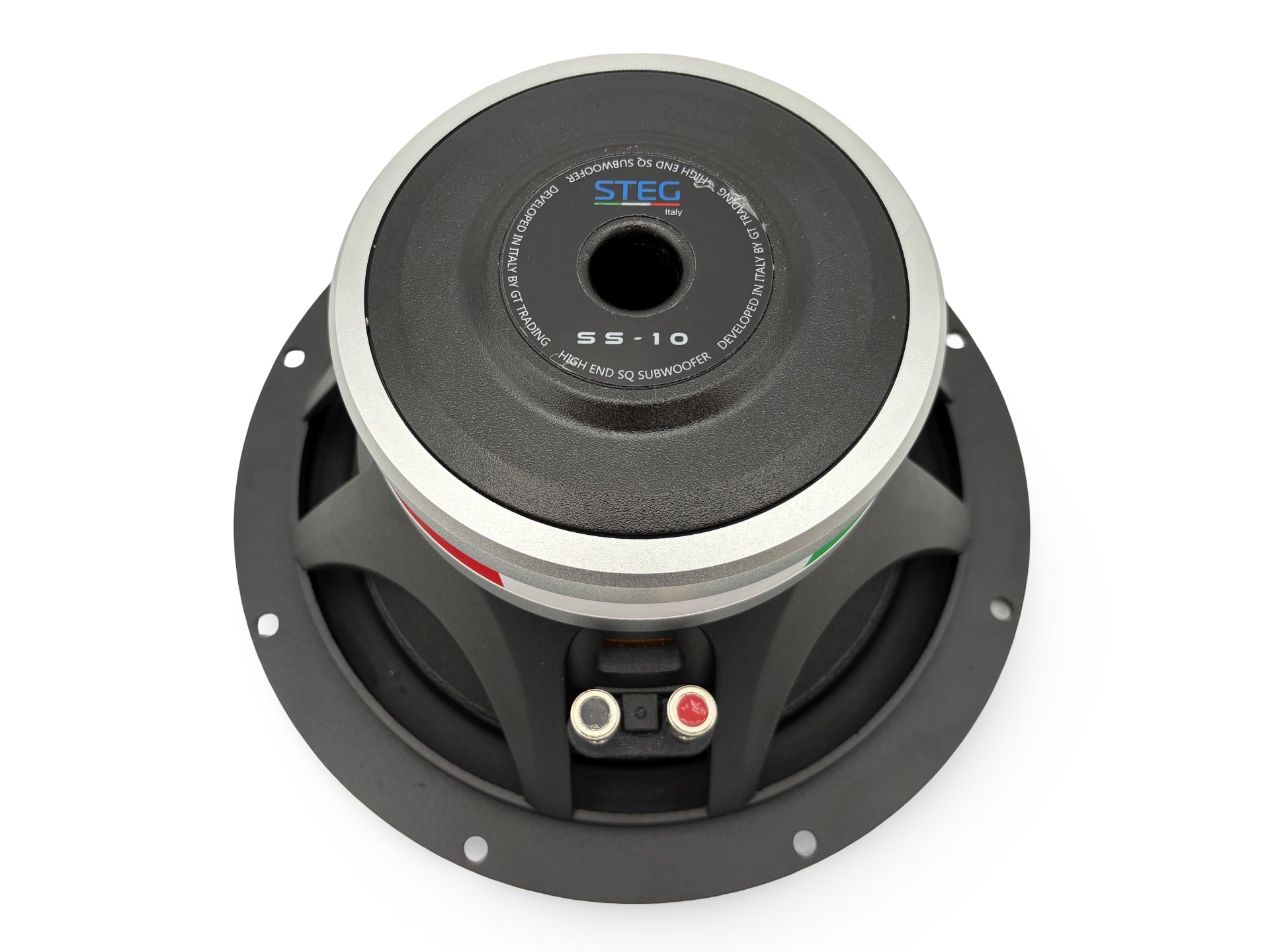

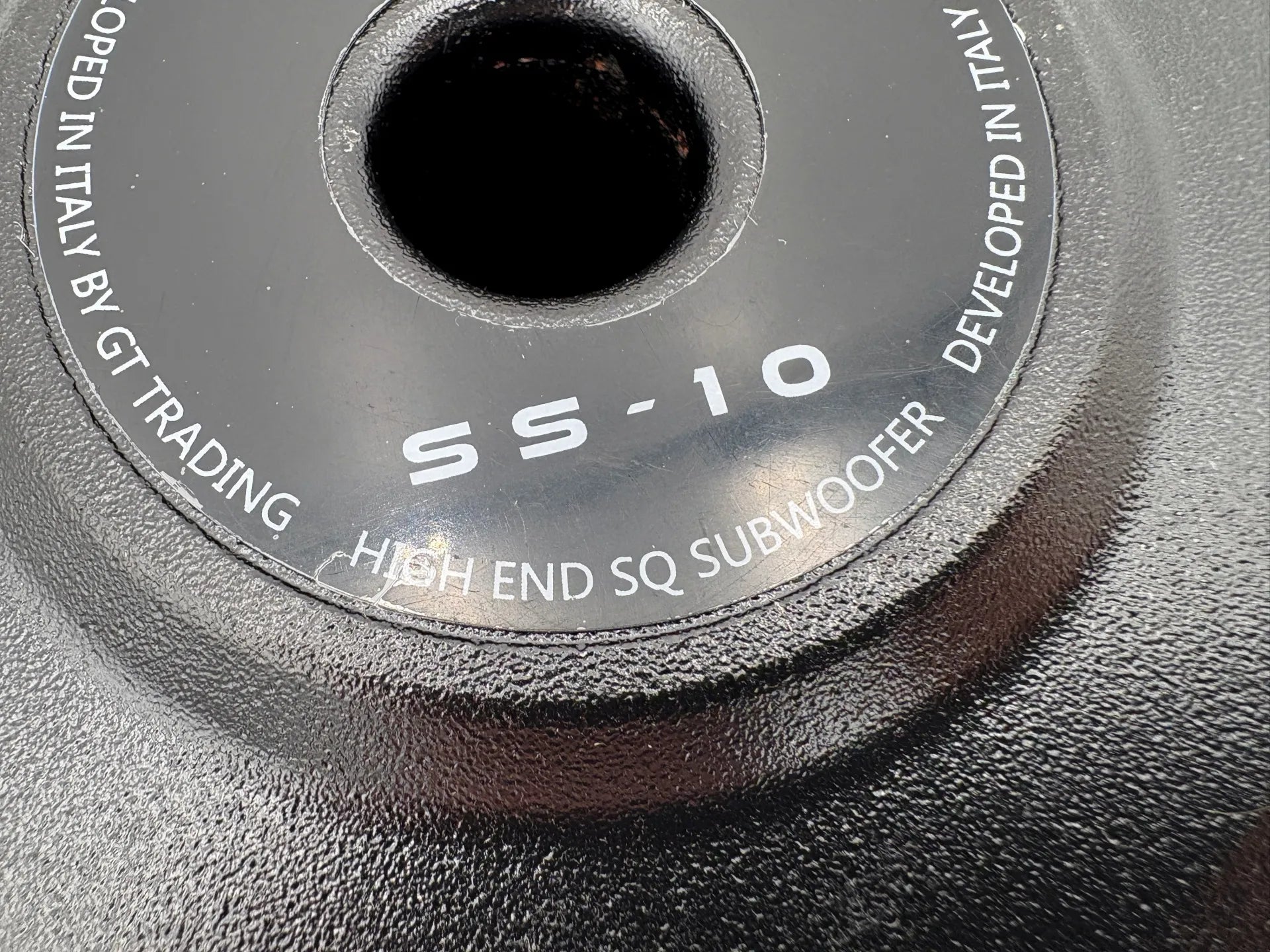

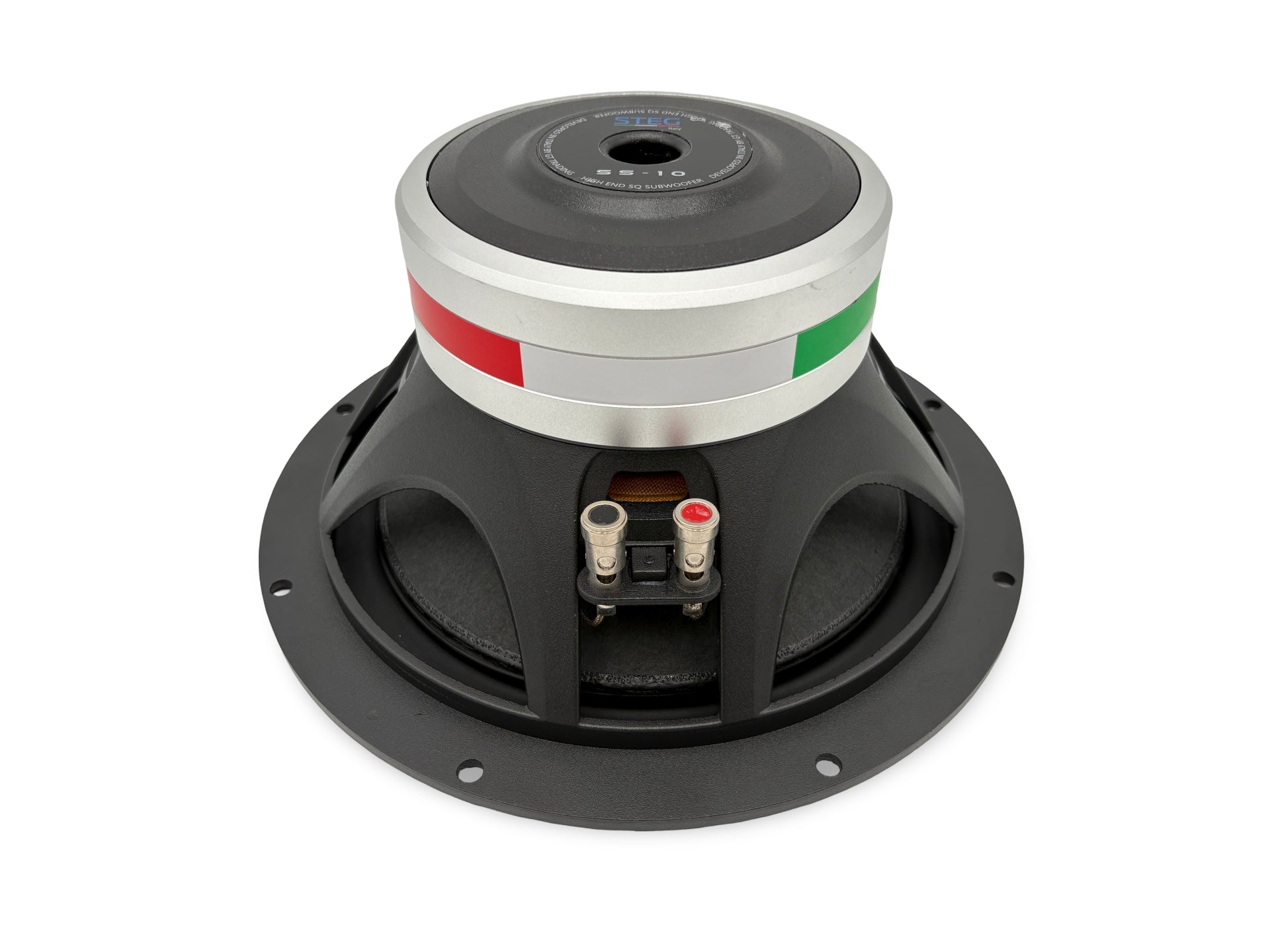

The moving motor structure and suspension are extremely efficient and always under control, thanks to immensely strong ferrite stacked magnets. The subwoofers feature compact, aerodynamically transparent bedrock solid cast aluminium baskets; said material chosen for its magnetically inert properties. Top side the unit features a blended polymethacrylimide foam composite cone which is guided via a specifically profiled rubber surround which has a Shore hardness of 65. On the frame are solid push terminals, connected internally to these are high quality leads sewn in the spiders, which are progressively rolled polycotton. Between the surround atop and spider beneath the reciprocation control is otherworldly. To protect the bottom of the motor is an extended back plate capped with black cap and Italian flag colour scheme. It’s a downright crime the back-end of these speakers won’t be seen once installed, for the motor is a work of art.
Design Features

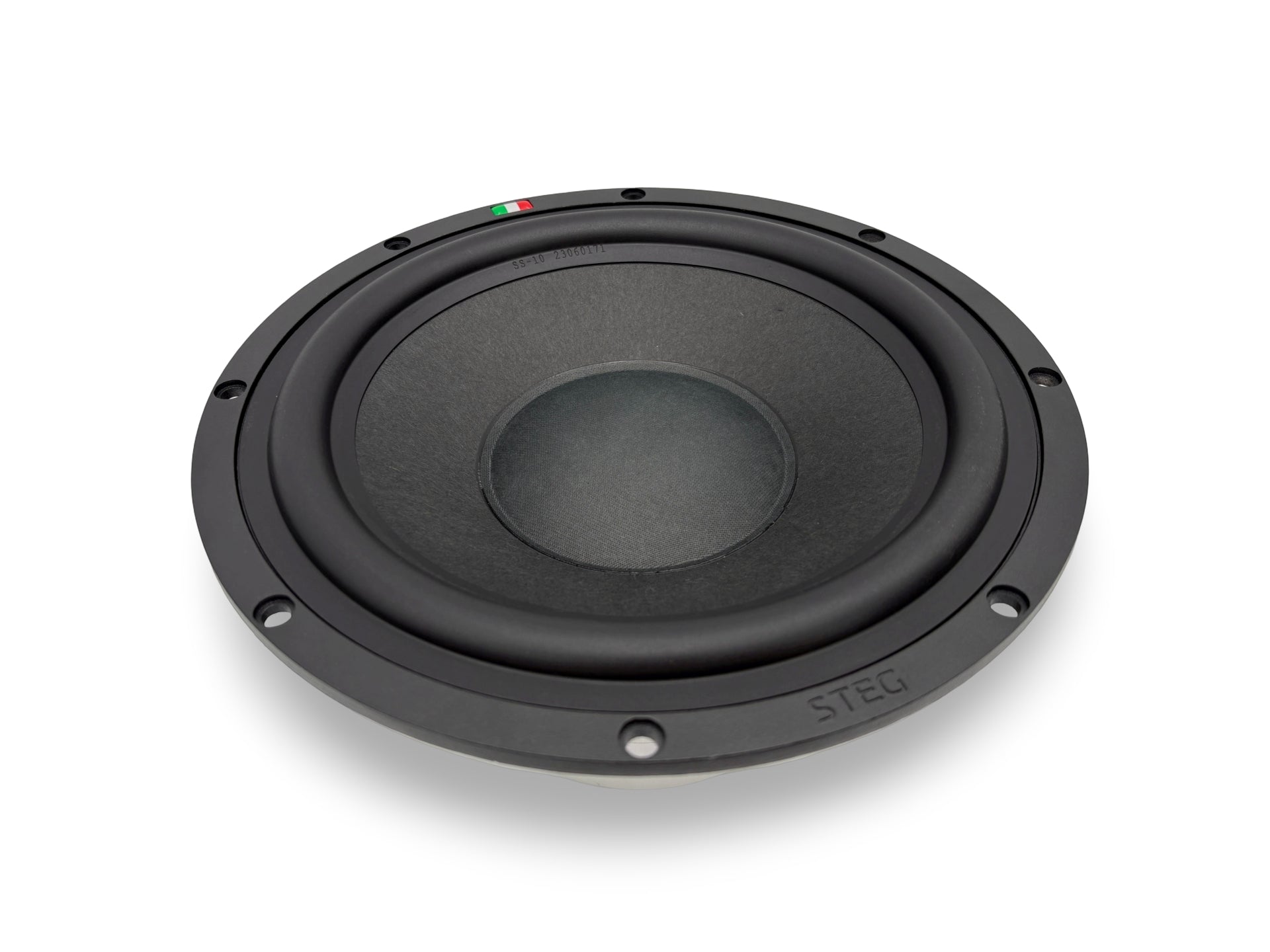

– High-grade cast aluminium basket.
– Basket is aerodynamically transparent and magnetically inert.

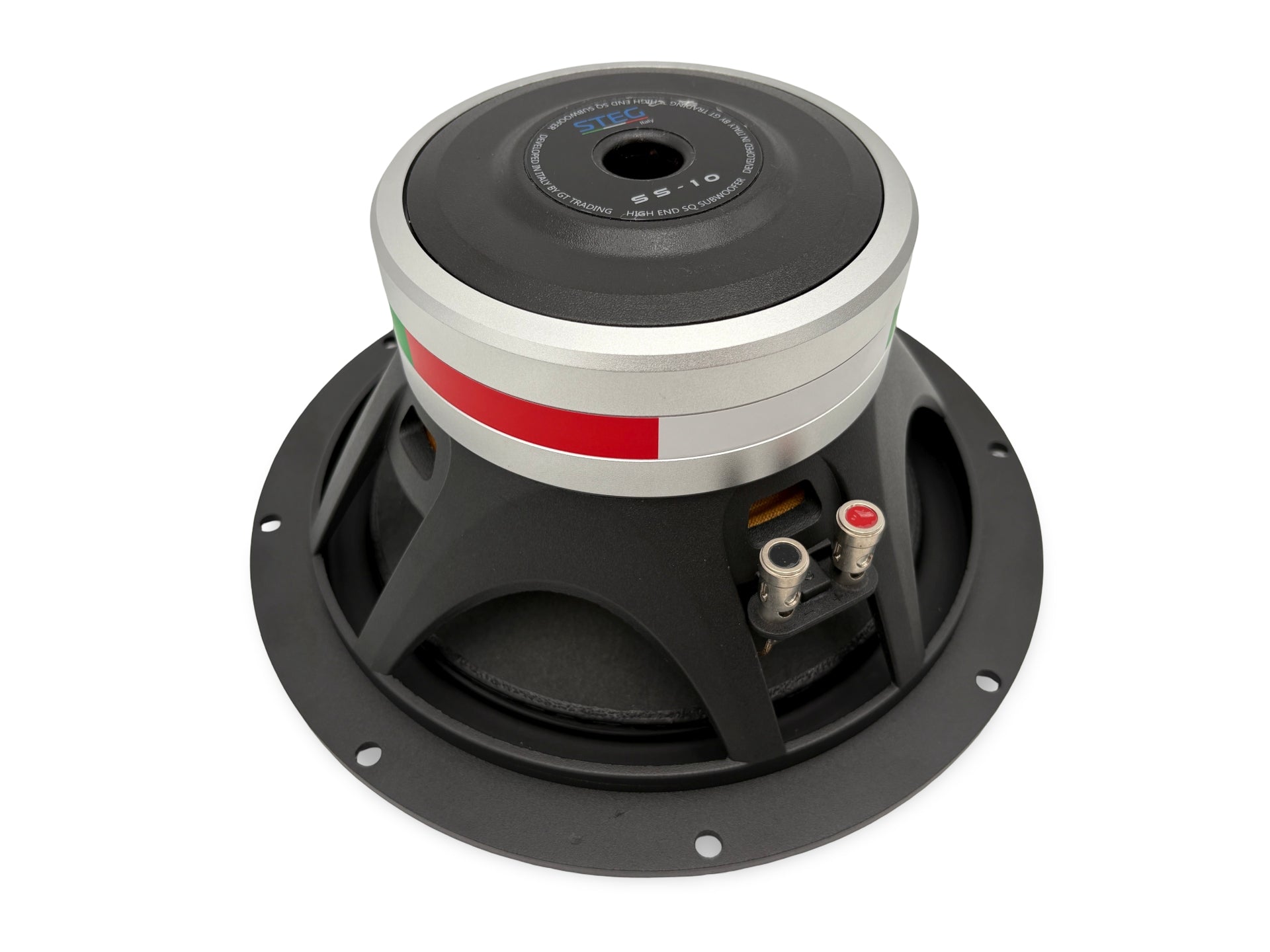

– Extended back plate prevents accidental bottoming out.

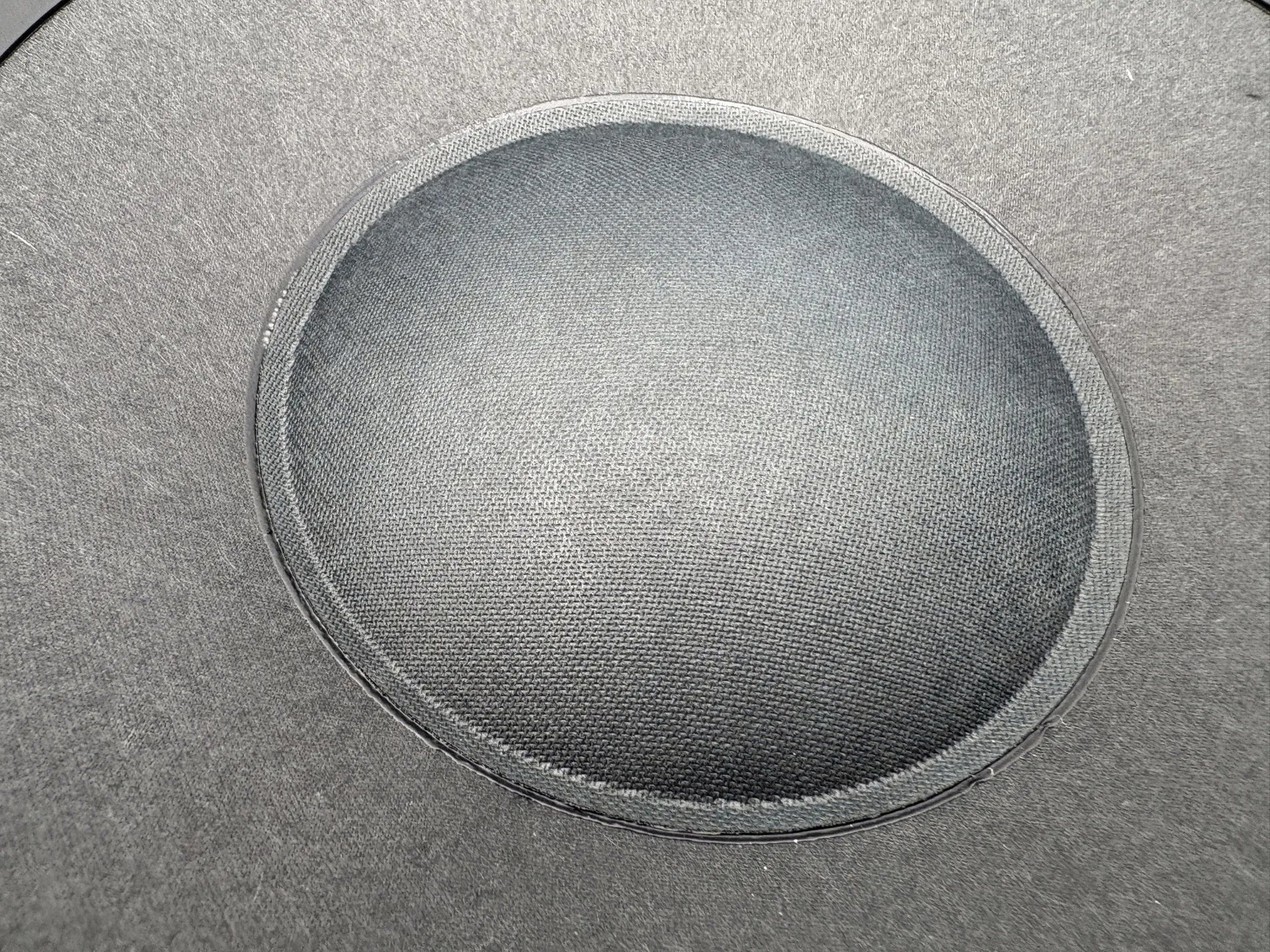

– Polymethacrylimide foam composite cone.

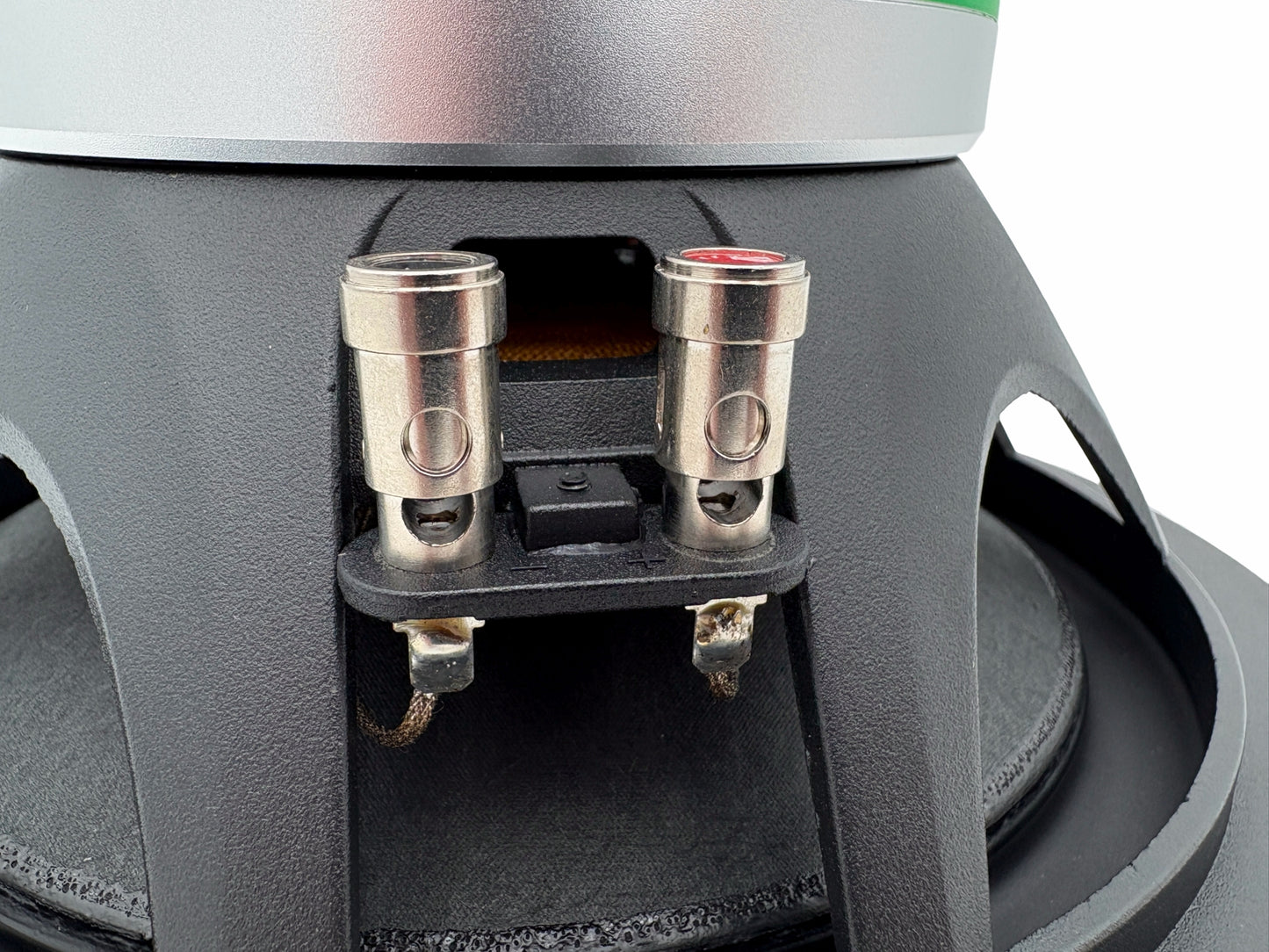

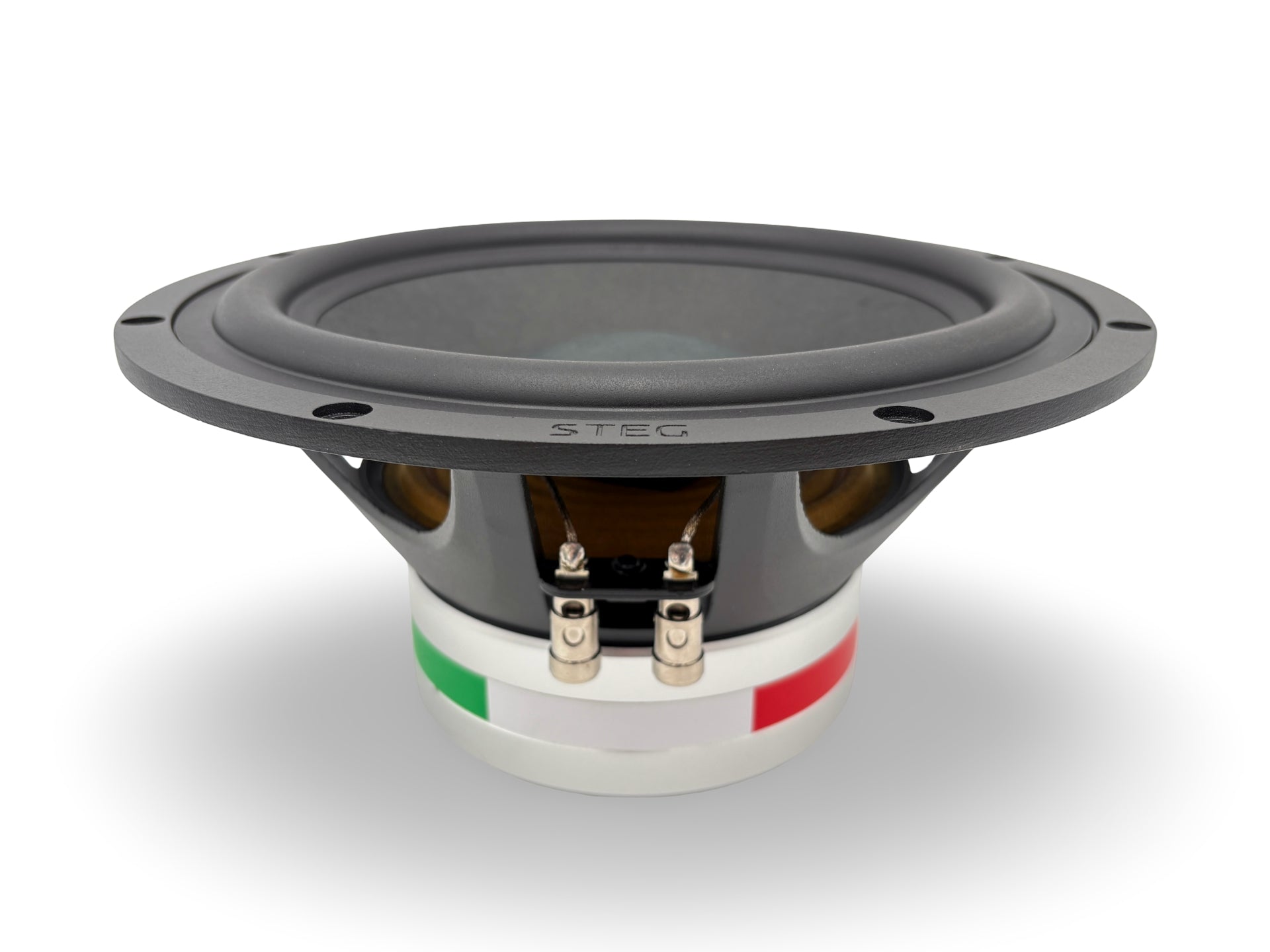

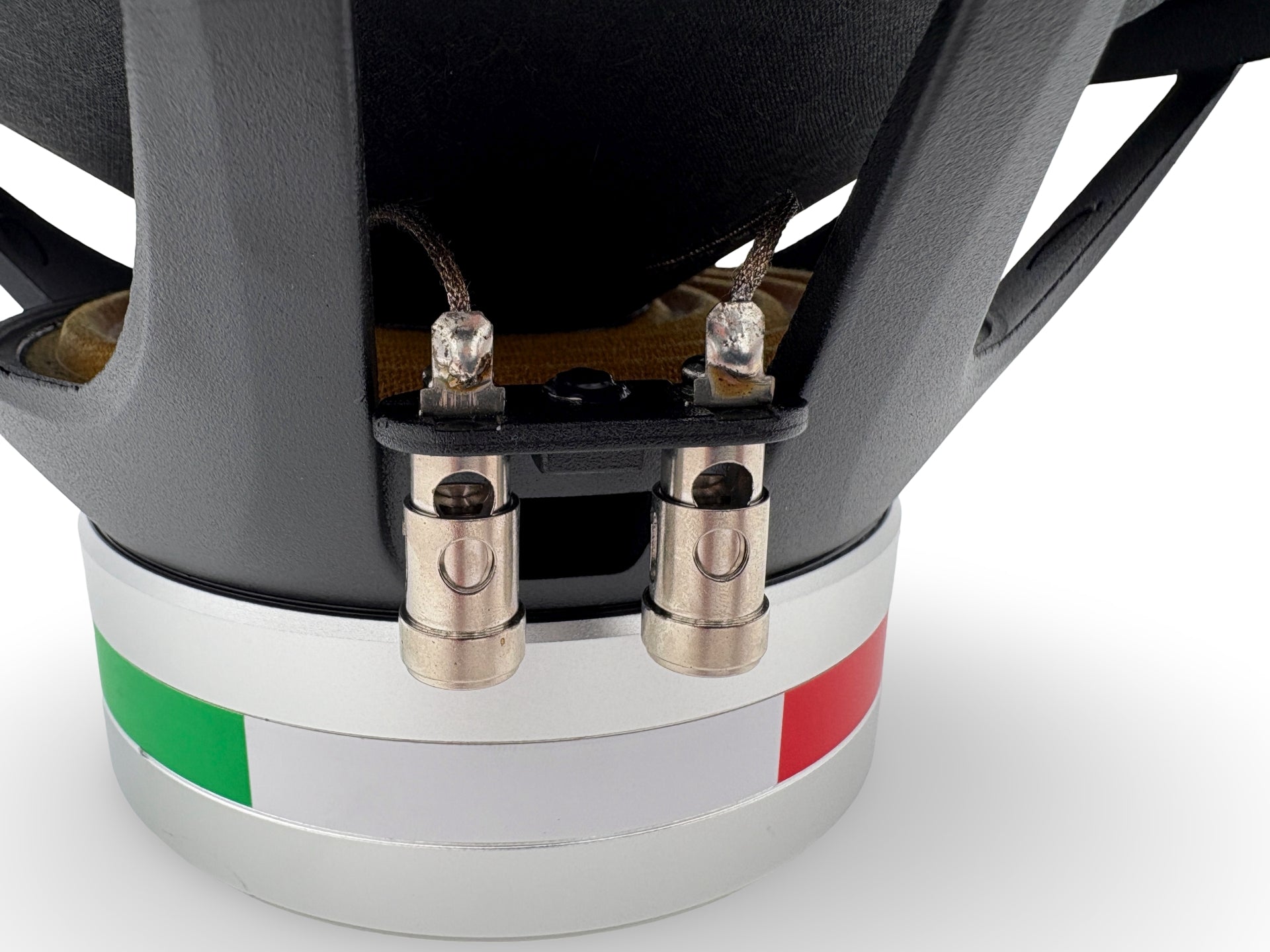

– Plated push terminals.

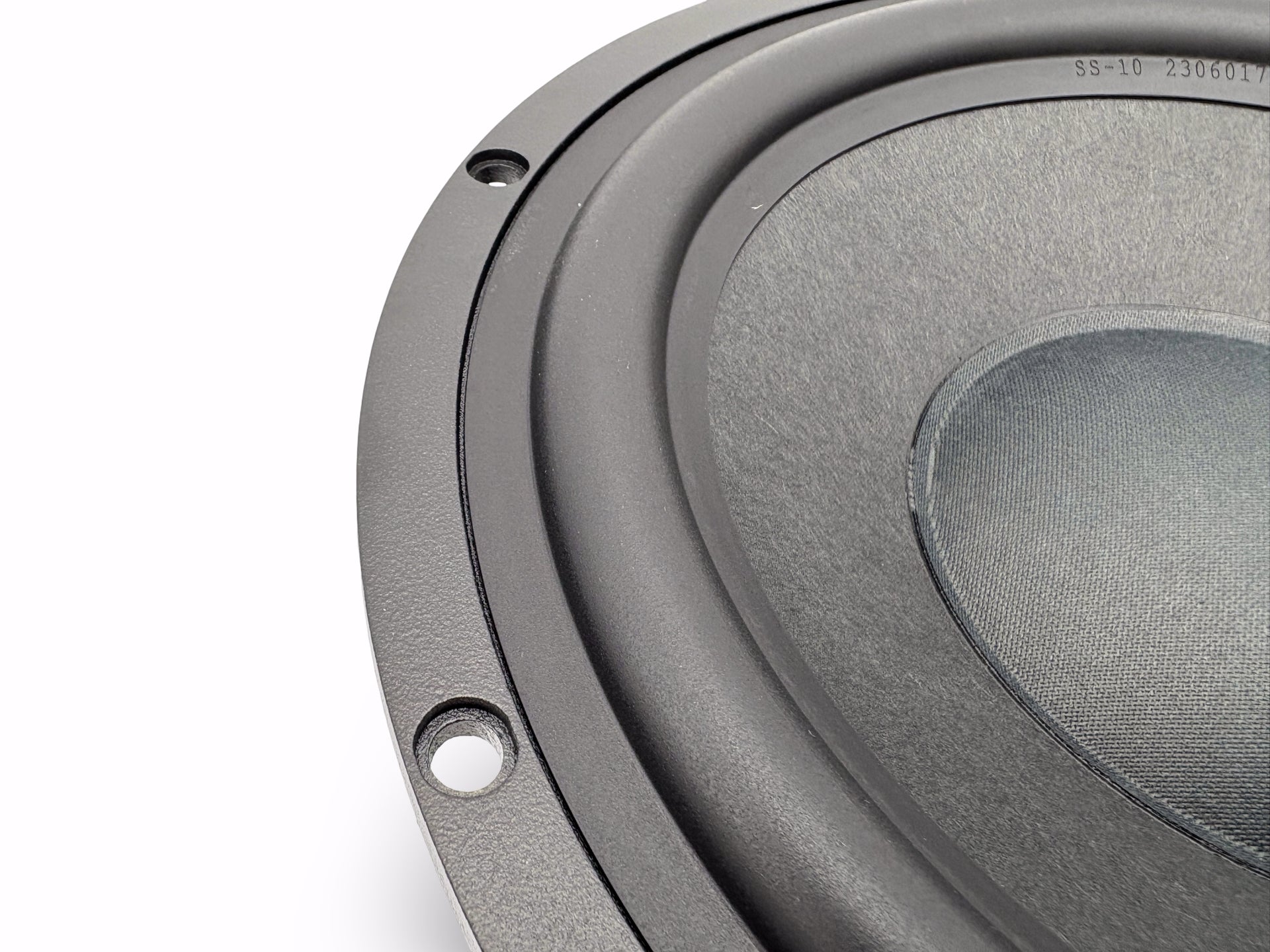

– Rubber surround with Shore hardness of 65.
– Meticulously crafted.

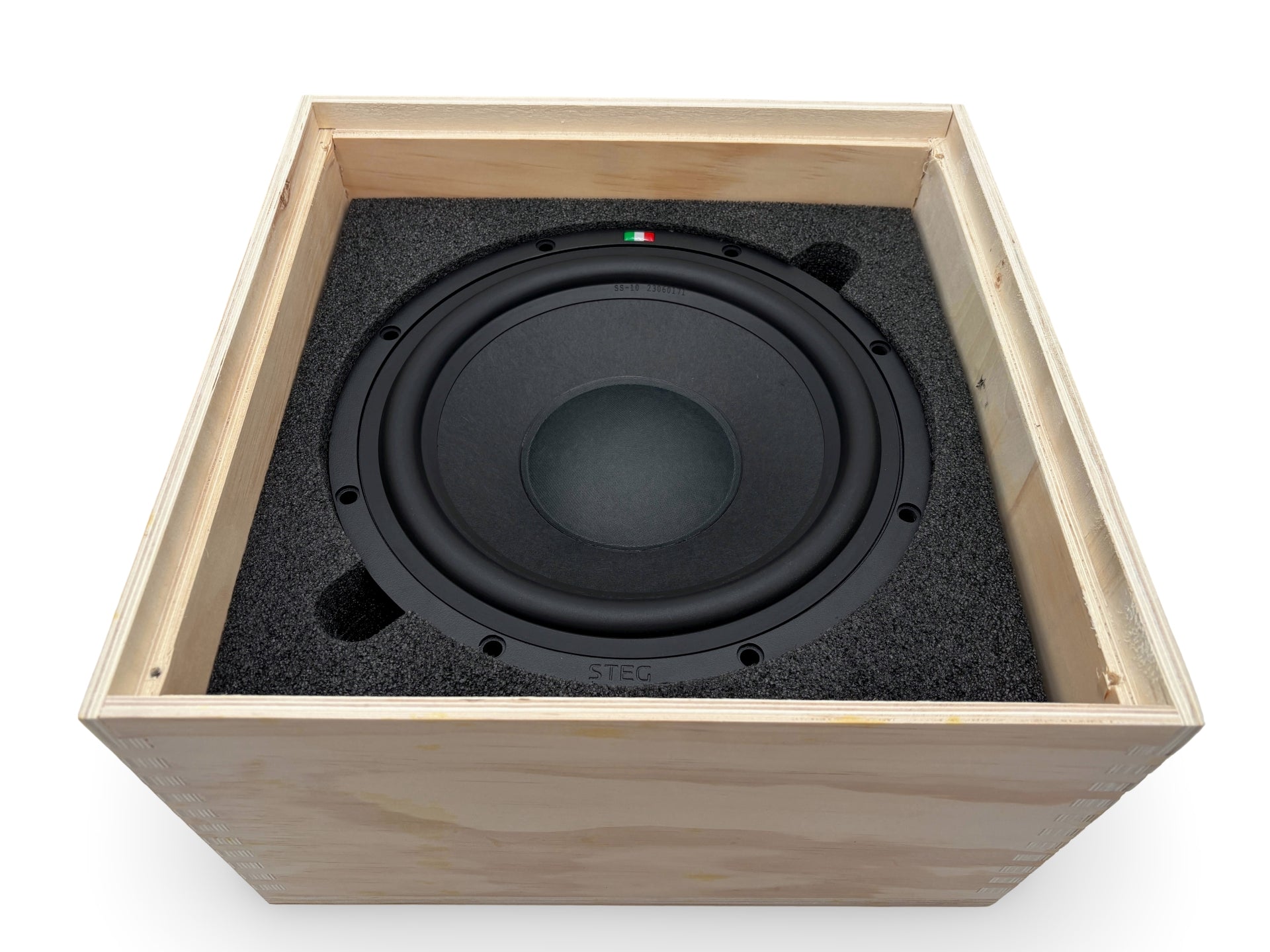

– Shipped in neat timber cases.
Electrical Specifications
– Nominal configuration: dual 4 Ohm 12″ subwoofer
– Continuous power handling: 250 Watts
– Maximum power handling: 500 Watts
– Voice coil diameter: 50.8 mm
– Frequency response: 25 Hz – 2500 Hz
– Sensitivity: 88 dB
– DC resistance (Re): 1.9 Ohms
– Resonant frequency (Fs): 31 Hz
– Xmax: +/- 11 mm
– Compliance (Vas): 49 l
– Total Q (Qts): 0.35
– Mechanical Q (Qms): 7.18
– Electrical Q (Qes): 0.43
Physical Specifications
– Mounting diameter: 230.7 mm
– Mounting depth: 128.7 mm
– Weight: 5.09 kg
Documentation

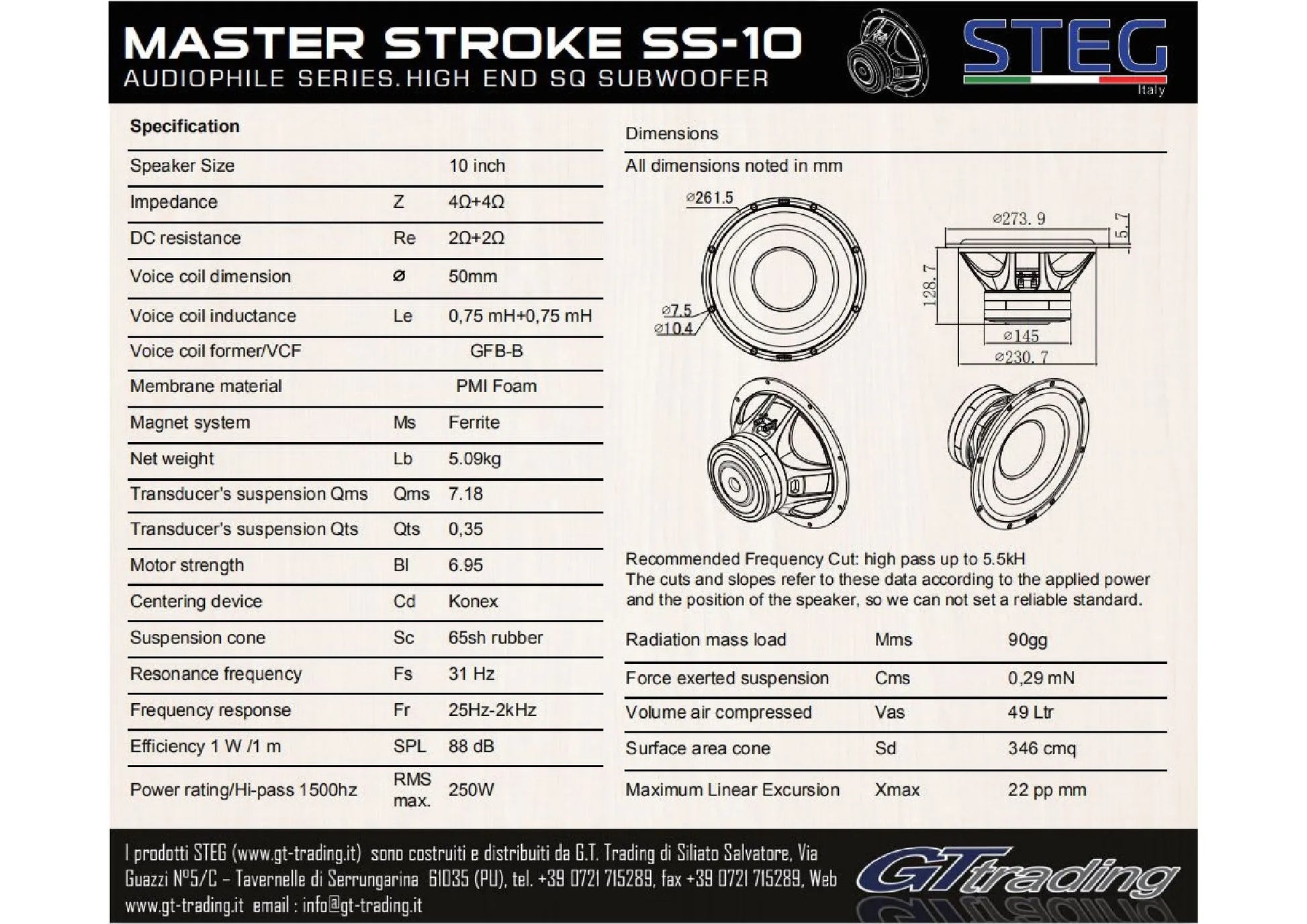

– Specifications sheet
