Stinger SwitchHUB 4 Channel Solid State Relay
Stinger SwitchHUB 4 Channel Solid State Relay
Couldn't load pickup availability
SKU:spxsh440
SWITCHHUB 4 Channel Relay Bank

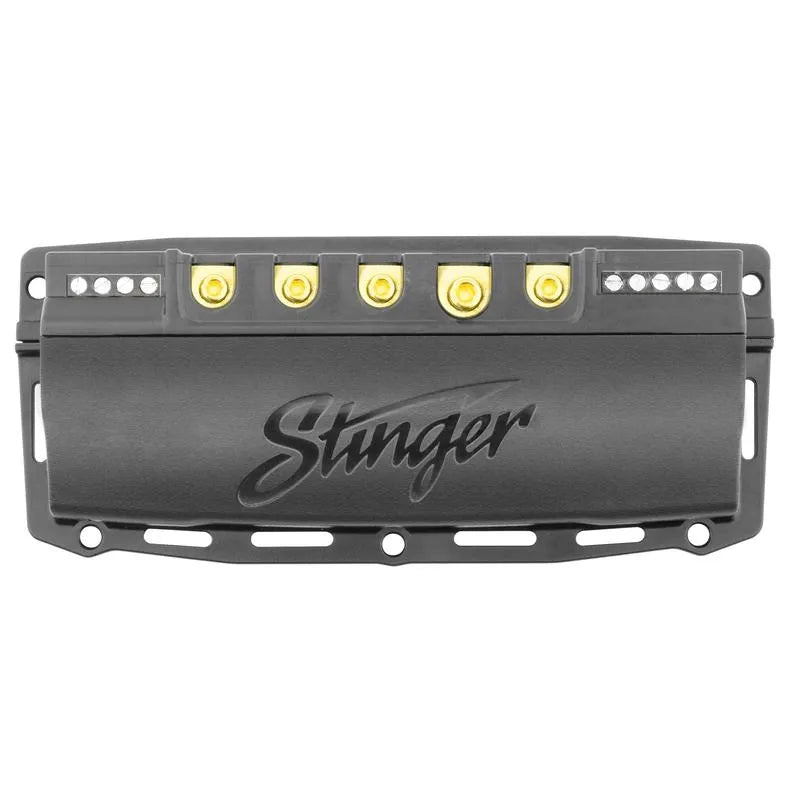

Stinger SwitchHUB is a solid-state, high current relay block with 4 independent outputs
Control Your Devices Without Noise

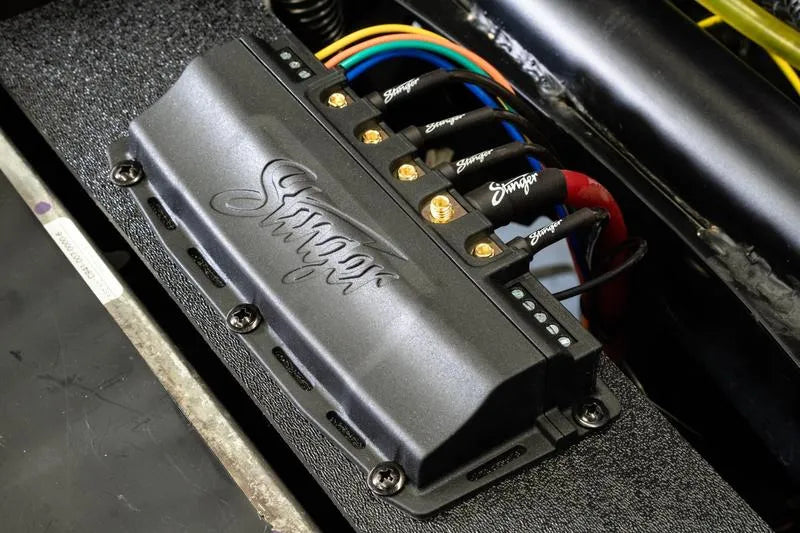

Simplify your installation with the Stinger SWITCHHUB (SPXSH440) solid-state relay. Replace up to 4 typical mechanical relays with one easy-to-wire solid-state relay block saving on extra wiring, additional harnesses, and not to mention, a better connection. Solid-state relays operate silently and produce very little interference whereas conventional mechanical relays can also fail after excessive use.
Direct Control Where You Need It

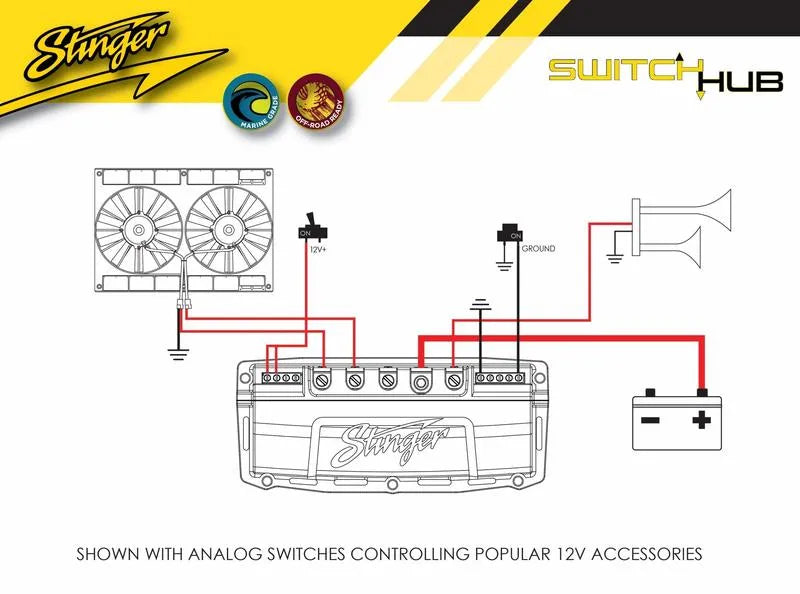

Each output of the Stinger SWITCHHUB (SPXSH440) features thermal overload and short circuit protection offering superior protection of your connected equipment. With built-in LED indicators, you can easily see thermal overload, active/inactive devices. Each relay channel can be controlled via negative low current or positive low current input from aftermarket switches of your choice!
Made for Stinger SPX

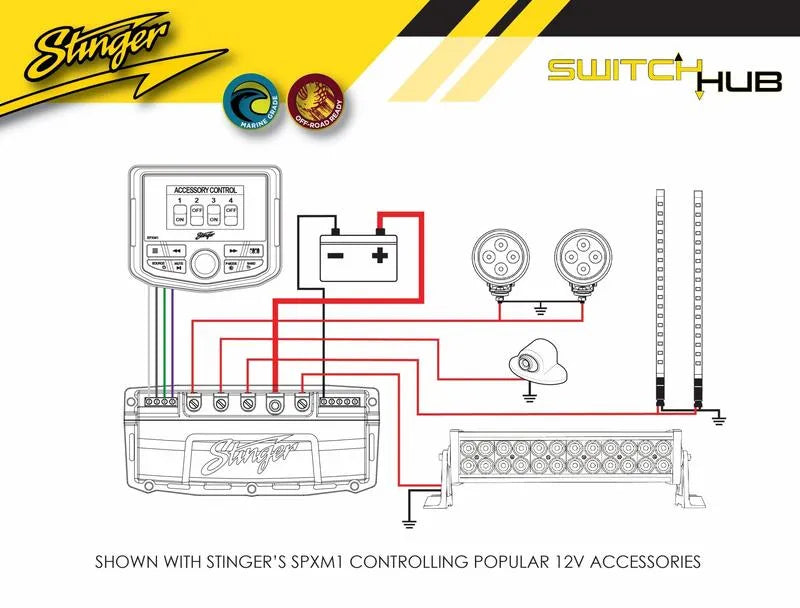

Compatible with the Stinger SPXM1 Powersport/marine infotainment system for onscreen control.
High Amperage Control
With its solid-state design, the Stinger SWITCHHUB (SPXSH440) offers multiple power outputs eliminating the clutter of multiple high-current replays and accompanying wiring.
Featuring
- 1x 40 Amp Terminal
- 3x 20 Amp Terminals
For a total of 100 Amp continuous output.
What Do You Get?
Each Stinger SPXSH440 Includes
- 1x SPXSH440 Relay Bank
- 1x Quick Start Guide

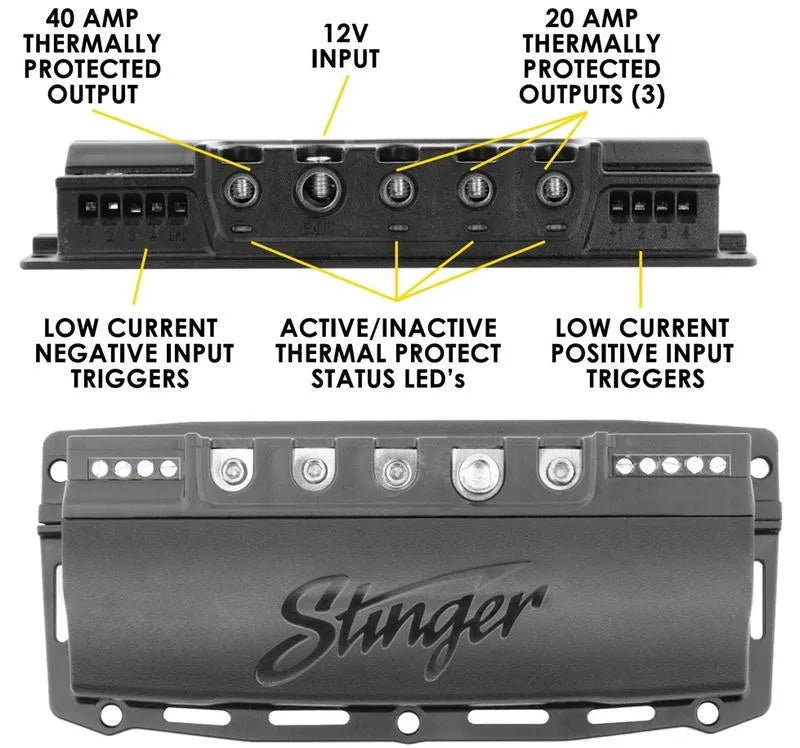

Features
- 1x 40 Amp Output
- 3x 20 Amp Output
- 4x Negative Trigger Inputs
- 4x Positive Trigger Inputs
- Active/Inactive Status LEDs
- Thermal / Short circuit Status LEDs

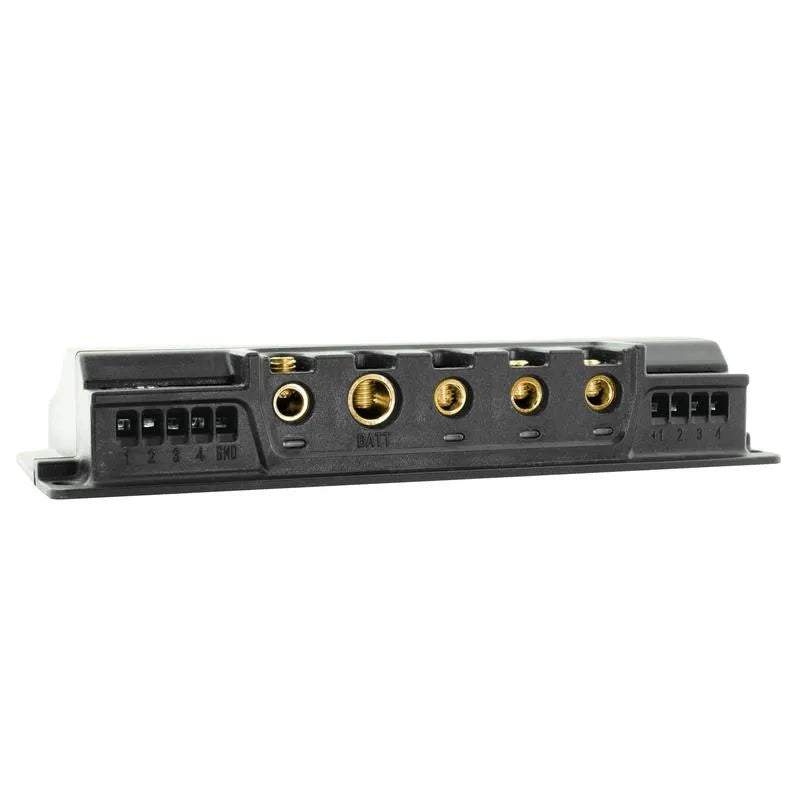

- Precision Grub Screw Terminals
- IPX6 Rated Construction
- Off-Road Ready
- Marine Grade
PLEASE NOTE:
- Negative OR positive trigger per channel. Cannot be used at same time.
