Zapco ADSP-Z8 IV-6AT Integrated 8-Ch. DSP / 6-Ch. Class D Amplifier
Zapco ADSP-Z8 IV-6AT Integrated 8-Ch. DSP / 6-Ch. Class D Amplifier
The new DSP-IV Series
Some years ago, Zapco introduced the new DSP-Z8 IV signal processor. It was designed to bring true audiophile sound quality to an affordable DSP. The DSP-Z8 IV provided sound quality superior to units costing even twice as much. The DSP-Z8 IV has been a true giant killer. But, as we have always said, and always will say, “We believe we can still do better”. We firstly presented the DSP-Z8 IV II, and this year we present the Zapco DSP-Z8 IV AT and three new DSP/Amplifiers. What’s new with the Series IV? New features and new control. The sharp look matching the Black and Copper theme of the AP amplifiers is only the beginning.
Features and Functions
- DSP Processor: Cirrus Logic CS47048
- Power: 150 MHz/32 bit/192 KHz
- 8-Channels
- ADC: Cirrus Logic CS47048 32 bit/192 KHz
- ADC Dynamic Range/THD: 108 dB/-98 dB
- DAC: Cirrus Logic CS8422 24 bit/192 KHz
- DAC Dynamic Range/THD: 140 dB/-120 dB
- Low level (Pre)/Sensitivity: 1-5 VRMS
- High Level (Spk In)/Sens.: 2-20 V
- Optical Digital IN: 24 bit-192 KHz
- Coaxial Digital IN: 24 bit-192 KHz
- Frequency Response (-3dB): 10 Hz - 22.5 KHz
- S/N Input: 110 dBA (D) - 106 dBA (A)
- S/N Ratio Amp + DSP at max. power: 95 dBA
- THD+N Input: 0,002% (D) - 0,005% (A)
- THD+N Amplif. + DSP Analog Input: 0,07 %
- Crosstalk at 1 Khz only DSP: 90 dB
- Crosstalk Amplifier + DSP: 45 dB
- Amp Power @ 4Ω: 6 x 80 watts
- Amp Power @ 2Ω: 6 x 120 watts
- Amp Power @ 4Ω Bridged: 3 x 240 watts
- F/R EQ: 1-6 ch Gr. & Par./31 poles
- Effect EQ: 7-8 ch Gr. & Par./11 poles
- Mute/Solo: Yes, each channel
- Time Align. (Range/Steps): 0/15 ms / 0.02 ms
- Max Delay (Cm/Steps): 515 cm / 0.68 cm
- Polarity: 0/180°

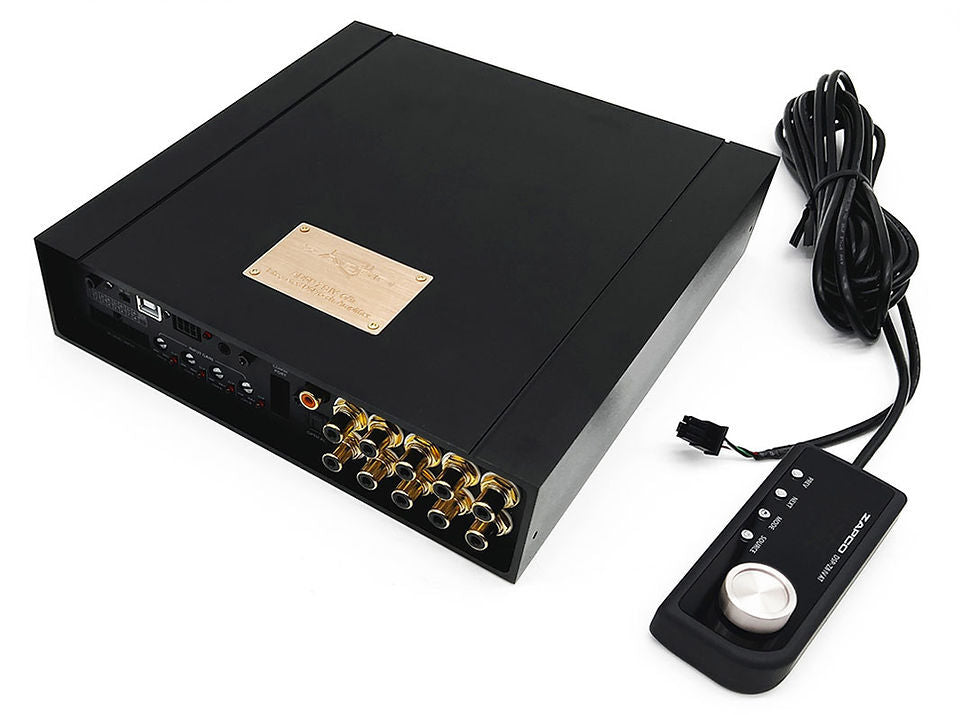

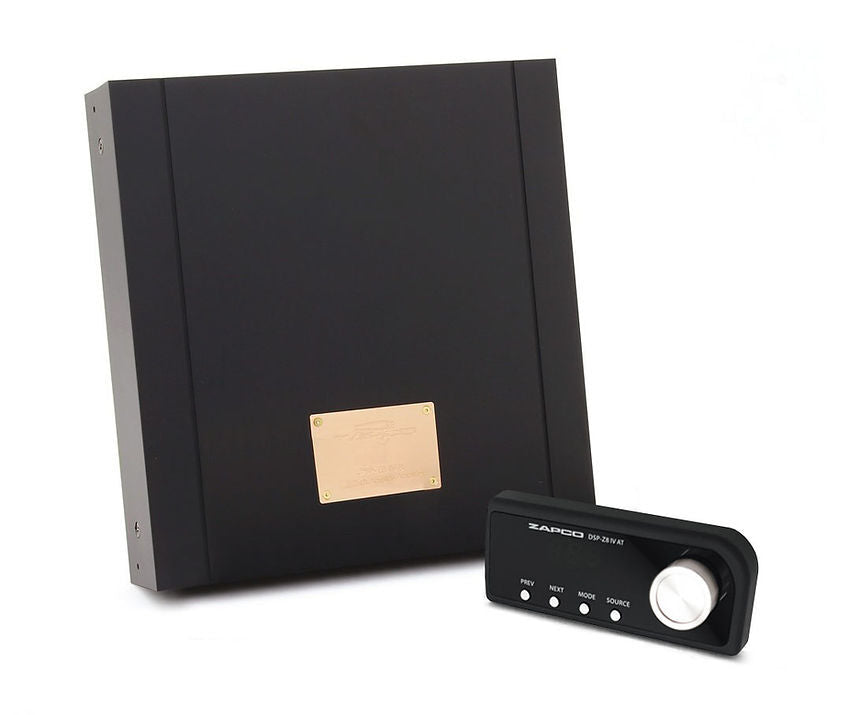

- Remote Control included
- HD-BT Streaming (with optional HD-BT II-D)
- Dimensions (mm): 213(W) x 222(L) x 50(H)
