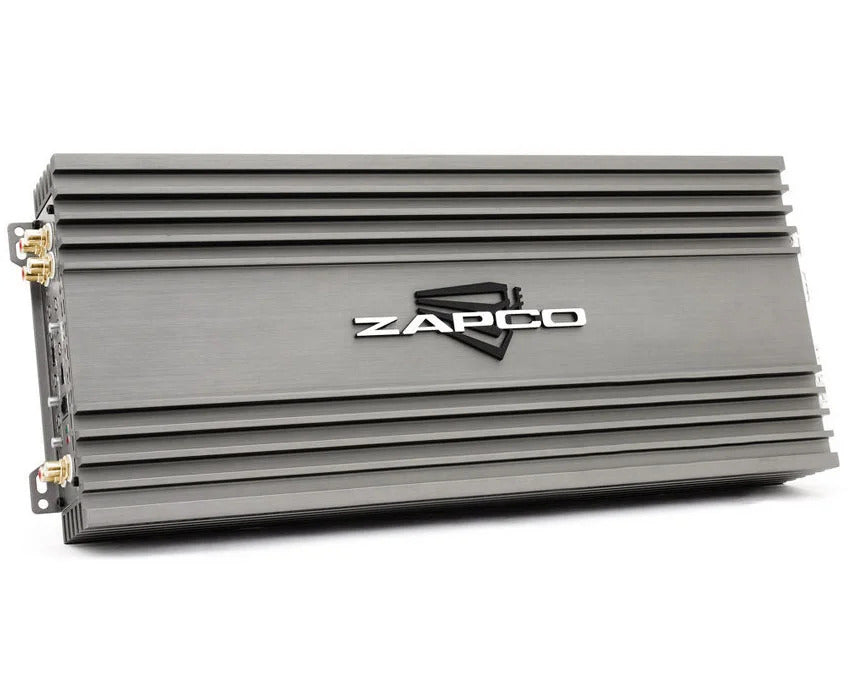

Zapco Competition Amplifier 2 4 X

Features and Functions

• 4-Channel, Class-AB Sound Quality Amplifier

• Stable into 4 ohms bridged or 2 ohms stereo load

• PWM MOSFET power supply

• High end Op-amps and Capacitors

• Variable FULL / LP / HP Electronic Crossover

• 0-12dB variable bass boost

• 4-way protection circuitry

• Wired remote control (optional)

• Panel mount RCA connectors

Specifications

• Power @ 4Ω: 4 x 165 watts

• Power @ 2Ω: 4 x 275 watts

• Power @ 4Ω Bridged: 2 x 550 watts

• THD @ Rated Power  < 0.05%

• Signal to Noise Ratio > 100dB

• Frequency Response 10Hz to 30,000Hz ±1dB

• Input Sensitivity .5v to 8v

• Dimensions in mm: 190(W) x 62(H) x 444(L) Overall: 190(W) x 62(H) x 479(L)
