Zapco HDSP-Z16V 16 Channel DSP w/HD Player
Zapco HDSP-Z16V 16 Channel DSP w/HD Player
It is hard to tell where science ends and passion begins, when they are running together with the same goal. Zapco's fifth generation processors were born to this area. The passion behind this project, and the driving force behind the required research, has been to create a digital system that had the sound of the best digital and analog systems available today. After all, listening to live music is absolutely an analog experience. The projects goal is not just the purest sound reproduction, but rather the purest sound reproduction in the listening environment, regardless of whether it is in a car, a home room or a concert hall. We brought together scientists from electronics, acoustics and digital processing, united in the effort to bring this to realization.
Zapco introduces the next generation of in-car processing. The Zapco Gen-V. The V-Series of HDSPs bring tuning features and sound quality never before offered in a car DSP. Up to 16 channels means you can build active systems at every corner of a multichannel sound system. HD means these are available with HD audio players as well. In fact, Zapco HD processors go beyond today's normal 24bit, 96/192 Khz high resolution standard. This means that today you can reproduce music superior to MP3, and even superior to CD quality. And when the next step in HD reproduction comes the Zapco HDSP will be ready to play it.
Included Wi-Fi and optional APTX HD Bluetooth allow the HDSP to connect to all auxiliary “smart” devices.
Features and Functions
- 16 Channels DSP with HD Player
- 8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 16 Analog Outputs
- Modular device: High-end solution with 18 independent PCB
- Player & DSP: All-in-one dual core processor
- DSP Processor: OMAP L-138 - 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)
- DSP Processor Point: Fixed & Floating
- DSP Sampling Rate: 96 KHz
- Player power: 456 Mhz - Arm 9 32 Bit. Read till 192 KHz/24 bit
- File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title
- USB memory stick support: Formatted FAT32 with limited memory space (2 TB)
- ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR
- ADC Processor (option B): AK5578, 32 Bit, 784 KHz, 121 dB DNR

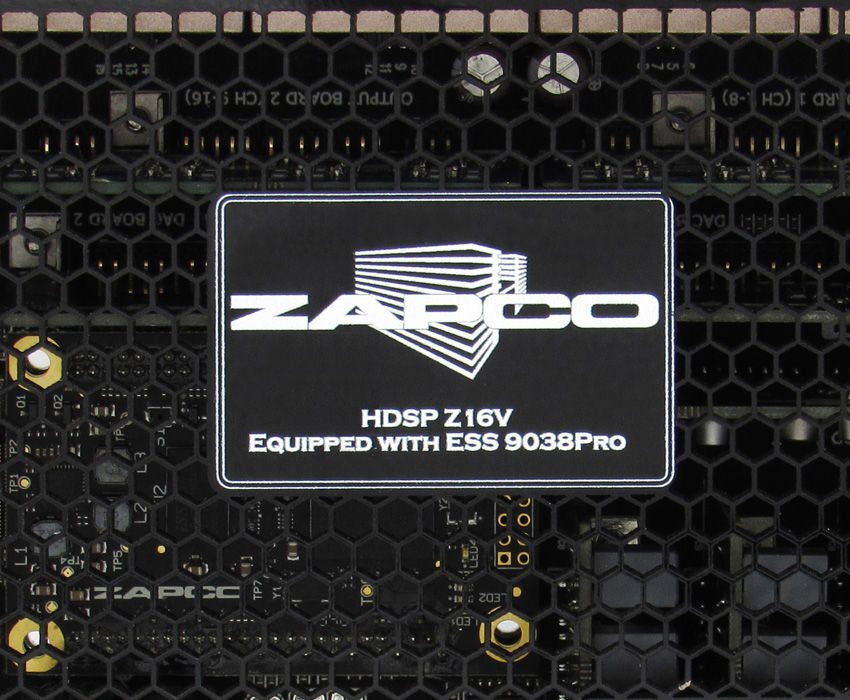

- DAC Processor (standard): ES9038PRO, 32 Bit, 784 KHz, 132 dB DNR
- Frequency response: 5Hz @ 45 KHz
- THD+N: 0,0008 (Digital Input), 0,001 (Analog Input) 1V Out
- S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)
- S/N Ratio (Digital Inputs): from 115 to 120 dB A
- S/N Ratio (Analog Inputs): from 109 to 115 dB A
- Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)
- Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)

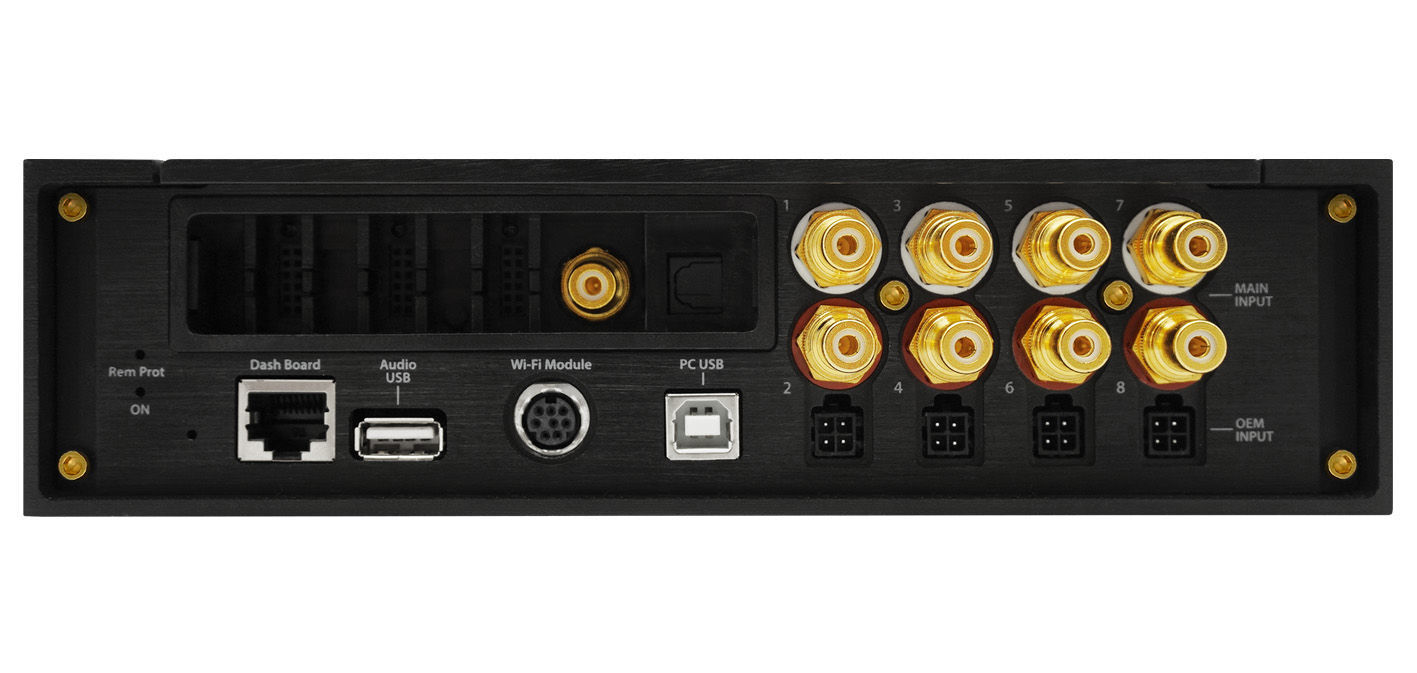

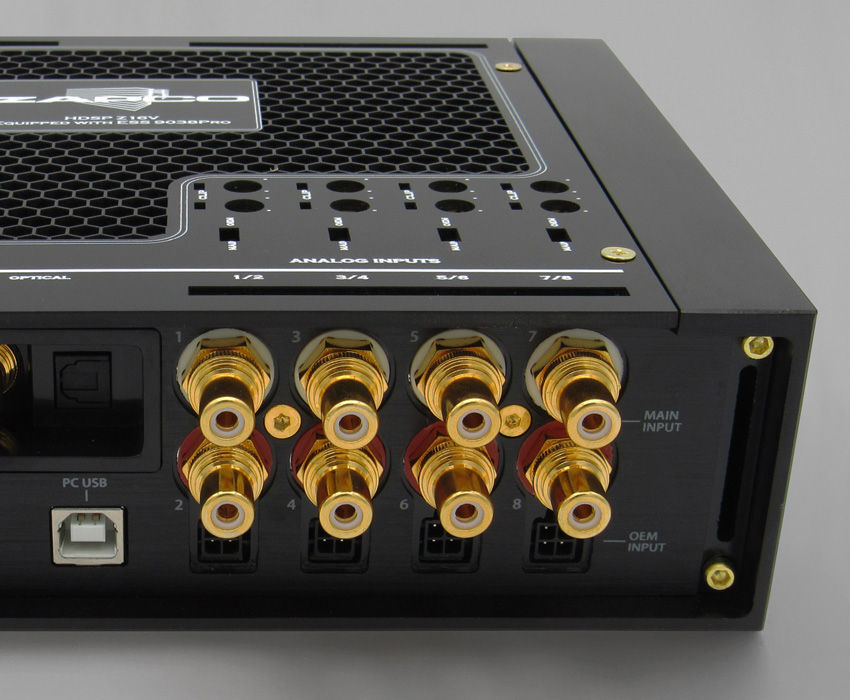

- Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt
- Digital Inputs: Optical: 24 Bit - 192 KHz, SPDIF: 24 Bit - 192 KHz, 3 x i2S: 24 Bit - 192 KHz

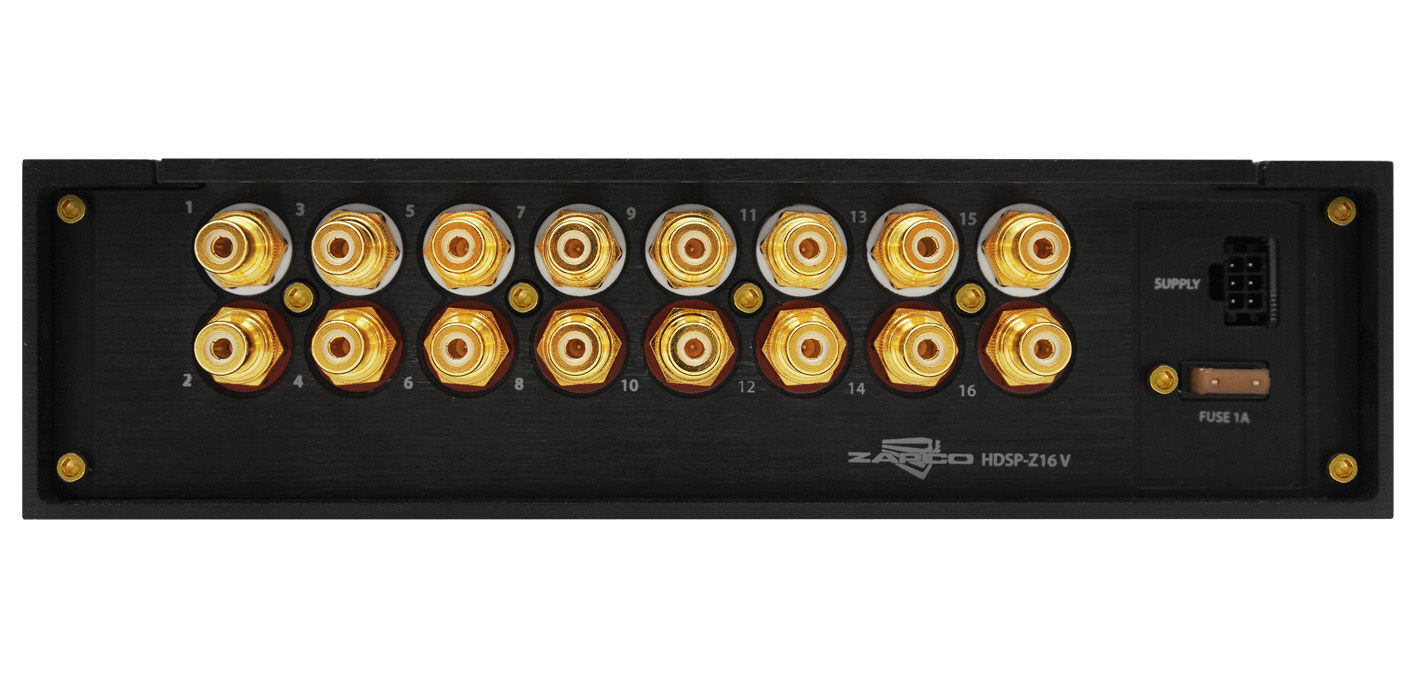

- Analog Outputs: 16 x RCA, 4 Volt (5 KOhm), Impedance: 100 Ohm

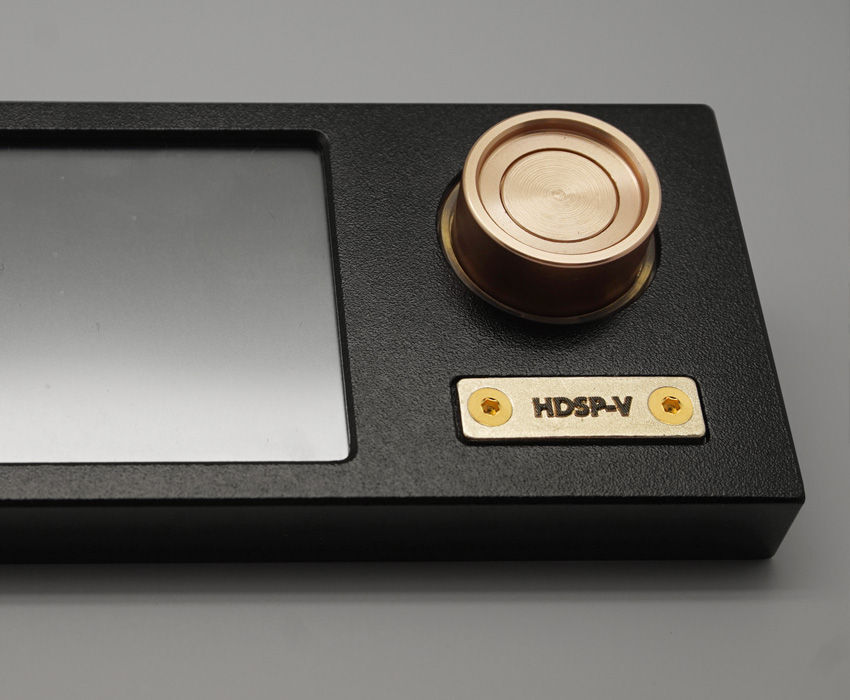

- Dash Board: 3" Touch Screen, 10 Preset
- Dash Board Control: Volume/Balance/Fader/Tone
- Wireless Control: Wi-Fi External Module (incl.)
- BT Streaming: External APTX HD Module (opt.)
- Tuning: Easy and Expert, "Double Front"
- I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX
- Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3
- EQ Parametric 30 / 6 poles
- XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.
- Phase Filter: All channels 1Hz/1 Degree step
- VSEQ Filter: 50-200 Hz - 1 Hz step
- Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A
- Stop-Start ignition system support
- Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)
- Dash Board dim. (mm): 111(L) x 16(W) x 49(H)

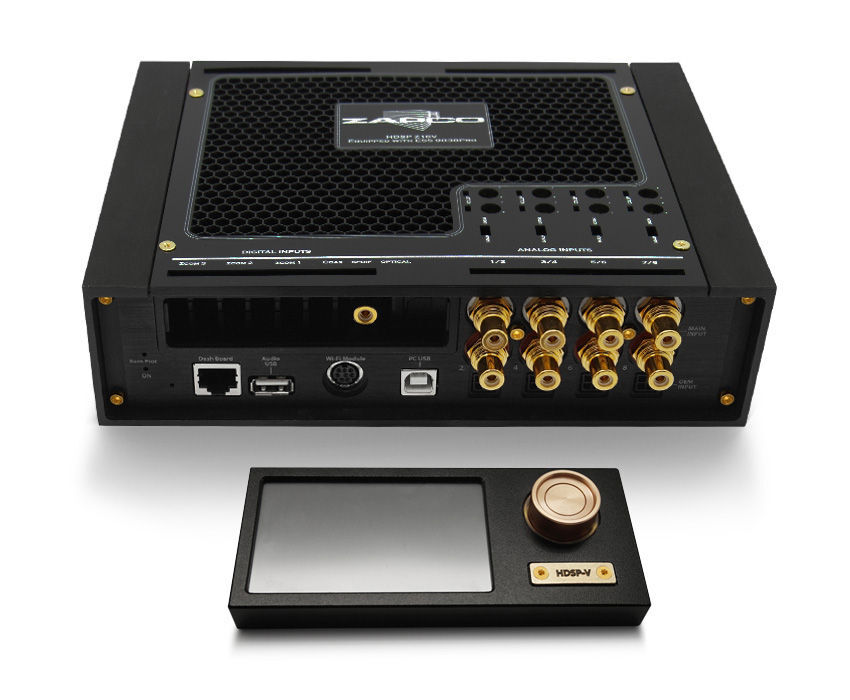

(optional top panel shown in photo)
* PLEASE NOTE THIS IS A CUSTOM ORDER UNIT PLEASE ALLOWS 4-5 WEEKS FOR DELIVERY TO AUSTRALIA
