Zapco ST-1000XMII Class D Mono Amplifier

The Studio-X line of Amplifiers from Zapco was designed specifically for today’s car audio market. The Studio-X compact chassis makes it an easy fit in any car and even in motorcycle fairings. The square, low profile chassis also means it will be easy to trim out for a great looking installation so your system will look as awesome as it sounds.

- Single channel, Class D,  Bass Amplifier

- Compact chassis

- Variable input gain control

- Variable electronic crossover

- Variable subsonic filter

- Variable bass boost control

- Variable center frequency for bass boost

- Variable phase control

- Strappable to use a pair of amps on a single voice coil

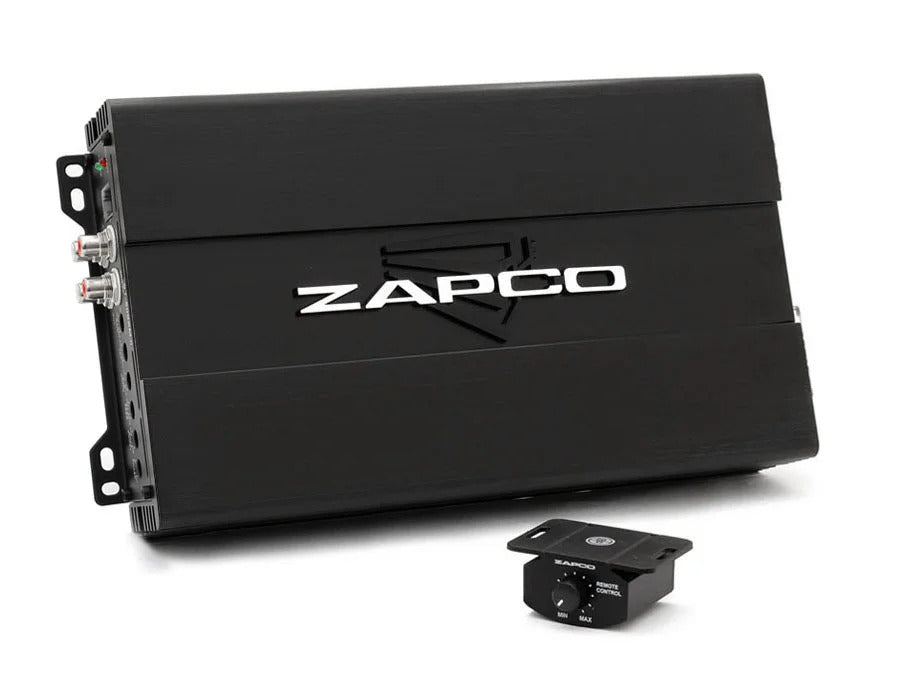

- Dash mount remote gain control

- Power @ 1Ω: 1 x 1050 watts

- THD @ Rated Power  < 0.2%THD

- Power @ 2Ω: 1 x 750 watts

- Power @ 4Ω: 1 x 450 watts

- Signal to Noise Ratio > 100dB

- THD + Noise < 0.1%

- Efficiency > 85%

- Frequency Response 10Hz to 200Hz ±1dB

- Input Sensitivity .25v to 5v

- Dimensions in mm: 160(W) x 52(H) x 300(L) Overall: 160(W) x 52(H) x 325(L)
