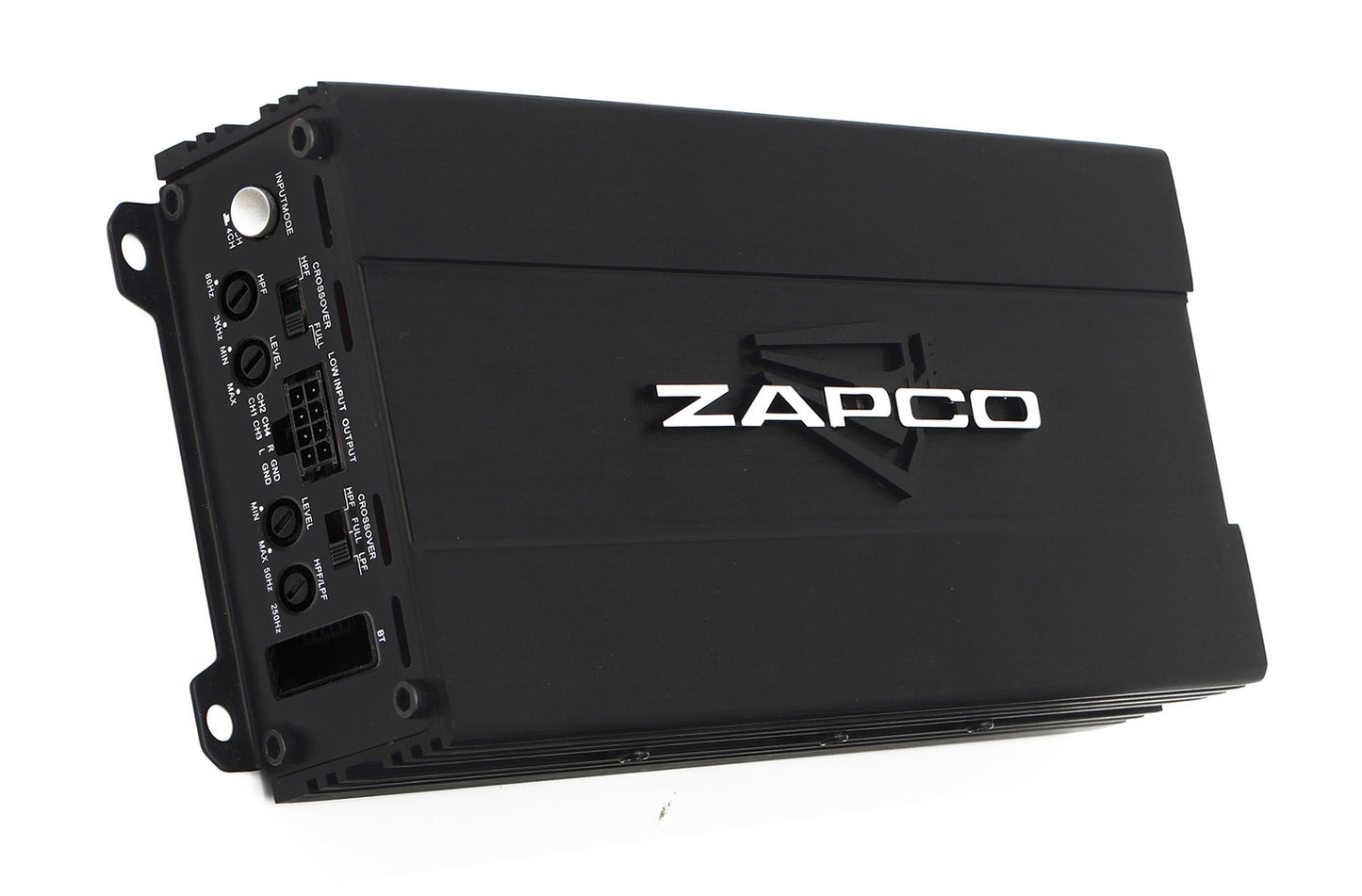

Zapco ST-104D SQ MINI 4-Ch. Class D Mini Amplifier

Zapco ST-104D SQ MINI 4-Ch. Class D Mini Amplifier

$599.00 AUD
$599.00 AUD
Sale Sold Out

The new Class D Studio MINI Amplifiers.

Over the last couple of years Zapco has introduced more than our pure high end SQ Competition amps. We have also introduced a line of great sounding amps in an affordable price range called the Studio series. The Studio D amps are full range Class D amps with great sound, a compact chassis, and more crystal clear power than the competition.

​

Thanks to a brand new technology, we are able use the NXP Class D solution to get amazing power and performance in a incredibly compact chassis with over 90% efficiency. And this diminutive little beast has all the features of the larger amps... and optional HD Bluetooth streaming!

The HD Bluetooth Module (optional) is a Qualcomm CSR8675 premium tier single-chip solution with 120 MHz DSP, delivering high quality

wireless audio performance over Bluetooth and aptX HD making it an ideal choice for premium audio products.

Features and Functions

- 4-Channel, Full Range, Class D
- 2-Ch./4-Ch. Input mode
- RCA and Speaker Level inputs
- Optional HD Bluetooth
- Variable input gain control
- Variable electronic crossover
- Auto-on with speaker level inputs
- Micro chassis


Technical Specifications

- Power @ 4Ω: 4 x 95 watts
- THD @ Rated Power < 0.1%
- Power @ 2Ω: 4 x 120 watts
- Power Bridged @ 4Ω: 2 x 240W RMS
- Signal to Noise Ratio > 90dB
- Frequency Response 15Hz to 30KHz ±1dB
- Input Sensitivity .25v to 5v
- Net Dimensions (mm): 95(W) x 37(H) x 214(L)
- Overall Dimensions (mm): 95(W) x 37(H) x 236(L)
