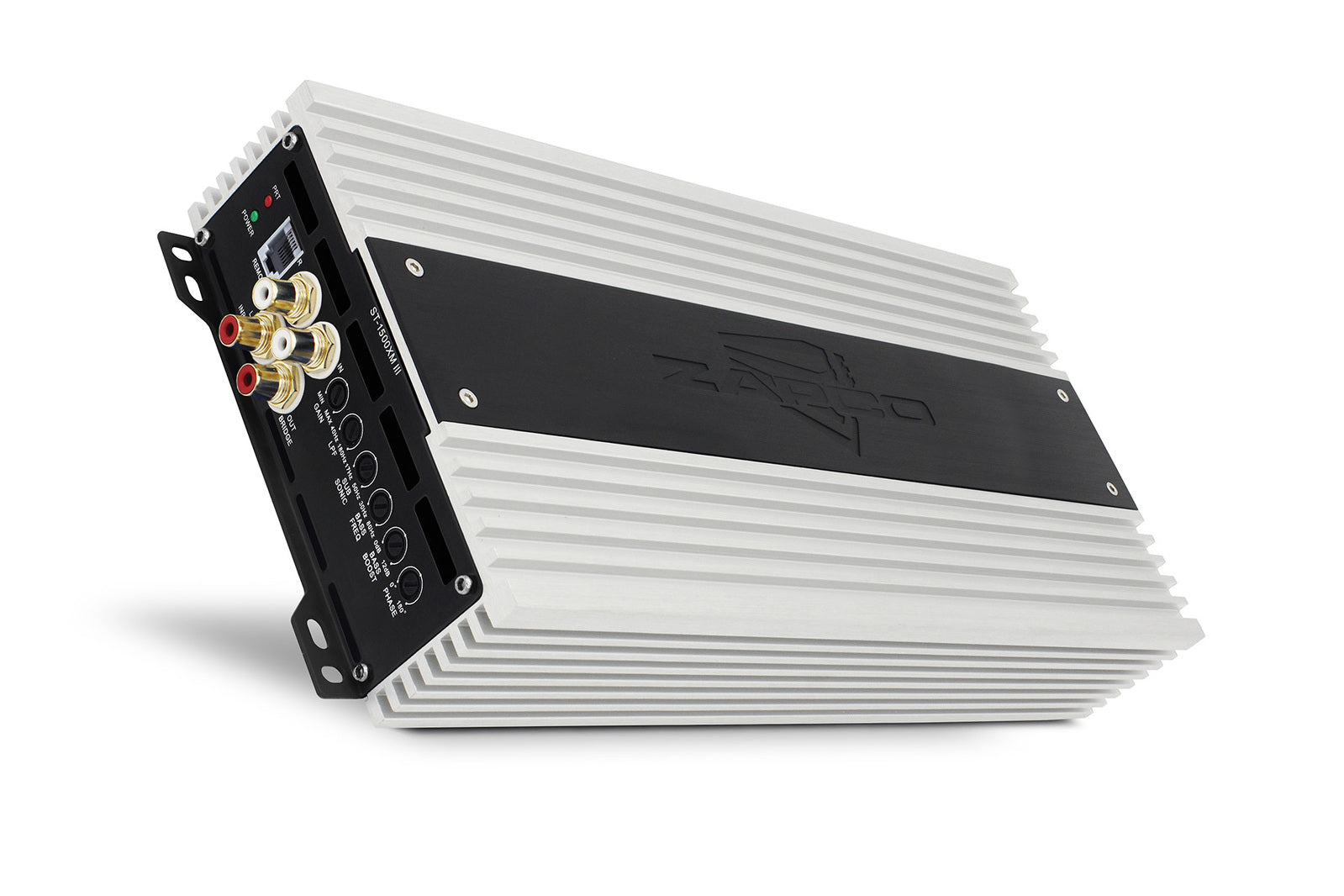

Zapco ST-1500XM III 24 Mono 24V Class D Amplifier
Zapco ST-1500XM III 24 Mono 24V Class D Amplifier
Regular price
$999.00 AUD
Regular price
Sale price
$999.00 AUD
Unit price
/
per
The ST-X Series. Class A/B and D Amplifiers.
The Studio-X line of amplifiers from Zapco was designed specifically for today’s car audio market. The Studio-X compact chassis makes it an easy fit in any car and even in motorcycle fairings.
The square, low profile chassis also means it will be easy to trim out for a great looking installation so your system will look as awesome as it sounds. And speaking of sound...This is a Zapco amplifier and sound is what it’s all about. These are Class A/B Zapco amplifiers.
The Studio-X have the same high quality caps, op-amps, and bi-polar outputs that made the C2K and Reference series amps the industry standard for sound quality.
Reliability? Zapco defines reliability. It’s not at all unusual to see Zapco amps moved from car to car and from generation to generation. Zapco Amps produced in the ‘90 are still being traded and bought on the internet by sound quality fans world wide. The Studio-x will be no different.

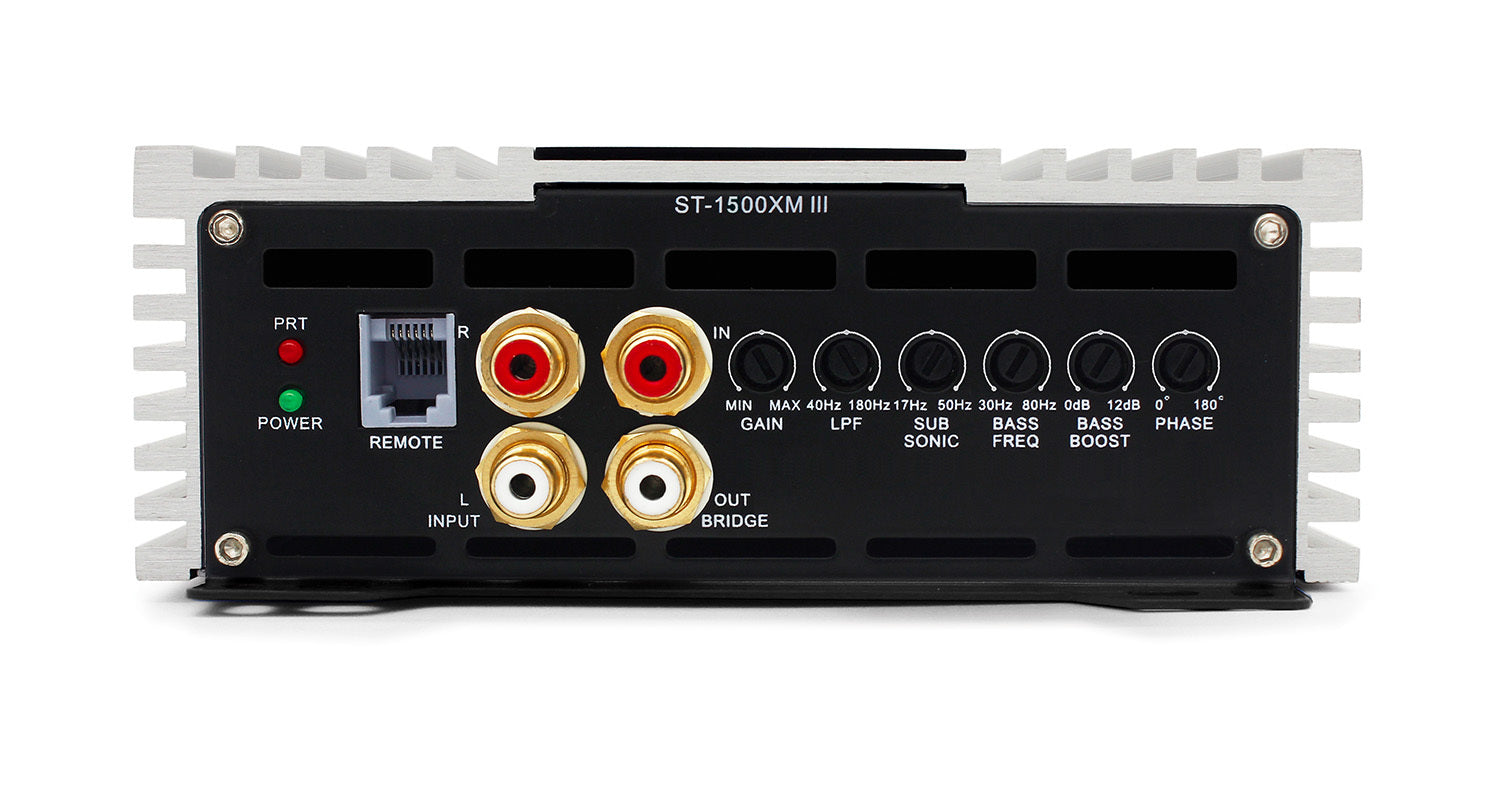

Features and Functions
- Single channel, Class D, Bass Amplifier
- New aluminum chassis
- Variable input gain control
- Variable electronic crossover
- Variable subsonic filter
- Variable bass boost control
- Variable center frequency for bass boost
- Variable phase control
- Strappable to use a pair of amps on a single voice coil
- Dash mount remote gain control
- Power Supply Voltage: 24V (20 - 33 Peak)
- New aluminum chassis
Technical Specifications
- Power @ 1Ω: 1 x 1600 watts
- THD @ Rated Power < 0.2%THD
- Power @ 2Ω: 1 x 1150watts
- Power @ 4Ω: 1 x 800 watts
- Signal to Noise Ratio > 85dB
- THD + Noise < 0.2%
- Efficiency > 85%
- Frequency Response 10Hz to 200Hz ±1dB
- Input Sensitivity .25v to 5v
- Net Dimensions (mm): 160(W) x 58(H) x 375(L)
- Overall Dimensions (mm): 160(W) x 58(H) x 400(L)
