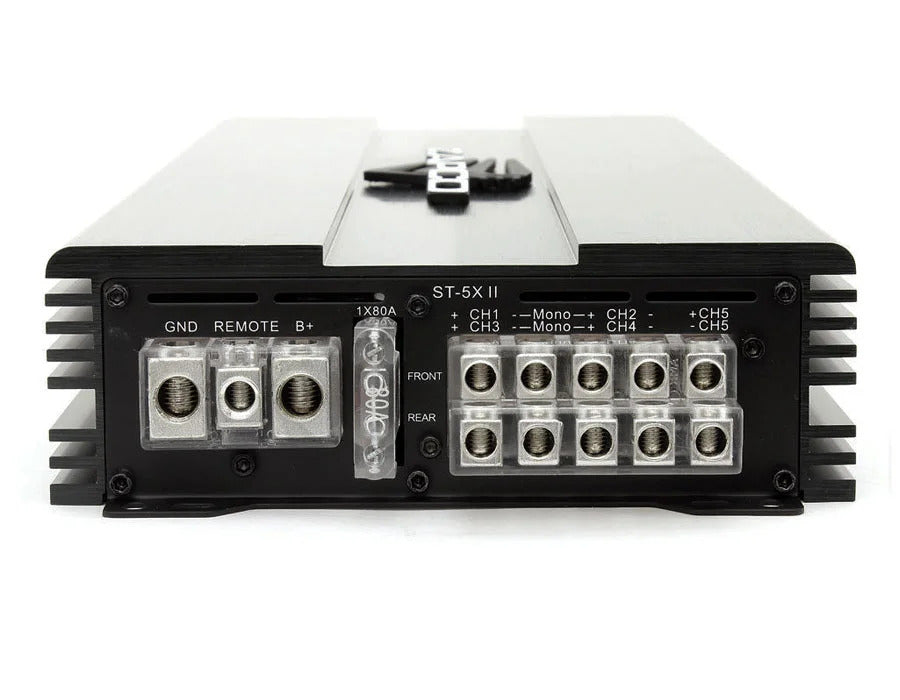

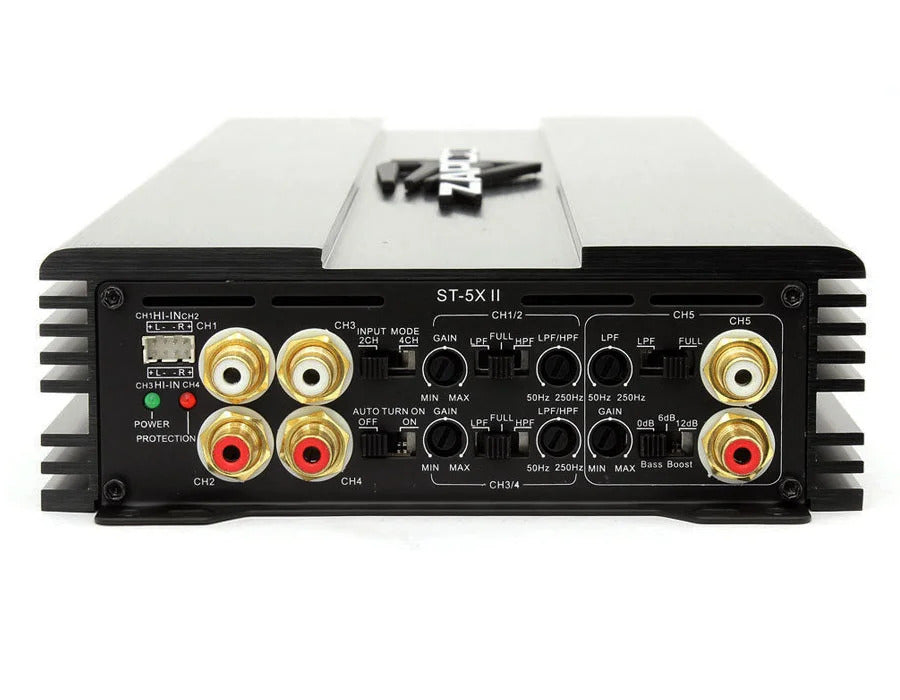

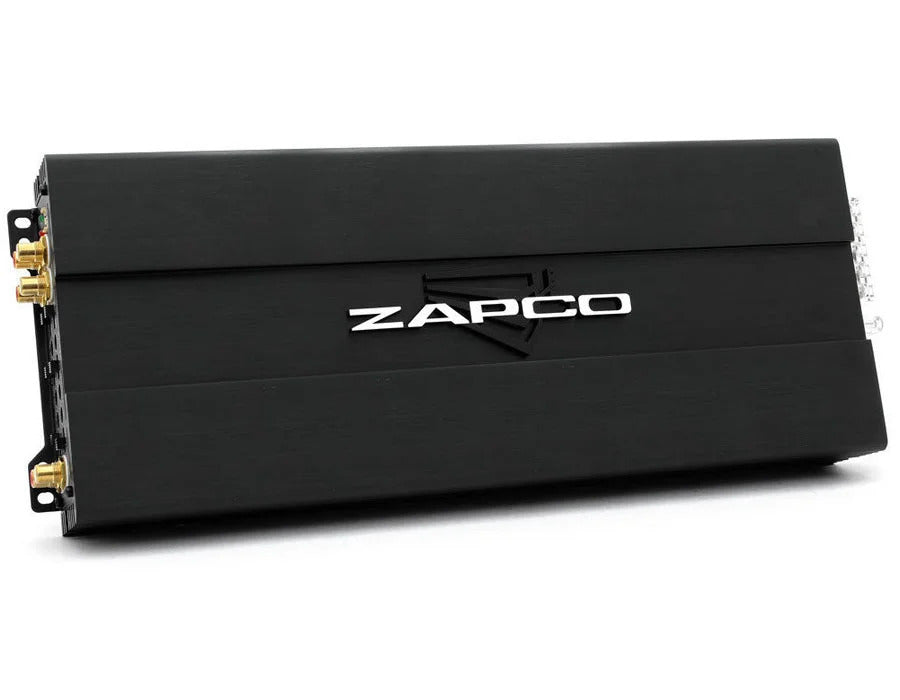

Zapco ST-5X II 5 Ch Class A/B Amplifier

Features and Functions

• 5-Channel, Full Range, Class A/B

• Variable input gain control

• Variable electronic crossover

• Auto-on with Speaker level inputs

• Compact chassis

• Variable bass boost control

Specifications

• Power @ 4Ω: 4 x 100 watts Plus 1 x 200 watts

• THD @ Rated Power  < 0.5%THD

• Power @ 2Ω: 4 x 150 watts Plus 1 x 300 watts

• Power Bridged @ 4Ω: 2 x 300 watts RMS Plus 1 x 300 watts

• Signal to Noise Ratio > 95dB

• THD + Noise < 0.5%

• Channel Separation  >60dB

• Frequency Response 15Hz to 30KHz ±1dB

• Input Sensitivity .25v to 5v

• Dimensions in mm: 160(W) x 52(H) x 392(L) Overall: 160(W) x 52(H) x 432(L)
