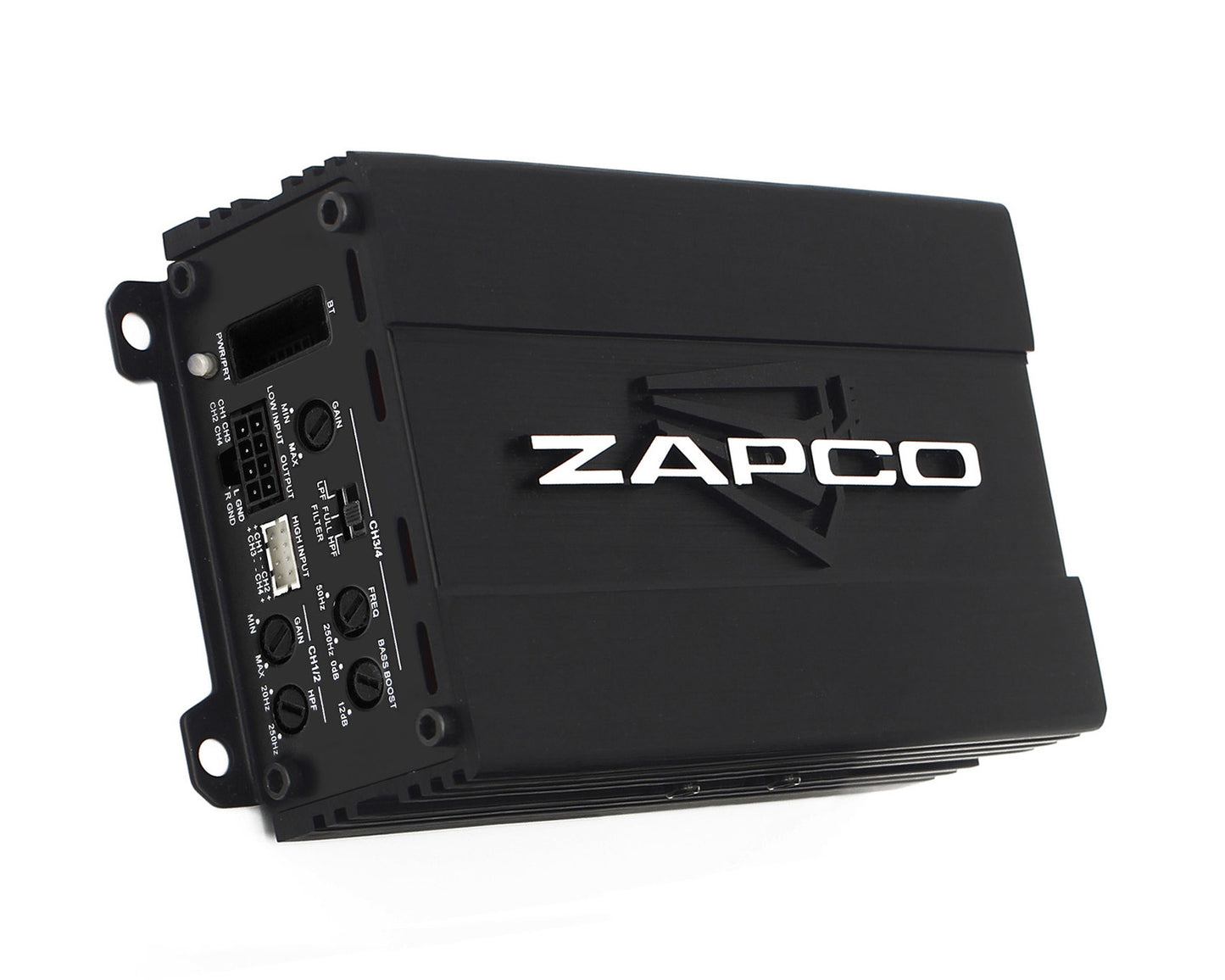

Zapco ST-64D SQ MINI 4-Ch. Class D Mini Amplifier

Zapco ST-64D SQ MINI 4-Ch. Class D Mini Amplifier

Regular price $499.00 AUD
Regular price Sale price $499.00 AUD
Sale Sold Out

The new Class D Studio MINI Amplifiers.

Over the last couple of years Zapco has introduced more than our pure high end SQ Competition amps. We have also introduced a line of great sounding amps in an affordable price range called the Studio series. The Studio D amps are full range Class D amps with great sound, a compact chassis, and more crystal clear power than the competition.

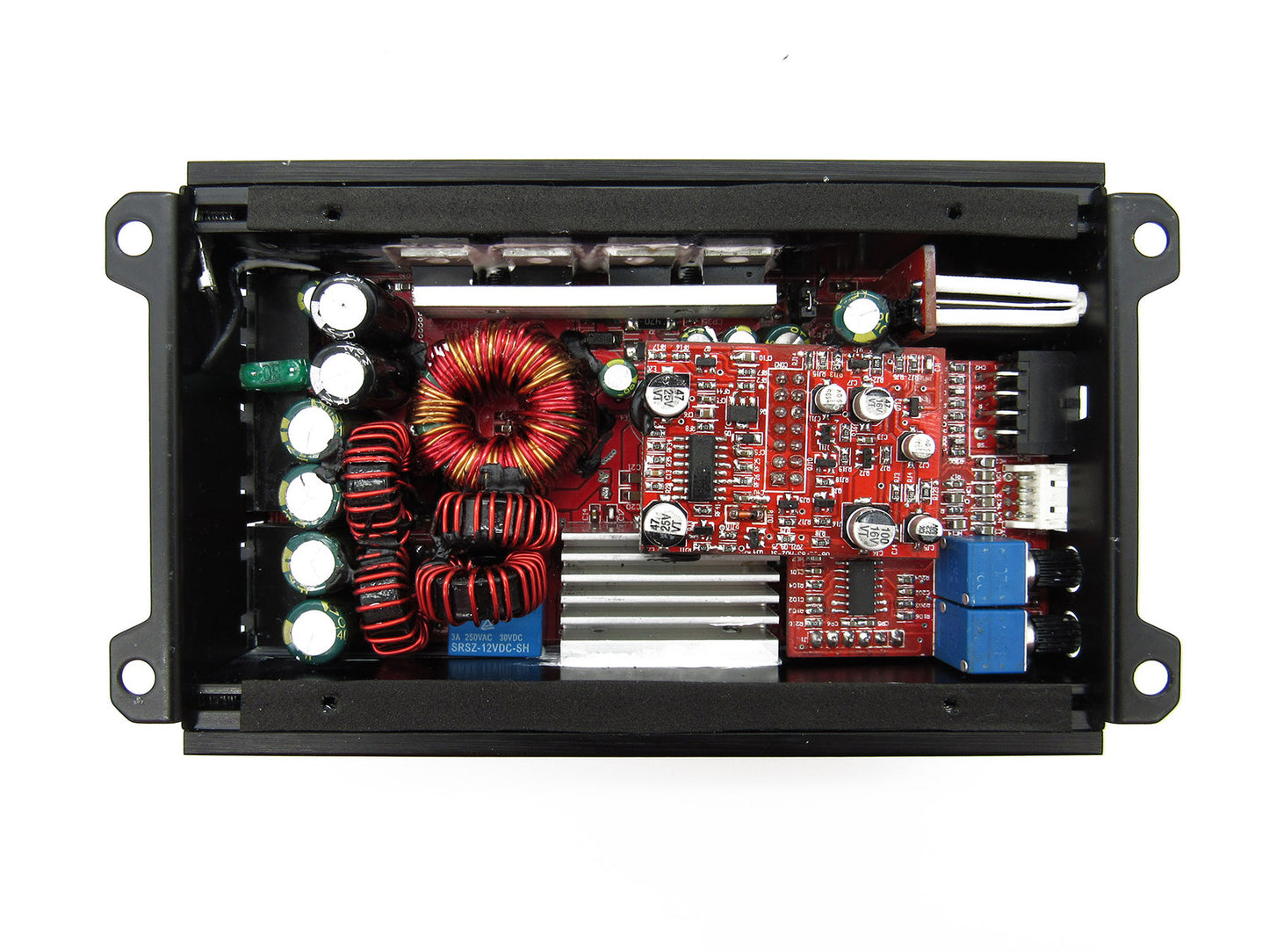

Thanks to a brand new technology, we are able use the NXP Class D solution to get amazing power and performance in a incredibly compact chassis with over 90% efficiency. And this diminutive little beast has all the features of the larger amps... and optional HD Bluetooth streaming!

The HD Bluetooth Module (optional) is a Qualcomm CSR8675 premium tier single-chip solution with 120 MHz DSP, delivering high quality

wireless audio performance over Bluetooth and aptX HD making it an ideal choice for premium audio products.

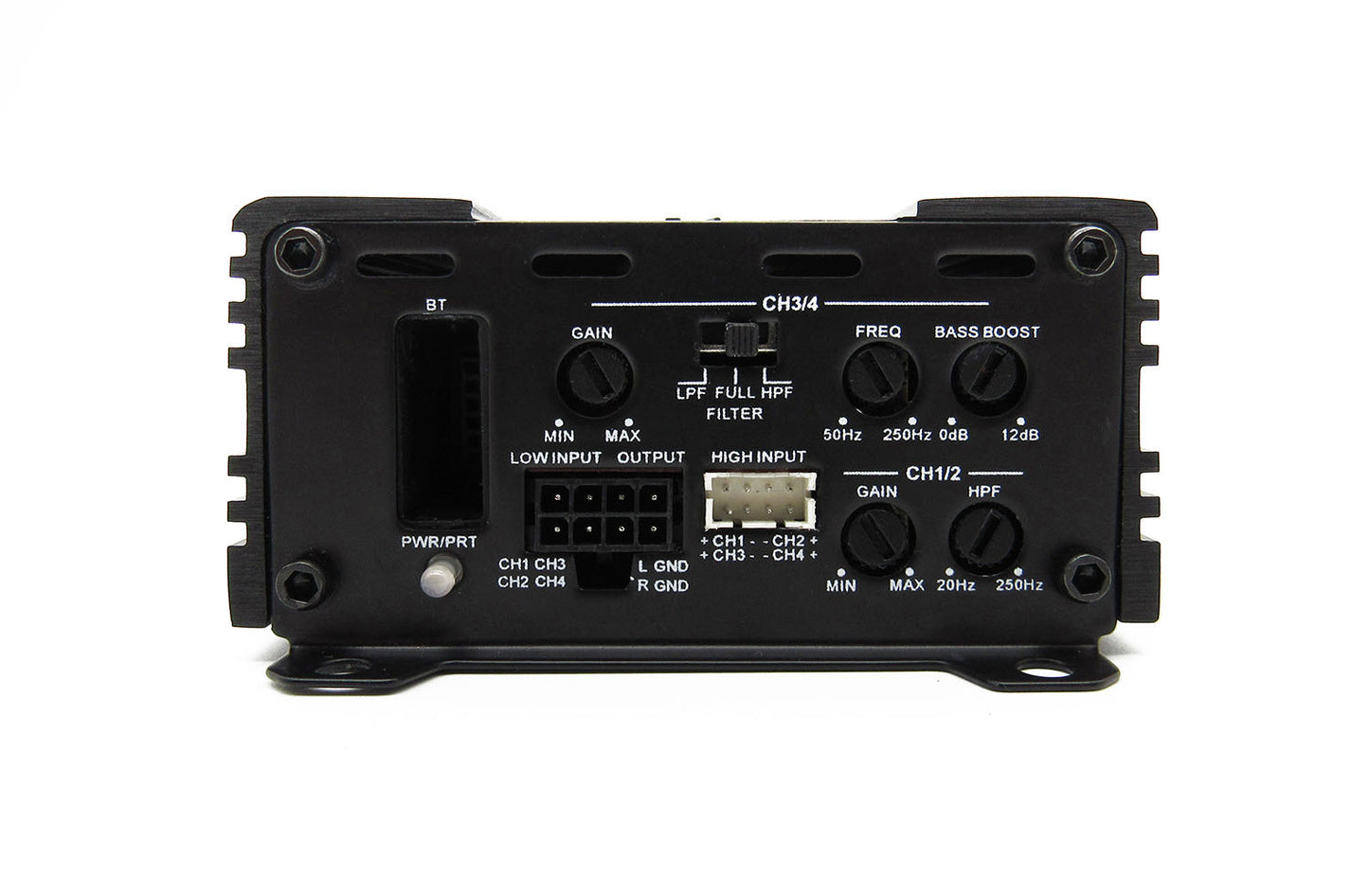

Features and Functions

- 4-Channel, Full Range, Class D
- RCA and Speaker Level inputs
- Optional HD Bluetooth
- Variable input gain control
- Variable electronic crossover
- Auto-on with speaker level inputs
- Micro chassis
- Variable bass boost control


Technical Specifications

- Power @ 4Ω: 4 x 50 watts
- Power @ 2Ω: 4 x 75 watts
- Power Bridged @ 4Ω: 2 x 150W RMS
- THD @ Rated Power < 0.1%
- Signal to Noise Ratio > 90dB
- Frequency Response 15Hz to 30KHz ±1dB
- Input Sensitivity .25v to 5v
- Net Dimensions (mm): 86(W) x 42(H) x 133(L)
- Overall Dimensions (mm): 86(W) x 42(H) x 151(L)
